Boxco Q-series 15015090mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Hinge Type with Plate

EnclosureABSGrey Cover150x150x90mm

SKU BC-AGQ-151509G

Log in to see price Trade pricing & online ordering for account holders

In stock

Overview

BC-AGQ-151509G is a 150×150×90 mm ABS enclosure with a grey cover from the Boxco Q Series.

Features

BOXCO electrical juntion box include plastic latch and plastic hinge.
Our IP66/IP67 waterproof control box is easy to removable cover and body
AGQ series is included G plate.**Dimensions and specifications are subject to change without notice.

Specifications

BC-AGQ-151509GSpecifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included): 150×150×90 mm (5.91×5.91×3.54 in)
Mounting plate dimension M1 × M2: 124 × 124 mm

Material

Material: ABS
Cover: Grey
Mounting plates: 1515 G (Plastic, G type), 1515 SQ (Steel, SQ type)

Protection & environment

IP rating: IP66/67
IK rating: IK08
Operating temperature: -40 ~ +70℃
Flammability rating (UL 94): 94-HB

Test conditions and notes1

Dimensions and specifications are subject to change without notice.

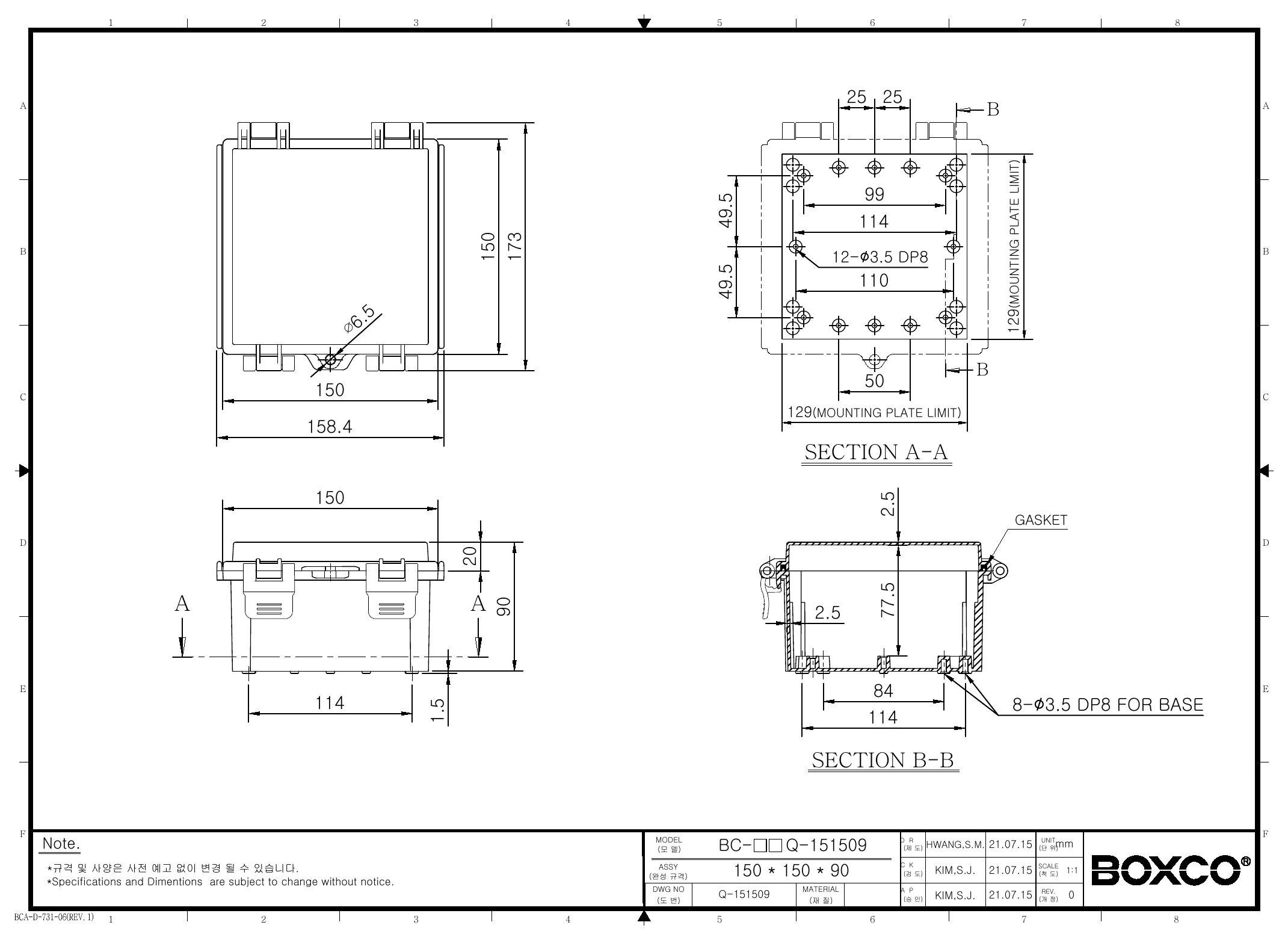

Technical drawings

BC-AGQ-151509G Dimensions (mm) — Dimensions (mm)

Downloads

Datasheet1

BC-AGQ-151509G datasheetBC_AGQ_151509.pdf PDF Download

FAQ

What are the main specifications of the Boxco Q-series BC-AGQ-151509G enclosure?

This model is a plastic enclosure made from ABS with a grey cover and hinge-type design. Its external size is 5.91 x 5.91 x 3.54 inches (150 x 150 x 90 mm), and it is rated IP67 for dust and water protection and IK08 for impact resistance. The enclosure also includes a mounting plate.

What kinds of applications is this enclosure suitable for?

This enclosure is suited for protecting electrical and control components in industrial, commercial, and general outdoor environments where moisture and dust are concerns. Its hinged cover and included mounting plate make it a practical choice for equipment housings, junction protection, and control box applications. It is intended for applications that benefit from a durable, non-metallic enclosure.

Is the BC-AGQ-151509G suitable for outdoor or harsh environments?

Yes, this model is designed for demanding environments with an IP67 rating for strong resistance to dust ingress and water exposure. It also carries an IK08 impact rating and uses high-impact ABS material for added durability. The stated operating temperature range is -40°C to 70°C.

What does the hinge-type design offer on this Boxco Q-series enclosure?

The hinge-type construction allows the cover to open and close without being fully removed, which can be useful for repeated access during inspection or maintenance. This model also uses a plastic draw latch designed for corrosion resistance. The design is part of Boxco's economical Q-series enclosure range.

Does this enclosure come with a mounting plate?

Yes, the BC-AGQ-151509G includes a mounting plate. According to the product details, the plate comes free of charge and uses pre-drilled attachment points to help save time when organizing internal equipment. This is a model-specific included feature.

What material and color is this enclosure?

This enclosure is made from ABS plastic and has a grey cover. The product description emphasizes high impact resistance and durability for the Q-series material. That makes it a good fit when a lightweight non-metallic enclosure is preferred.

What warranty is offered for this model?

The listed warranty period for the BC-AGQ-151509G is 1 year. If warranty handling or coverage details are important for your purchase, those should be confirmed with the seller's policy for this specific SKU. The product data provided identifies the duration as one year.
