Boxco

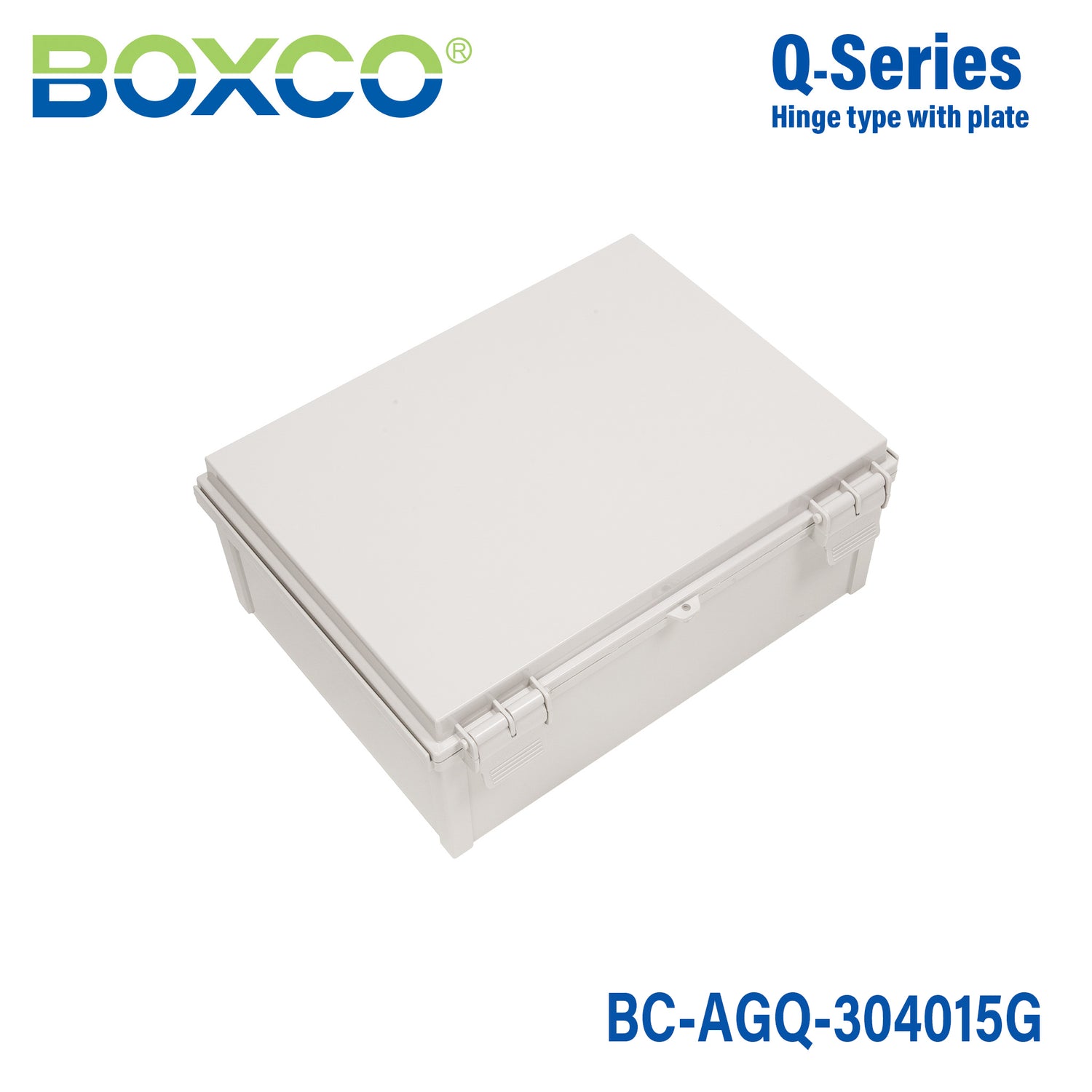

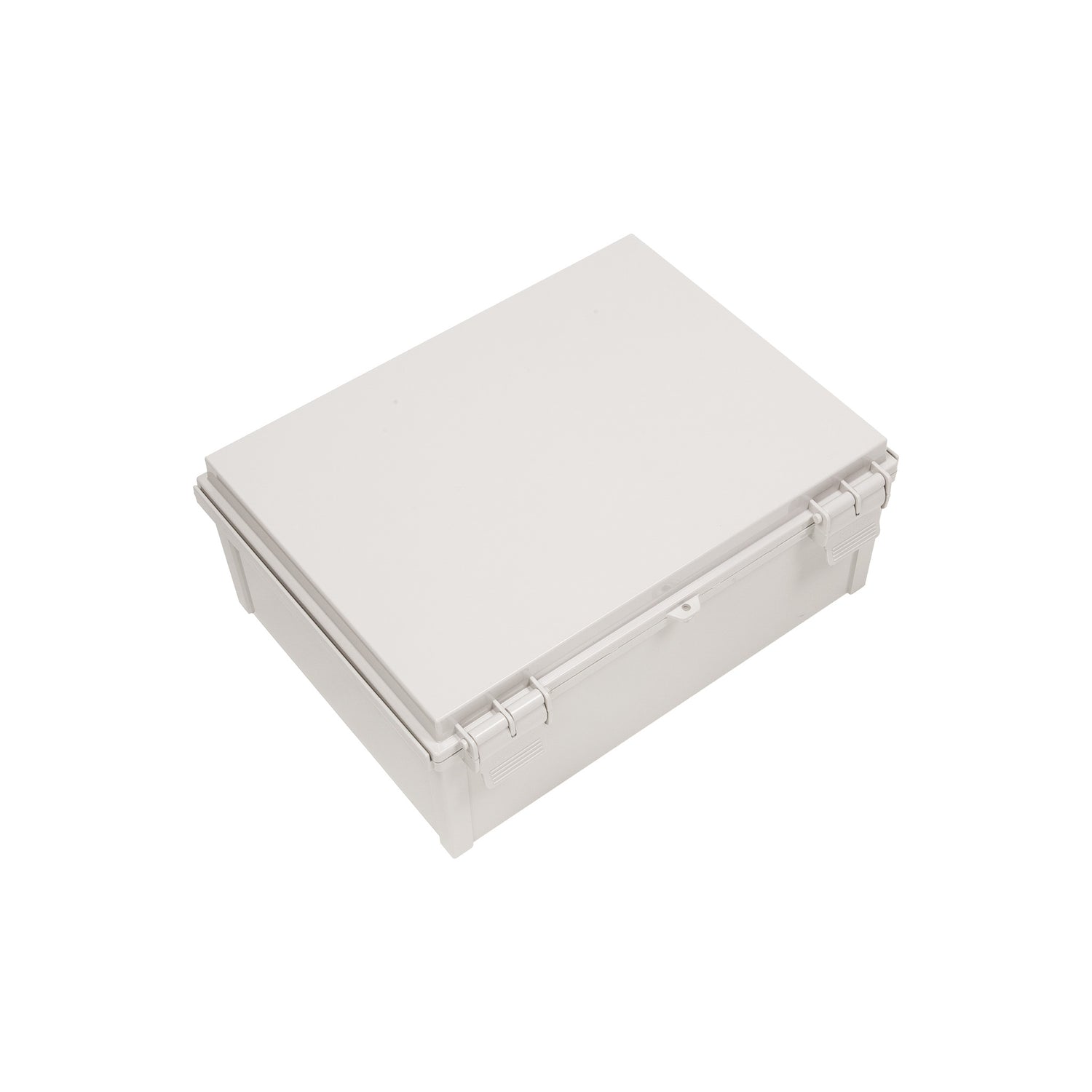

Boxco Q-Series 300x400x150mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Hinge Type with Plate

Enclosure, ABS, Grey Cover, 300x400x150mm
SKU:
BC-AGQ-304015G
Please for Pricing
|

Description

Boxco Q-series is our most economic hinge series, It is made of high impact resistant material which is very strong against external impact and also prevents breakage during hole and press processing. Special spec can be added besides standard specification. We can supply optimized products with the spec and material you choose.



Features

  • Latch - Main part of the draw latch is made of plastic so it is very strong and anti-corrosion.
  • Pre-molded Mounting Screw Nuts – You can easily fix DIN RAIL or other equipment on to the pre molded Screw nuts
  • Roof Protection – Both ends of the Q series are protruded to protect against penetration of water when using it outdoor and penetration of dust when opening/closing the cover
  • Gasket – The gasket in injected by super precise CNC robot machine to product excellent waterproof and dust-proof performance
  • Mounting Plate Attachment Point – Mounting Plate comes with the box free of charge and comes with pre-drilled holes so saves your time and cost

Backed up with all the certifications and across the globe, Boxco Enclosures are suitable for exporting to other countries and to be use across international businesses.

Due to the low cost and high reliability as well as its excellent durability and waterpoof features, boxco enclosures can be used in many different applications, protecting electrical connections and components from moisture, dust and other environmental factors

Specifications
  • Brand
    Boxco
  • Series
    Boxco Q Series
  • Standards Met
    CE,TUV,UL
  • Operating Temperature
    -40°C~70°C
  • Warranty
    1 Year
  • Length
    30 cm
  • Width
    40 cm
  • Height
    15 cm
  • Weight
    5 kg

File Downloads

::specification::

Payment & Security

Payment methods

  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

What are the main specifications of the Boxco Q-Series BC-AGQ-304015G enclosure?

This model is a hinge-type ABS plastic enclosure with a grey cover and an included mounting plate. Its external size is 11.81 x 15.75 x 5.91 inches (300 x 400 x 150 mm). It is rated IP67 for dust and water protection, IK08 for impact resistance, and weighs 5.0 kg.

Is this enclosure suitable for outdoor or washdown environments?

This enclosure is designed for demanding environments where dust and water resistance matter, with an IP67 rating. Boxco also notes roof protection features on the Q-Series to help reduce water ingress and dust entry during cover operation. Buyers should still confirm the overall application design matches their site conditions.

What temperature range can this enclosure handle?

The listed operating temperature range for this model is -40°C to 70°C. That makes it suitable for many industrial and outdoor enclosure applications where temperature swings are a concern. It is important to evaluate the full assembly, since internal components may have different limits.

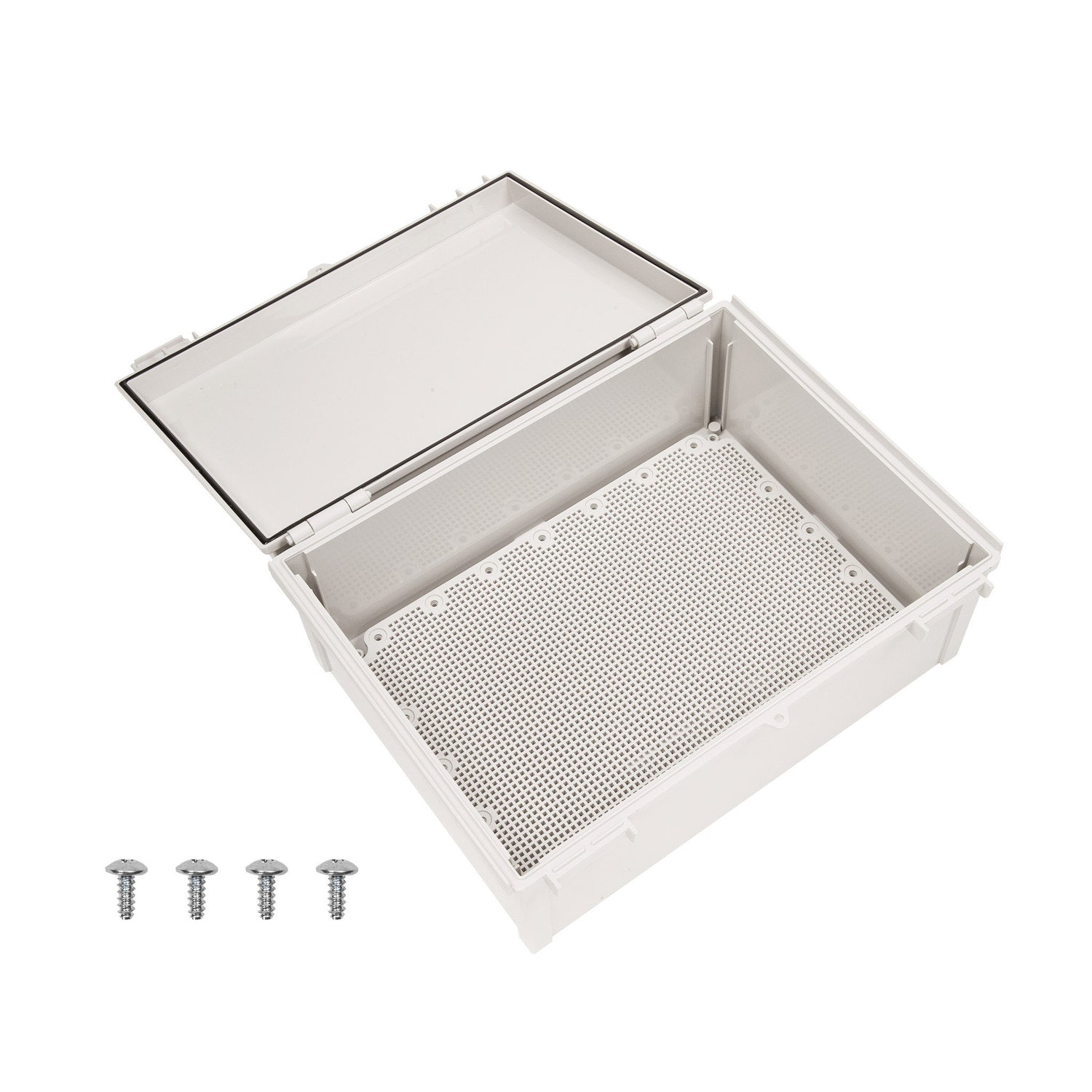

What is included with this Boxco Q-Series enclosure?

This version includes the enclosure body, hinged cover, and mounting plate. The product description states the mounting plate is supplied free of charge and comes with pre-drilled holes. That can help reduce panel preparation time for equipment mounting inside the enclosure.

What kinds of applications is this enclosure commonly used for?

Boxco positions this enclosure for protecting electrical components and connections from moisture, dust, and external impact. It is a practical fit for industrial, commercial, and outdoor equipment housings where a sealed non-metallic enclosure is needed. Typical buyer interest is around general control, protection, and equipment housing applications rather than direct product-specific integration.

What distinguishes the Q-Series hinge type enclosure from a basic plastic box?

This Q-Series model combines a hinged design, latch system, pre-molded mounting screw nuts, and an included mounting plate in one enclosure. It is also described as Boxco's economic hinge series, built from high impact resistant material for durability during processing and use. For buyers comparing enclosure options, the combination of IP67, IK08, and included plate is a meaningful differentiator.
