Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Boxco

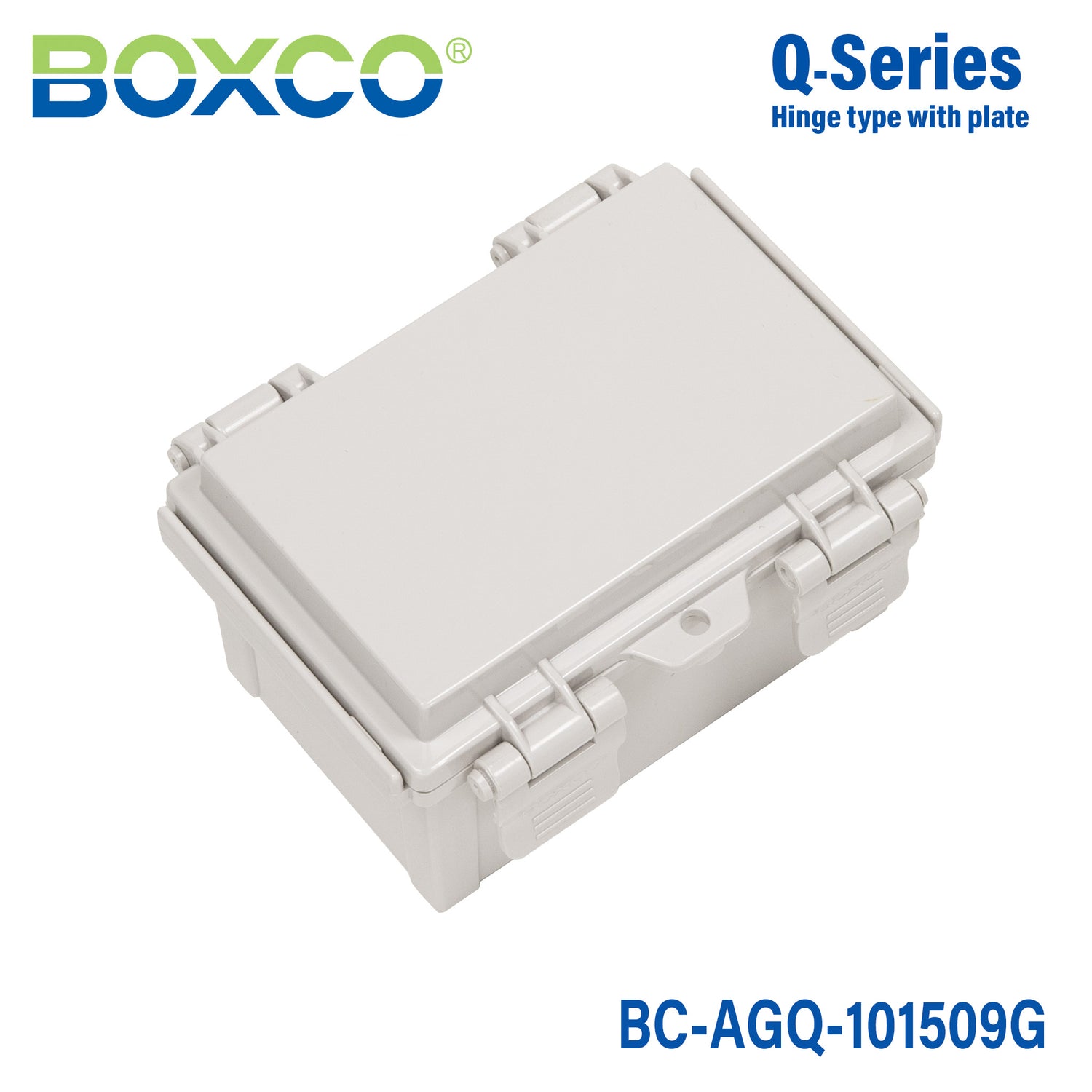

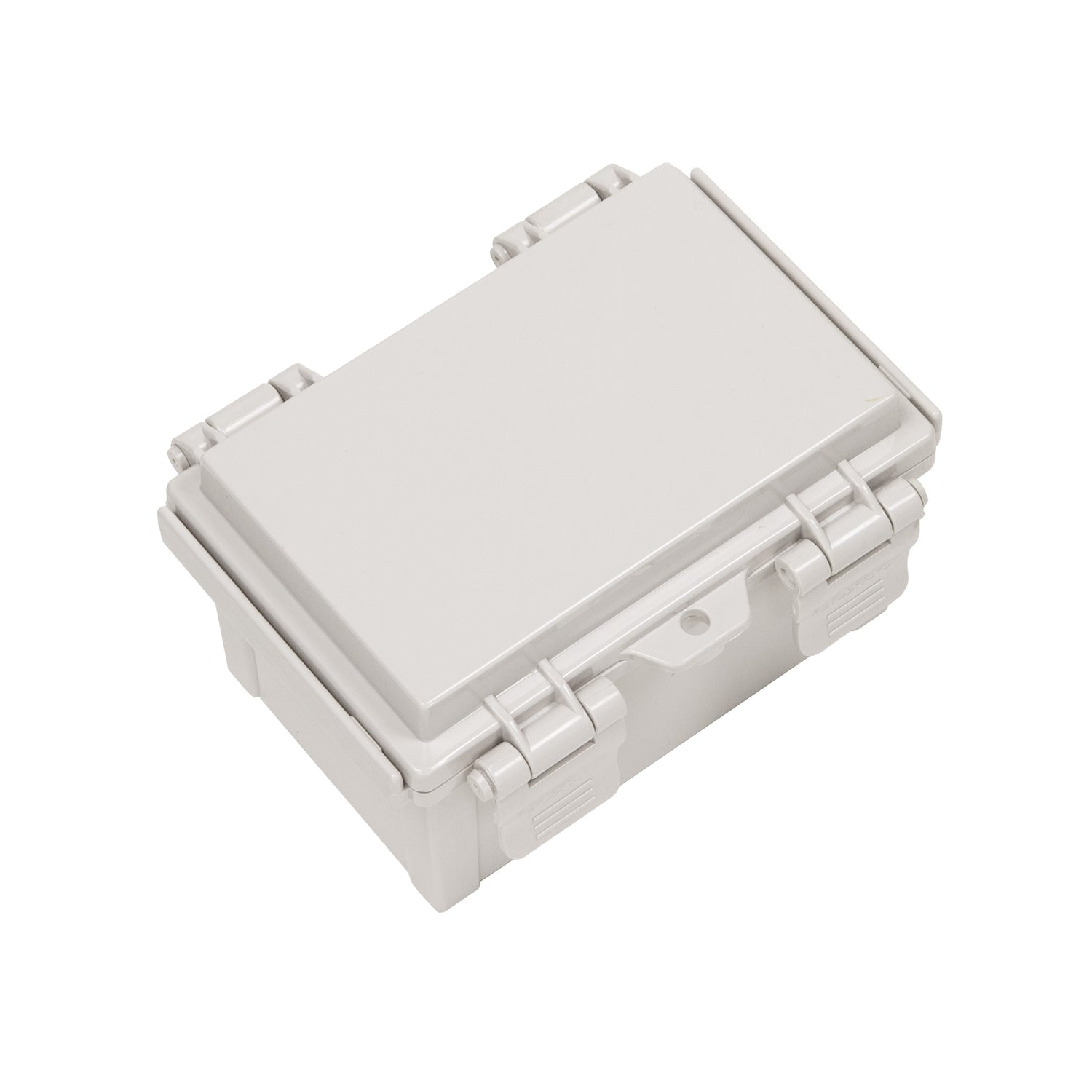

Boxco Q-Series 100x150x90mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Hinge Type with Plate

EnclosureABSGrey Cover100x150x90mm
SKU BC-AGQ-101509G
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Overview

BC-AGQ-101509G is a 100×150×90 mm ABS enclosure with a grey cover from the Boxco Q Series.

Features

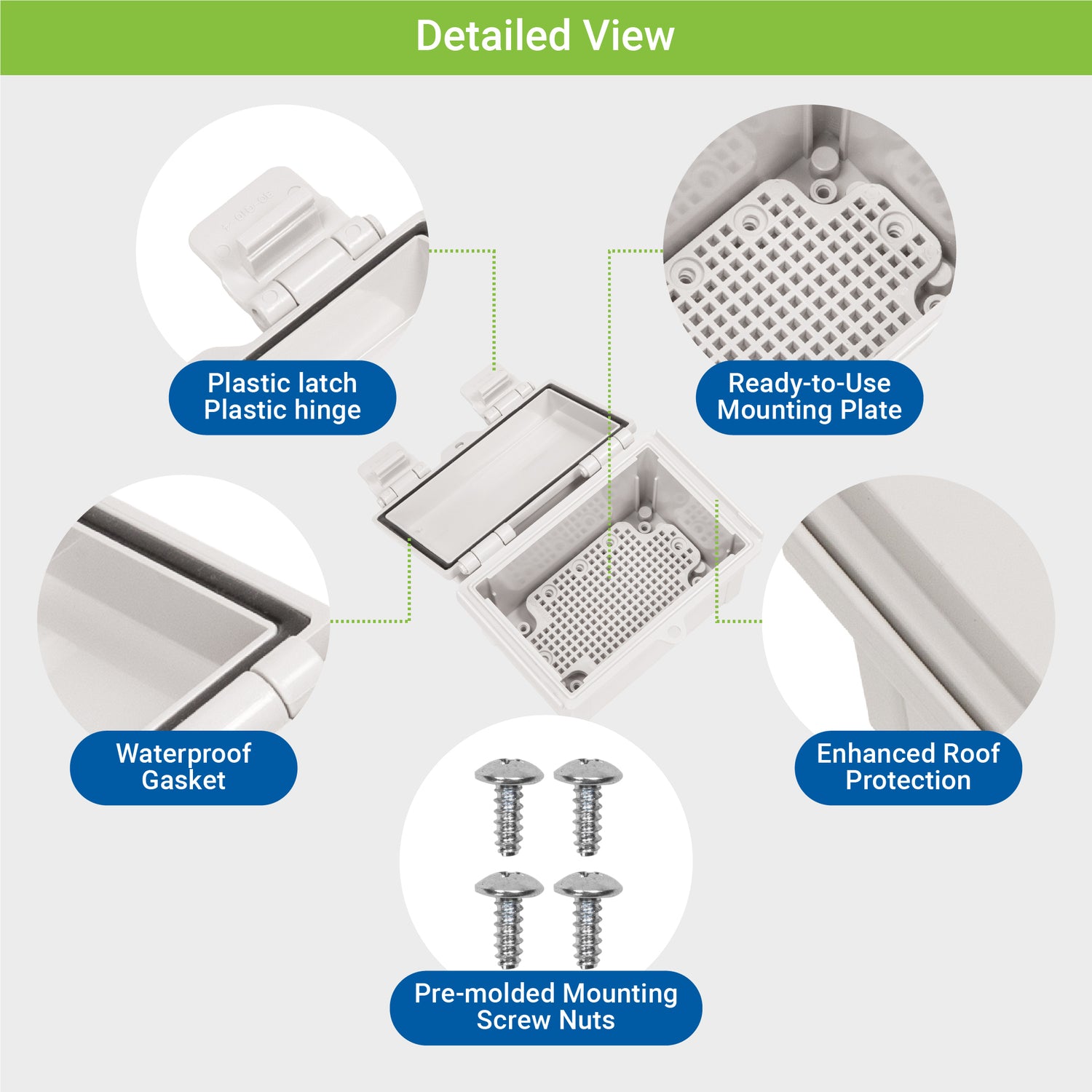

  • BOXCO electrical juntion box include plastic latch and plastic hinge.
  • Our IP66/IP67 waterproof control box is easy to removable cover and body
  • AGQ series is included G plate.**Dimensions and specifications are subject to change without notice.

Specifications

BC-AGQ-101509GSpecifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
100×150×90 mm (3.94×5.91×3.54 in)
Mounting plate dimension M1 × M2
74 × 124 mm

Material

Material
ABS
Cover
Grey
Mounting plates
1015 G (Plastic, G type), 1015 SQ (Steel, SQ type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +70℃
Flammability rating (UL 94)
94-HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

Technical drawings

BC-AGQ-101509G Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What are the key specifications of the Boxco Q-Series BC-AGQ-101509G enclosure?

This model is a plastic enclosure made from ABS with a grey cover and hinge-type design. Its external size is 3.94 x 5.91 x 3.54 inches (100 x 150 x 90 mm). It is rated IP67 for dust and water resistance and IK08 for impact resistance.

Is this enclosure suitable for outdoor or harsh environments?

Yes, this enclosure is designed for demanding environments where protection from dust and water is important. The IP67 rating and gasket design support strong sealing performance, and the Q-Series roof protection helps reduce water and dust intrusion during cover operation. Its operating temperature range is -40°C to 70°C.

What types of applications is this enclosure commonly used for?

This enclosure is commonly used to protect electrical and control components from moisture, dust, and external impact. It is a practical fit for industrial, commercial, and OEM applications where a durable non-metallic housing is needed. The included mounting plate also makes it useful for organized internal component layout.

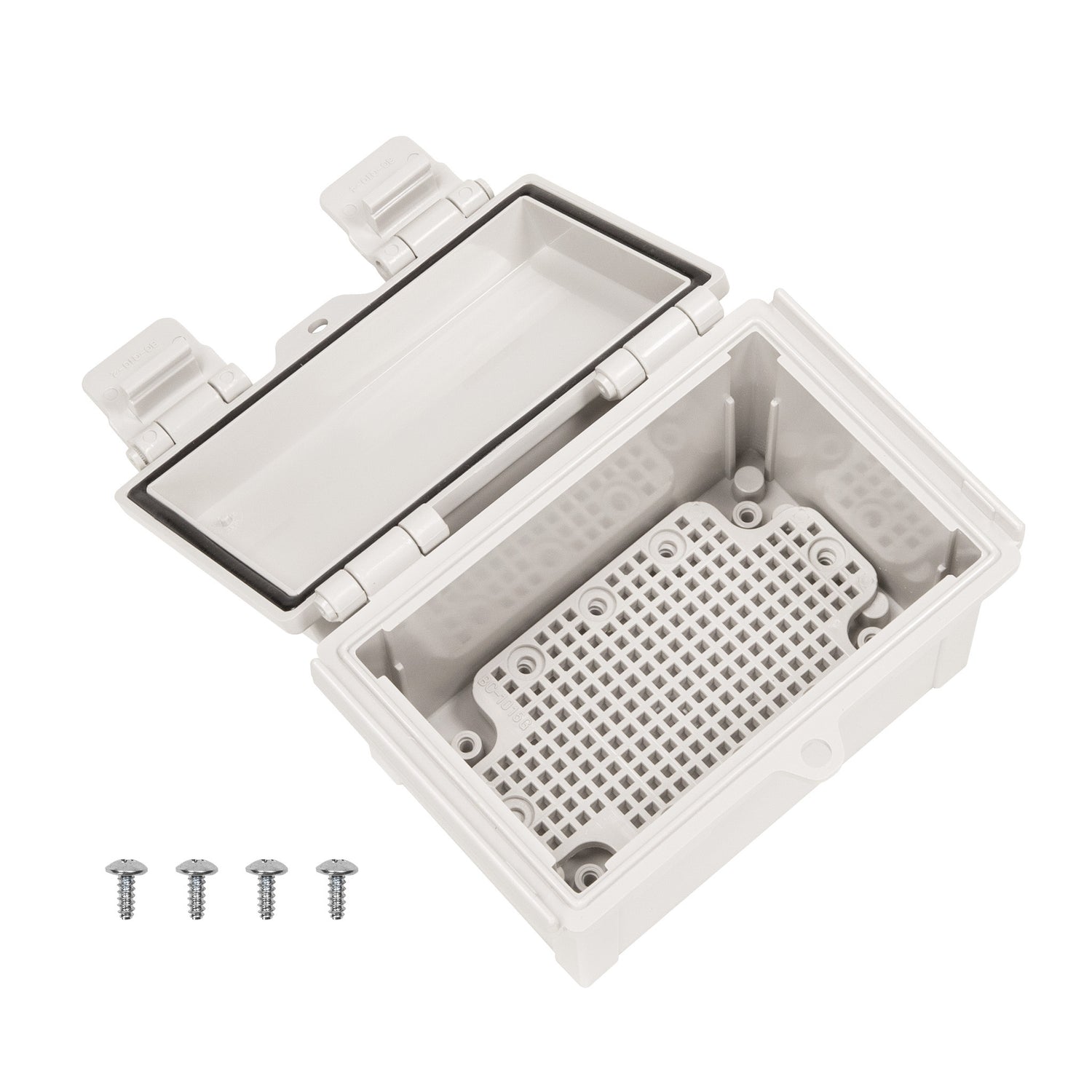

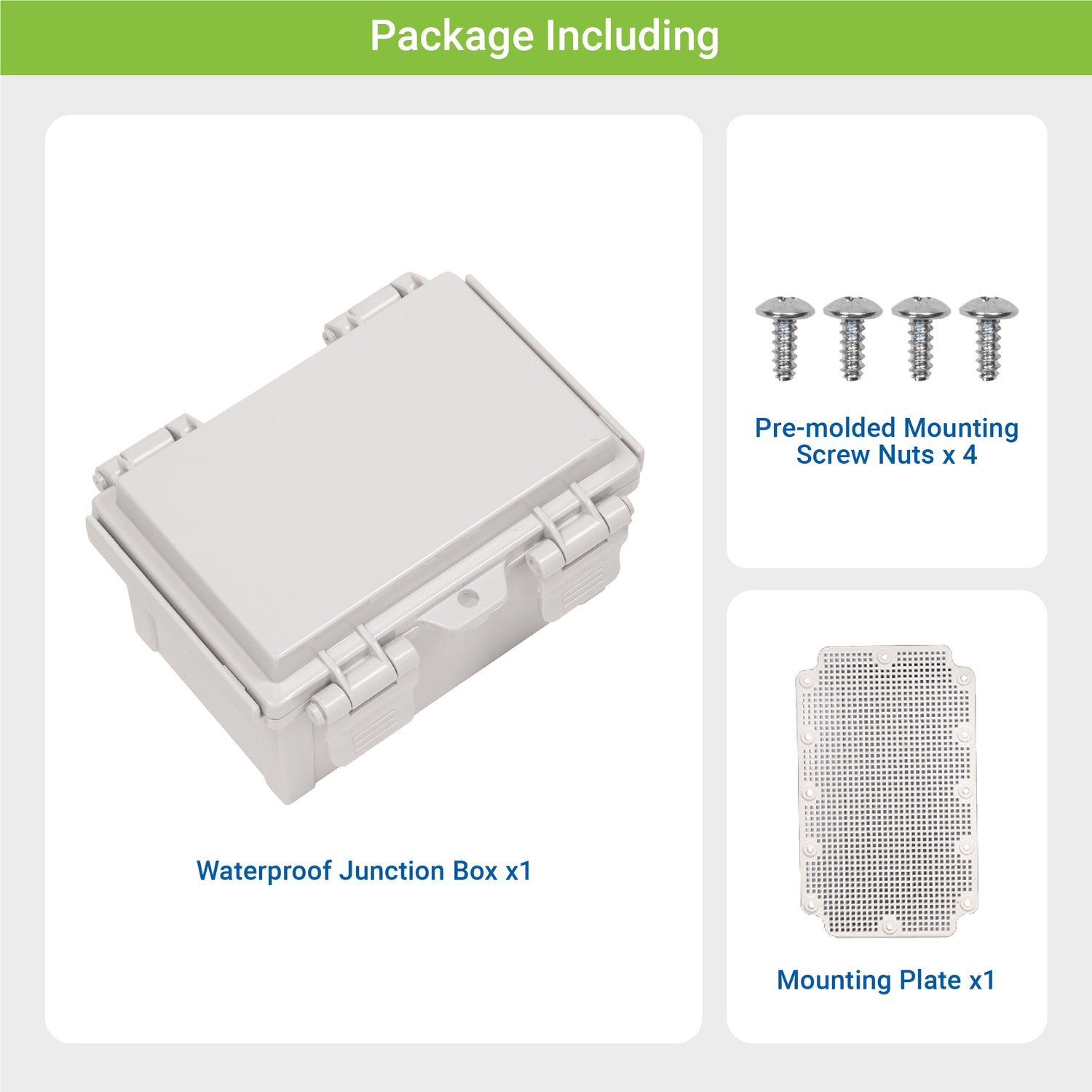

Does this model include a mounting plate?

Yes, this hinge-type Q-Series enclosure includes a mounting plate. Boxco notes that the plate comes free of charge and includes pre-drilled holes to help save time during panel layout. This makes the BC-AGQ-101509G more convenient than an enclosure that requires the plate to be sourced separately.

How does the Boxco Q-Series compare with other enclosure options?

Boxco positions the Q-Series as its most economical hinge-series enclosure line. This model combines cost-focused value with strong durability, IP67 sealing, and IK08 impact resistance. It is a good option for buyers who need a hinged ABS enclosure with dependable environmental protection without moving to a more specialized or premium series.

What material is the BC-AGQ-101509G made from, and why does that matter?

The BC-AGQ-101509G is made from ABS plastic, which Boxco describes as high impact resistant. For buyers, that means a lightweight enclosure with good durability against external impact and everyday industrial handling. The plastic latch construction also supports corrosion resistance.
