Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Boxco

Boxco Q-Series 160×210×130mm Plastic Enclosure, IP67, IK08, ABS, Transparent Cover, Plastic Hinge and Latch Type

SKU:
BC-ATQ-162113
Please for Pricing
|

Description

For Boxco Q-Series,Ultraviolet Stabilizer is added to protect the enclosures for outdoor usage. Few colour changes will be noticed even after a long time of use. Anti-static material is used to protect sensitive electronic instruments from static electricity. It is made of high impact resistant material which is very strong against external impact and also prevents breakage during hole and press processing. Special spec can be added besides standard specification. We can supply optimized products with the spec and material you choose.

Features

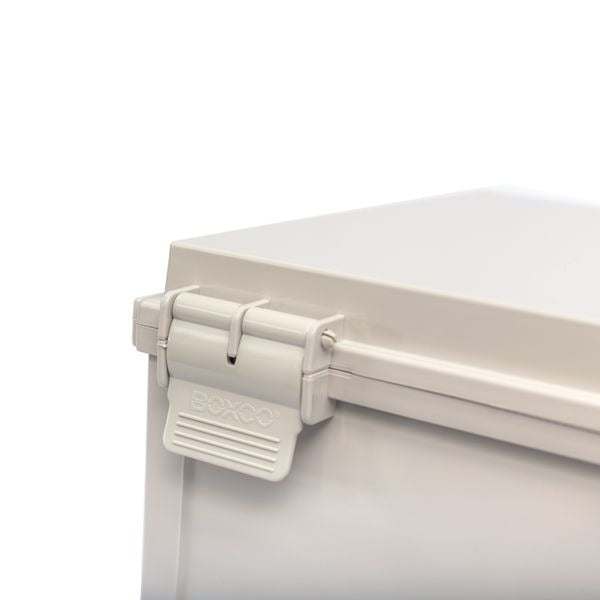

  • Latch - Main part of the draw latch is made of plastic so to prevent erosion.

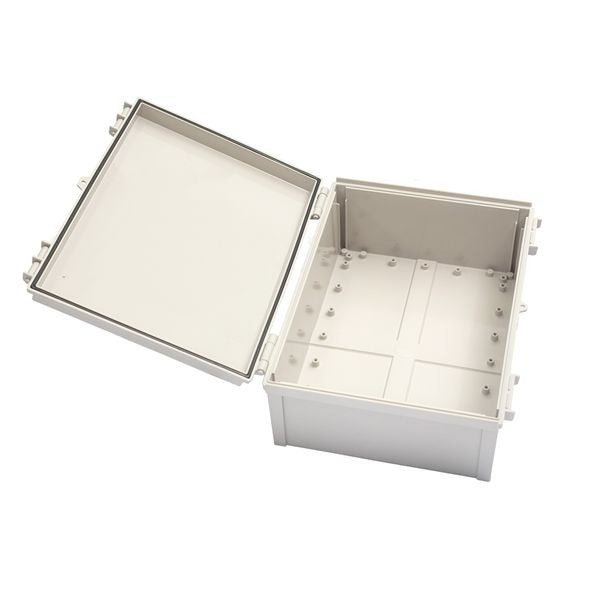

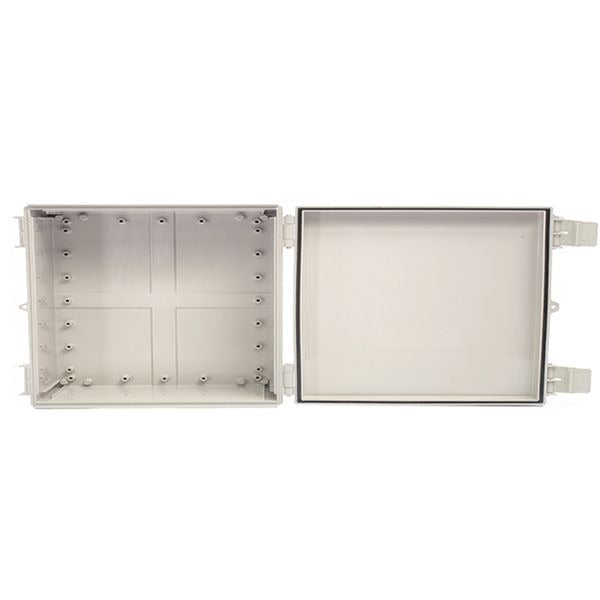

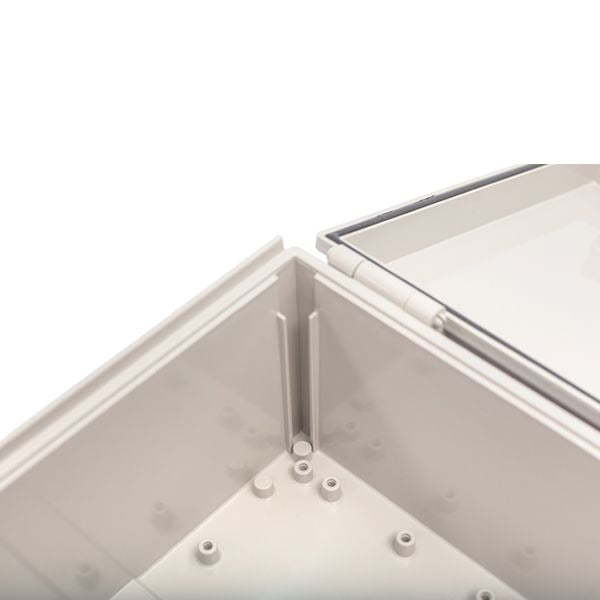

  • Pre-molded Mounting Screw Nuts – You can easily fix DIN RAIL or other equipment on to the pre molded Screw nuts
  • Roof Protection – Both ends of the Q series are protruded to protect against penetration of water when using it outdoor and penetration of dust when opening/closing the cover
  • Gasket – The gasket in injected by super precise CNC robot machine to product excellent waterproof and dust-proof performance

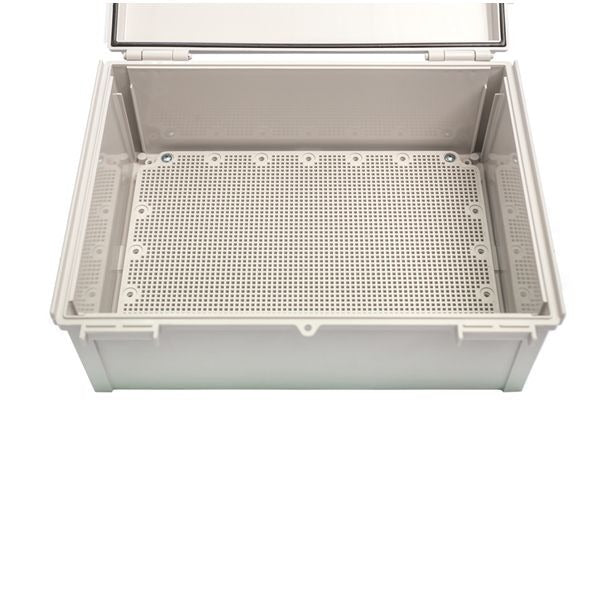

  • Mounting Plate Attachment Point – Internal mounting plate can be fixed tightly onto the brass inserted injection molding to handle heavy equipment installed inside the enclosure

Specifications
  • Brand
    Boxco
  • Series
    Boxco Q Series
  • Standards Met
    CE,TUV,UL
  • Operating Temperature
    -40°C~70°C
  • Warranty
    1 Year
  • Length
    16 cm
  • Width
    21 cm
  • Height
    13 cm
  • Weight
    0.5 kg

File Downloads

::specification::

Payment & Security

Payment methods

  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

What applications is the Boxco Q-Series BC-ATQ-162113 enclosure suited for?

This enclosure is intended for protecting electrical or electronic components in industrial and commercial environments where dust, water, and impact resistance matter. Its ABS construction, transparent cover, and hinged latch design make it a practical choice for inspection-friendly protective housing in outdoor or indoor equipment enclosures.

What are the dimensions of this enclosure?

The Boxco BC-ATQ-162113 measures 6.30 x 8.27 x 5.12 inches, which is 160 x 210 x 130 mm. That size provides a mid-sized enclosure format for applications that need more internal space than compact junction-style boxes.

How protective is this enclosure against water, dust, and impact?

This model is rated IP67, which indicates strong protection against dust ingress and temporary water exposure. It also carries an IK08 impact rating, and the product description notes high impact-resistant material intended to reduce breakage during processing and use.

Is this enclosure suitable for outdoor use?

Yes, this Q-Series enclosure is designed with outdoor use in mind. The description states that an ultraviolet stabilizer is added to help reduce color change over time, and the housing includes roof protection features intended to help limit water and dust penetration during cover operation.

What material is this enclosure made from, and what cover style does it use?

This model is made from ABS plastic and includes a transparent cover. It also uses a plastic hinge and latch type design, which helps provide visibility into the enclosure contents without opening it while maintaining the Q-Series protective form factor.

What temperature range can this enclosure handle?

The specified operating temperature range for this model is -40 °C to 70 °C. That range supports use in a variety of demanding industrial and outdoor environments, provided the overall application stays within those limits.

Does this enclosure support mounting internal equipment?

Yes, the product description states that it includes pre-molded mounting screw nuts and mounting plate attachment points. These features are intended to help secure DIN rail or other internal equipment and support heavier installed components more effectively.

What distinguishes this Q-Series enclosure from a basic plastic enclosure box?

This model combines several protective and durability-focused features beyond a basic box, including IP67 sealing, IK08 impact resistance, UV stabilization, anti-static material, a transparent cover, and a hinged plastic latch design. It is positioned as a more robust enclosure option for environments where outdoor exposure, inspection visibility, and stronger protection are important.
