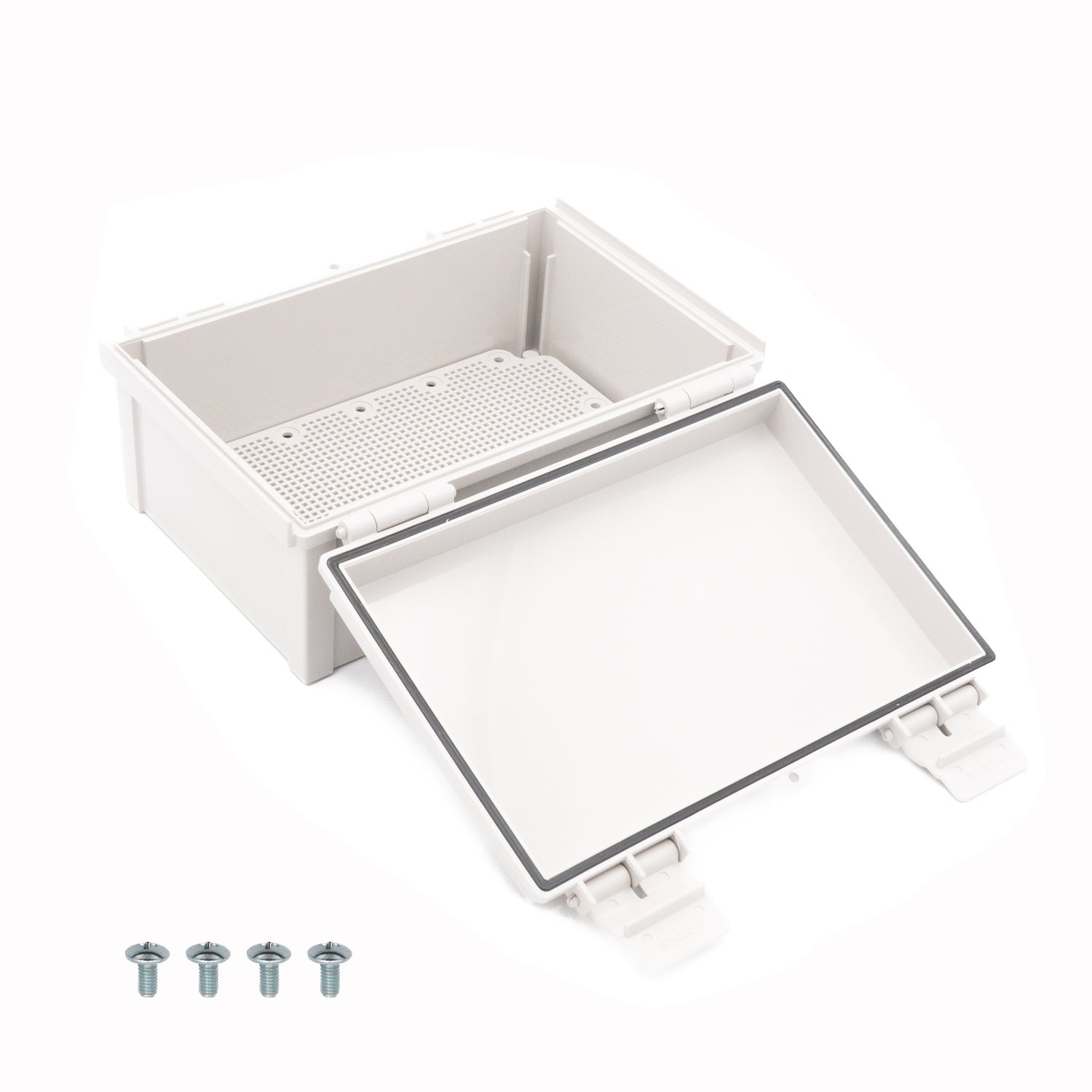

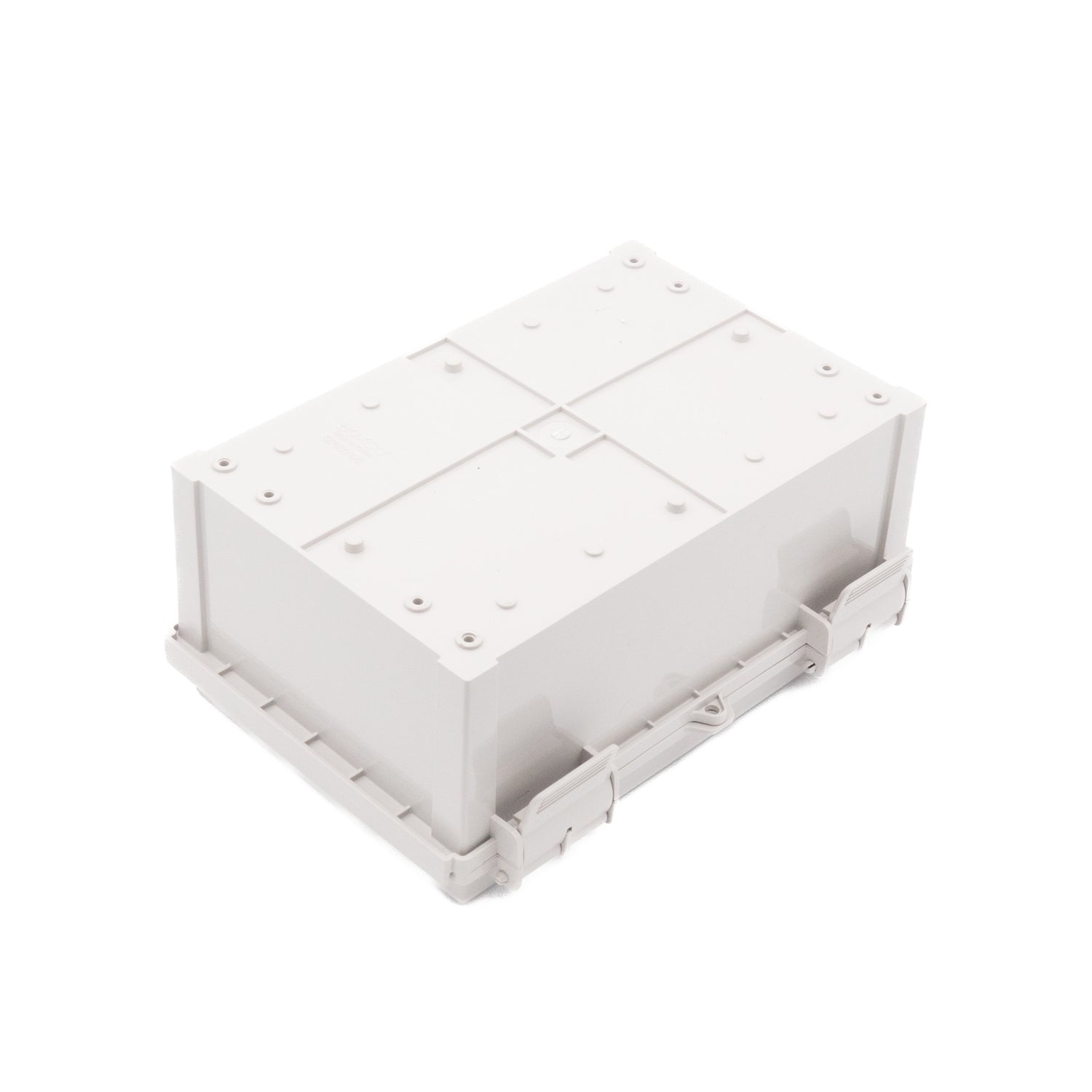

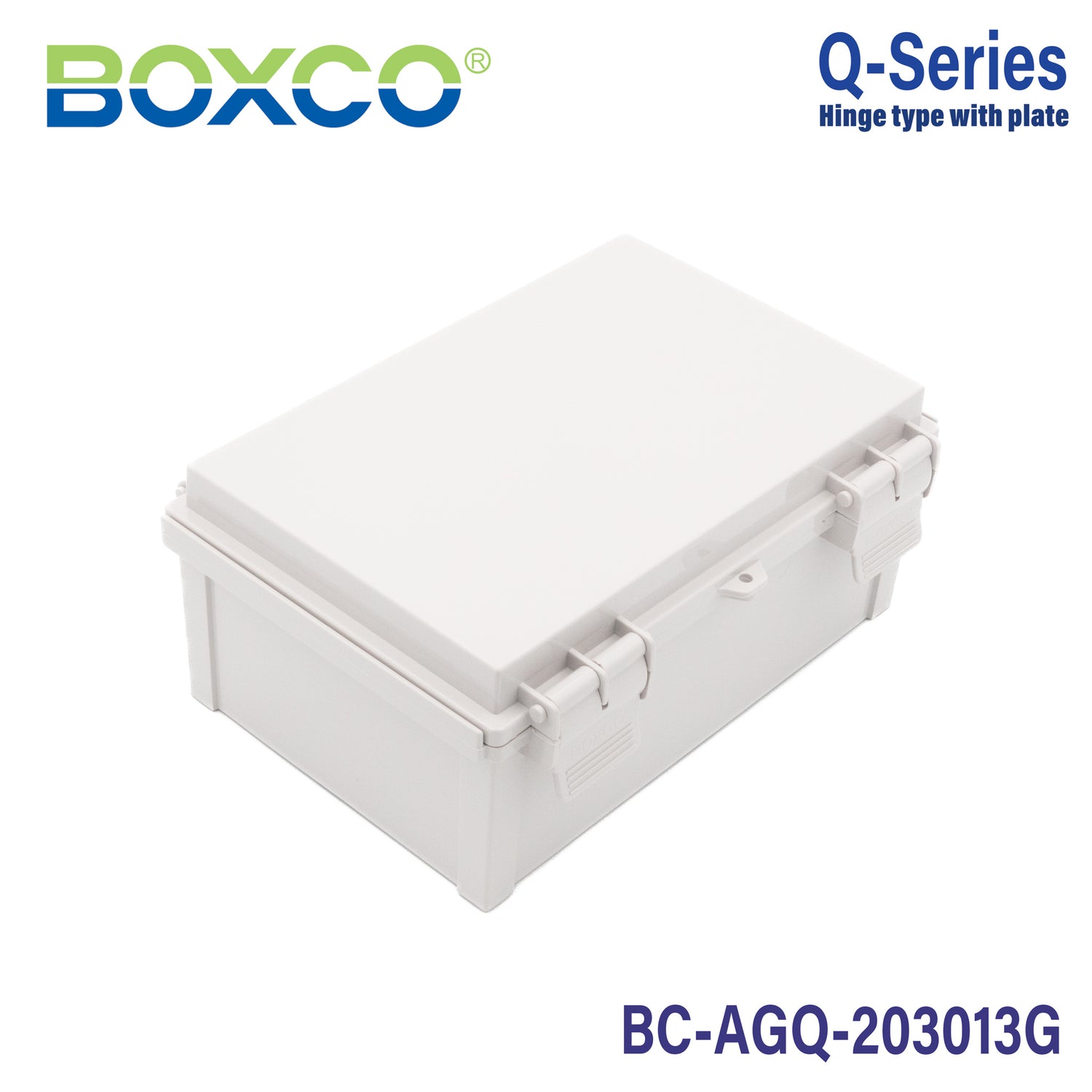

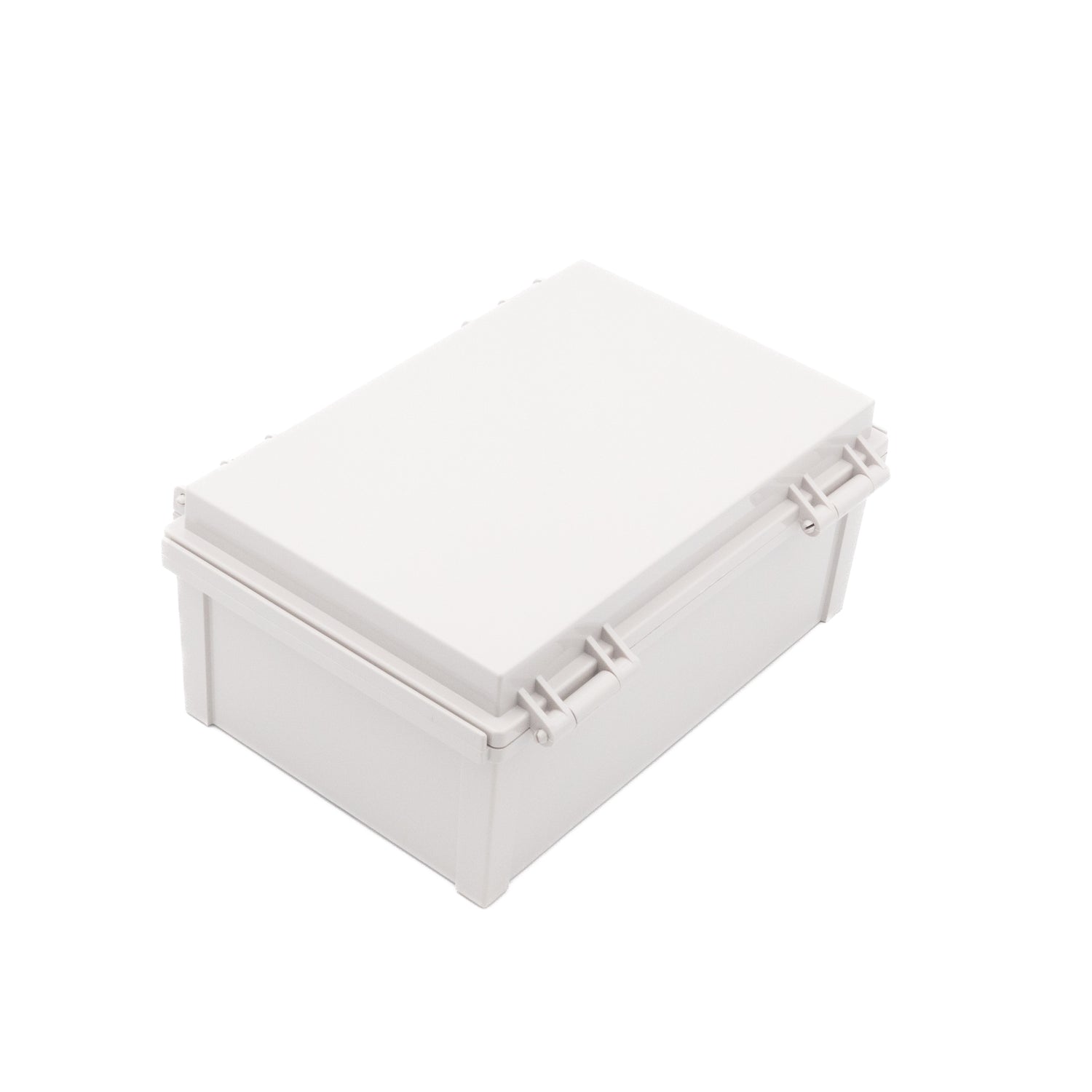

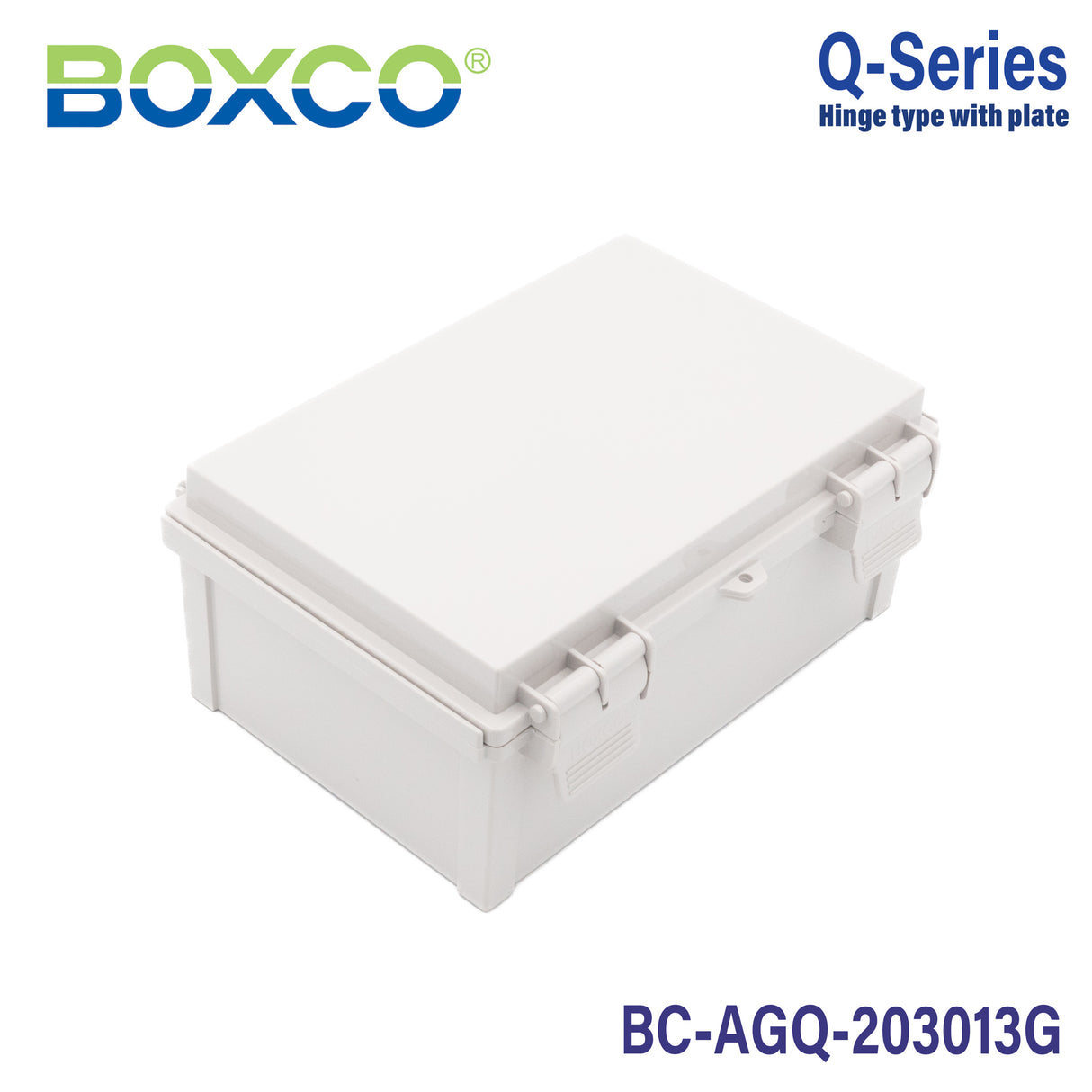

Boxco Q-Series 200x300x130mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Hinge Type with Plate

EnclosureABSGrey Cover200x300x130mm
SKU BC-AGQ-203013G
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-AGQ-203013G is a 200×300×130 mm ABS enclosure with a grey cover from the Boxco Q Series.

Features

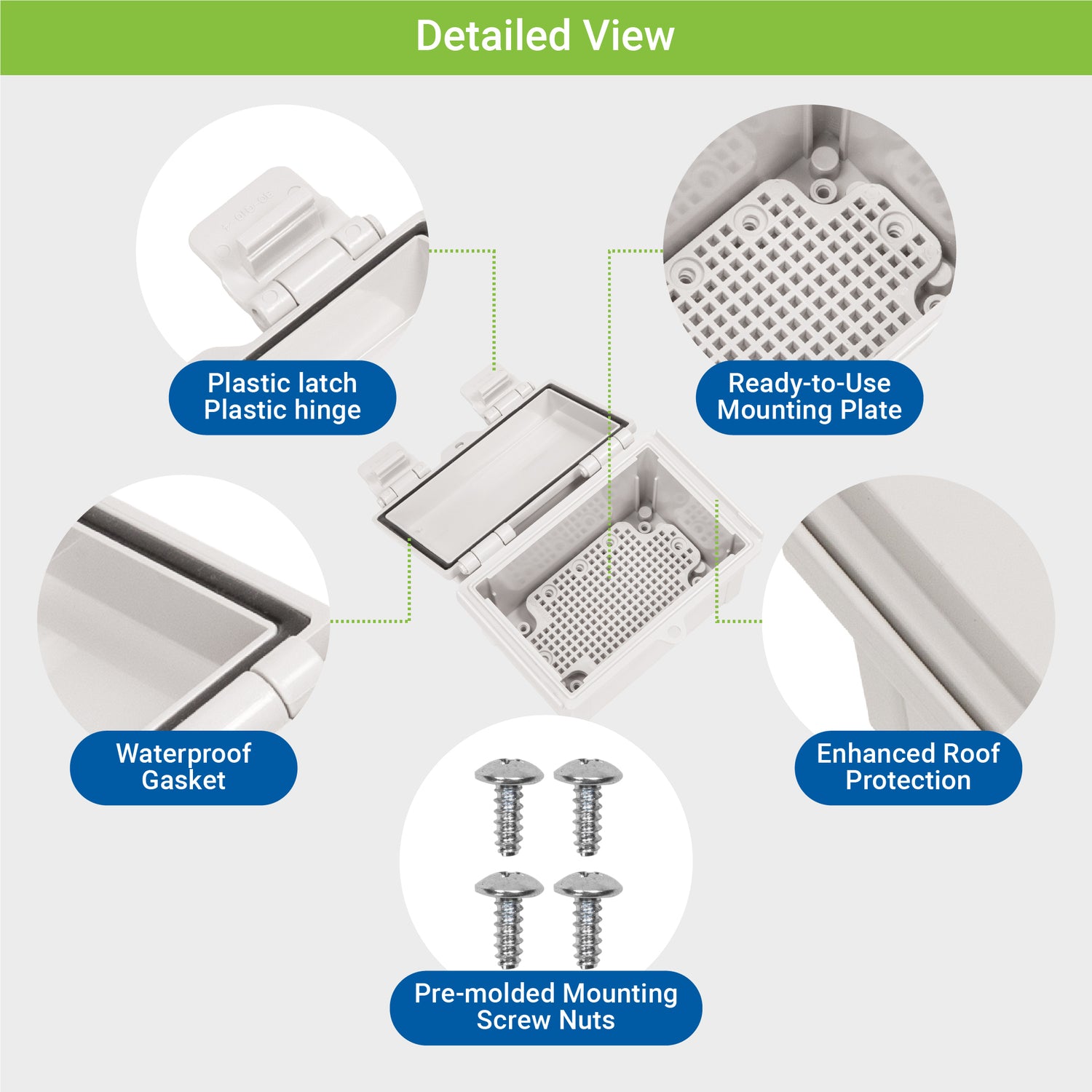

  • BOXCO electrical juntion box include plastic latch and plastic hinge.
  • Our IP66/IP67 waterproof control box is easy to removable cover and body
  • AGQ series is included G plate.**Dimensions and specifications are subject to change without notice.

Specifications

BC-AGQ-203013GSpecifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
200×300×130 mm (7.87×11.81×5.12 in)
Mounting plate dimension M1 × M2
160 × 260 mm

Material

Material
ABS
Cover
Grey
Mounting plates
2030 G (Plastic, G type), 2030 SQ (Steel, SQ type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +70℃
Flammability rating (UL 94)
94-HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

Technical drawings

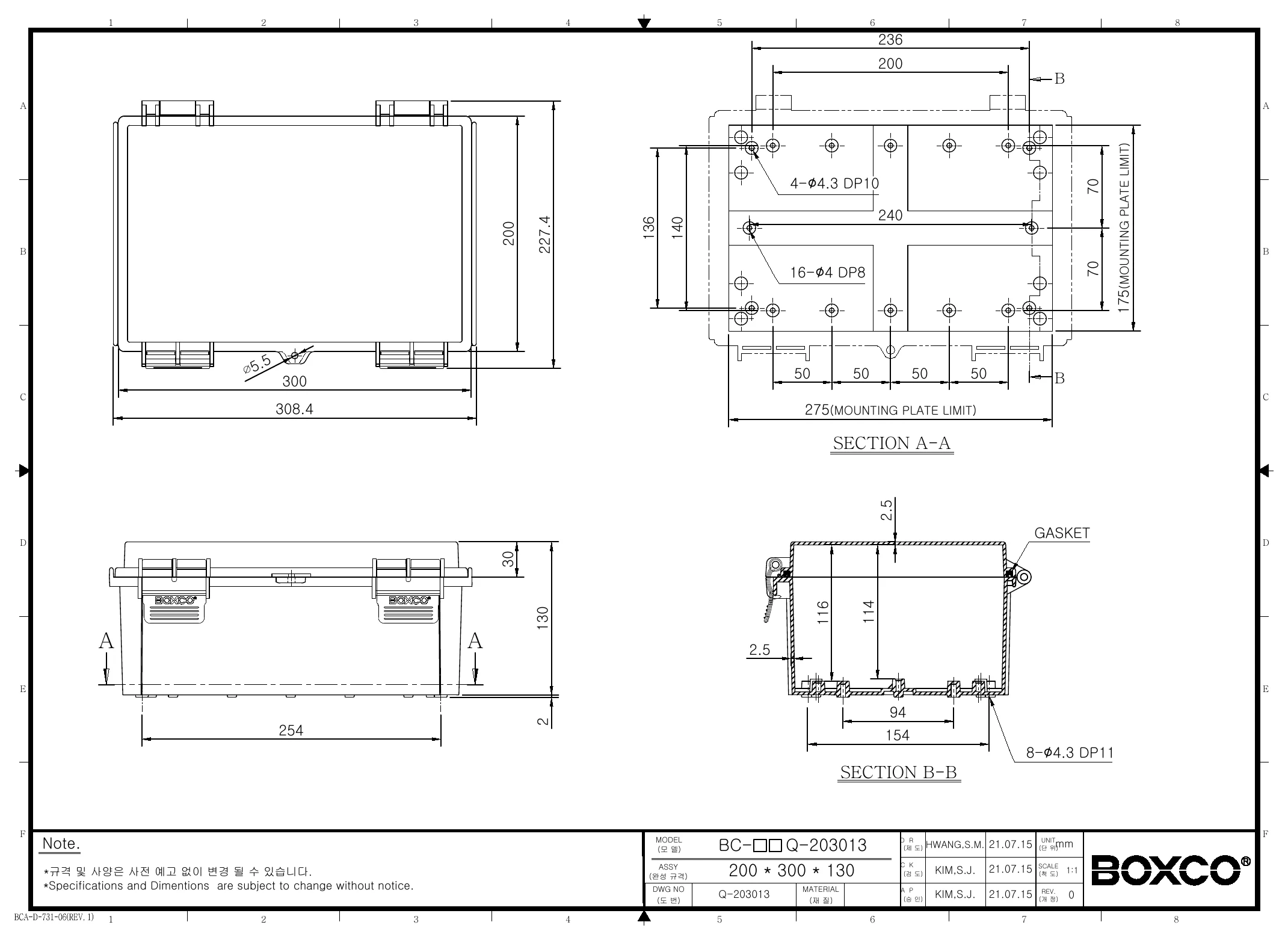

BC-AGQ-203013G Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What is the size of the Boxco Q-Series BC-AGQ-203013G enclosure?

This model measures 7.87 x 11.81 x 5.12 inches, which corresponds to 200 x 300 x 130 mm. It is a hinge-type plastic enclosure designed for applications that need a larger internal space than compact junction boxes.

What material is the BC-AGQ-203013G made from?

The enclosure is made from ABS and includes a grey cover. Boxco describes the Q-Series material as high impact resistant, which helps it stand up to external impact and reduces the risk of breakage during machining or modification.

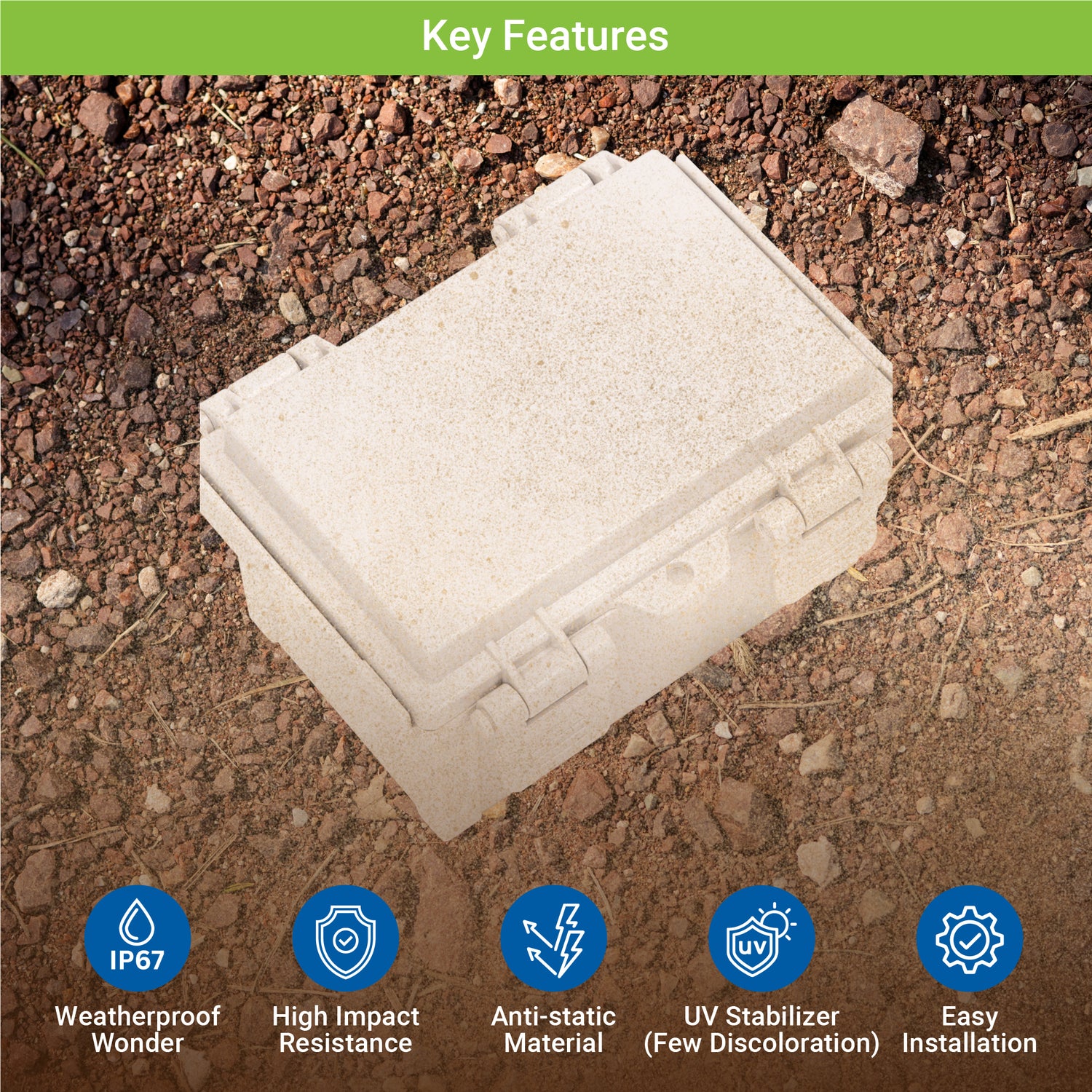

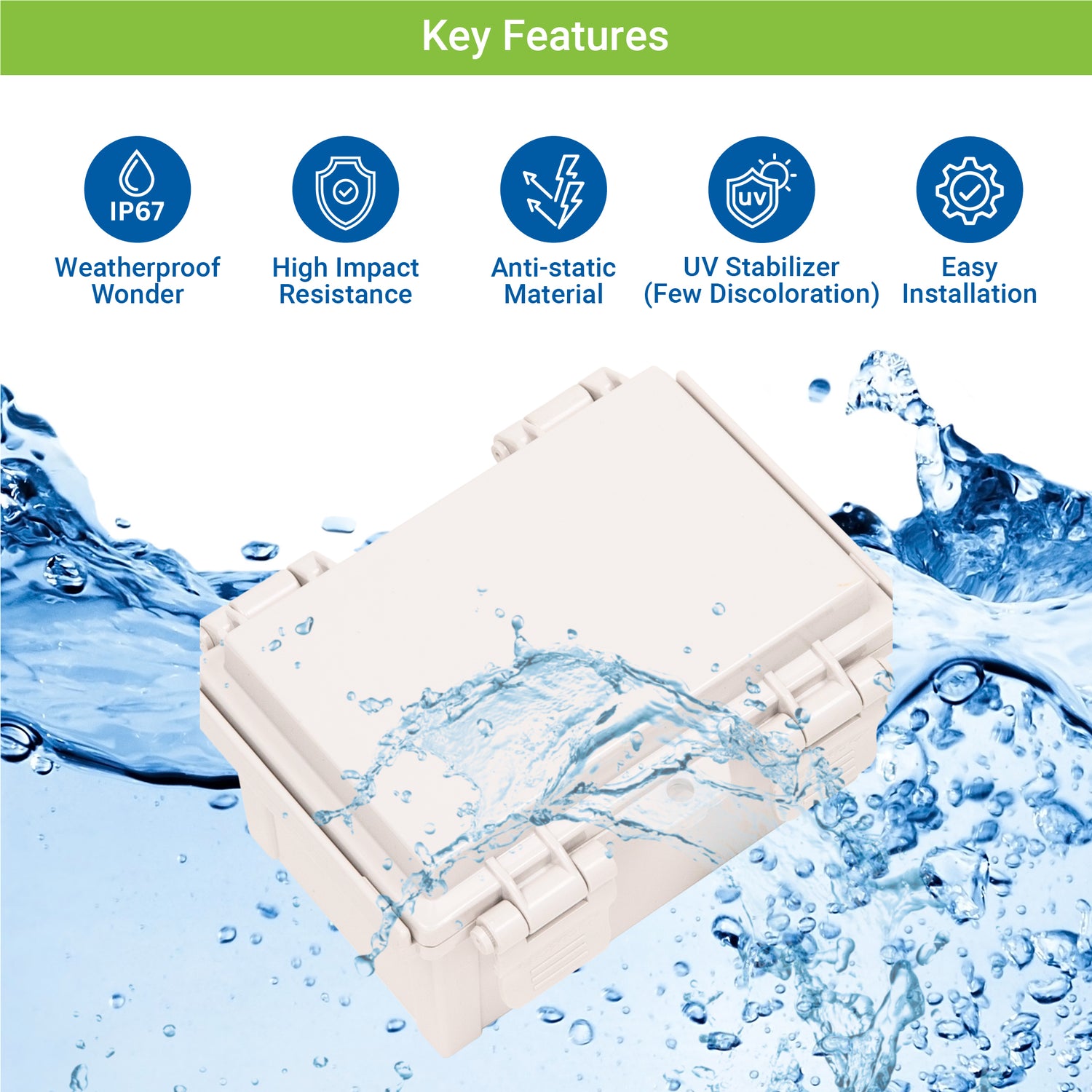

Is this enclosure suitable for outdoor or dusty environments?

Yes, this model is rated IP67, which indicates strong protection against dust ingress and water exposure. Boxco also notes roof protection features and a precision-injected gasket to support waterproof and dust-proof performance in demanding environments.

How durable is the Boxco Q-Series BC-AGQ-203013G against impact?

This enclosure carries an IK08 impact rating, which indicates resistance to mechanical impact in industrial and commercial settings. It is also made from high impact resistant ABS for added durability.

What applications is the BC-AGQ-203013G typically used for?

This enclosure is commonly used to protect electrical components and connections from moisture, dust, and other environmental factors. Its sealed design and durable construction make it a practical choice for industrial control, protection, and general equipment housing applications.

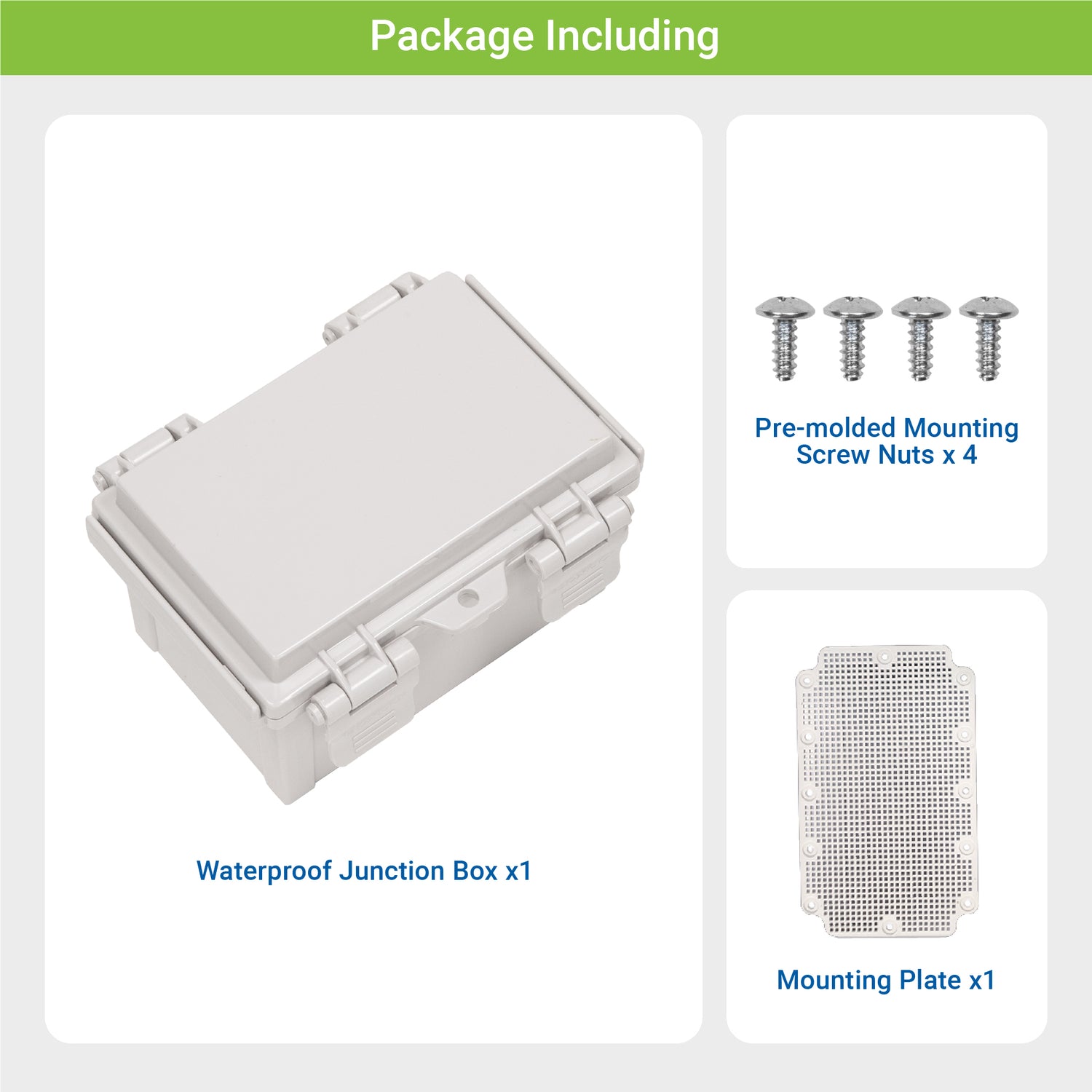

Does this enclosure include a mounting plate?

Yes, Boxco states that the mounting plate is included free of charge with the box. The product description also notes pre-drilled mounting plate attachment points to help reduce preparation time.

What temperature range can the BC-AGQ-203013G handle?

This model is specified for use from -40°C to 70°C. That range makes it suitable for many indoor and outdoor environments where temperature exposure is a concern.

What distinguishes the Boxco Q-Series from other enclosure options?

Boxco positions the Q-Series as its more economical hinge series while still emphasizing durability, water resistance, and impact resistance. For buyers comparing options, this model combines a hinge-type design, IP67 sealing, IK08 impact rating, and an included plate in one enclosure.
