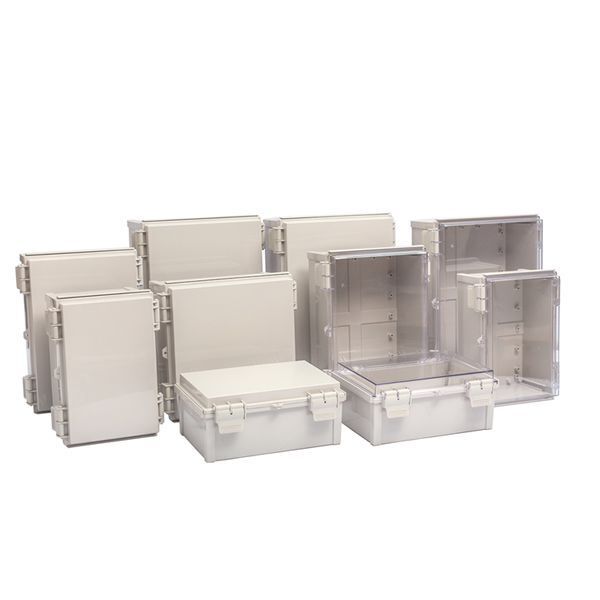

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Boxco Q-Series 200×300×130mm Plastic Enclosure, IP67, IK08, ABS, Transparent Cover, Plastic Hinge and Latch Type

SKU:

BC-ATQ-203013

Notify me when it's back in stock

Description

For Boxco Q-Series,Ultraviolet Stabilizer is added to protect the enclosures for outdoor usage. Few colour changes will be noticed even after a long time of use. Anti-static material is used to protect sensitive electronic instruments from static electricity. It is made of high impact resistant material which is very strong against external impact and also prevents breakage during hole and press processing. Special spec can be added besides standard specification. We can supply optimized products with the spec and material you choose.

Features

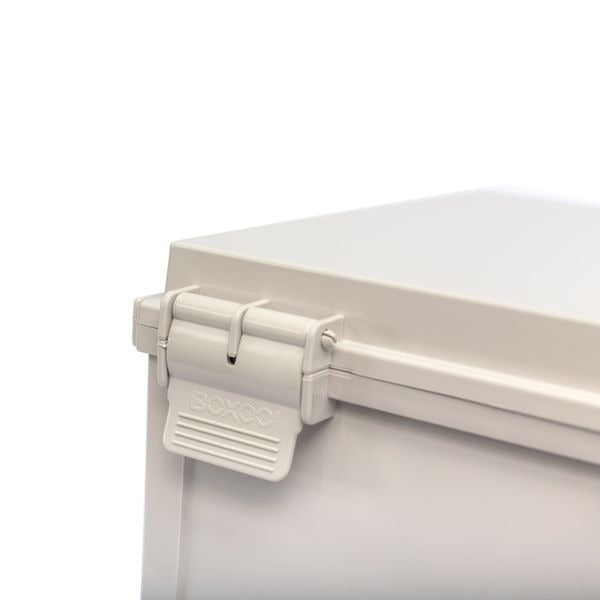

Latch - Main part of the draw latch is made of plastic so to prevent erosion.

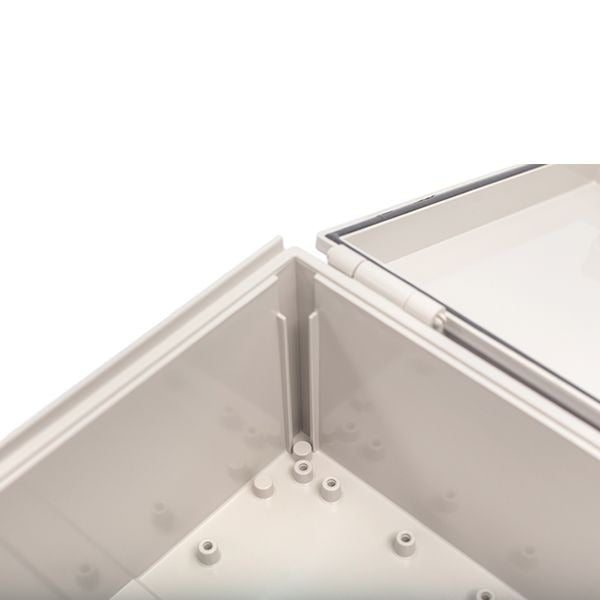

Pre-molded Mounting Screw Nuts – You can easily fix DIN RAIL or other equipment on to the pre molded Screw nuts
Roof Protection – Both ends of the Q series are protruded to protect against penetration of water when using it outdoor and penetration of dust when opening/closing the cover
Gasket – The gasket in injected by super precise CNC robot machine to product excellent waterproof and dust-proof performance

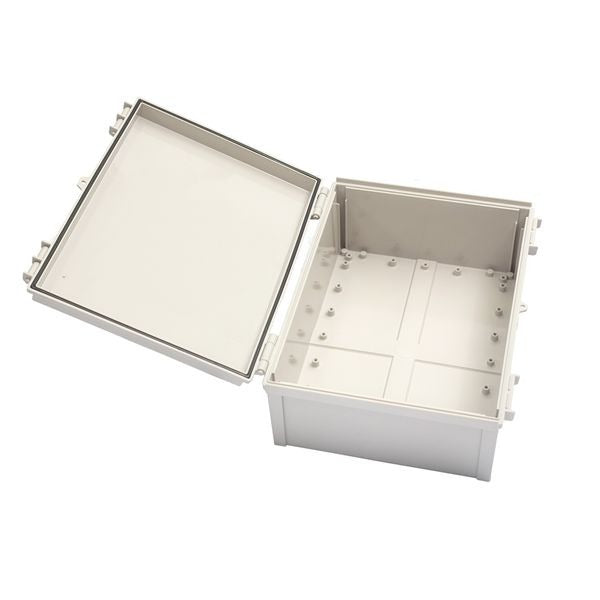

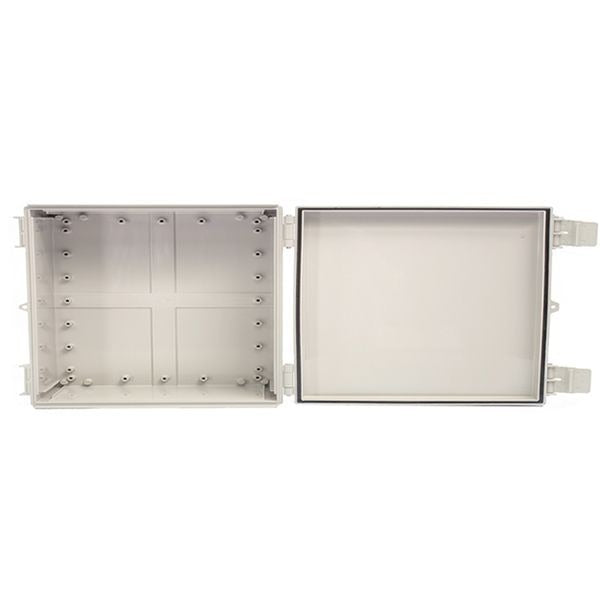

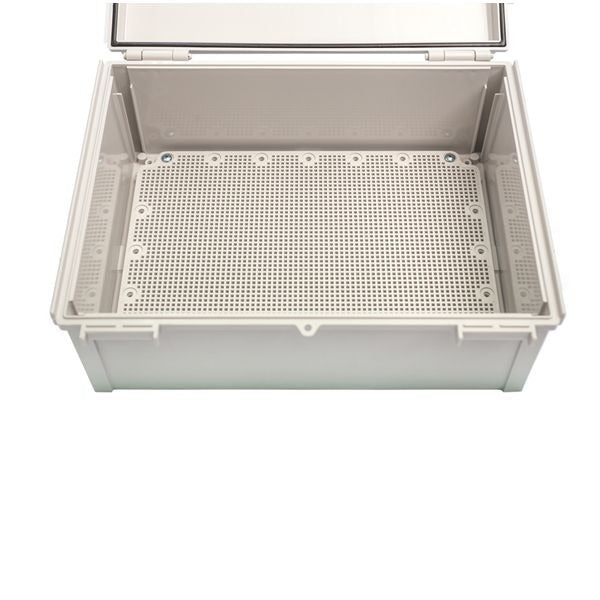

Mounting Plate Attachment Point – Internal mounting plate can be fixed tightly onto the brass inserted injection molding to handle heavy equipment installed inside the enclosure

Specifications

Brand

Boxco
Series

Boxco Q Series
Standards Met

CE,TUV,UL
Operating Temperature

-40°C~70°C
Warranty

1 Year
Length

20 cm
Width

30 cm
Height

13 cm
Weight

0.25 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

What is this Boxco Q-Series enclosure typically used for?

This model is used to protect electrical or electronic equipment that needs a sealed plastic enclosure in industrial or outdoor environments. Its transparent cover also makes it suitable where internal components need to be visually checked without opening the box.

What are the key specifications of the BC-ATQ-203013 enclosure?

The enclosure measures 7.87 x 11.81 x 5.12 inches (200 x 300 x 130 mm). It is made from ABS, includes a transparent cover, uses a plastic hinge and latch design, and carries IP67 and IK08 ratings.

Is this enclosure suitable for outdoor use?

Yes, the product description states that an ultraviolet stabilizer is added to help protect the enclosure for outdoor usage. It is also designed with roof protection features and a precision-injected gasket to support water and dust resistance.

How does the transparent cover help compared with a solid-cover enclosure?

A transparent cover allows visual inspection of internal equipment without opening the enclosure. That can be useful when you want to confirm indicator status or check the interior while maintaining the enclosure's closed condition.

What environmental conditions can this enclosure handle?

This model is rated for temperatures from -40 C to 70 C. It is also built for demanding environments with IP67 ingress protection and IK08 impact resistance.

Does this enclosure support internal mounting hardware or plates?

Yes, the product description notes pre-molded mounting screw nuts for securing internal equipment such as DIN rail accessories, and it also includes mounting plate attachment points. These features are intended to support secure internal component mounting inside the enclosure.

Model	Material	Cover
Boxco Q-Series 400x500x200mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Hinge Type with Plate	ABS	Grey	View
Boxco Q-Series 350x450x200mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Hinge Type with Plate	ABS	Grey	View
Boxco Q-Series 160x210x100mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Hinge Type with Plate	ABS	Grey	View
Boxco Q-Series 400x450x160mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Hinge Type with Plate	ABS	Grey	View
Boxco Q-Series 300400180mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Hinge Type with Plate	ABS	Grey	View
Boxco Q-Series 200x300x180mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Hinge Type with Plate	ABS	Grey	View
Boxco Q-Series 200x300x130mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Hinge Type with Plate	ABS	Grey	View
Boxco Q-series 15015090mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Hinge Type with Plate	ABS	Grey	View
Boxco Q-Series 100x150x90mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Hinge Type with Plate	ABS	Grey	View
Boxco Q-Series 210×210×130mm Plastic Enclosure, IP67, IK08, ABS, Transparent Cover, Plastic Hinge and Latch Type	ABS	Transparent	View
Boxco Q-Series 300x400x160mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Hinge Type with Plate	ABS	Grey	View
Boxco Q-Series 250x350x160mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Hinge Type with Plate	ABS	Grey	View
Boxco Q-Series 200×300×150mm Plastic Enclosure, IP67, IK08, ABS, Transparent Cover, Plastic Hinge and Latch Type	ABS	Transparent	View
Boxco Q-Series 400×500×200mm Plastic Enclosure, IP67, IK08, ABS, Transparent Cover, Plastic Hinge and Latch Type	ABS	Transparent	View
Boxco Q-Series 160×210×130mm Plastic Enclosure, IP67, IK08, ABS, Transparent Cover, Plastic Hinge and Latch Type	ABS	Transparent	View
Boxco Q-Series 300×400×180mm Plastic Enclosure, IP67, IK08, ABS, Transparent Cover, Plastic Hinge and Latch Type	ABS	Transparent	View
Boxco Q-Series 300×300×160mm Plastic Enclosure, IP67, IK08, ABS, Transparent Cover, Plastic Hinge and Latch Type	ABS	Transparent	View
Boxco Q-Series 200×300×180mm Plastic Enclosure, IP67, IK08, ABS, Transparent Cover, Plastic Hinge and Latch Type	ABS	Transparent	View
Boxco Q-Series 150×150×120mm Plastic Enclosure, IP67, IK08, ABS, Transparent Cover, Plastic Hinge and Latch Type	ABS	Transparent	View
Boxco Q-Series 300x400x150mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Hinge Type with Plate	ABS	Grey	View
Boxco Q-Series 210x210x130mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Hinge Type with Plate	ABS	Grey	View
Boxco Q-Series 200x300x150mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Hinge Type with Plate	ABS	Grey	View
Boxco Q-Series 150x150x120mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Hinge Type with Plate	ABS	Grey	View
Boxco Q-Series 400×500×200mm Plastic Enclosure, IP67, IK08, PC, Grey Cover, Plastic Hinge and Latch Type	PC	Grey	View
Boxco Q-Series 400×500×160mm Plastic Enclosure, IP67, IK08, PC, Grey Cover, Plastic Hinge and Latch Type	PC	Grey	View
Boxco Q-Series 300×400×180mm Plastic Enclosure, IP67, IK08, PC, Grey Cover, Plastic Hinge and Latch Type	PC	Grey	View
Boxco Q-Series 300×400×160mm Plastic Enclosure, IP67, IK08, PC, Grey Cover, Plastic Hinge and Latch Type	PC	Grey	View
Boxco Q-Series 300×300×160mm Plastic Enclosure, IP67, IK08, PC, Grey Cover, Plastic Hinge and Latch Type	PC	Grey	View
Boxco Q-Series 250×350×160mm Plastic Enclosure, IP67, IK08, PC, Grey Cover, Plastic Hinge and Latch Type	PC	Grey	View
Boxco Q-Series 200×300×150mm Plastic Enclosure, IP67, IK08, PC, Grey Cover, Plastic Hinge and Latch Type	PC	Grey	View
Boxco Q-Series 200×300×130mm Plastic Enclosure, IP67, IK08, PC, Grey Cover, Plastic Hinge and Latch Type	PC	Grey	View
Boxco Q-Series 160×210×100mm Plastic Enclosure, IP67, IK08, PC, Grey Cover, Plastic Hinge and Latch Type	PC	Grey	View
Boxco Q-Series 150×150×120mm Plastic Enclosure, IP67, IK08, PC, Grey Cover, Plastic Hinge and Latch Type	PC	Grey	View
Boxco Q-Series 400×500×160mm Plastic Enclosure, IP67, IK08, ABS, Transparent Cover, Plastic Hinge and Latch Type	ABS	Transparent	View
Boxco Q-Series 350×450×200mm Plastic Enclosure, IP67, IK08, ABS, Transparent Cover, Plastic Hinge and Latch Type	ABS	Transparent	View
Boxco Q-Series 300×400×160mm Plastic Enclosure, IP67, IK08, ABS, Transparent Cover, Plastic Hinge and Latch Type	ABS	Transparent	View
Boxco Q-Series 250×350×160mm Plastic Enclosure, IP67, IK08, ABS, Transparent Cover, Plastic Hinge and Latch Type	ABS	Transparent	View
Boxco Q-Series 160×210×100mm Plastic Enclosure, IP67, IK08, ABS, Transparent Cover, Plastic Hinge and Latch Type	ABS	Transparent	View
Boxco Q-Series 150×150×90mm Plastic Enclosure, IP67, IK08, ABS, Transparent Cover, Plastic Hinge and Latch Type	ABS	Transparent	View
Boxco Q-Series 100×150×90mm Plastic Enclosure, IP67, IK08, ABS, Transparent Cover, Plastic Hinge and Latch Type	ABS	Transparent	View
Boxco Q-Series 300x300x160mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Hinge Type with Plate	ABS	Grey	View
Boxco Q-Series 200x300x140mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Hinge Type with Plate	ABS	Grey	View
Boxco Q-Series 160x210x130mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Hinge Type with Plate	ABS	Grey	View
