Boxco

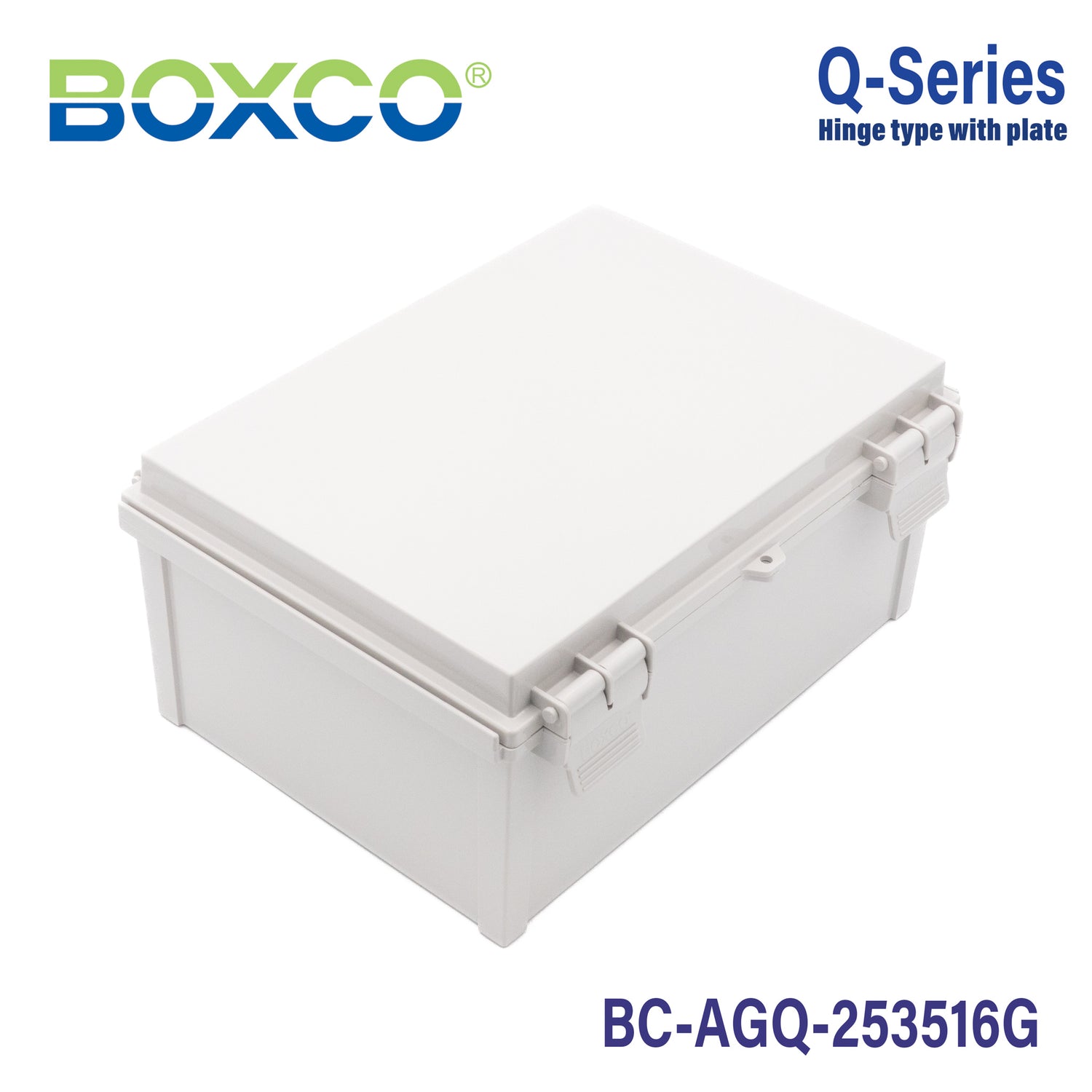

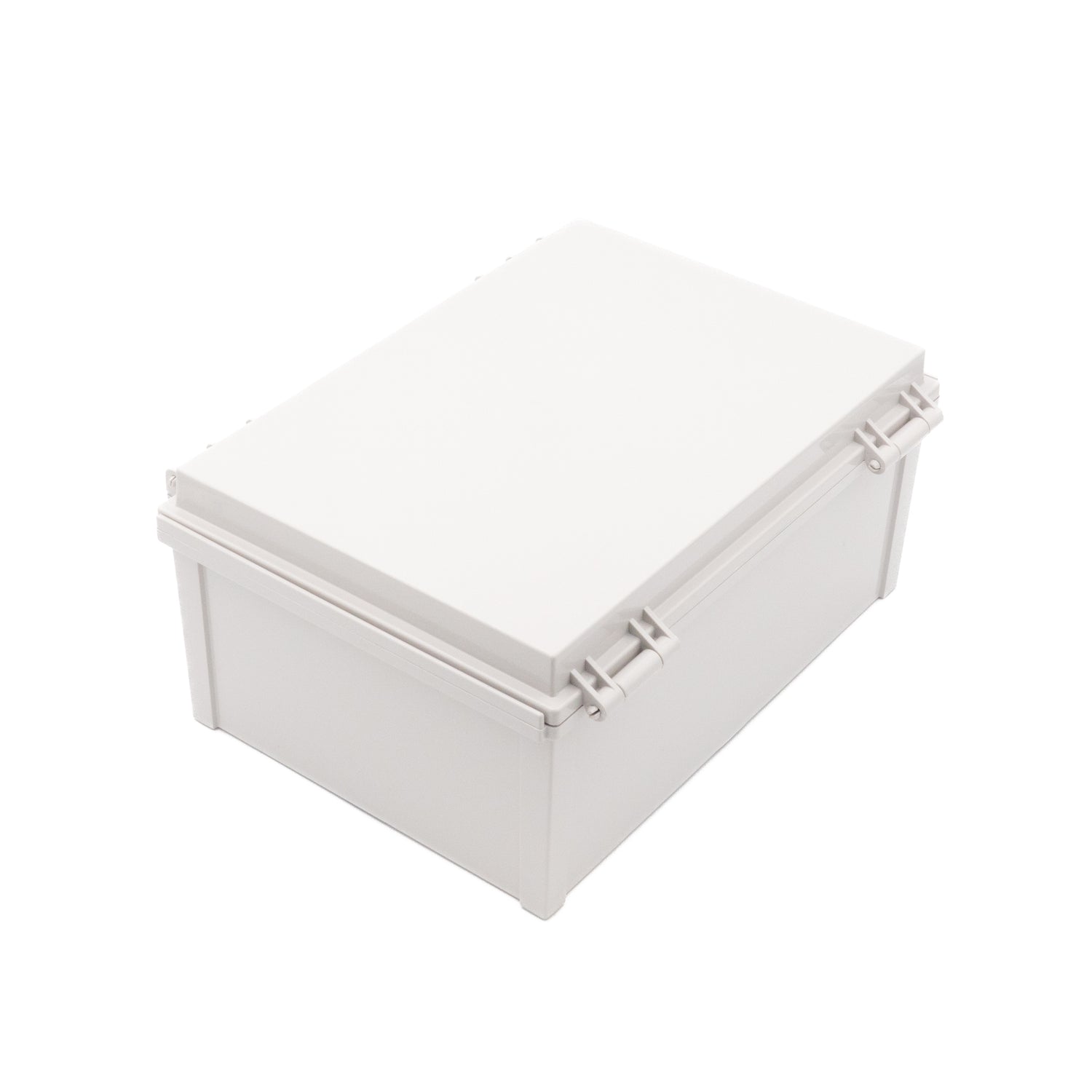

Boxco Q-Series 250x350x160mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Hinge Type with Plate

EnclosureABSGrey Cover250x350x160mm
SKU BC-AGQ-253516G
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Overview

BC-AGQ-253516G is a 250×350×160 mm ABS enclosure with a grey cover from the Boxco Q Series.

Features

  • BOXCO electrical juntion box include plastic latch and plastic hinge.
  • Our IP66/IP67 waterproof control box is easy to removable cover and body
  • AGQ series is included G plate.**Dimensions and specifications are subject to change without notice.

Specifications

BC-AGQ-253516GSpecifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
250×350×160 mm (9.84×13.78×6.30 in)
Mounting plate dimension M1 × M2
210 × 310 mm

Material

Material
ABS
Cover
Grey
Mounting plates
2535 G (Plastic, G type), 2535 SQ (Steel, SQ type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +70℃
Flammability rating (UL 94)
94-HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

Technical drawings

BC-AGQ-253516G Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What are the main specifications of the Boxco Q-Series BC-AGQ-253516G enclosure?

This model is a plastic enclosure made from ABS with a grey cover and a hinge-type design. Its outer size is 9.84 x 9.84 x 6.30 inches (250 x 250 x 160 mm), and it is rated IP67 and IK08. It also includes a mounting plate.

What kind of environments is this enclosure suited for?

The BC-AGQ-253516G is built for demanding environments where dust resistance, water protection, and impact resistance matter. Its IP67 rating supports protection against dust and water ingress, while the IK08 rating indicates resistance to external impact. The operating temperature range is -40°C to 70°C.

What applications is this enclosure commonly used for?

This enclosure is suitable for protecting electrical and industrial components in commercial and industrial settings. It is a practical choice when equipment needs protection from moisture, dust, and general outdoor or factory exposure. The included mounting plate also makes it useful for organized internal component layouts.

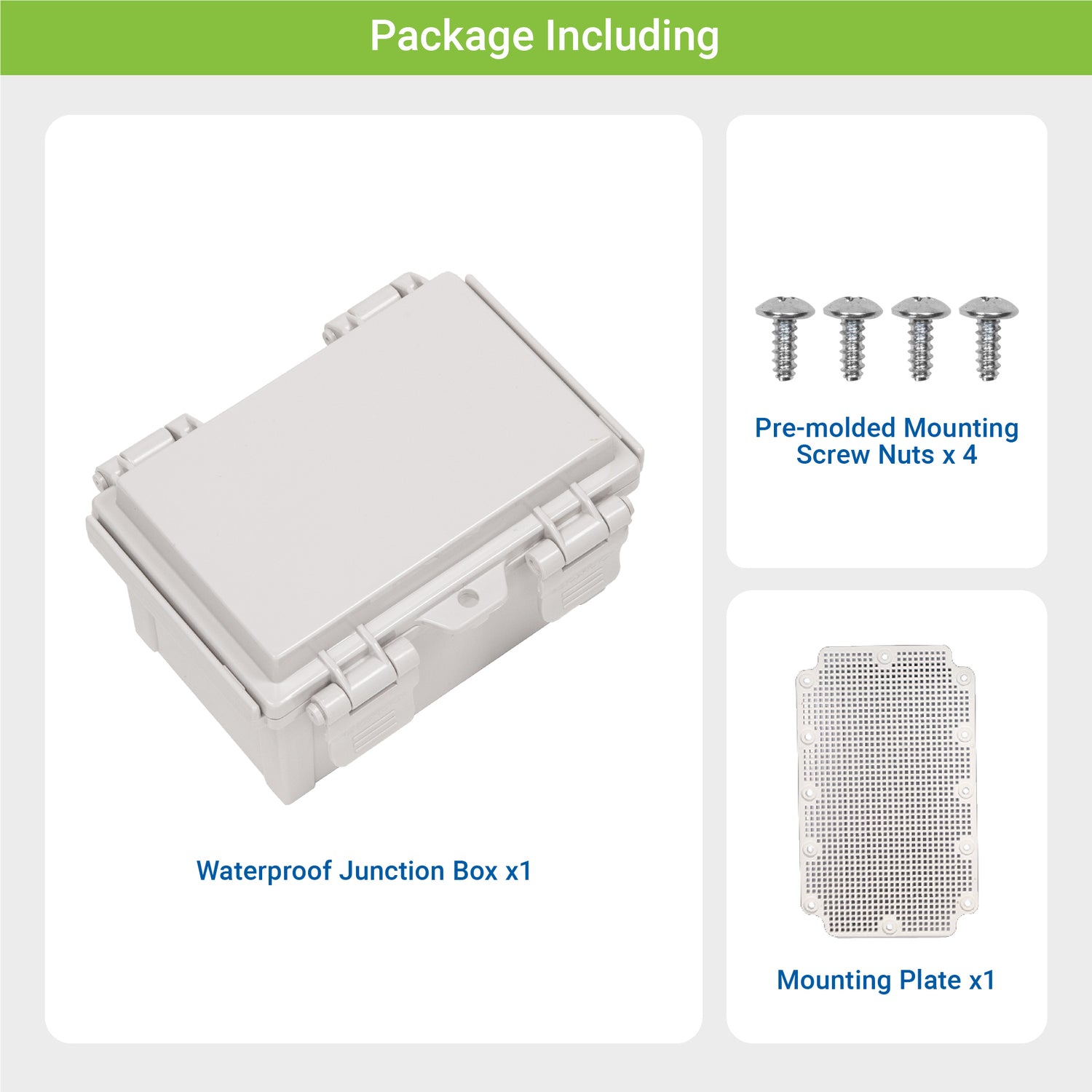

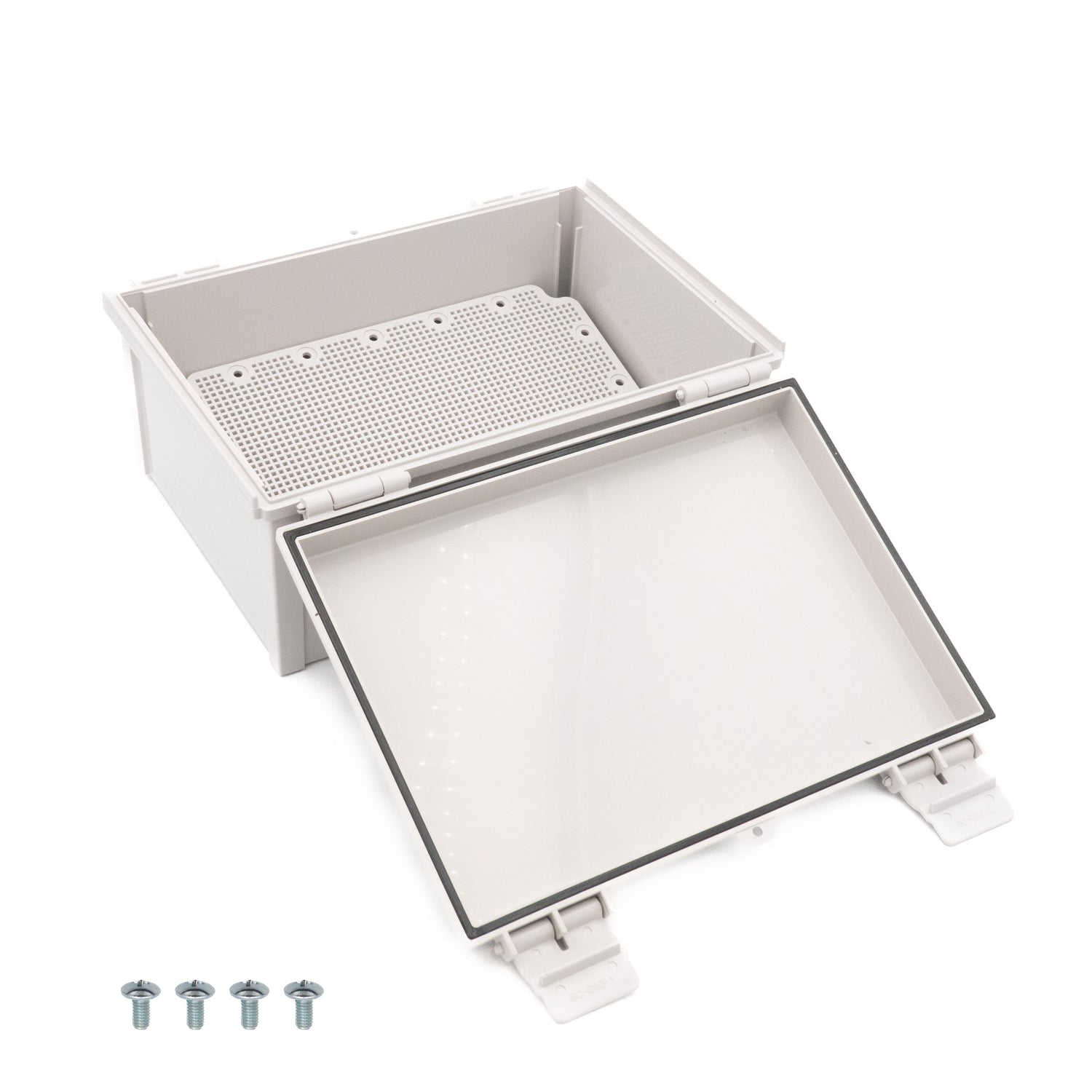

Does this model include a mounting plate?

Yes, this hinge-type enclosure comes with a mounting plate. According to the product description, the plate is included free of charge and has pre-drilled holes. That helps save time when preparing the enclosure for internal equipment mounting.

What distinguishes this Boxco Q-Series enclosure from standard non-hinged enclosures?

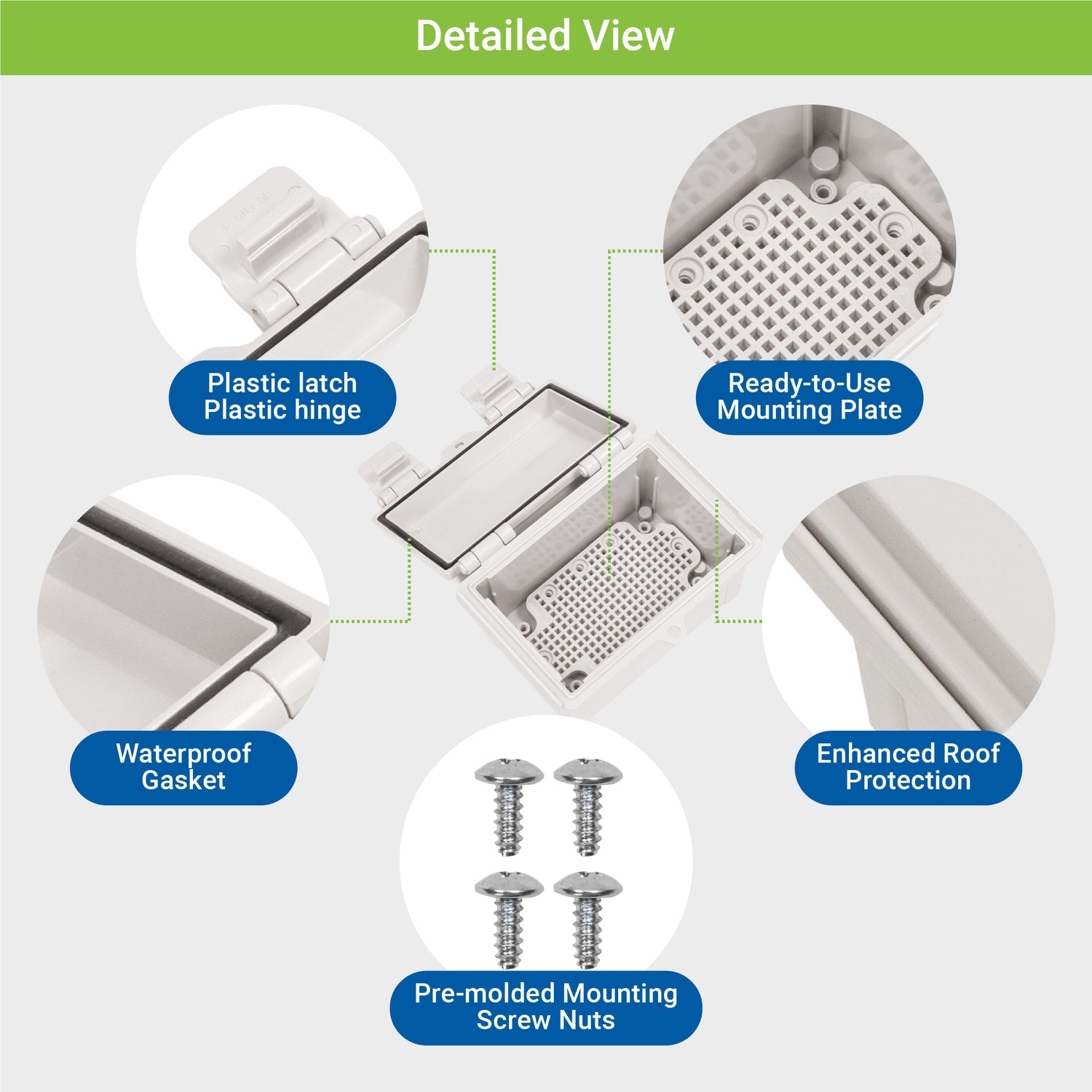

This model uses a hinge-type cover, which can be more convenient when repeated access to the enclosure interior is needed. It also features a plastic draw latch, roof protection details, and pre-molded mounting screw nuts described for the Q-Series. Those features make it a practical option for applications needing durable access and environmental protection.
