Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

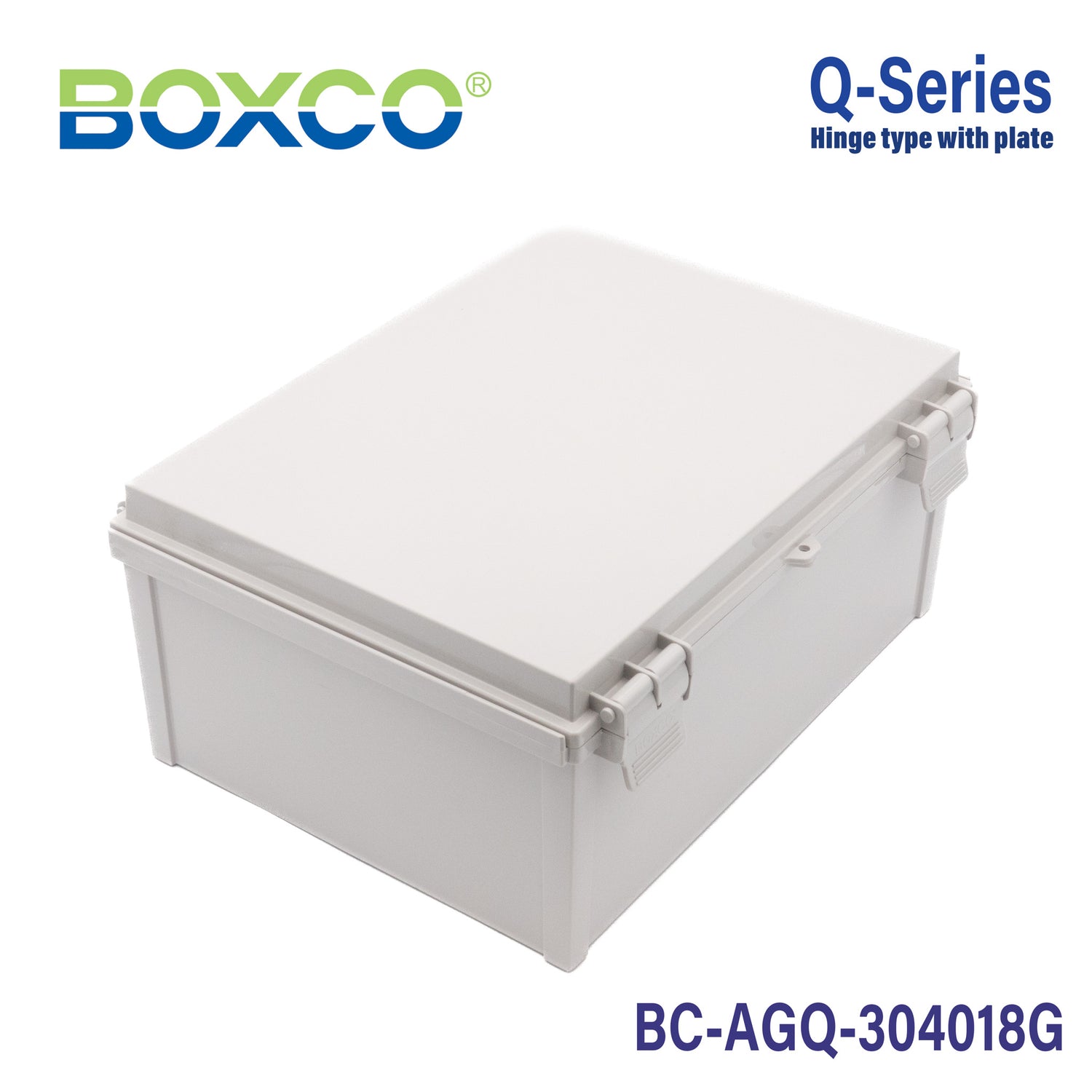

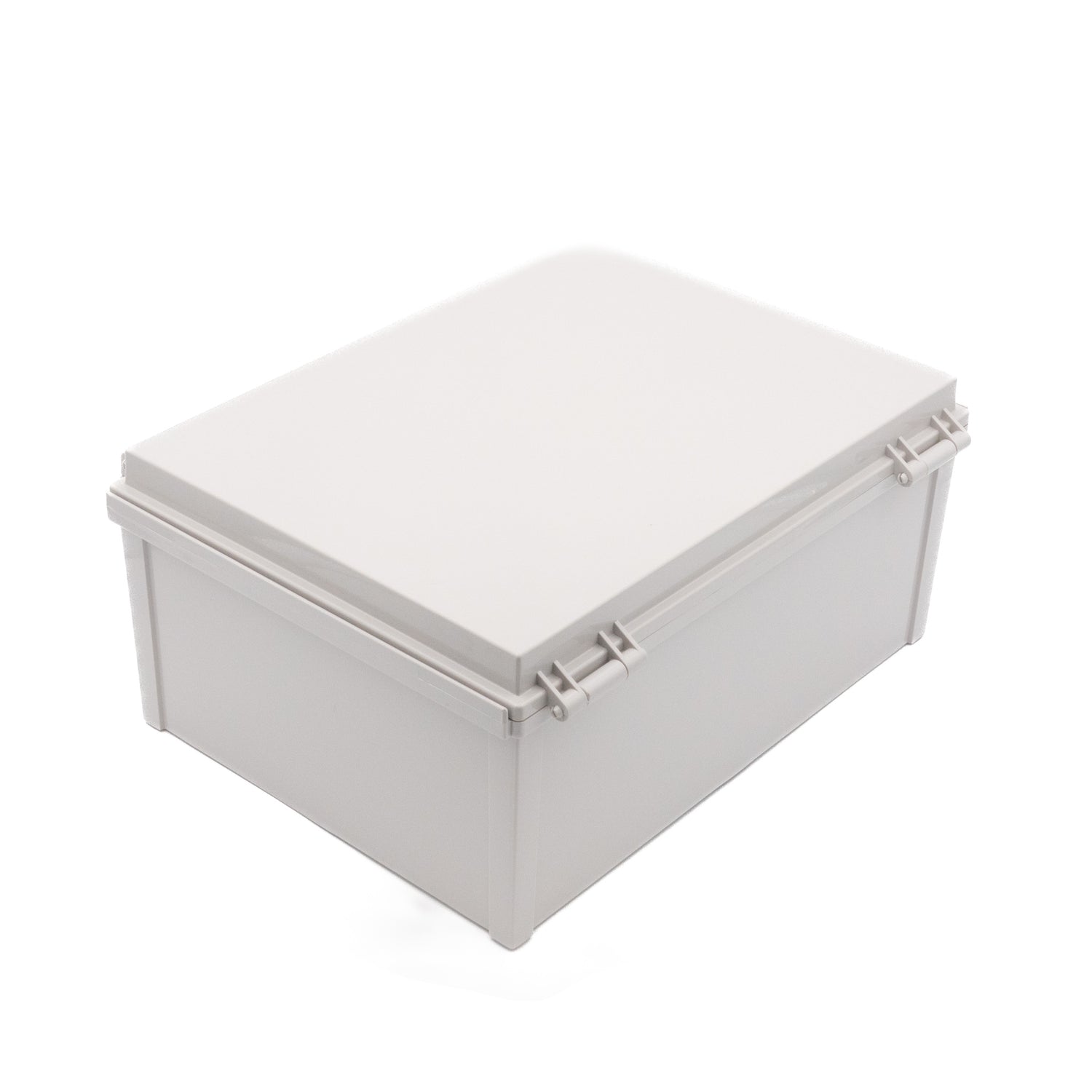

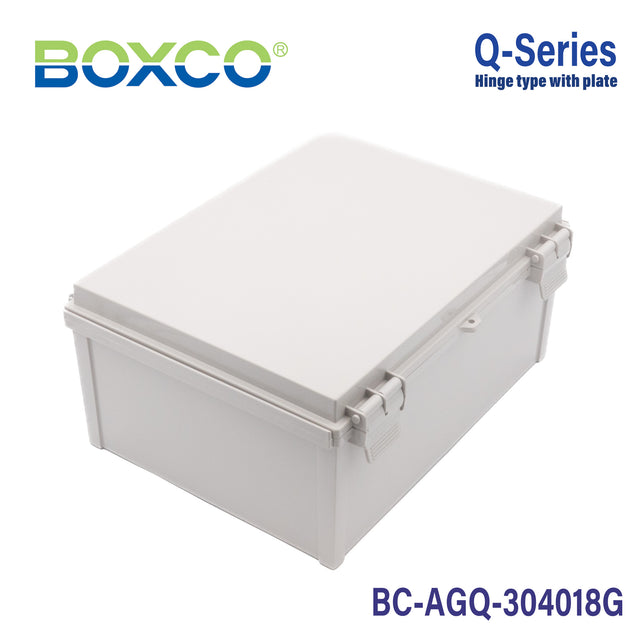

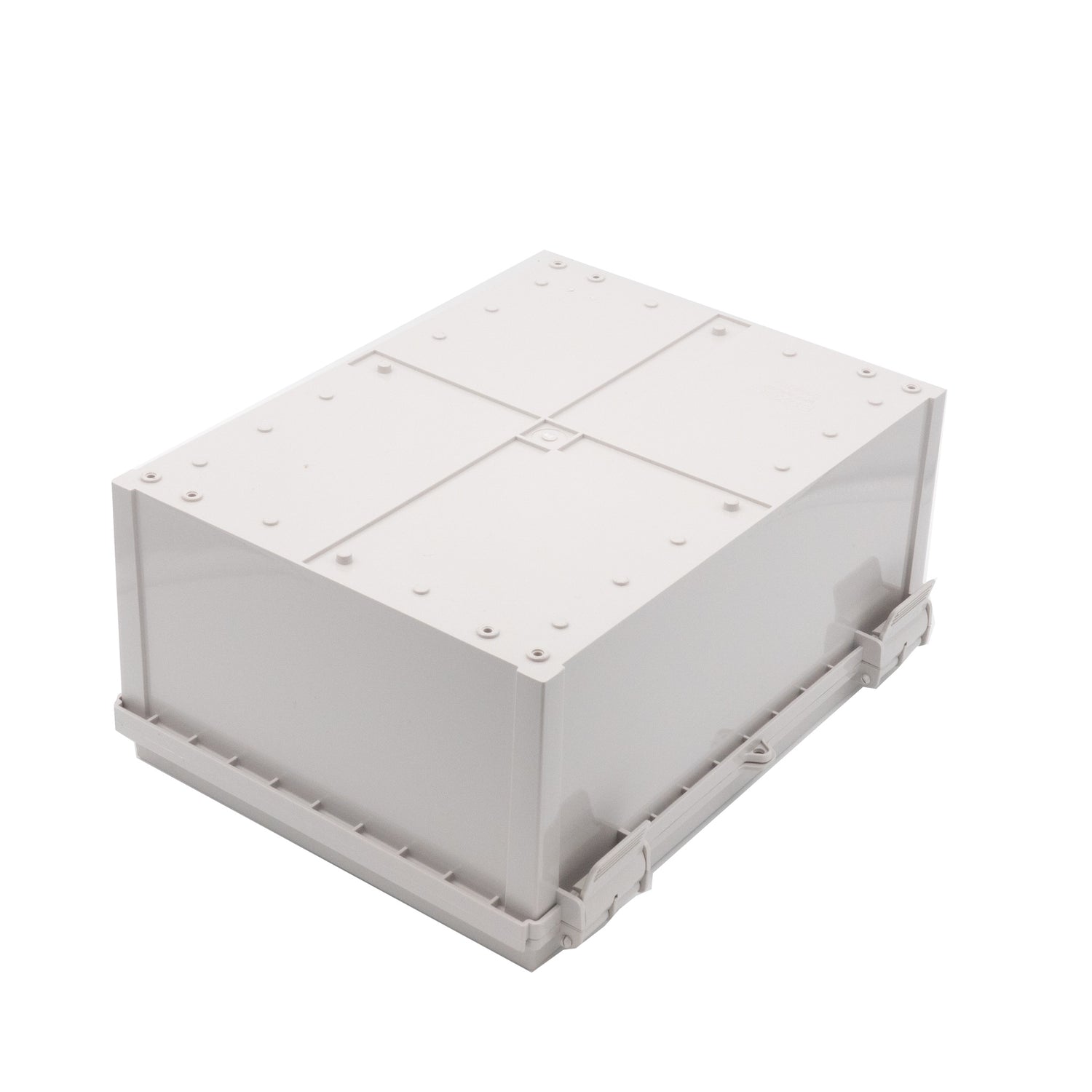

Boxco Q-Series 300400180mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Hinge Type with Plate

Enclosure, ABS, Grey Cover, 300x400x180mm

SKU:

BC-AGQ-304018G

Notify me when it's back in stock

Description

Boxco Q-series is our most economic hinge series, It is made of high impact resistant material which is very strong against external impact and also prevents breakage during hole and press processing. Special spec can be added besides standard specification. We can supply optimized products with the spec and material you choose.

Features

Latch - Main part of the draw latch is made of plastic so it is very strong and anti-corrosion.

Pre-molded Mounting Screw Nuts – You can easily fix DIN RAIL or other equipment on to the pre molded Screw nuts

Roof Protection – Both ends of the Q series are protruded to protect against penetration of water when using it outdoor and penetration of dust when opening/closing the cover

Gasket – The gasket in injected by super precise CNC robot machine to product excellent waterproof and dust-proof performance

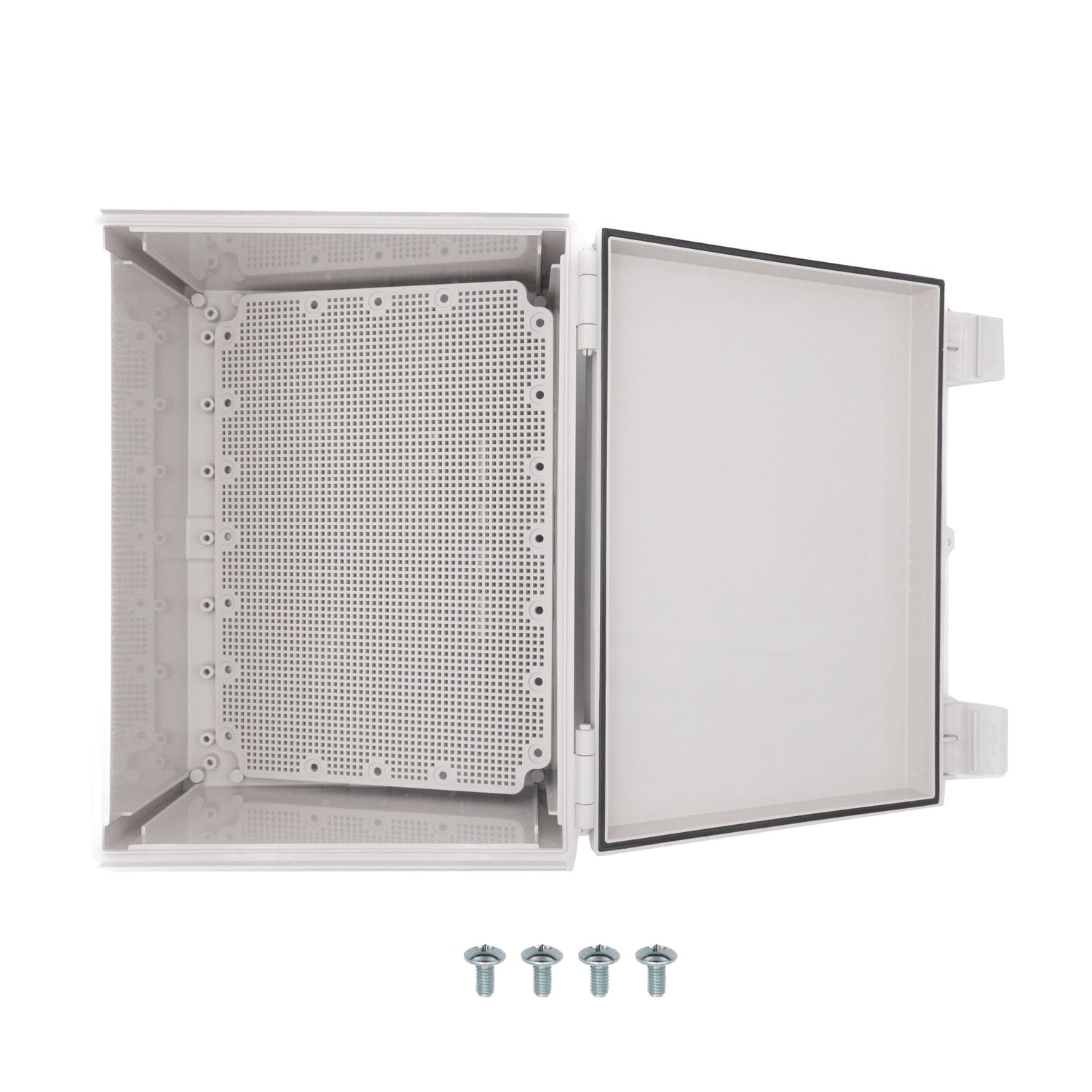

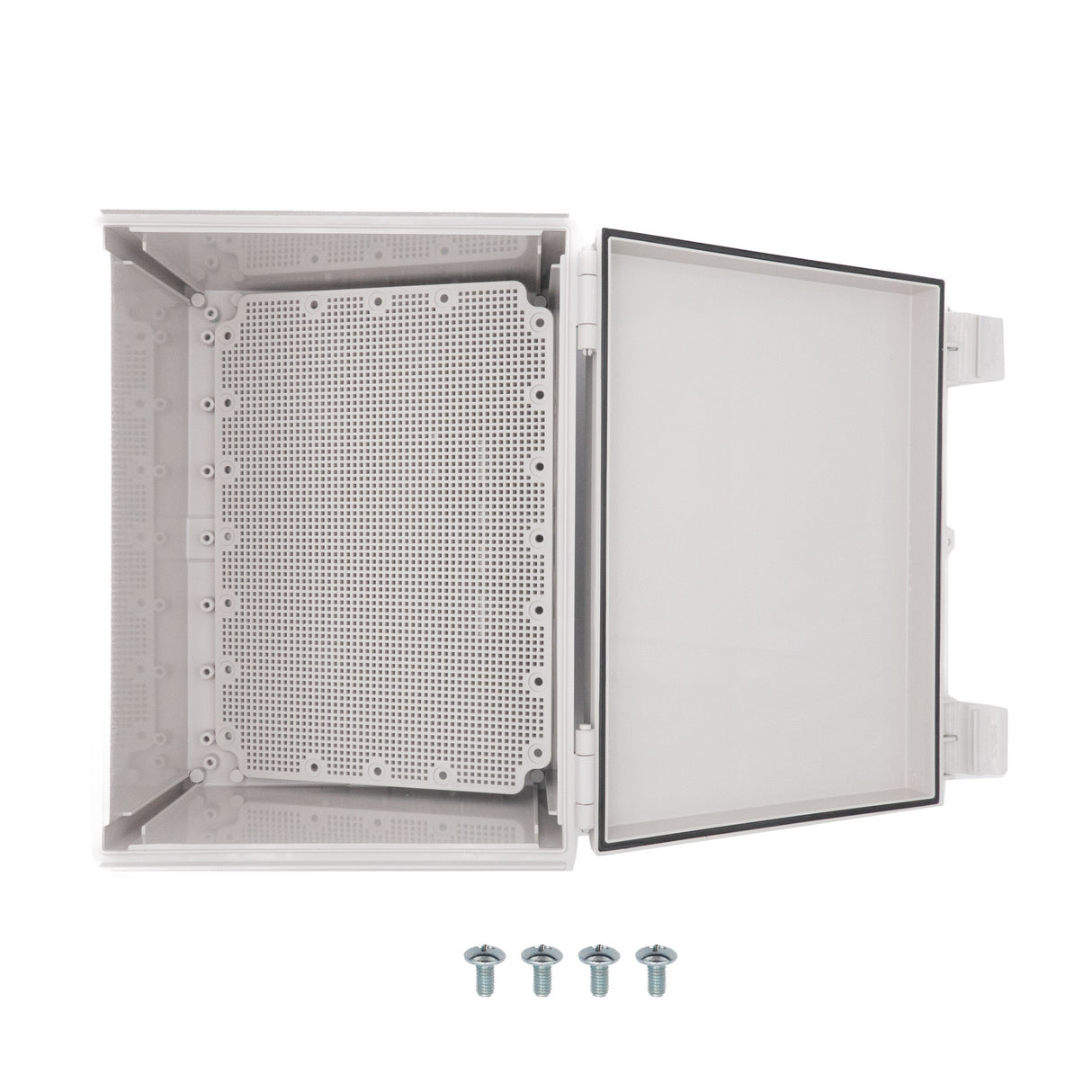

Mounting Plate Attachment Point – Mounting Plate comes with the box free of charge and comes with pre-drilled holes so saves your time and cost

Backed up with all the certifications and across the globe, Boxco Enclosures are suitable for exporting to other countries and to be use across international businesses.

Due to the low cost and high reliability as well as its excellent durability and waterpoof features, boxco enclosures can be used in many different applications, protecting electrical connections and components from moisture, dust and other environmental factors

Specifications

Brand

Boxco
Series

Boxco Q Series
Standards Met

CE,TUV,UL
Operating Temperature

-40°C~70°C
Warranty

1 Year
Length

30 cm
Width

40 cm
Height

18 cm
Weight

5 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

What is included with the Boxco Q-Series BC-AGQ-304018G enclosure?

This model is a hinge-type ABS plastic enclosure with a grey cover and an included mounting plate. The product description states the mounting plate comes free of charge and includes pre-drilled holes to help speed panel preparation.

What kinds of applications is this enclosure suited for?

This enclosure is designed to protect electrical components and connections from moisture, dust, and external impact in industrial and commercial environments. Its IP67 sealing, IK08 impact rating, and durable ABS construction make it a practical choice for control, protection, and general-purpose enclosure applications.

Is the BC-AGQ-304018G suitable for outdoor or harsh environments?

Yes, this model is built for demanding environments where dust and water resistance matter. The product description highlights roof protection features to help reduce water and dust ingress during outdoor use, and the enclosure is rated IP67 for environmental protection.

What are the size and material details for this Boxco enclosure?

The BC-AGQ-304018G measures 11.81 x 15.75 x 7.09 inches, which corresponds to 300 x 400 x 180 mm. It is made from ABS and uses a grey cover in a hinge-type enclosure format.

What temperature range can this enclosure handle?

This model is specified for use from -40 degrees C to 70 degrees C. That range supports use in both cold and warm operating environments, provided the rest of the application is designed within those limits.

How does the Q-Series differ from a basic plastic enclosure?

The Q-Series is positioned as Boxco's economic hinge series, but it still adds practical features beyond a basic box. For this model, those include a hinge-type cover, plastic anti-corrosion latch, pre-molded mounting screw nuts, roof protection, and an included mounting plate.

Does this enclosure support internal mounting hardware or equipment plates?

Yes, the description specifically notes pre-molded mounting screw nuts for attaching items such as DIN rail or other equipment, and this model also includes a mounting plate. That combination makes it well suited when internal component organization is needed inside the enclosure.
