Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Boxco

Boxco Q-Series 300x300x160mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Hinge Type with Plate

EnclosureABSGrey Cover300x300x160mm
SKU BC-AGQ-303016G
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Overview

BC-AGQ-303016G is a 300×300×160 mm ABS enclosure with a grey cover from the Boxco Q Series.

Features

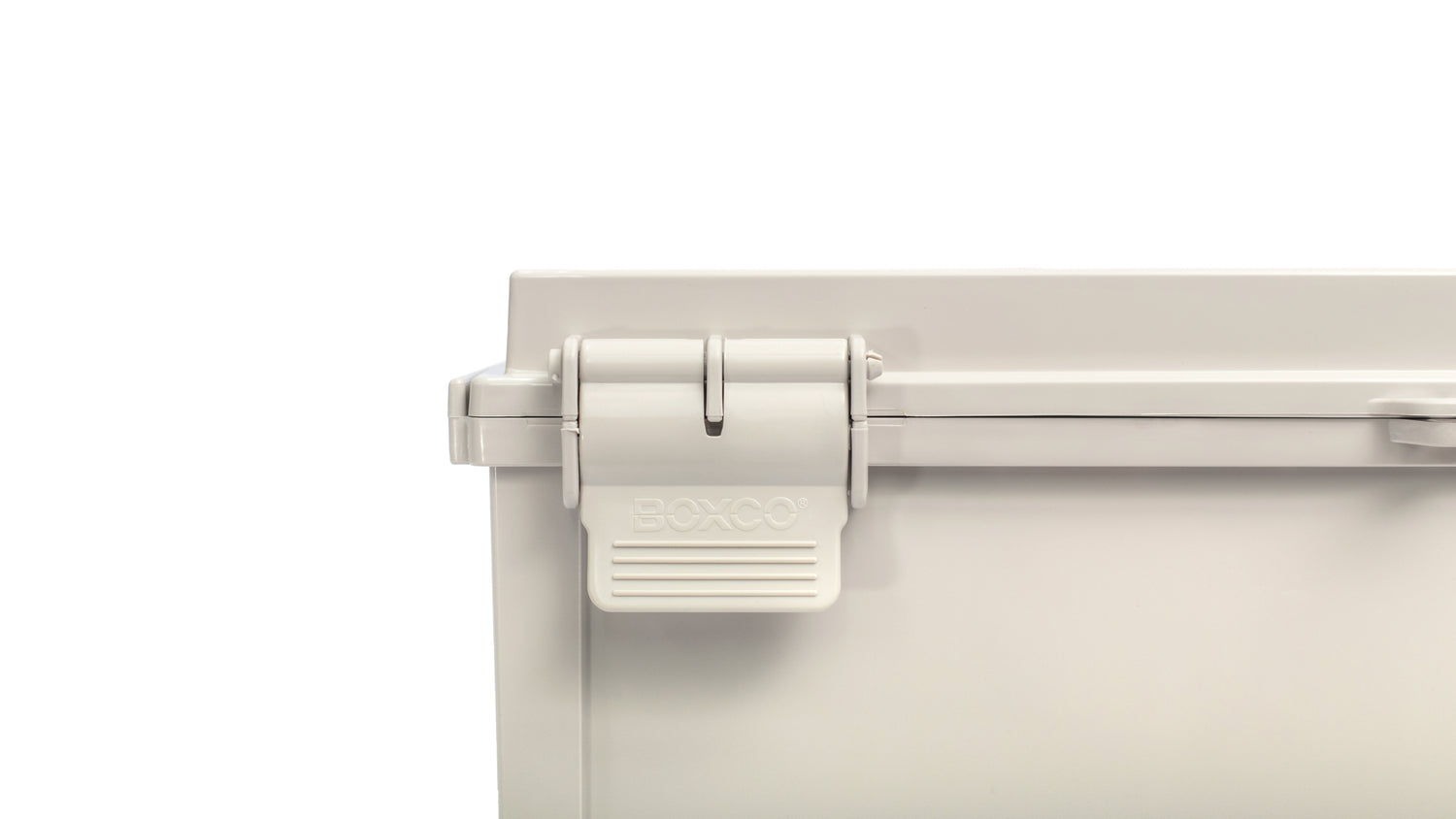

  • BOXCO electrical juntion box include plastic latch and plastic hinge.
  • Our IP66/IP67 waterproof control box is easy to removable cover and body
  • AGQ series is included G plate.**Dimensions and specifications are subject to change without notice.

Specifications

BC-AGQ-303016GSpecifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
300×300×160 mm (11.81×11.81×6.30 in)
Mounting plate dimension M1 × M2
260 × 260 mm

Material

Material
ABS
Cover
Grey
Mounting plates
3030 G (Plastic, G type), 3030 SQ (Steel, SQ type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +70℃
Flammability rating (UL 94)
94-HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

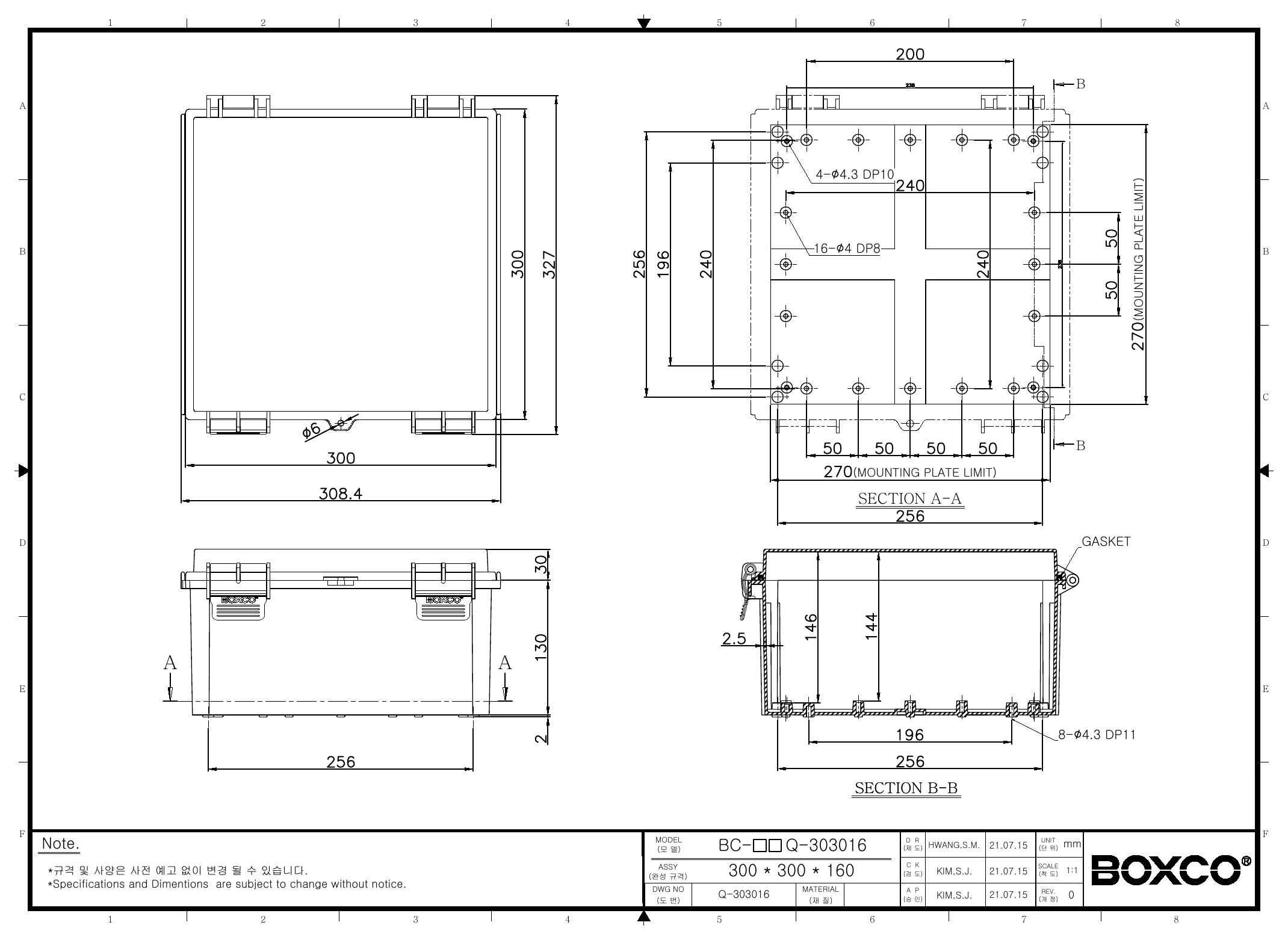

Technical drawings

BC-AGQ-303016G Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What are the key specifications of the Boxco Q-Series BC-AGQ-303016G enclosure?

This model is a plastic hinge-type enclosure with overall dimensions of 11.81 x 11.81 x 6.30 inches (300 x 300 x 160 mm). It is made from ABS, has a grey cover, includes a mounting plate, and is rated IP67 and IK08. The listed product weight is 5.0000 kg and the warranty period is 1 year.

Is the BC-AGQ-303016G suitable for outdoor or washdown environments?

This enclosure is rated IP67, which indicates strong protection against dust ingress and water exposure. The product description also highlights roof protection features and a precision-injected gasket to improve waterproof and dust-proof performance. Buyers should still confirm that the full application environment fits the enclosure's temperature and impact limits.

What temperature range can this Boxco enclosure handle?

The specified operating temperature range for this model is -40 °C to 70 °C. That makes it suitable for many industrial and commercial indoor or outdoor protection applications within that range. If your project will exceed those temperatures, a different enclosure specification should be considered.

What kinds of applications is the BC-AGQ-303016G typically used for?

This enclosure is intended to protect electrical components and connections from moisture, dust, and external impact in industrial and commercial settings. Its IP67 and IK08 ratings, hinge cover, and included mounting plate make it a practical choice for control, protection, and equipment-housing applications. It is especially relevant where a durable non-metallic enclosure is preferred.

Does this model include a mounting plate?

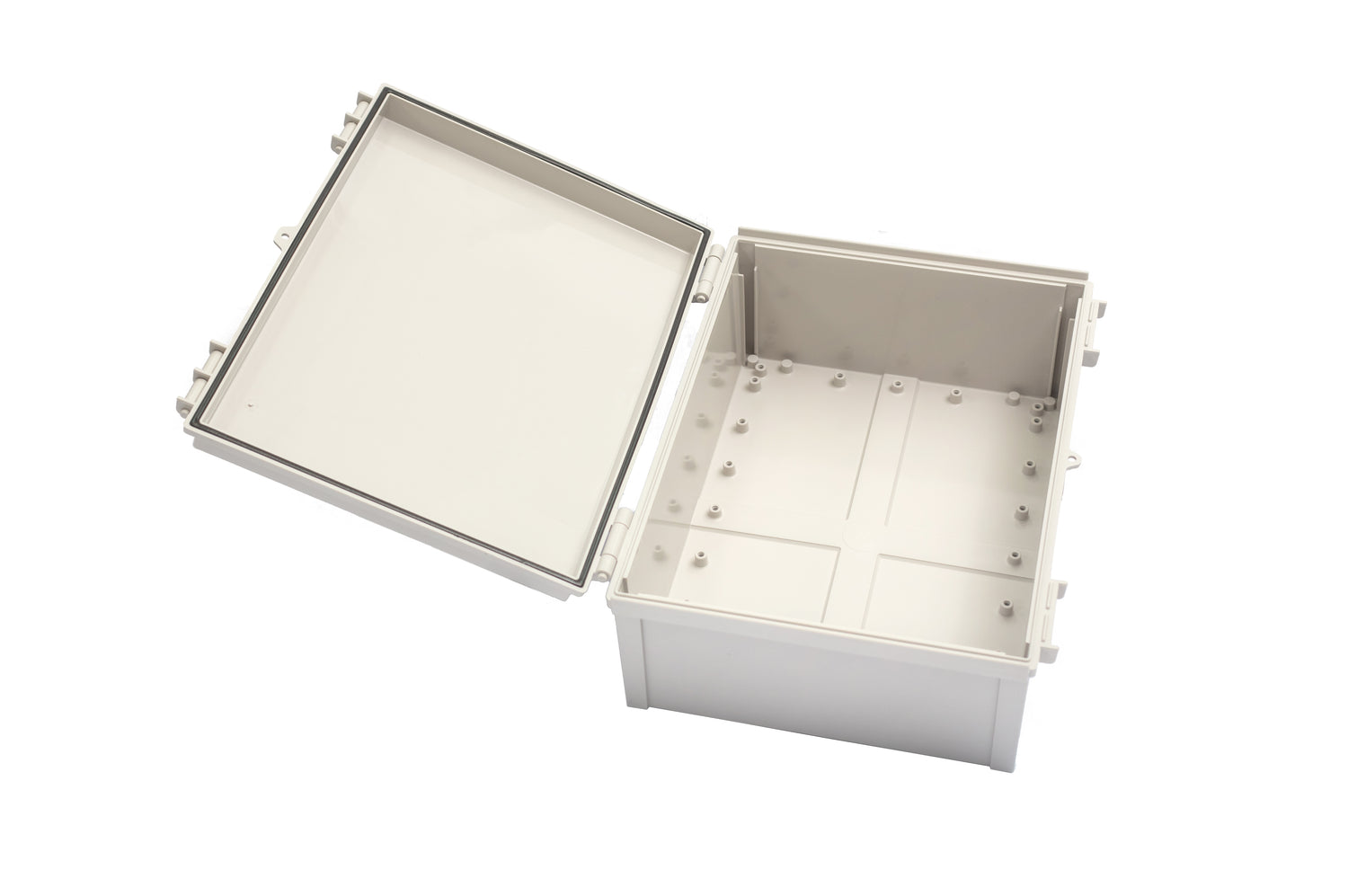

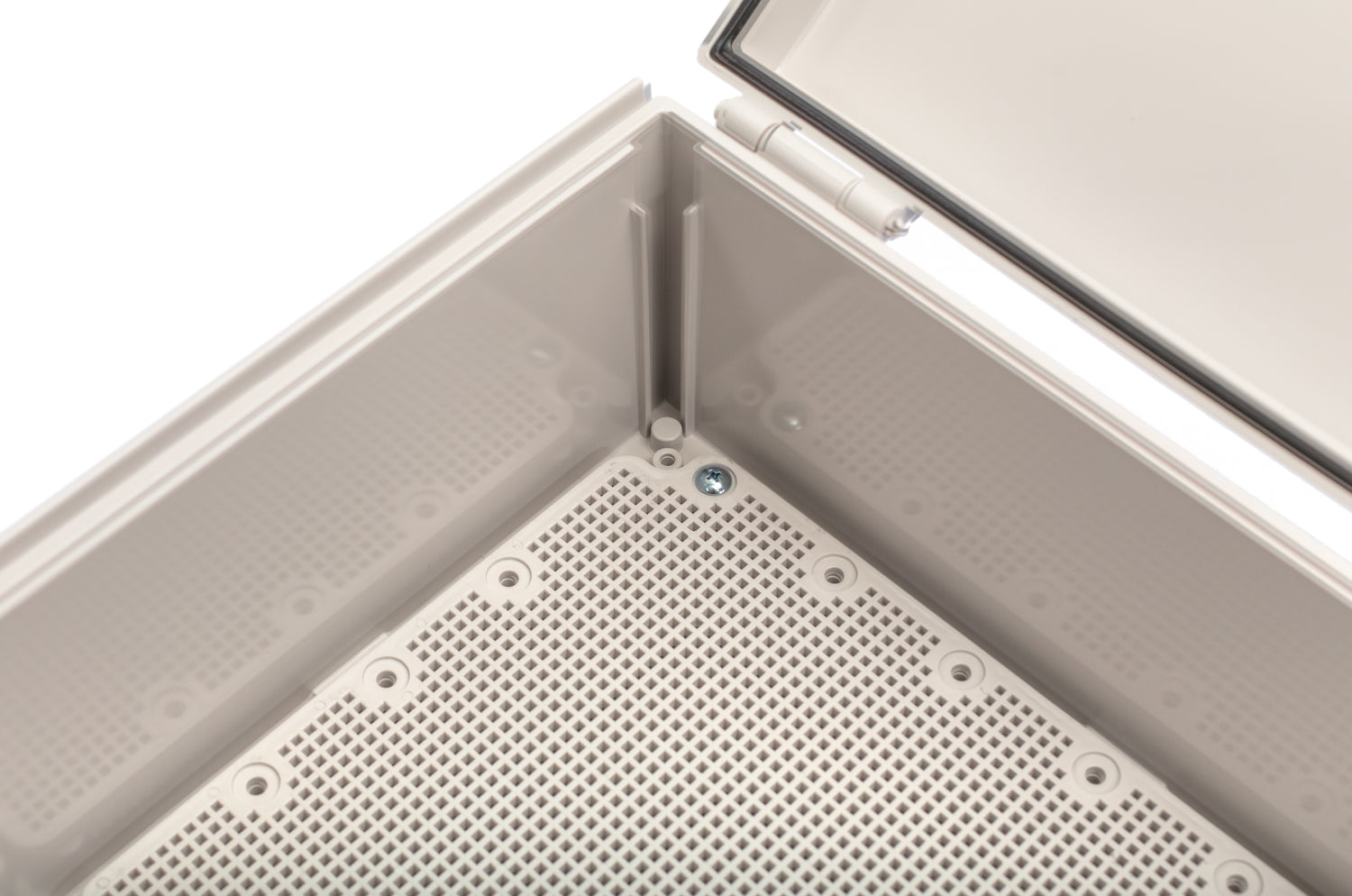

Yes, this hinge-type enclosure comes with a mounting plate. The product description states that the mounting plate is included free of charge and has pre-drilled holes to help reduce preparation time. This is one of the built-in convenience features specific to the Q-Series design.

What distinguishes this Boxco Q-Series enclosure from a basic plastic box?

Compared with a basic plain enclosure, this model adds a hinge-type cover, a draw latch with anti-corrosion plastic main parts, pre-molded mounting screw nuts, roof protection, and an included mounting plate. It is also specified with IP67 and IK08 ratings, which makes it better suited for demanding protective enclosure use. Those features make it more application-ready than a simple undifferentiated box.
