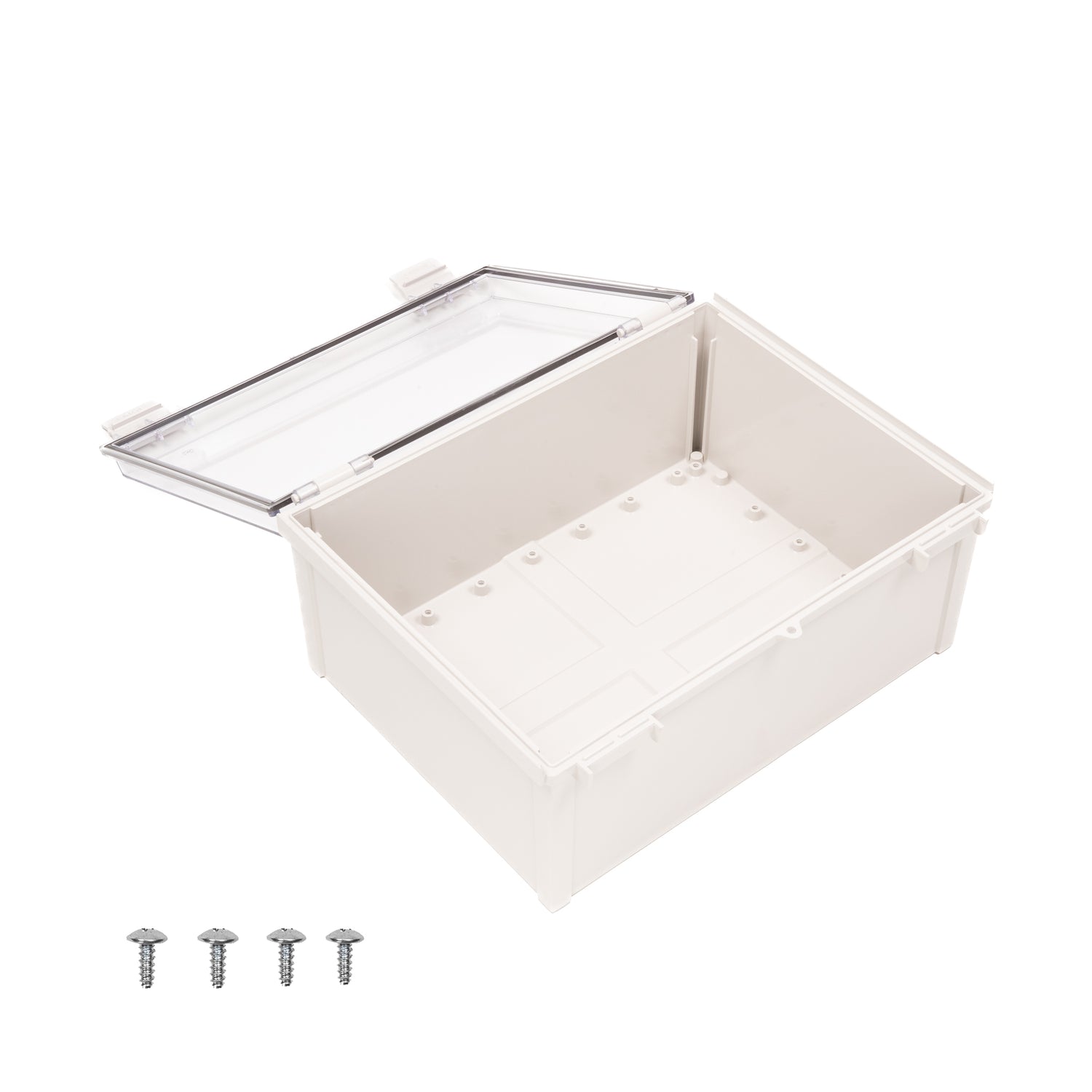

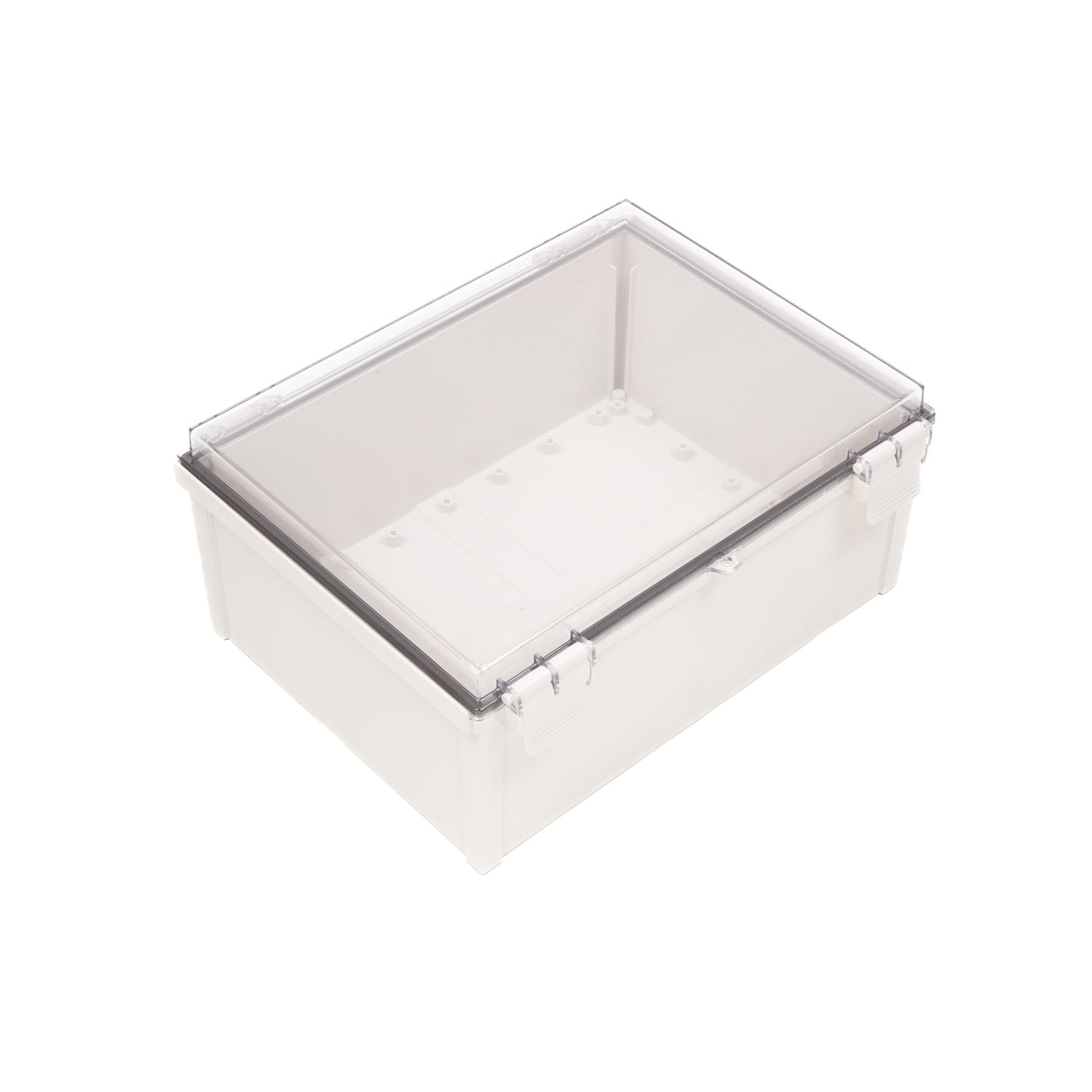

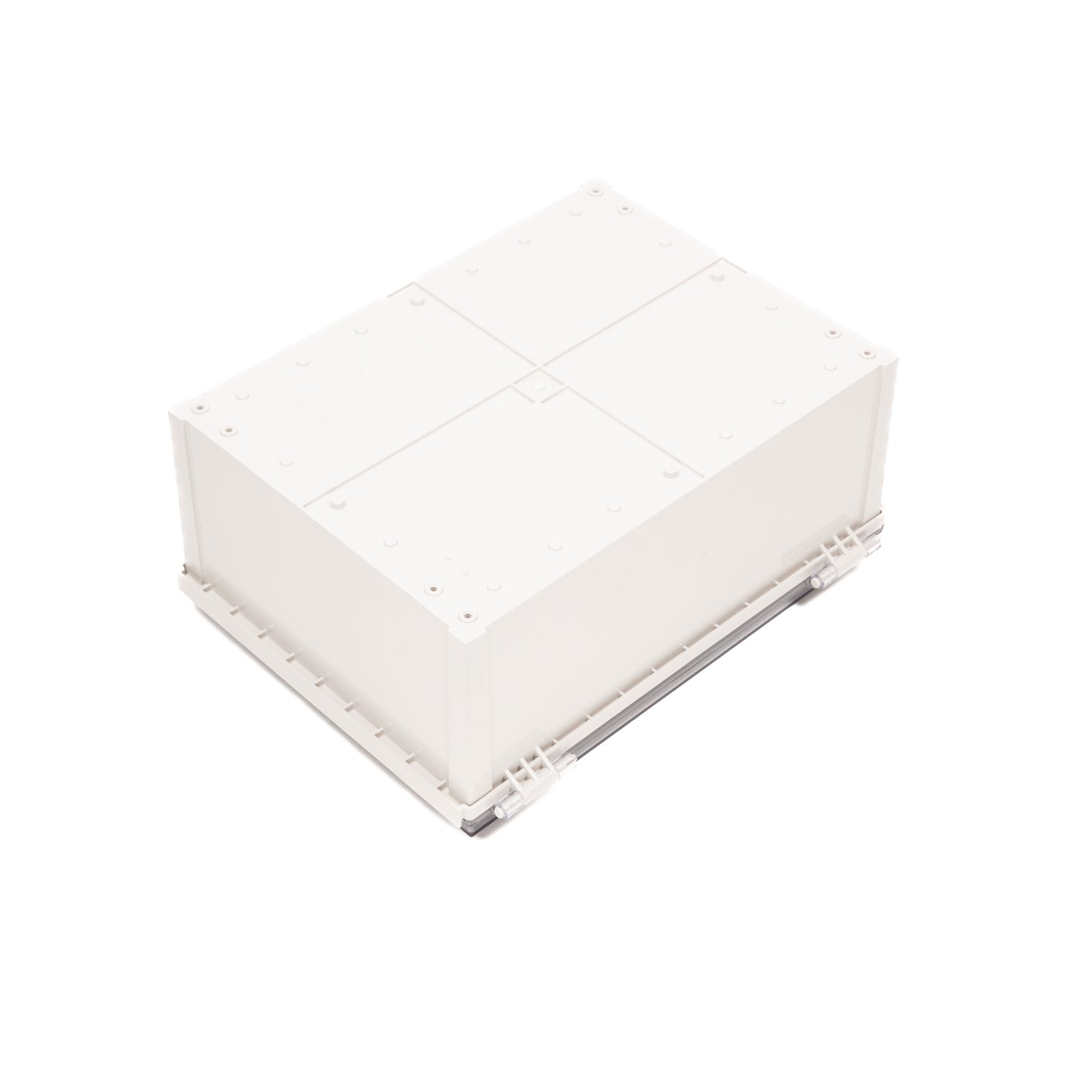

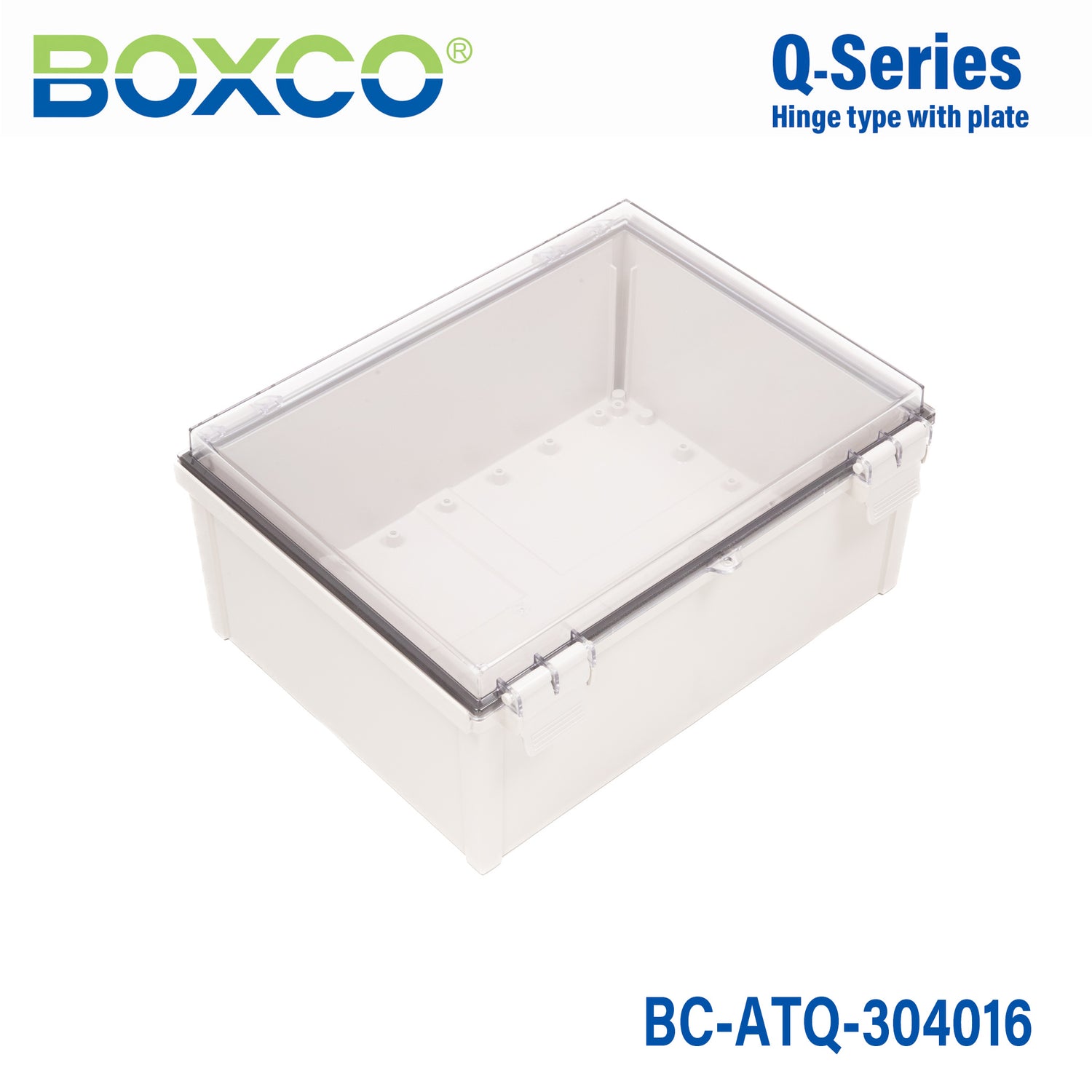

Boxco Q-Series 300×400×160mm Plastic Enclosure, IP67, IK08, ABS, Transparent Cover, Plastic Hinge and Latch Type

SKU BC-ATQ-304016
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-ATQ-304016 is a 300×400×160 mm ABS enclosure with a transparent cover from the Boxco Q Series.

Features

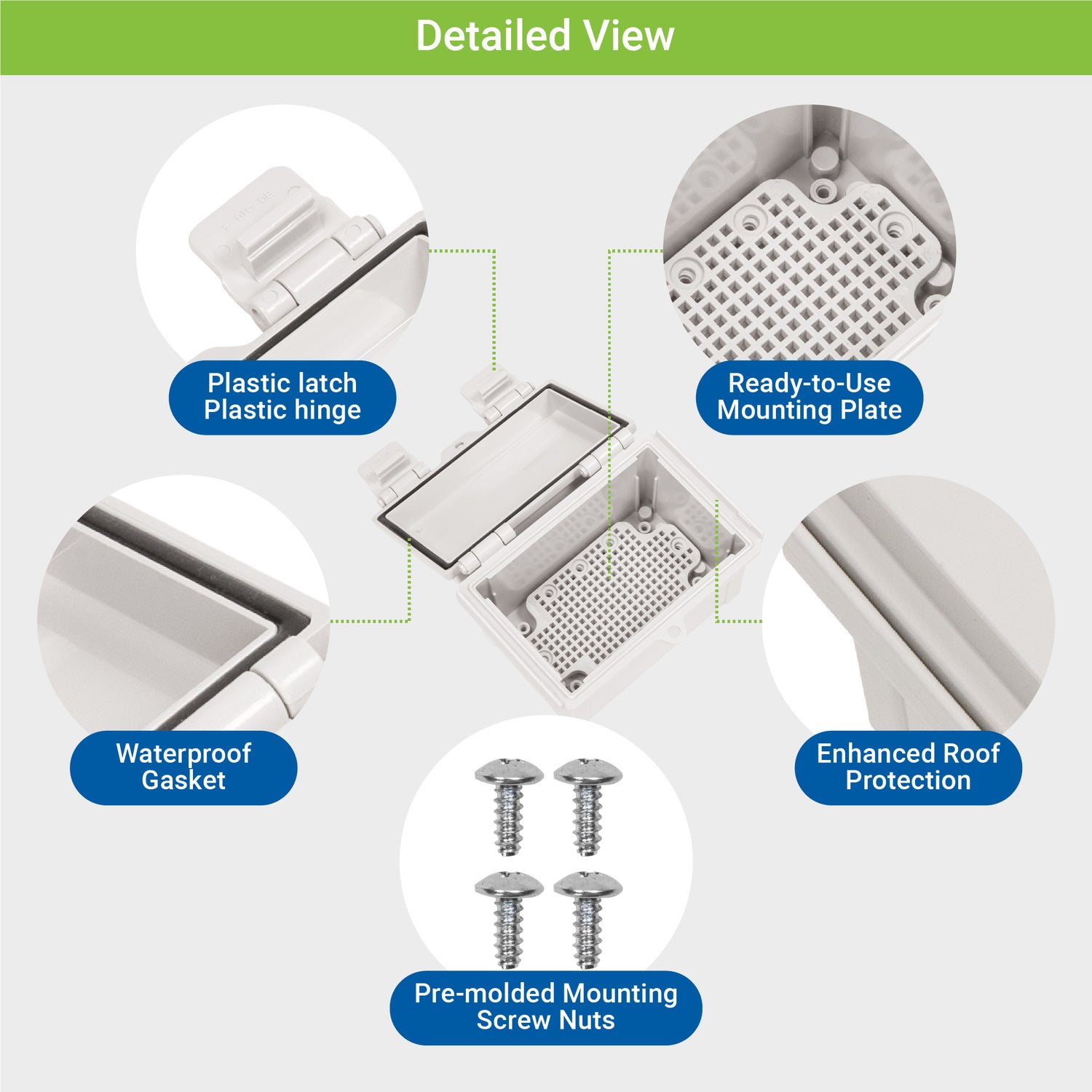

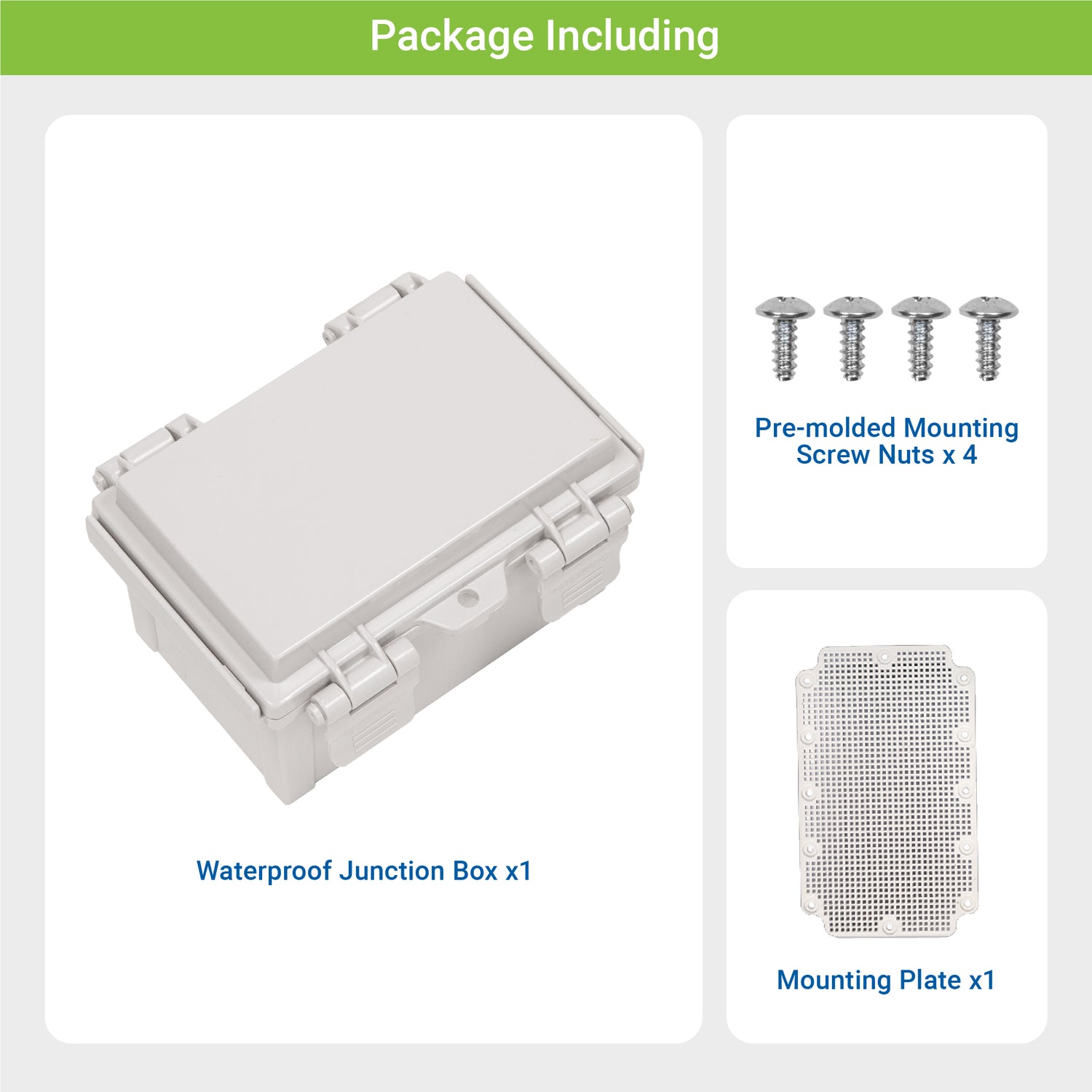

  • BOXCO electrical juntion box include plastic latch and plastic hinge.
  • Our IP66/IP67 waterproof control box is easy to removable cover and body
  • AGQ series is included G plate.**Dimensions and specifications are subject to change without notice.

Specifications

BC-ATQ-304016Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
300×400×160 mm (11.81×15.75×6.30 in)
Mounting plate dimension M1 × M2
260 × 360 mm

Material

Material
ABS
Cover
Transparent
Mounting plates
3040 G (Plastic, G type), 3040 SQ (Steel, SQ type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +70℃
Flammability rating (UL 94)
94-HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

Downloads

FAQ

What applications is the Boxco Q-Series BC-ATQ-304016 enclosure suited for?

This model is suited for protecting electronic controls, instruments, and other components that need a sealed non-metallic enclosure. Its ABS construction, transparent cover, and IP67 rating make it a practical choice for industrial, commercial, and outdoor equipment housings where visibility and environmental protection matter.

What are the key specifications of the BC-ATQ-304016 enclosure?

The Boxco BC-ATQ-304016 measures 11.81 x 15.75 x 6.30 inches (300 x 400 x 160 mm). It is made from ABS, uses a transparent cover with plastic hinge and latch construction, carries IP67 and IK08 ratings, weighs 1.788 kg, and includes a 1-year warranty.

Is this enclosure suitable for outdoor environments?

Yes. The product description states that the Q-Series includes an ultraviolet stabilizer to support outdoor use and reduce visible color change over time. It also includes roof protection features and a precision-injected gasket to help maintain waterproof and dust-proof performance.

How much protection does this enclosure provide against water, dust, and impact?

This model is rated IP67, indicating strong protection against dust ingress and temporary immersion in water under rated conditions. It is also rated IK08 for impact resistance, and the enclosure material is described as high impact resistant for demanding environments.

Can this enclosure be used with sensitive electronic equipment?

Yes. The product description states that anti-static material is used to help protect sensitive electronic instruments from static electricity. That makes this model a better fit for applications where electrostatic protection is an important consideration.

What makes this model different from a standard opaque plastic enclosure?

This version combines a transparent cover with plastic hinge and latch components, which helps users visually inspect enclosed equipment without an opaque lid blocking visibility. It also includes outdoor-focused UV stabilization, anti-static material, IP67 sealing, and IK08 impact resistance, giving it a broader protection profile than a basic general-purpose box.

What operating temperature range is supported for the BC-ATQ-304016?

This enclosure is specified for use from -40 degrees C to 70 degrees C. That range supports use in both cold and hot environments, provided the full application remains within the product's rated conditions.
