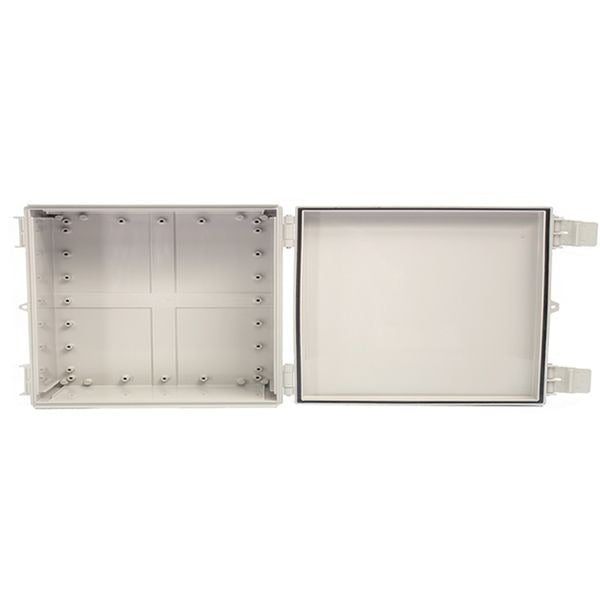

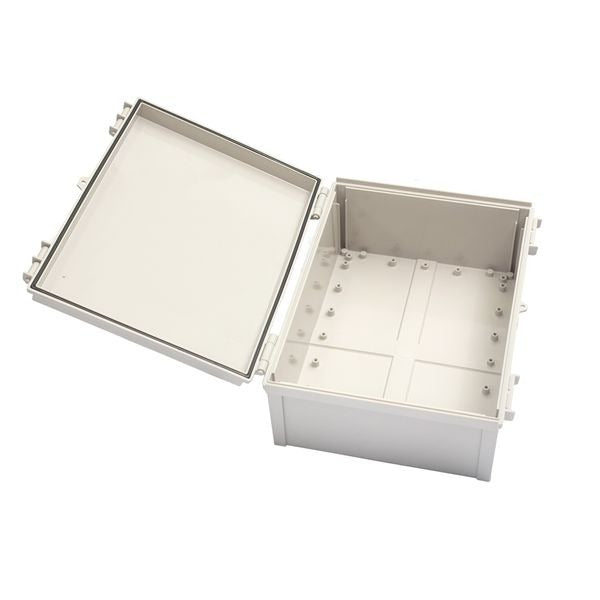

Boxco Q-Series 150×150×90mm Plastic Enclosure, IP67, IK08, ABS, Transparent Cover, Plastic Hinge and Latch Type

SKU:

BC-ATQ-151509

Notify me when it's back in stock

Description

For Boxco Q-Series,Ultraviolet Stabilizer is added to protect the enclosures for outdoor usage. Few colour changes will be noticed even after a long time of use. Anti-static material is used to protect sensitive electronic instruments from static electricity. It is made of high impact resistant material which is very strong against external impact and also prevents breakage during hole and press processing. Special spec can be added besides standard specification. We can supply optimized products with the spec and material you choose.

Features

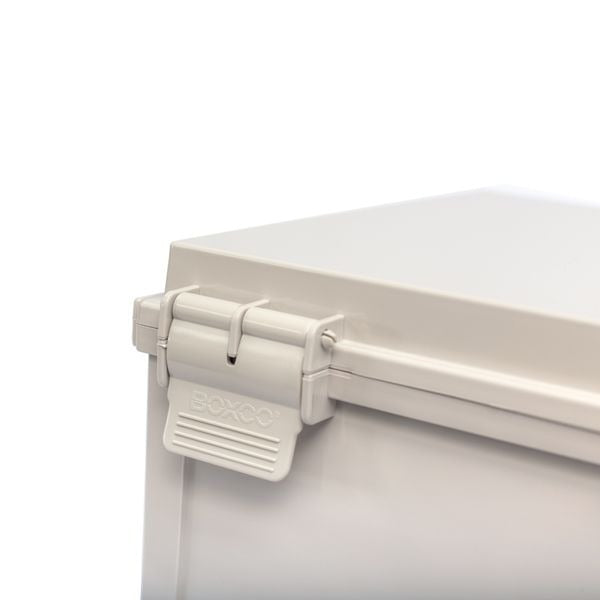

Latch - Main part of the draw latch is made of plastic so to prevent erosion.

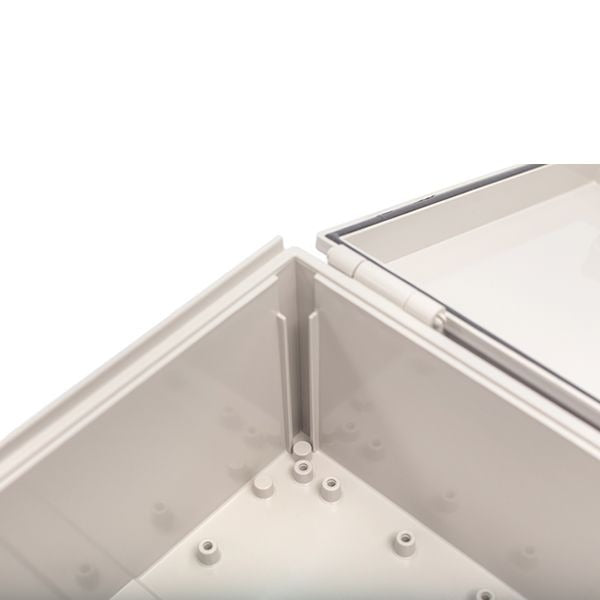

Pre-molded Mounting Screw Nuts – You can easily fix DIN RAIL or other equipment on to the pre molded Screw nuts
Roof Protection – Both ends of the Q series are protruded to protect against penetration of water when using it outdoor and penetration of dust when opening/closing the cover
Gasket – The gasket in injected by super precise CNC robot machine to product excellent waterproof and dust-proof performance

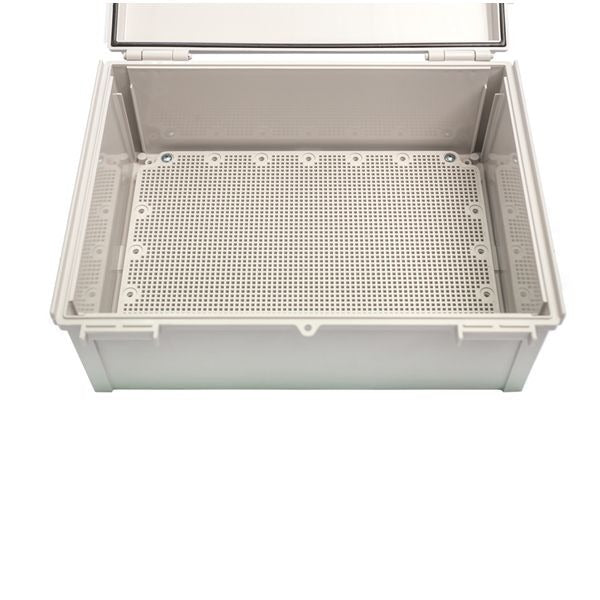

Mounting Plate Attachment Point – Internal mounting plate can be fixed tightly onto the brass inserted injection molding to handle heavy equipment installed inside the enclosure

Specifications

Brand

Boxco
Series

Boxco Q Series
Standards Met

CE,TUV,UL
Operating Temperature

-40°C~70°C
Warranty

1 Year
Length

15 cm
Width

15 cm
Height

9 cm
Weight

0.32 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

What applications is the Boxco Q-Series BC-ATQ-151509 enclosure suited for?

This enclosure is designed for protecting electrical or electronic components in industrial and commercial environments where dust and water resistance matter. Its ABS construction, transparent cover, and impact-resistant design make it a practical choice for outdoor or indoor equipment housings that need visibility without opening the cover.

What are the key specifications of this enclosure?

The BC-ATQ-151509 measures 5.91 x 5.91 x 3.54 inches (150 x 150 x 90 mm). It is made from ABS, uses a transparent cover with plastic hinge and latch construction, carries IP67 and IK08 ratings, and weighs 0.3200 kg.

Is this enclosure suitable for outdoor environments?

Yes, this model is intended for outdoor use and includes ultraviolet stabilizer material to help reduce visible color change over time. The product description also highlights roof protection features and a precision-injected gasket to support waterproof and dust-proof performance.

How durable is the Boxco Q-Series BC-ATQ-151509?

This enclosure is built from high impact resistant ABS and is rated IK08 for impact resistance. The material is described as strong against external impact and resistant to breakage during hole and press processing, making it suitable for demanding enclosure applications.

What temperature range can this enclosure handle?

The specified operating temperature range is -40 °C to 70 °C. That range supports use in both cold and hot environments, provided the rest of the application components are also rated appropriately.

Does this enclosure support internal mounting hardware or equipment plates?

Yes, the enclosure includes pre-molded mounting screw nuts that can be used to secure DIN rail or other equipment. It also includes internal mounting plate attachment points with brass inserted injection molding for tightly securing heavier internal equipment.
