Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Boxco

Boxco Q-Series 210x210x130mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Hinge Type with Plate

EnclosureABSGrey Cover210x210x130mm
SKU BC-AGQ-212113G
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Overview

BC-AGQ-212113G is a 210×210×130 mm ABS enclosure with a grey cover from the Boxco Q Series.

Features

  • BOXCO electrical juntion box include plastic latch and plastic hinge.
  • Our IP66/IP67 waterproof control box is easy to removable cover and body
  • AGQ series is included G plate.**Dimensions and specifications are subject to change without notice.

Specifications

BC-AGQ-212113GSpecifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
210×210×130 mm (8.27×8.27×5.12 in)
Mounting plate dimension M1 × M2
180 × 180 mm

Material

Material
ABS
Cover
Grey
Mounting plates
2020 G (Plastic, G type), 2020 SQ (Steel, SQ type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +70℃
Flammability rating (UL 94)
94-HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

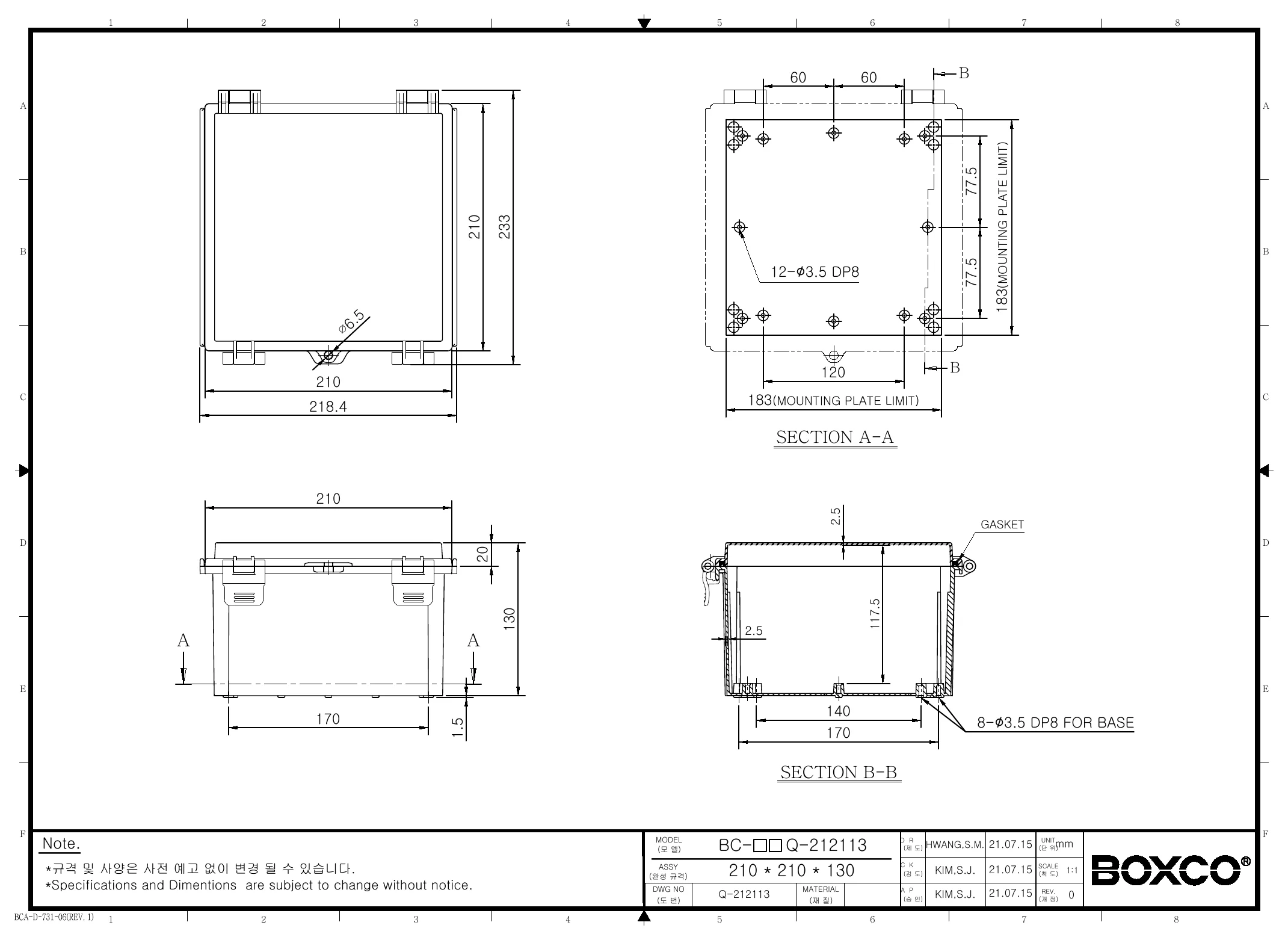

Technical drawings

BC-AGQ-212113G Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What are the main specifications of the Boxco Q-Series BC-AGQ-212113G enclosure?

This model is a plastic ABS enclosure with external dimensions of 8.27 x 8.27 x 5.12 inches (210 x 210 x 130 mm). It is rated IP67 for dust and water protection and IK08 for impact resistance. The enclosure comes in grey, uses a hinge-type cover, and includes a mounting plate.

Is the BC-AGQ-212113G suitable for outdoor or washdown environments?

This enclosure is designed for demanding environments where protection from dust and water is important. Its IP67 rating and gasketed construction support strong sealing performance, while the roof protection design helps reduce water and dust intrusion during outdoor use. Buyers should still confirm overall application suitability based on the full system design and exposure conditions.

What types of applications is this enclosure commonly used for?

This model is commonly used to protect electrical and control components from moisture, dust, and external impact in industrial and commercial settings. Its size and included mounting plate make it a practical choice for housing control, automation, and protection equipment inside a sealed enclosure. It is intended for applications where a durable non-metallic enclosure is preferred.

Does this enclosure include a mounting plate?

Yes, the BC-AGQ-212113G includes a mounting plate. According to the product details, the plate is provided with pre-drilled holes to help save time and reduce added hardware cost. This makes the enclosure more convenient for panel-building and equipment-mounting applications.

What material is the enclosure made from, and why does that matter?

The enclosure is made from ABS plastic, which the product description notes is high-impact resistant. Combined with its IK08 impact rating, this helps the enclosure resist external impact and reduces the risk of breakage during machining or modification. ABS also supports corrosion-resistant performance compared with many metal alternatives.

What temperature range can the BC-AGQ-212113G handle?

The listed operating temperature range for this model is -40°C to 70°C. That range makes it suitable for many indoor and outdoor industrial environments where temperature swings are a concern. Buyers with extreme environmental requirements should compare those limits against their actual site conditions.
