Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Boxco

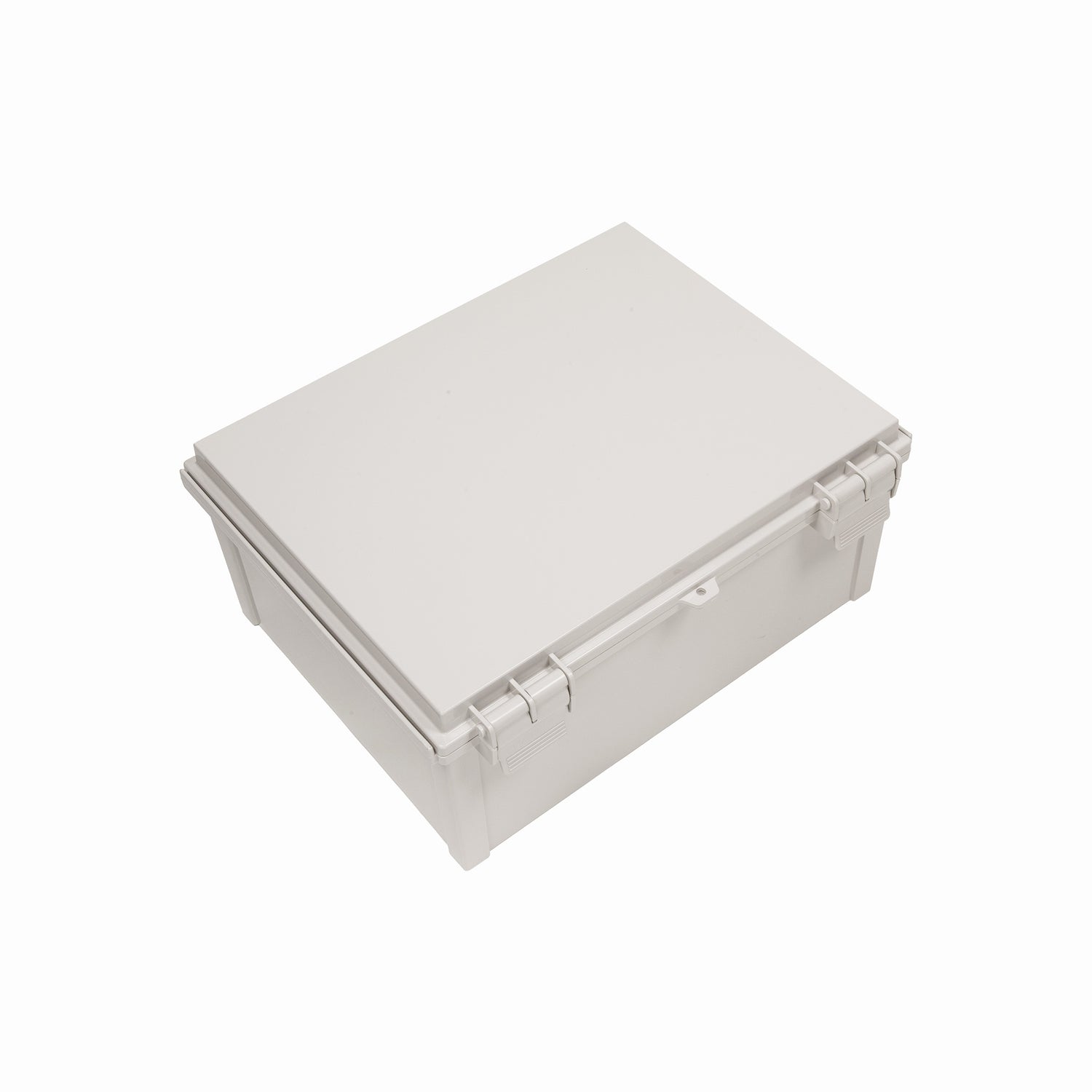

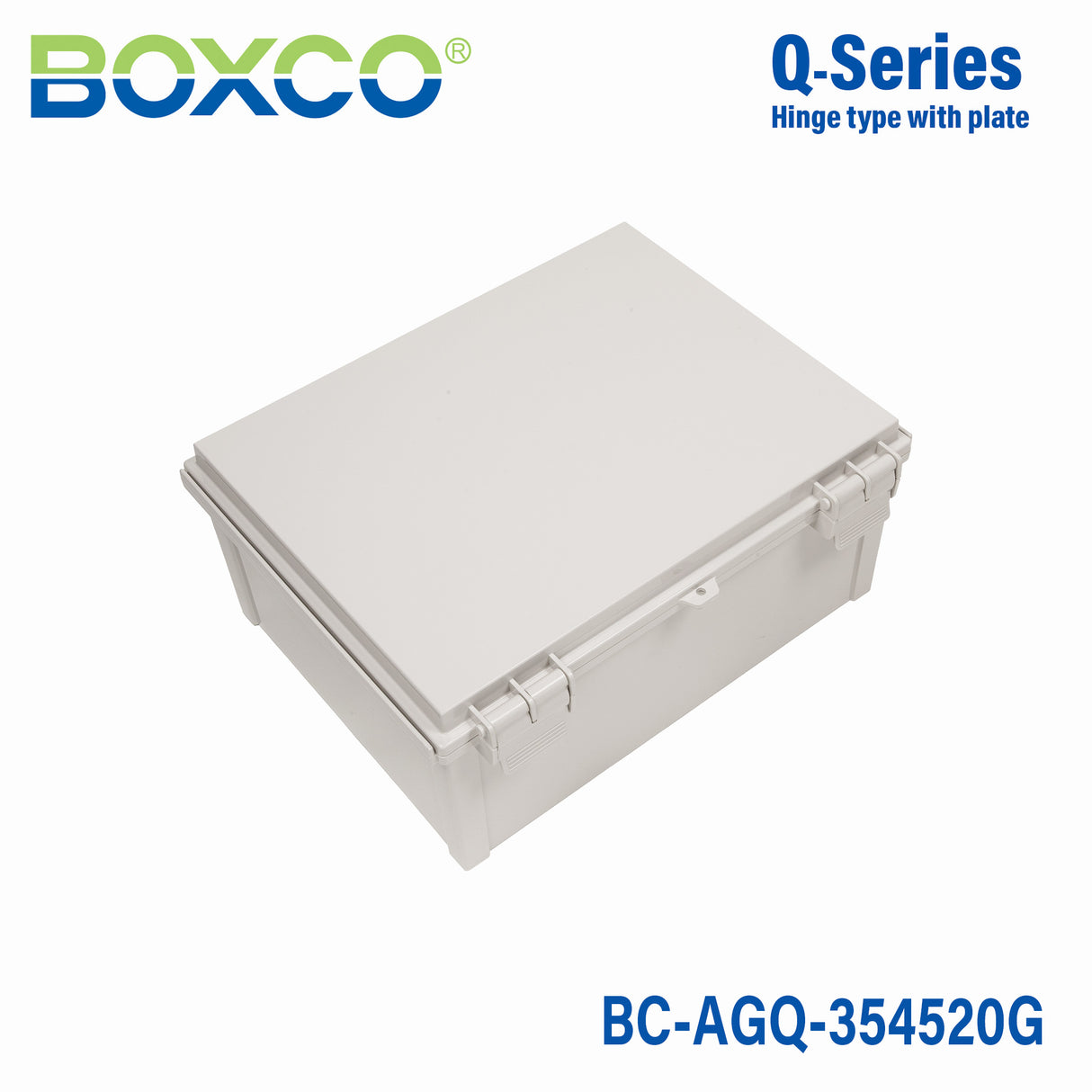

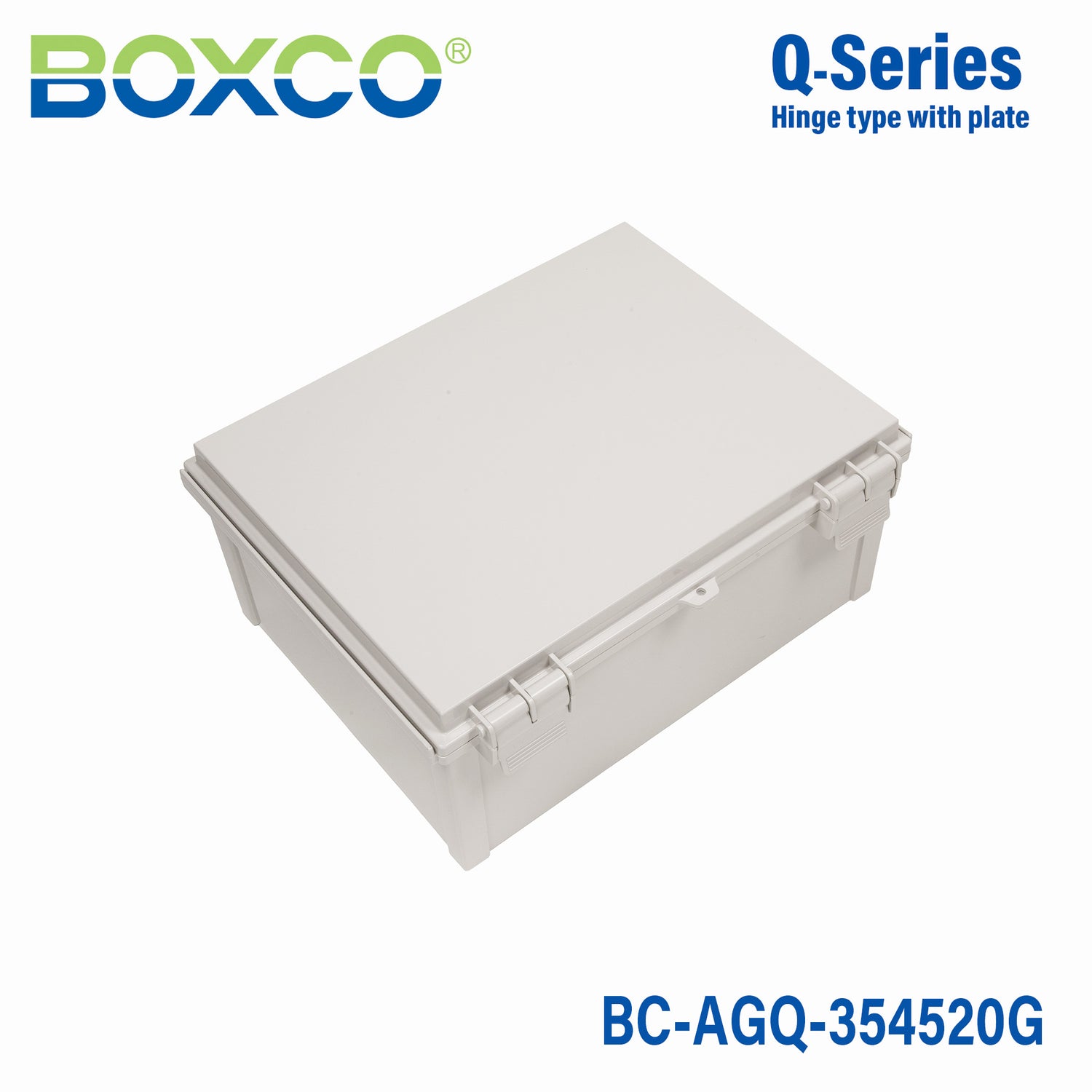

Boxco Q-Series 350x450x200mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Hinge Type with Plate

Enclosure, ABS, Grey Cover, 350x450x200mm
SKU:
BC-AGQ-354520G
Please for Pricing
|

Description

Boxco Q-series is our most economic hinge series, It is made of high impact resistant material which is very strong against external impact and also prevents breakage during hole and press processing. Special spec can be added besides standard specification. We can supply optimized products with the spec and material you choose.



Features

  • Latch - Main part of the draw latch is made of plastic so it is very strong and anti-corrosion.
  • Pre-molded Mounting Screw Nuts – You can easily fix DIN RAIL or other equipment on to the pre molded Screw nuts
  • Roof Protection – Both ends of the Q series are protruded to protect against penetration of water when using it outdoor and penetration of dust when opening/closing the cover
  • Gasket – The gasket in injected by super precise CNC robot machine to product excellent waterproof and dust-proof performance
  • Mounting Plate Attachment Point – Mounting Plate comes with the box free of charge and comes with pre-drilled holes so saves your time and cost

Backed up with all the certifications and across the globe, Boxco Enclosures are suitable for exporting to other countries and to be use across international businesses.

Due to the low cost and high reliability as well as its excellent durability and waterpoof features, boxco enclosures can be used in many different applications, protecting electrical connections and components from moisture, dust and other environmental factors

Specifications
  • Brand
    Boxco
  • Series
    Boxco Q Series
  • Standards Met
    CE,TUV,UL
  • Operating Temperature
    -40°C~70°C
  • Warranty
    1 Year
  • Length
    35 cm
  • Width
    45 cm
  • Height
    20 cm
  • Weight
    5 kg

File Downloads

::specification::

Payment & Security

Payment methods

  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

What is the size of the Boxco Q-Series BC-AGQ-354520G enclosure?

This model measures 13.78 x 17.72 x 7.87 inches, which corresponds to 350 x 450 x 200 mm. That size makes it suitable for larger control or protection enclosures that need more internal space than compact junction boxes.

What material is this enclosure made from?

The BC-AGQ-354520G is made from ABS plastic and includes a grey cover. Boxco describes the Q-Series material as high impact resistant, which helps reduce breakage during machining or processing.

Is this enclosure suitable for outdoor or dusty environments?

Yes, this model is rated IP67, which indicates strong protection against dust ingress and water exposure. The product description also notes roof protection features and a precision-injected gasket designed to support waterproof and dust-proof performance.

How impact-resistant is this enclosure?

This enclosure carries an IK08 impact rating. That makes it a practical choice for applications where the housing may be exposed to incidental mechanical impact in industrial or commercial environments.

What temperature range can this enclosure handle?

The specified operating temperature range for this model is -40°C to 70°C. That range supports use in both cold and warm environments, provided the overall application stays within those limits.

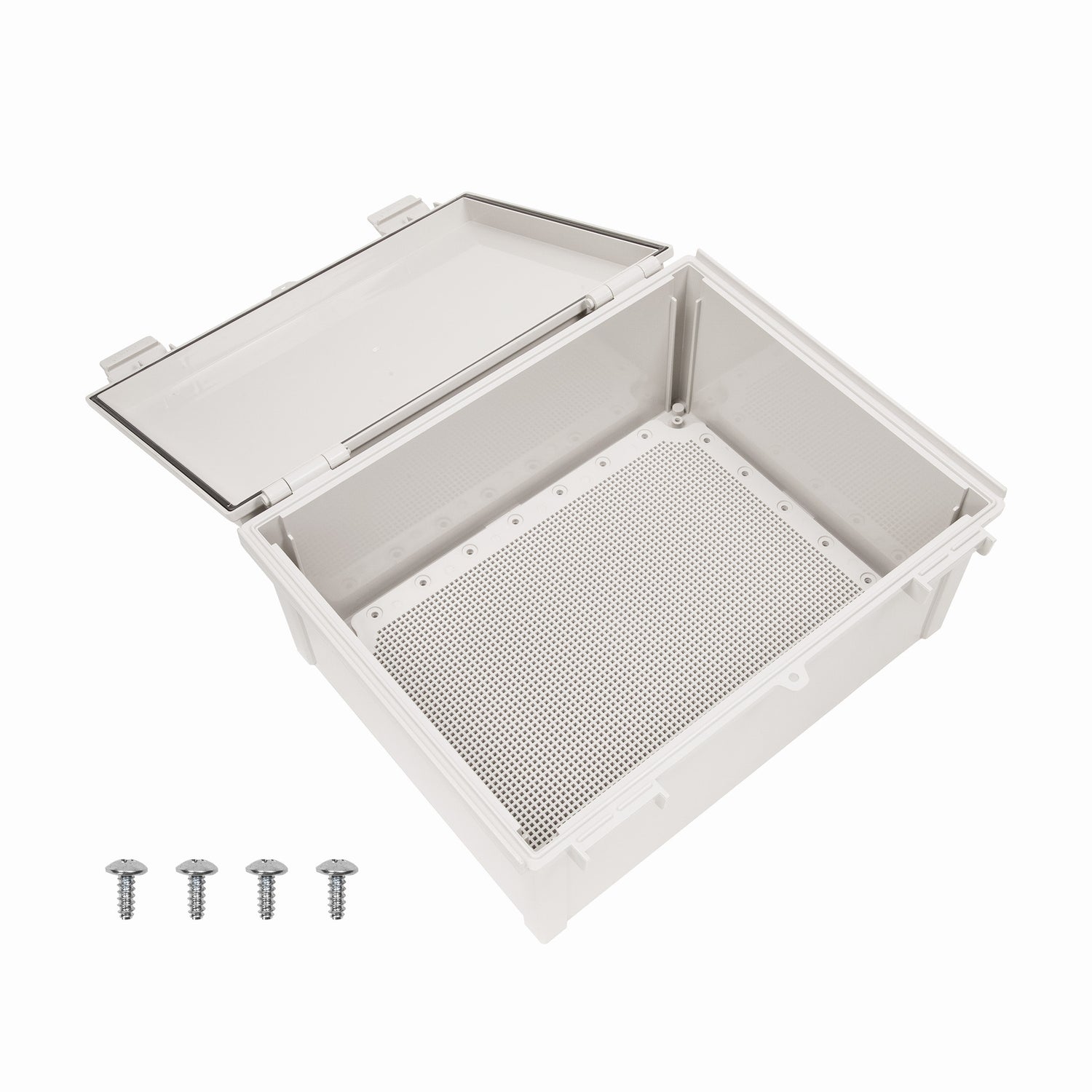

Does this hinge-type enclosure include a mounting plate?

Yes, this model is described as a hinge type with plate, and the product details state that the mounting plate comes free of charge. It also includes pre-drilled mounting plate attachment points to help save time during panel layout and assembly.

What types of applications is this enclosure commonly used for?

This enclosure is intended for protecting electrical components and connections from moisture, dust, and other environmental factors. Its size, IP67 protection, and impact resistance make it a good fit for industrial and commercial enclosure applications where durability and environmental protection matter.
