Boxco

Boxco Q-Series 160×210×100mm Plastic Enclosure, IP67, IK08, ABS, Transparent Cover, Plastic Hinge and Latch Type

SKU BC-ATQ-162110
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-ATQ-162110 is a 160×210×100 mm ABS enclosure with a transparent cover from the Boxco Q Series.

Features

  • BOXCO electrical juntion box include plastic latch and plastic hinge.
  • Our IP66/IP67 waterproof control box is easy to removable cover and body
  • AGQ series is included G plate.**Dimensions and specifications are subject to change without notice.

Specifications

BC-ATQ-162110Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
160×210×100 mm (6.30×8.27×3.94 in)
Mounting plate dimension M1 × M2
130 × 180 mm

Material

Material
ABS
Cover
Transparent

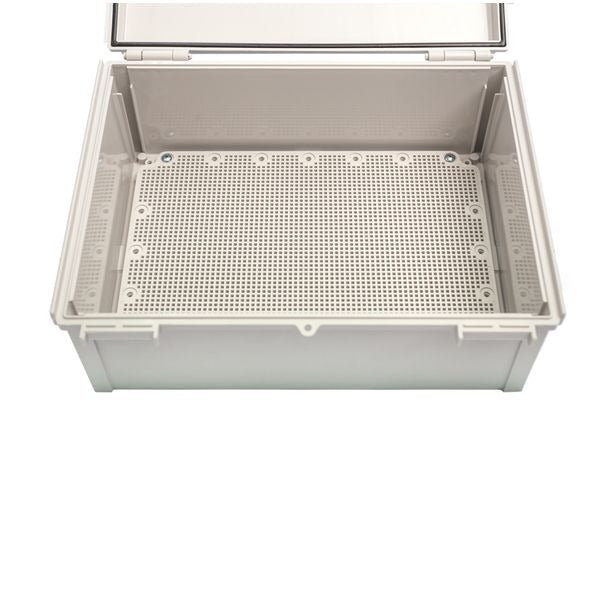

Mounting plates
1520 G (Plastic, G type), 1520 SQ (Steel, SQ type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +70℃
Flammability rating (UL 94)
94-HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

Downloads

FAQ

What are the dimensions of this Boxco Q-Series enclosure?

This enclosure measures 6.30 x 8.27 x 3.94 inches, which corresponds to 160 x 210 x 100 mm. That size makes it suitable for protecting larger internal components while still fitting within many industrial and commercial enclosure applications.

Is this enclosure suitable for outdoor use?

Yes, this model is designed for outdoor use. The Q-Series includes an ultraviolet stabilizer to help reduce long-term color change from sun exposure, and its design includes roof protection features to help resist water and dust intrusion during outdoor use.

What do the IP67 and IK08 ratings mean for this enclosure?

The IP67 rating indicates this enclosure is built for strong protection against dust and temporary water exposure. The IK08 impact rating means the ABS body is designed to resist external mechanical impact better than basic general-purpose housings.

What material is this enclosure made from?

This model is made from ABS plastic and includes a transparent cover. The housing is described as high impact resistant, and the material also includes anti-static properties intended to help protect sensitive electronic instruments.

What type of cover and closure does this model use?

This enclosure uses a transparent cover with a plastic hinge and latch type closure. The latch design uses plastic in the main draw latch area to help prevent erosion, which can be useful in demanding environments.

What temperature range can this enclosure handle?

This enclosure is rated for use from -40 degrees C to 70 degrees C. That operating range supports use in a wide variety of indoor and outdoor industrial environments where temperature swings are a concern.

What kinds of applications is this enclosure best suited for?

This model is well suited for protecting sensitive electronic instruments and other components that need a sealed non-metallic enclosure. Its anti-static material, transparent cover, and high ingress protection make it a practical option for industrial, control, and outdoor equipment housings.
