Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Boxco

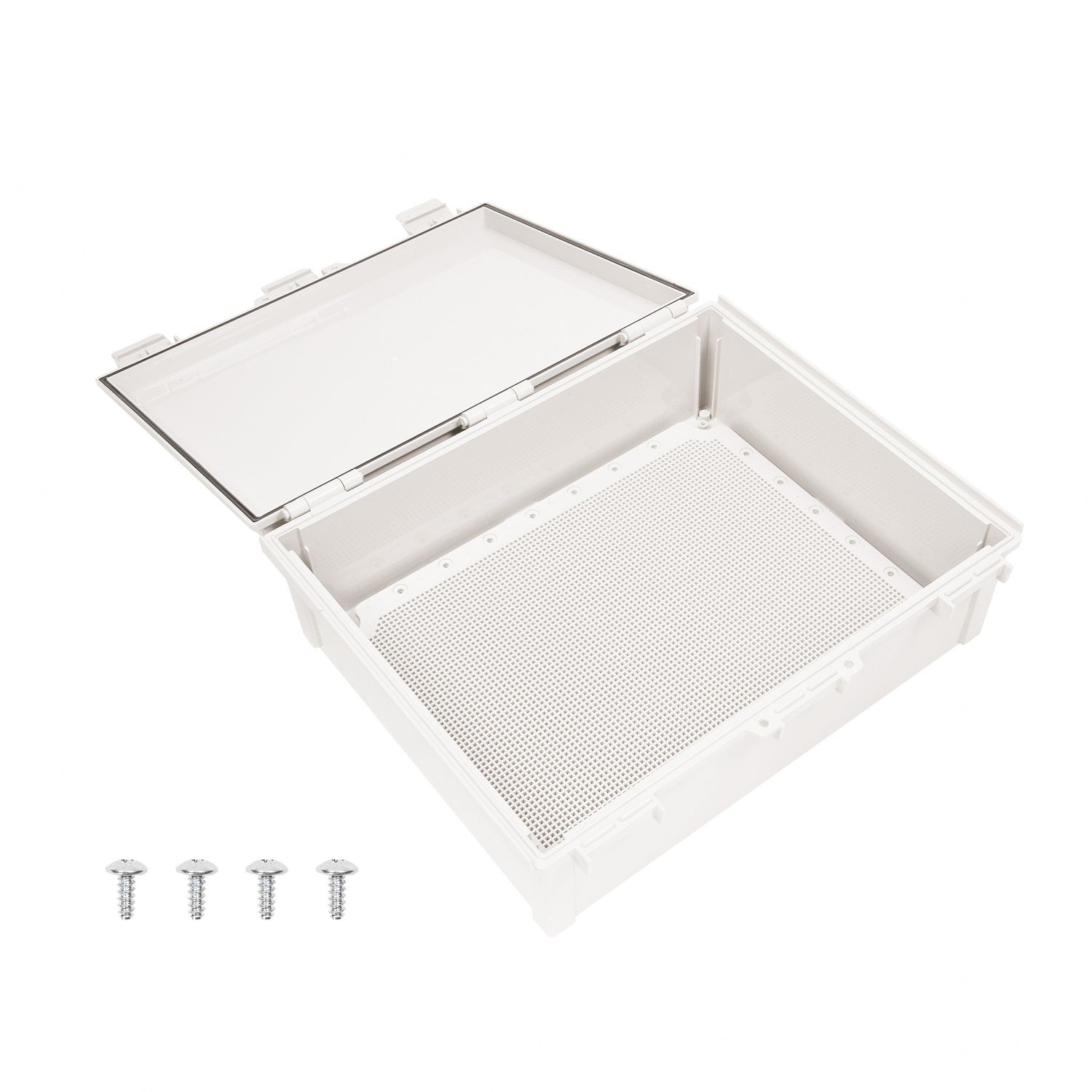

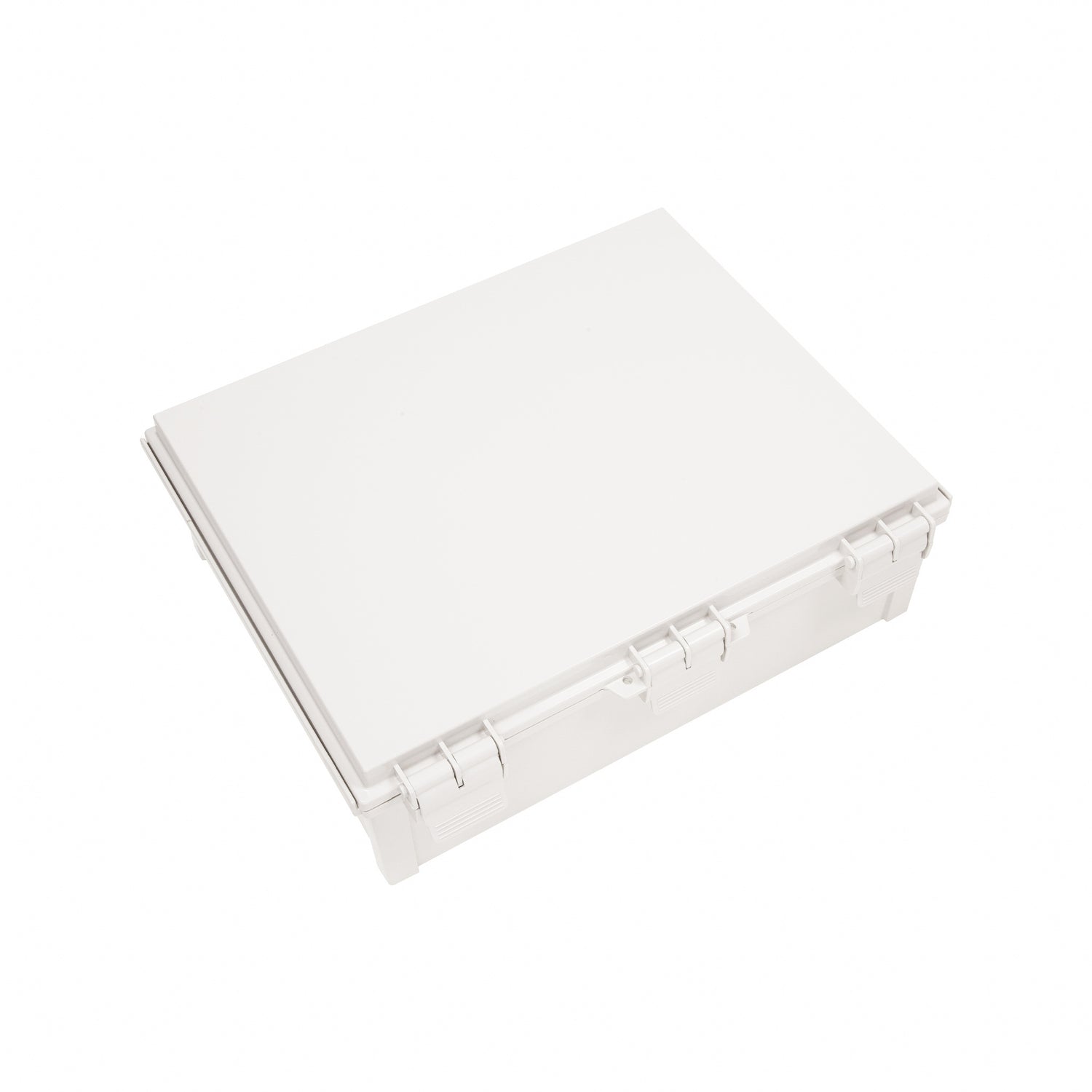

Boxco Q-Series 400x450x160mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Hinge Type with Plate

Enclosure, ABS, Grey Cover, 400x450x160mm
SKU:
BC-AGQ-405016G
Please for Pricing
|

Description

Boxco Q-series is our most economic hinge series, It is made of high impact resistant material which is very strong against external impact and also prevents breakage during hole and press processing. Special spec can be added besides standard specification. We can supply optimized products with the spec and material you choose.



Features

  • Latch - Main part of the draw latch is made of plastic so it is very strong and anti-corrosion.
  • Pre-molded Mounting Screw Nuts – You can easily fix DIN RAIL or other equipment on to the pre molded Screw nuts
  • Roof Protection – Both ends of the Q series are protruded to protect against penetration of water when using it outdoor and penetration of dust when opening/closing the cover
  • Gasket – The gasket in injected by super precise CNC robot machine to product excellent waterproof and dust-proof performance
  • Mounting Plate Attachment Point – Mounting Plate comes with the box free of charge and comes with pre-drilled holes so saves your time and cost

Backed up with all the certifications and across the globe, Boxco Enclosures are suitable for exporting to other countries and to be use across international businesses.

Due to the low cost and high reliability as well as its excellent durability and waterpoof features, boxco enclosures can be used in many different applications, protecting electrical connections and components from moisture, dust and other environmental factors

Specifications
  • Brand
    Boxco
  • Series
    Boxco Q Series
  • Standards Met
    CE,TUV,UL
  • Operating Temperature
    -40°C~70°C
  • Warranty
    1 Year
  • Length
    40 cm
  • Width
    45 cm
  • Height
    16 cm
  • Weight
    5 kg

File Downloads

::specification::

Payment & Security

Payment methods

  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

What are the main specifications of the Boxco Q-Series BC-AGQ-405016G enclosure?

This model is a plastic hinge-type enclosure made from ABS with a grey cover. It measures 15.75 x 17.71 x 6.30 inches (400 x 450 x 160 mm) and carries IP67 and IK08 ratings. The enclosure also includes a mounting plate and weighs 5.0 kg.

Is the BC-AGQ-405016G suitable for outdoor or washdown environments?

It is designed for demanding environments where protection from dust and water is important, thanks to its IP67 rating. The Q-Series also features roof protection details and a precision-injected gasket to help resist water and dust ingress. Buyers should still confirm overall enclosure suitability against the full conditions of their specific site.

What kinds of applications is this enclosure commonly used for?

This enclosure is intended to protect electrical and control components from moisture, dust, and external impact. It is a practical choice for industrial panels, equipment housings, and general-purpose protection in commercial or industrial settings. Its combination of durability, sealing performance, and included mounting plate makes it useful across a wide range of B2B applications.

What makes the Boxco Q-Series different from a basic non-hinged enclosure?

This model uses a hinge-type cover, which is useful when repeated access to enclosed components is needed. It also includes a mounting plate and pre-molded mounting screw nut features that can help support organized internal equipment mounting. The Q-Series is positioned as an economical hinge enclosure while still offering strong impact resistance and environmental protection.

What material is the BC-AGQ-405016G made from, and why does that matter?

The enclosure is made from ABS plastic, a material chosen here for impact resistance and durability. According to the product description, the Q-Series is designed to resist external impact and reduce breakage during hole and press processing. That makes it a strong option for buyers who need a rugged non-metallic enclosure.

What temperature range can this Boxco enclosure handle?

The stated operating temperature range for this model is -40 degrees C to 70 degrees C. That range supports use in both cold and warm industrial environments where a standard indoor-only enclosure may not be sufficient. Buyers with more extreme thermal exposure should compare site conditions to this published range.

Does the BC-AGQ-405016G come with a mounting plate?

Yes, this model includes a mounting plate. The product description states that the mounting plate comes with the box free of charge and has pre-drilled holes to help save time and cost. That can be useful for buyers who want an enclosure package that already includes internal mounting support.
