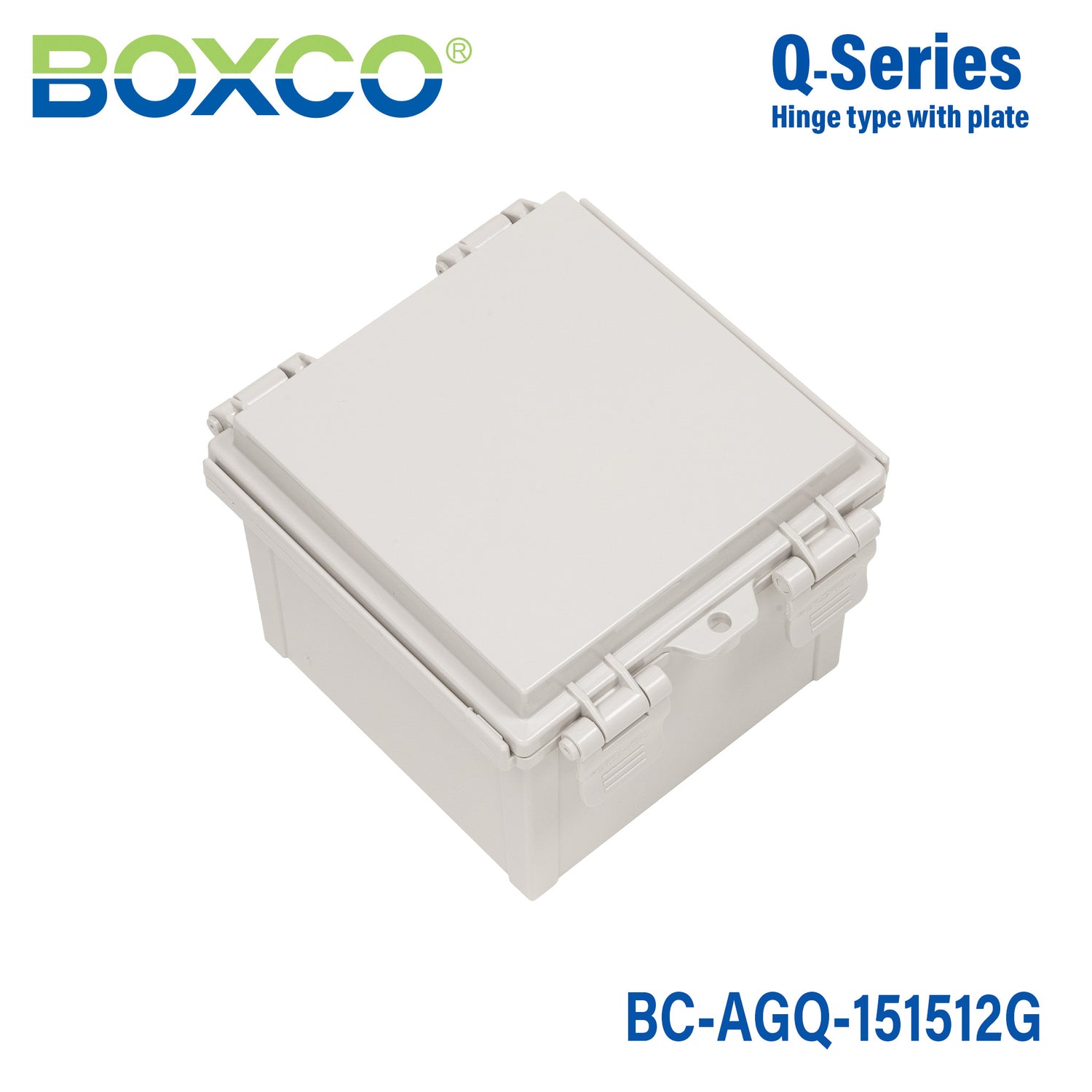

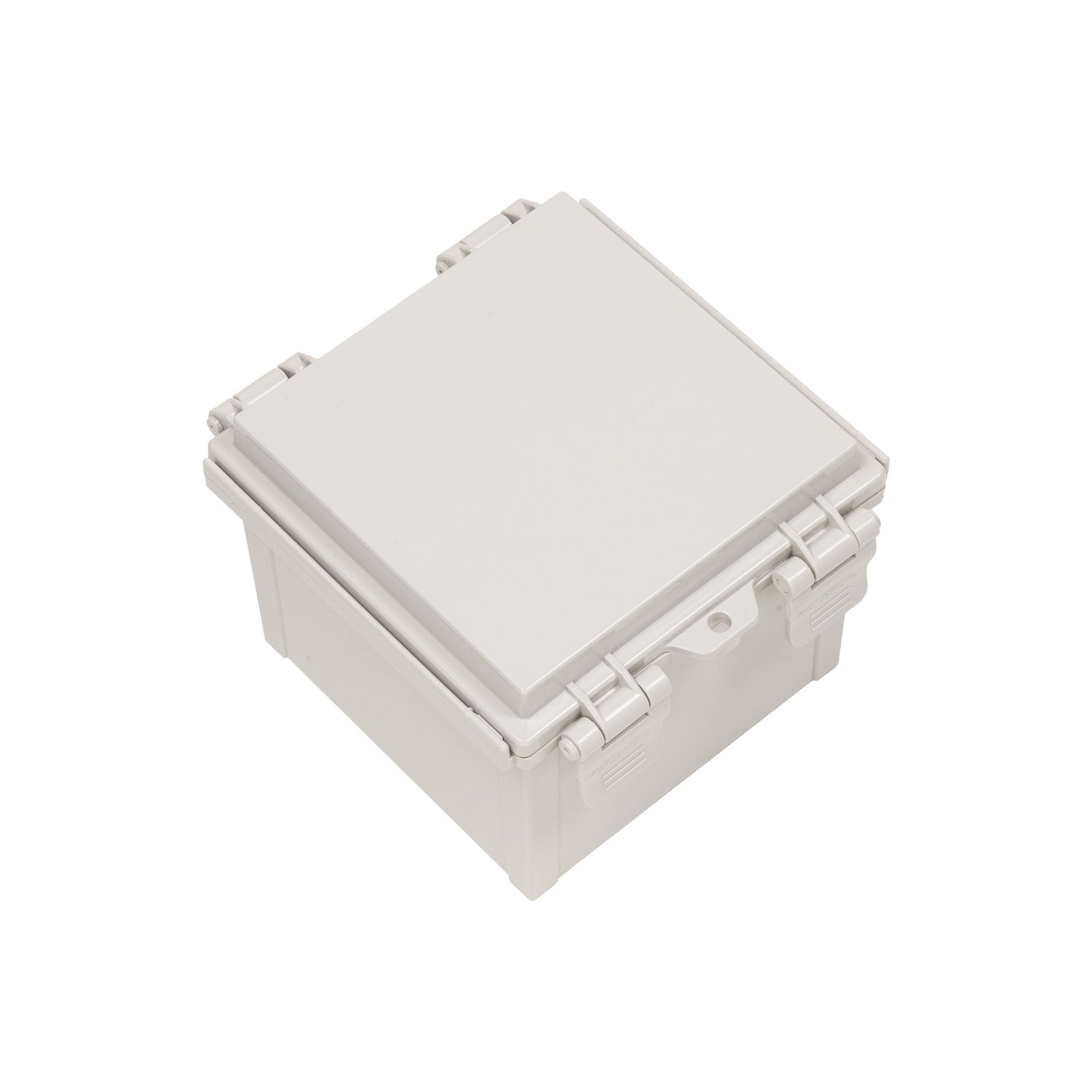

Boxco Q-Series 150x150x120mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Hinge Type with Plate

Enclosure, ABS, Grey Cover, 150x150x120mm
SKU:
BC-AGQ-151512G
Please for Pricing
|

Description

Boxco Q-series is our most economic hinge series, It is made of high impact resistant material which is very strong against external impact and also prevents breakage during hole and press processing. Special spec can be added besides standard specification. We can supply optimized products with the spec and material you choose.



Features

  • Latch - Main part of the draw latch is made of plastic so it is very strong and anti-corrosion.
  • Pre-molded Mounting Screw Nuts – You can easily fix DIN RAIL or other equipment on to the pre molded Screw nuts
  • Roof Protection – Both ends of the Q series are protruded to protect against penetration of water when using it outdoor and penetration of dust when opening/closing the cover
  • Gasket – The gasket in injected by super precise CNC robot machine to product excellent waterproof and dust-proof performance

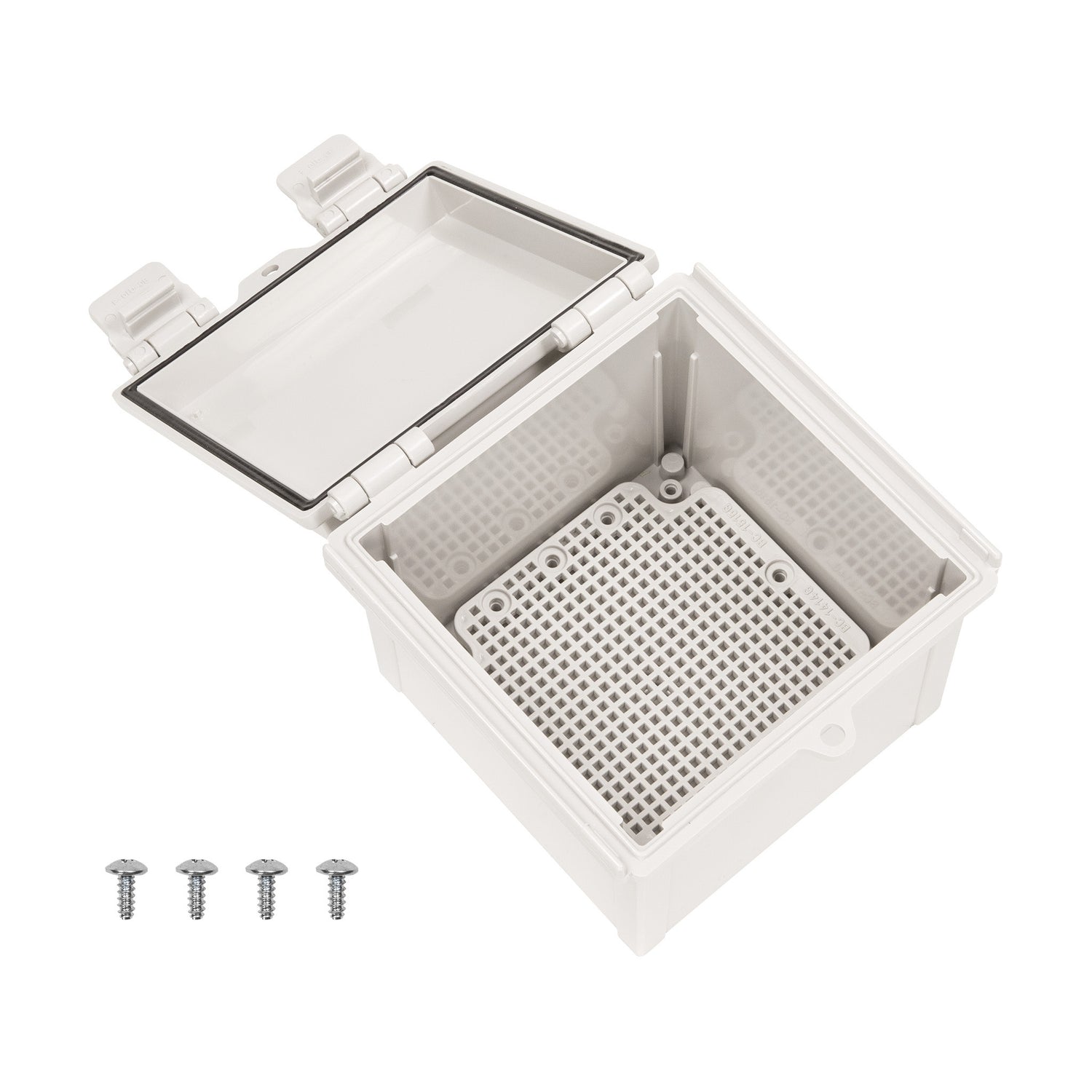

  • Mounting Plate Attachment Point – Mounting Plate comes with the box free of charge and comes with pre-drilled holes so saves your time and cost

Backed up with all the certifications and across the globe, Boxco Enclosures are suitable for exporting to other countries and to be use across international businesses.

Due to the low cost and high reliability as well as its excellent durability and waterpoof features, boxco enclosures can be used in many different applications, protecting electrical connections and components from moisture, dust and other environmental factors

Specifications
  • Brand
    Boxco
  • Series
    Boxco Q Series
  • Standards Met
    CE,TUV,UL
  • Operating Temperature
    -40°C~70°C
  • Warranty
    1 Year
  • Length
    15 cm
  • Width
    15 cm
  • Height
    12 cm
  • Weight
    0.5 kg

File Downloads

::specification::

Payment & Security

Payment methods

  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

What are the main specifications of the Boxco Q-Series BC-AGQ-151512G enclosure?

This model is a plastic enclosure made from ABS with a grey cover and a hinge-type design. It measures 5.91 x 5.91 x 4.72 inches (150 x 150 x 120 mm) and is rated IP67 for dust and water protection and IK08 for impact resistance. It also includes a plate.

What environments is this enclosure designed for?

The BC-AGQ-151512G is intended for demanding indoor or outdoor environments where dust, moisture, and physical impact are concerns. Its IP67 rating supports strong protection against dust ingress and water exposure, while the ABS body is described as high impact resistant. The operating temperature range is -40°C to 70°C.

What makes the Q-Series a good choice for general-purpose protection?

This Q-Series enclosure is positioned as Boxco's more economical hinge series while still offering strong durability and environmental protection. It combines an ABS body, hinge cover, IP67 sealing, and IK08 impact resistance in a compact format. That makes it a practical option for protecting enclosed components in many industrial and commercial applications.

What applications is this enclosure commonly suited for?

This model is suited for protecting electrical and control components from moisture, dust, and external impact in general-purpose enclosure applications. The product description highlights use across many different applications where reliability and waterproof performance matter. Its compact 150 x 150 x 120 mm size makes it suitable where a moderate internal footprint is needed.

Does this enclosure include any mounting-related features?

Yes, the product description states that the mounting plate comes with the box free of charge and includes pre-drilled holes. It also mentions pre-molded mounting screw nuts that support fastening DIN rail or other equipment. These built-in features can help reduce extra hardware needs and save time during panel preparation.

How durable is the BC-AGQ-151512G enclosure?

This enclosure is made from high impact resistant ABS and carries an IK08 impact rating. The description also highlights anti-corrosion performance in the latch design and emphasizes durability during machining processes such as hole and press processing. For added buyer confidence, it includes a 1-year warranty.
