Boxco

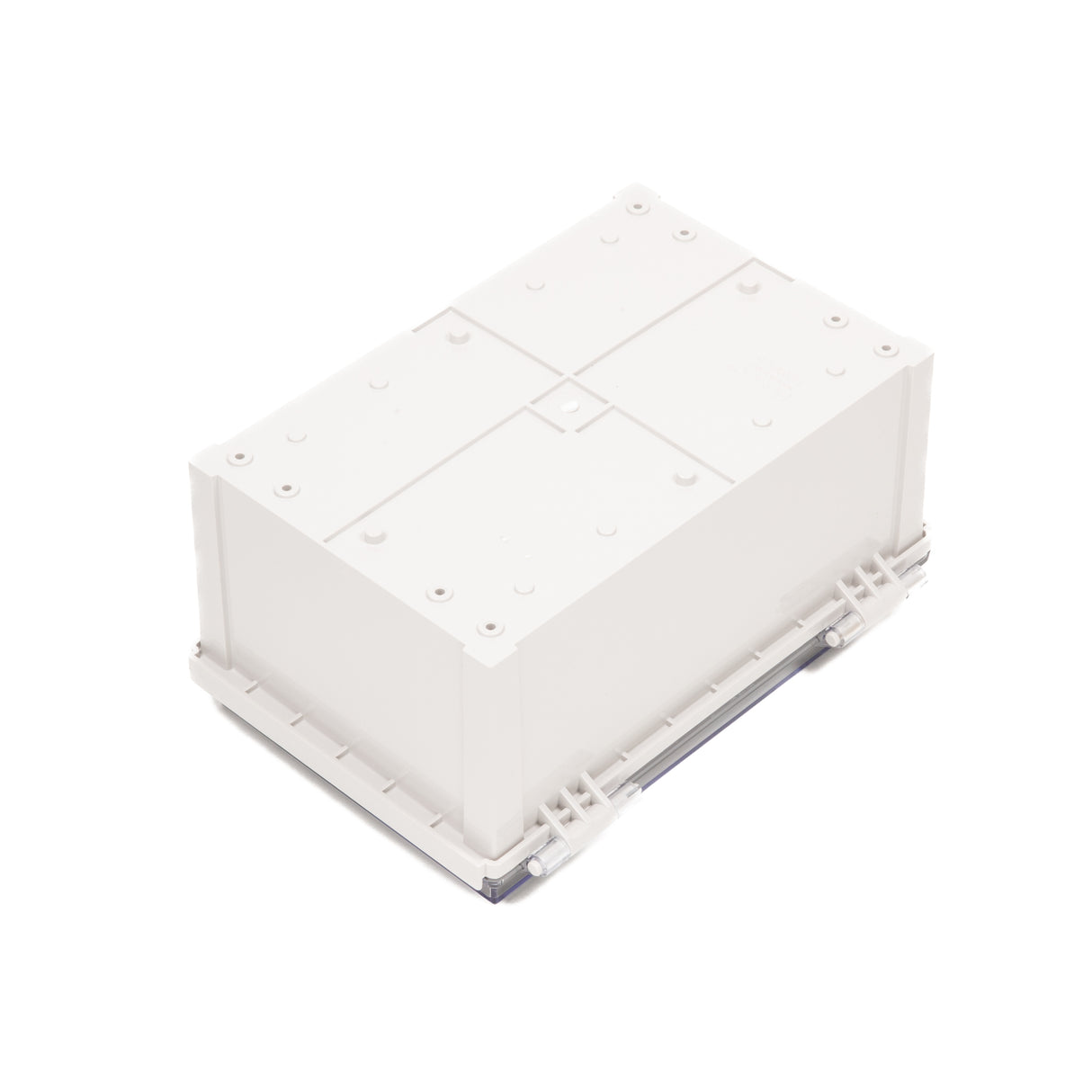

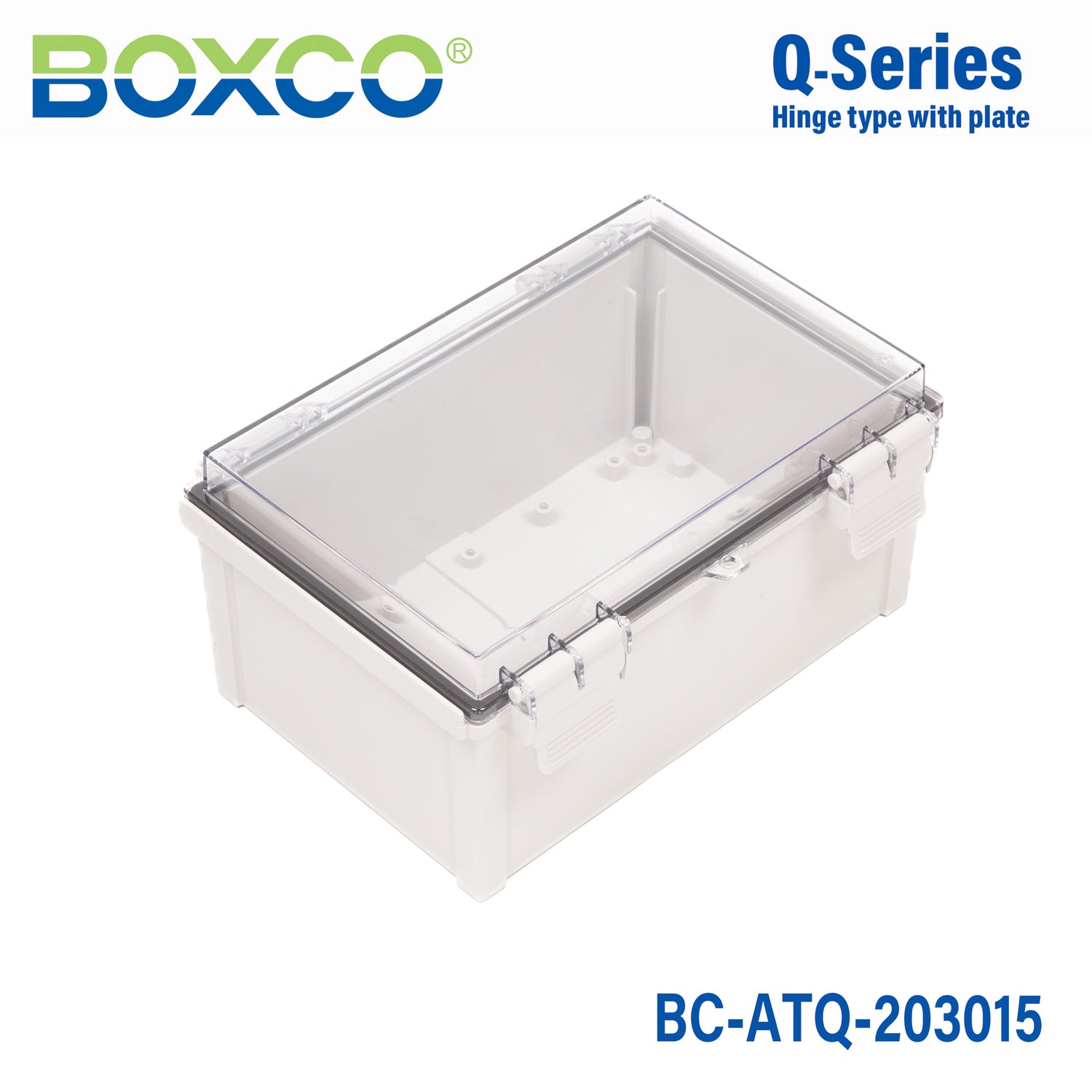

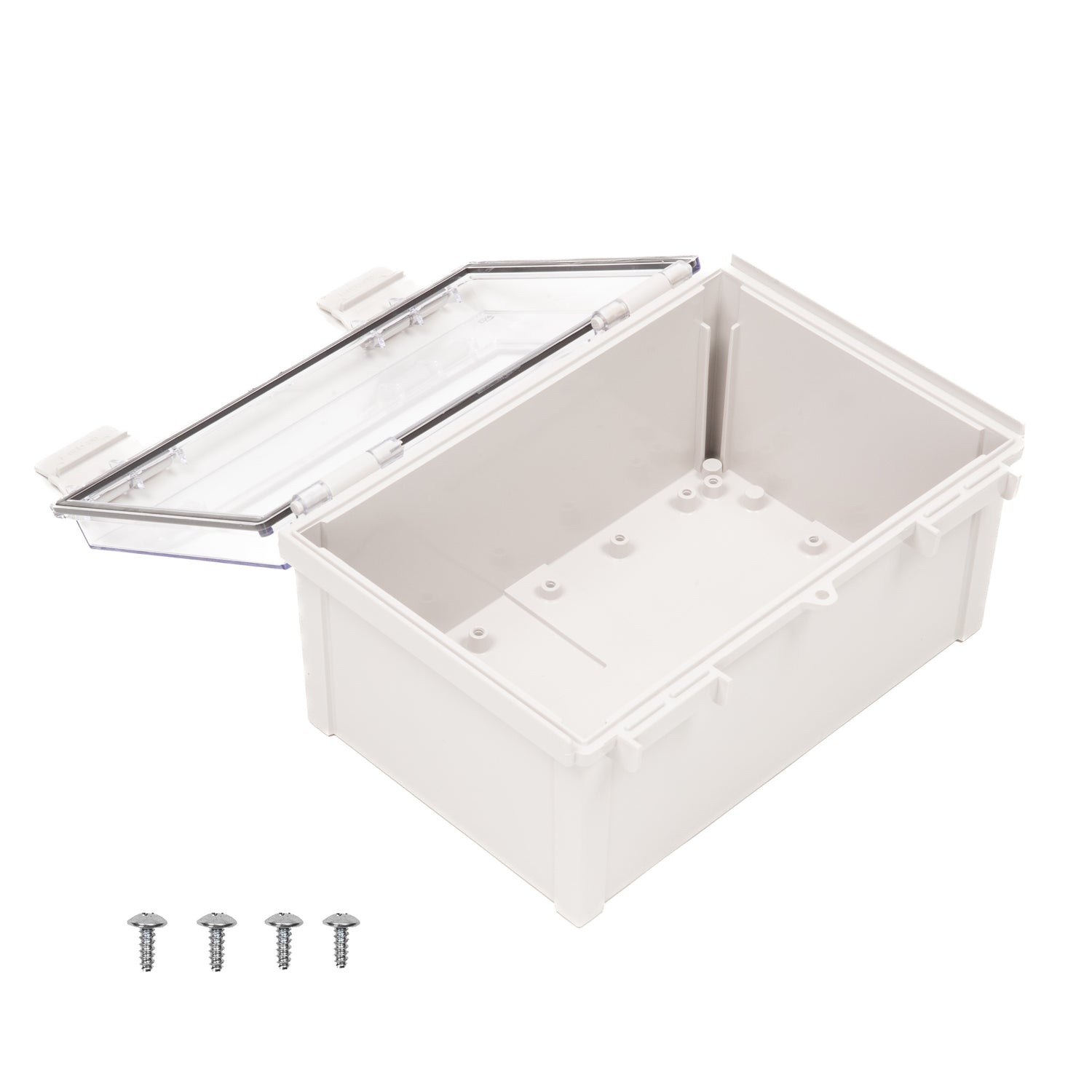

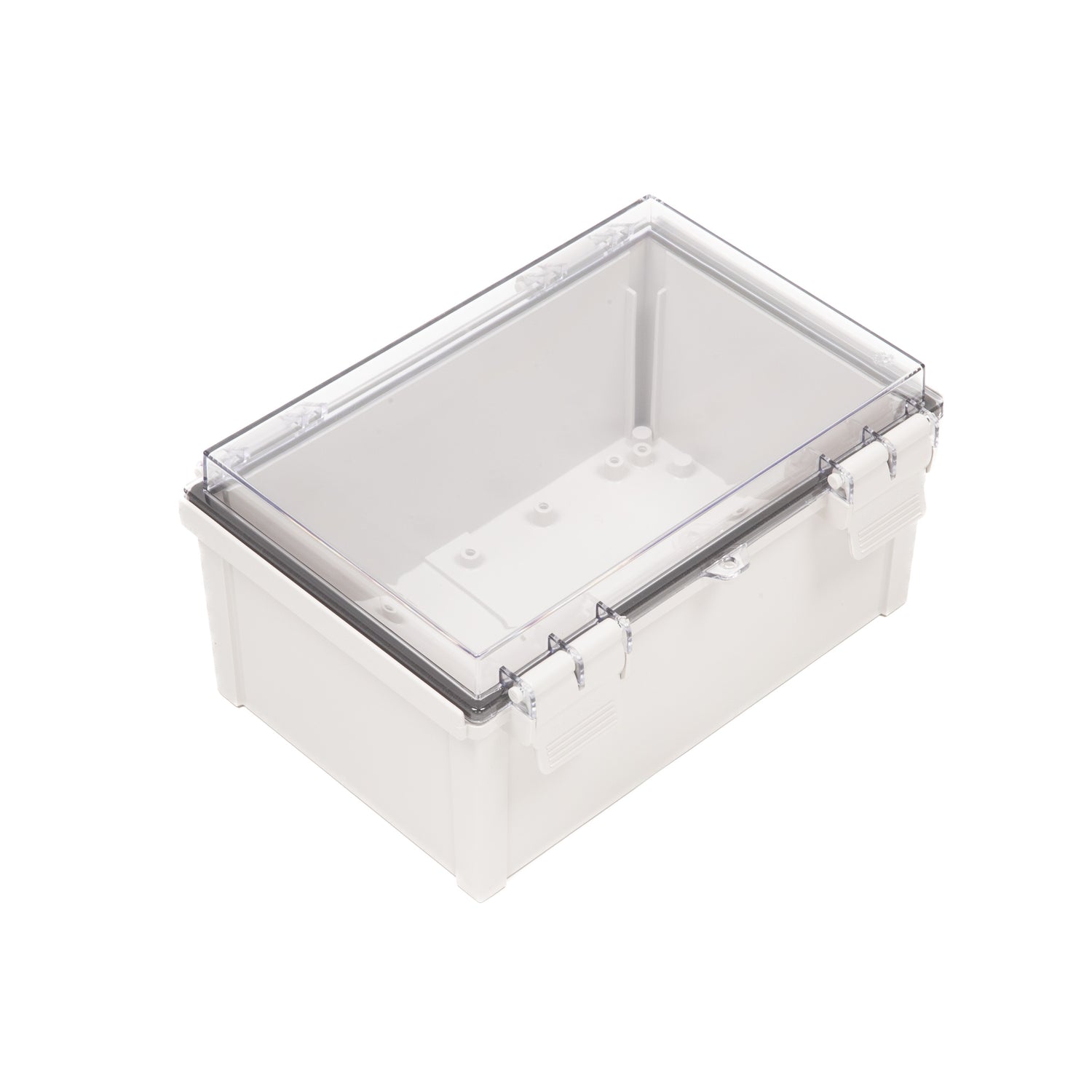

Boxco Q-Series 200×300×150mm Plastic Enclosure, IP67, IK08, ABS, Transparent Cover, Plastic Hinge and Latch Type

SKU BC-ATQ-203015
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Overview

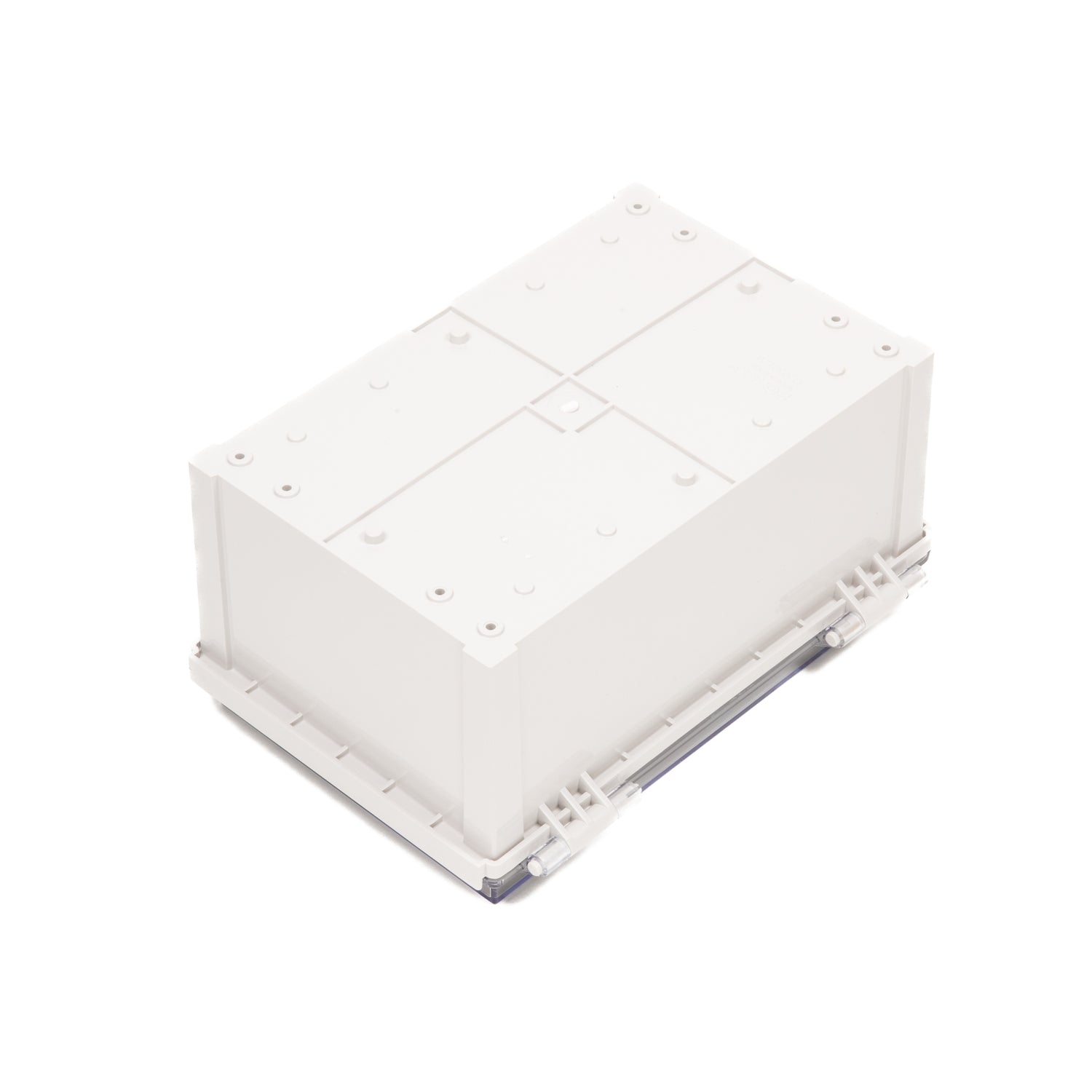

BC-ATQ-203015 is a 200×300×150 mm ABS enclosure with a transparent cover from the Boxco Q Series.

Features

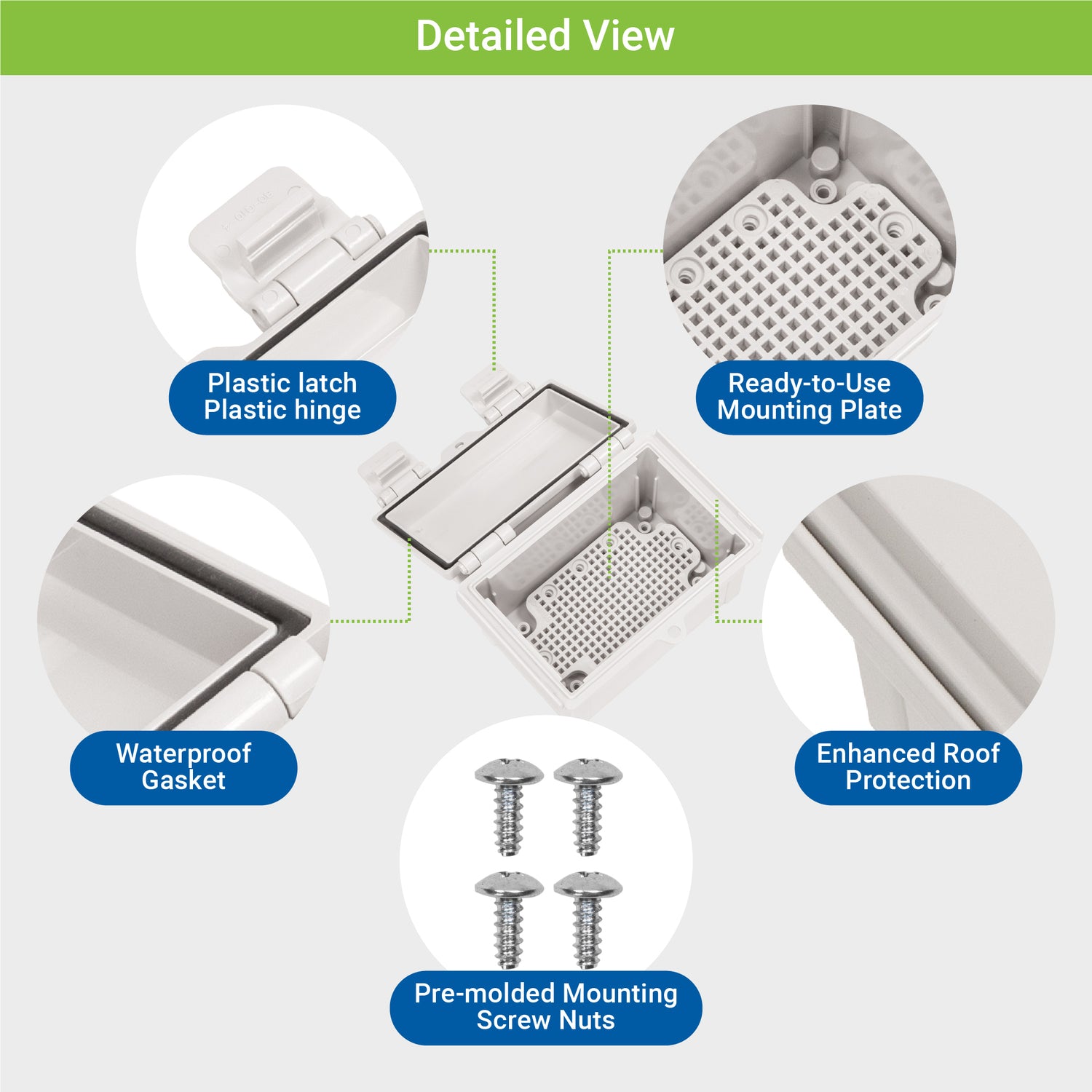

  • BOXCO electrical juntion box include plastic latch and plastic hinge.
  • Our IP66/IP67 waterproof control box is easy to removable cover and body
  • AGQ series is included G plate.**Dimensions and specifications are subject to change without notice.

Specifications

BC-ATQ-203015Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
200×300×150 mm (7.87×11.81×5.91 in)
Mounting plate dimension M1 × M2
160 × 260 mm

Material

Material
ABS
Cover
Transparent
Mounting plates
2030 G (Plastic, G type), 2030 SQ (Steel, SQ type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +70℃
Flammability rating (UL 94)
94-HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

Downloads

FAQ

What applications is the Boxco Q-Series 200 x 300 x 150mm enclosure best suited for?

This enclosure is a good fit for protecting control components, monitoring devices, and other industrial or commercial electronics that need a sealed non-metallic housing. Its larger format, transparent cover, and internal mounting features make it practical for applications where visual inspection and equipment protection are both important.

Is this enclosure suitable for outdoor environments?

Yes, this model is designed for demanding indoor or outdoor use. The enclosure includes ultraviolet stabilizer for improved outdoor durability, and its IP67-rated design helps protect against water and dust exposure.

What do the IP67 and IK08 ratings mean for this model?

The IP67 rating indicates this enclosure is built to resist dust ingress and temporary water exposure in harsh environments. The IK08 rating indicates strong impact resistance, which supports use in areas where the enclosure may face mechanical contact or accidental bumps.

What material and cover style does this enclosure use?

This model is made from ABS plastic and includes a transparent cover. It also uses a plastic hinge and latch design, making it a corrosion-resistant option for many general-purpose enclosure applications.

Can this enclosure support internal mounting hardware or equipment plates?

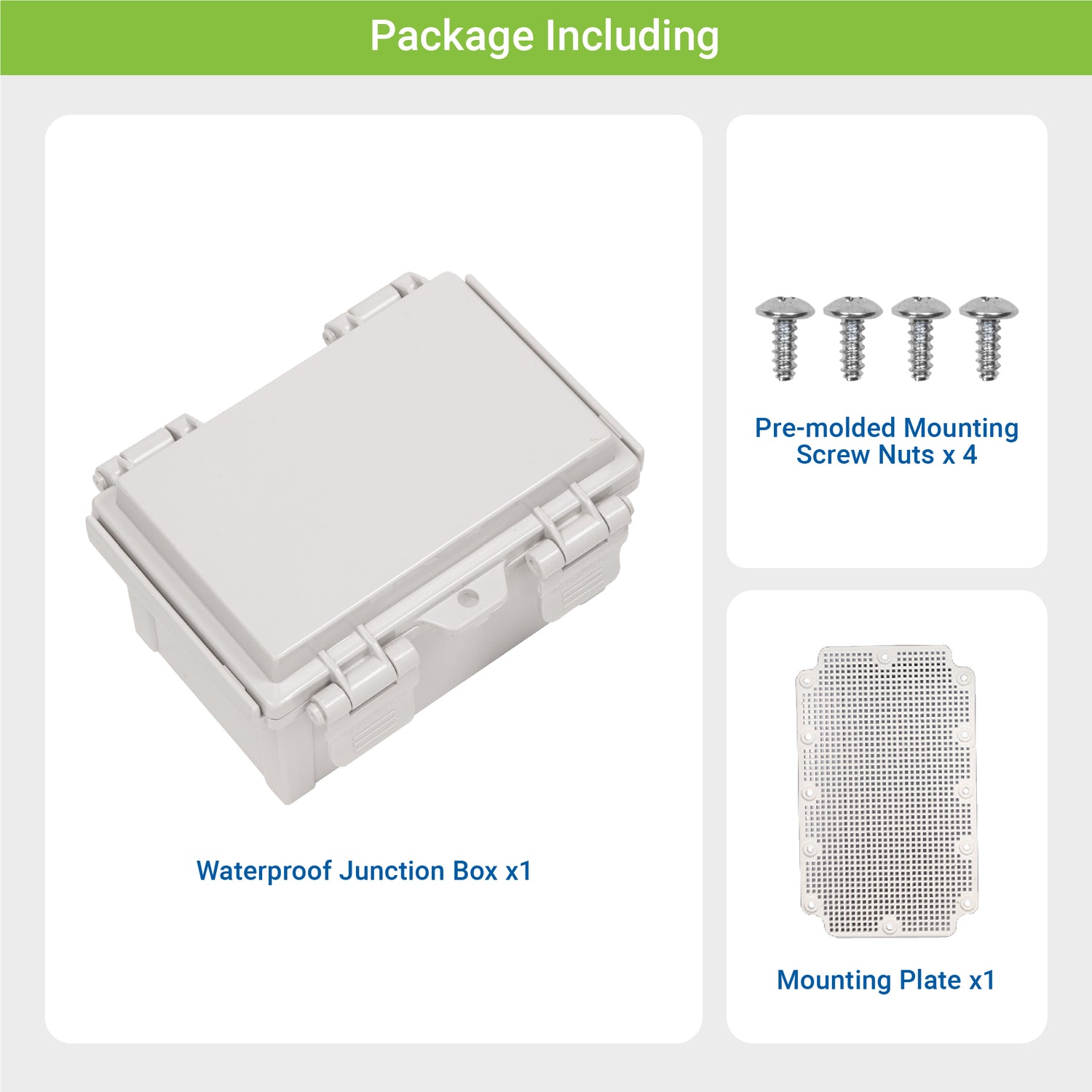

Yes, the enclosure includes pre-molded mounting screw nuts and mounting plate attachment points. These features help support internal equipment mounting and make it easier to secure accessories or heavier installed components inside the box.

What temperature range can this enclosure handle?

This Boxco Q-Series enclosure is rated for use from -40°C to 70°C. That operating range makes it suitable for many industrial and outdoor environments where temperature swings are a concern.
