Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Boxco

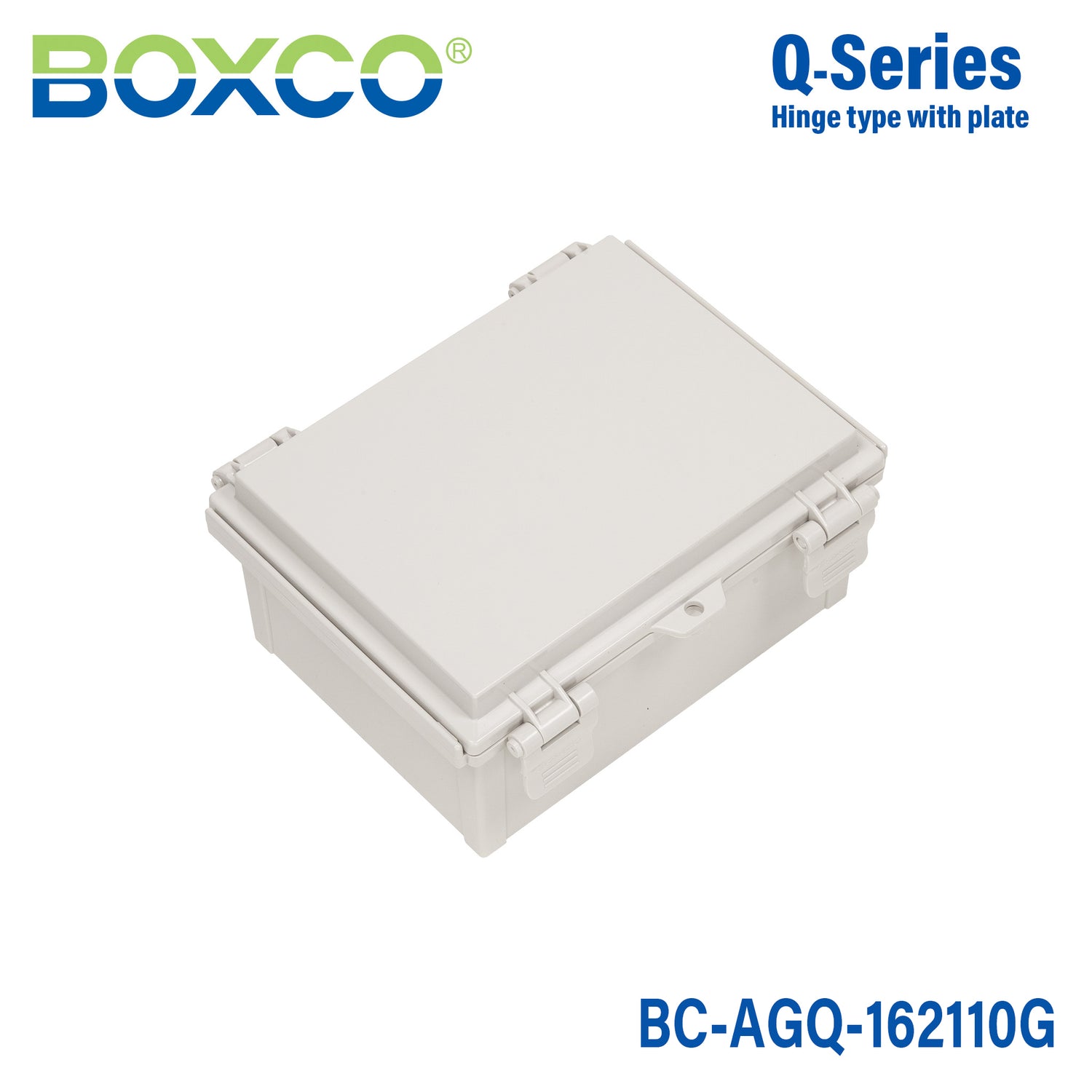

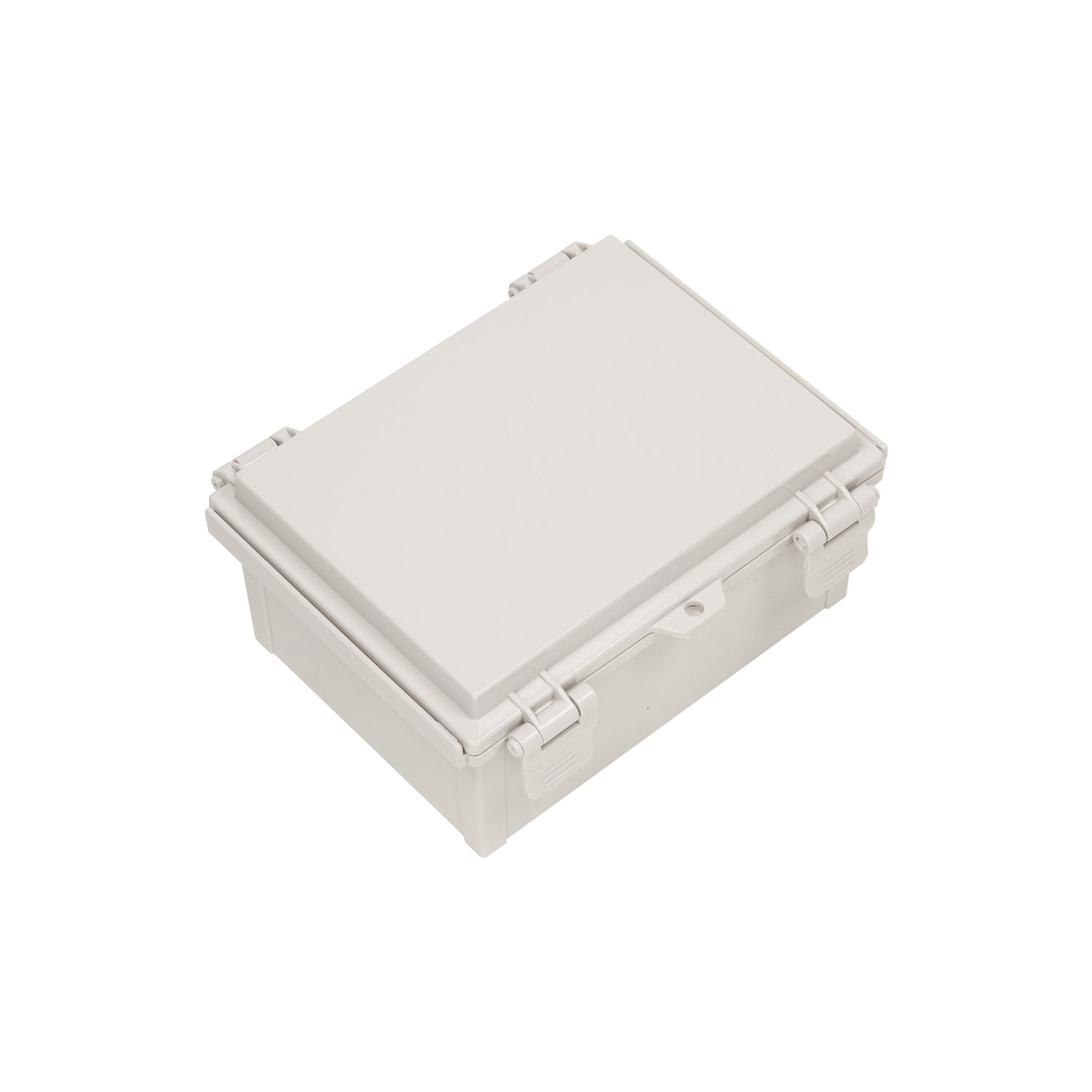

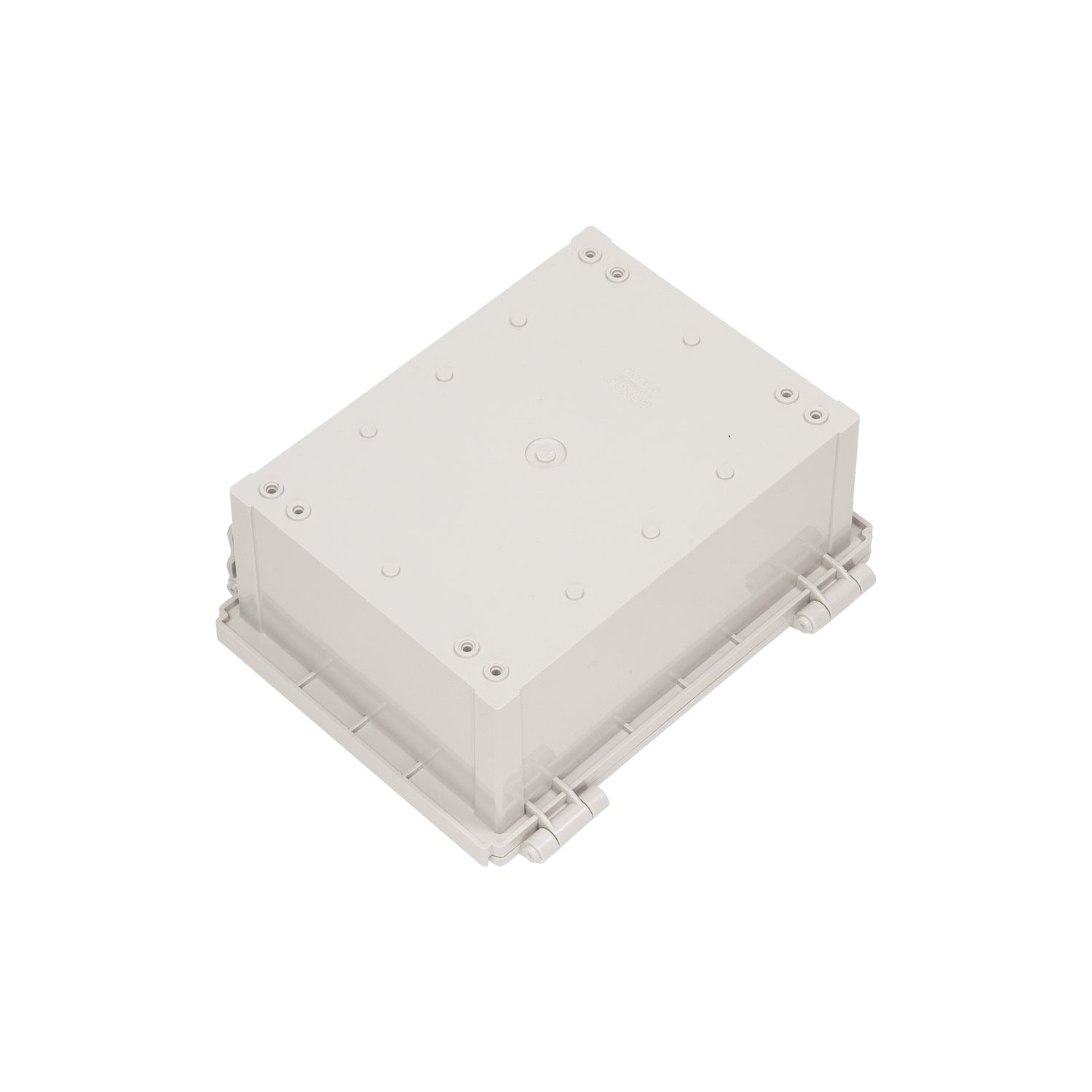

Boxco Q-Series 160x210x100mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Hinge Type with Plate

Enclosure, ABS, Grey Cover, 160x210x100mm
SKU:
BC-AGQ-162110G
Please for Pricing
|

Description

Boxco Q-series is our most economic hinge series, It is made of high impact resistant material which is very strong against external impact and also prevents breakage during hole and press processing. Special spec can be added besides standard specification. We can supply optimized products with the spec and material you choose.



Features

  • Latch - Main part of the draw latch is made of plastic so it is very strong and anti-corrosion.
  • Pre-molded Mounting Screw Nuts – You can easily fix DIN RAIL or other equipment on to the pre molded Screw nuts
  • Roof Protection – Both ends of the Q series are protruded to protect against penetration of water when using it outdoor and penetration of dust when opening/closing the cover
  • Gasket – The gasket in injected by super precise CNC robot machine to product excellent waterproof and dust-proof performance

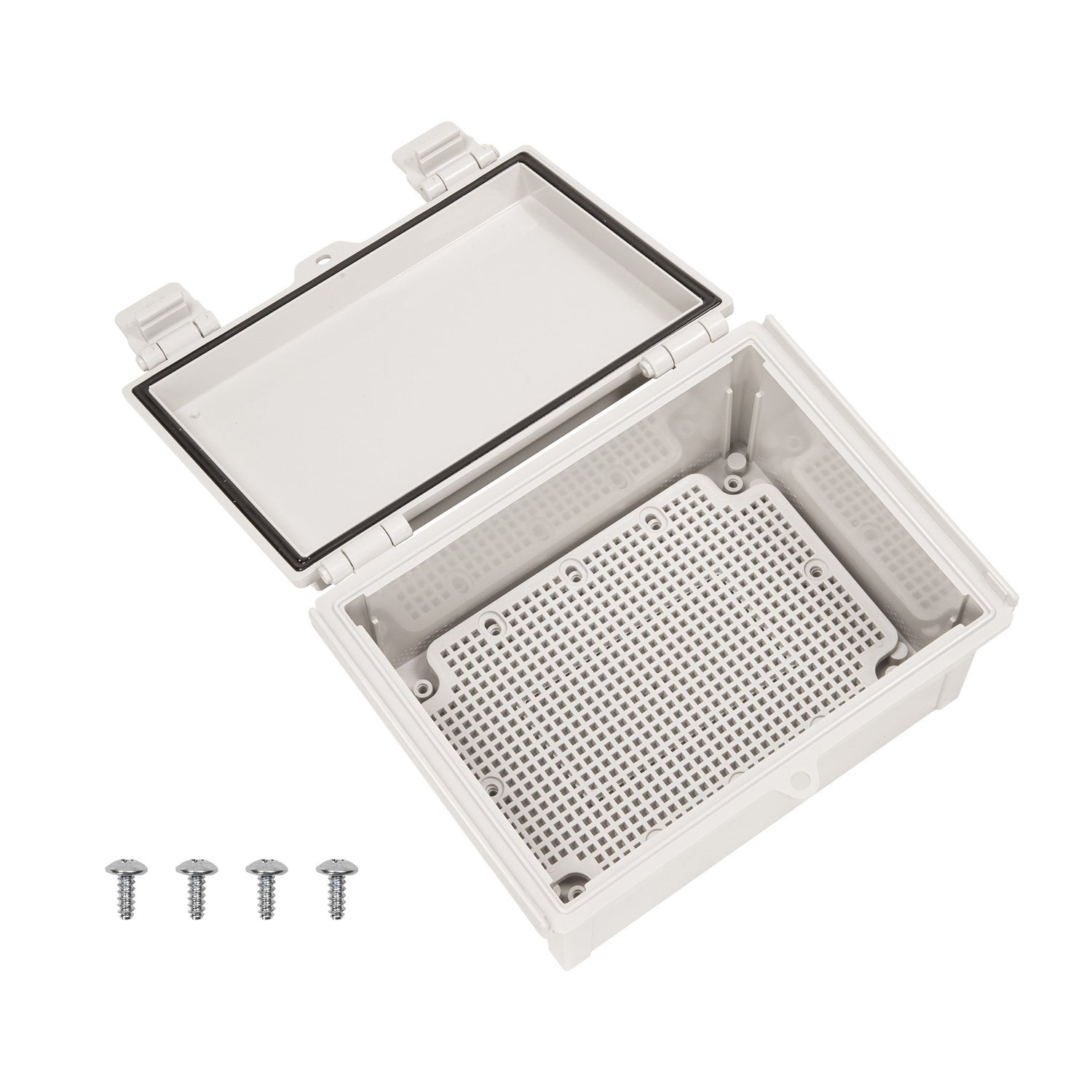

  • Mounting Plate Attachment Point – Mounting Plate comes with the box free of charge and comes with pre-drilled holes so saves your time and cost

Backed up with all the certifications and across the globe, Boxco Enclosures are suitable for exporting to other countries and to be use across international businesses.

Due to the low cost and high reliability as well as its excellent durability and waterpoof features, boxco enclosures can be used in many different applications, protecting electrical connections and components from moisture, dust and other environmental factors

Specifications
  • Brand
    Boxco
  • Series
    Boxco Q Series
  • Standards Met
    CE,TUV,UL
  • Operating Temperature
    -40°C~70°C
  • Warranty
    1 Year
  • Length
    16 cm
  • Width
    21 cm
  • Height
    10 cm
  • Weight
    0.5 kg

File Downloads

::specification::

Payment & Security

Payment methods

  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

What applications is the Boxco Q-Series BC-AGQ-162110G enclosure suitable for?

This model is suited to protecting electrical and control components in industrial, commercial, and outdoor equipment where dust and water resistance matter. Its IP67 sealing, IK08 impact rating, and included mounting plate make it a practical choice for control boxes, junction protection, and general enclosure use.

Is the BC-AGQ-162110G suitable for outdoor or washdown environments?

It is designed for demanding environments with an IP67 rating, which indicates strong protection against dust ingress and temporary water exposure. The Q-Series also includes roof protection features and an injected gasket to help maintain sealing performance in outdoor conditions.

What are the key specifications of the Boxco BC-AGQ-162110G enclosure?

This enclosure measures 6.30 x 8.27 x 3.94 inches (160 x 210 x 100 mm) and weighs about 0.50 kg. It is made from ABS, has a grey cover, uses a hinge-type design, includes a mounting plate, and is rated IP67 and IK08.

Does the BC-AGQ-162110G include a mounting plate?

Yes, this model is supplied with a mounting plate. The product description states the plate is included free of charge and has pre-drilled holes to save time when mounting internal equipment.

Why choose this hinge-type Q-Series enclosure over a basic non-hinged box?

A hinge-type enclosure is generally better when the cover needs to be opened repeatedly for inspection or servicing without being fully removed. On this model, that benefit is combined with a draw latch, molded mounting screw nuts, and the included plate, making it more convenient for applications that need regular access.

What temperature range can the BC-AGQ-162110G handle?

This enclosure is specified for use from -40 C to 70 C. That range supports use in many indoor and outdoor industrial environments where temperature swings are a concern.

What material is used for the BC-AGQ-162110G, and why does it matter?

This model is made from ABS, a plastic chosen here for impact resistance and durability. Boxco positions the Q-Series as a cost-effective hinge enclosure that still provides strong resistance to external impact and reliable performance in demanding conditions.
