Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Boxco

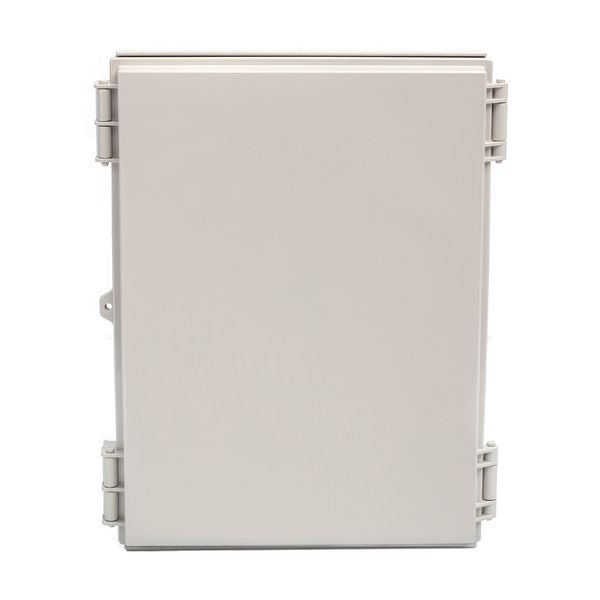

Boxco Q-Series 300×300×160mm Plastic Enclosure, IP67, IK08, ABS, Transparent Cover, Plastic Hinge and Latch Type

SKU:
BC-ATQ-303016
Please for Pricing
|

Description

For Boxco Q-Series,Ultraviolet Stabilizer is added to protect the enclosures for outdoor usage. Few colour changes will be noticed even after a long time of use. Anti-static material is used to protect sensitive electronic instruments from static electricity. It is made of high impact resistant material which is very strong against external impact and also prevents breakage during hole and press processing. Special spec can be added besides standard specification. We can supply optimized products with the spec and material you choose.

Features

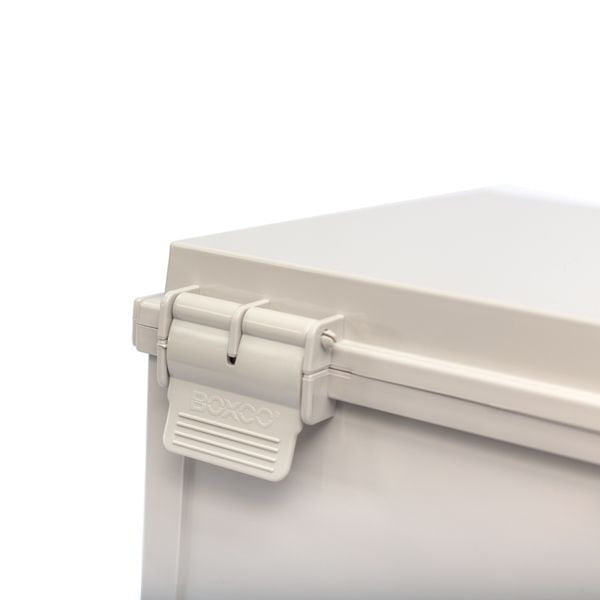

  • Latch - Main part of the draw latch is made of plastic so to prevent erosion.

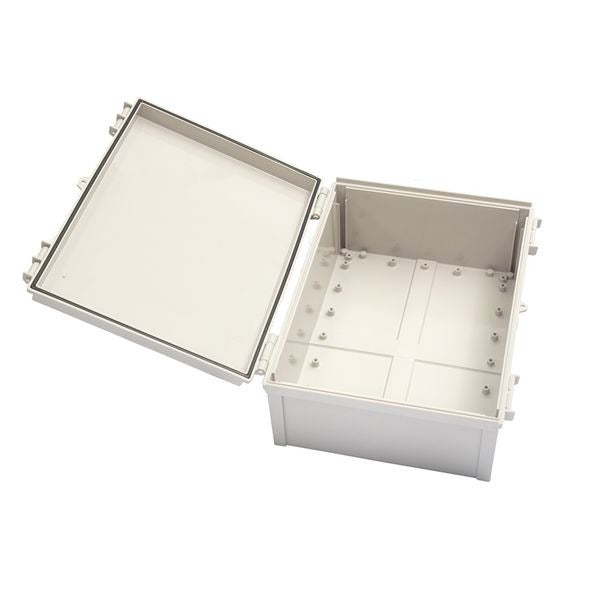

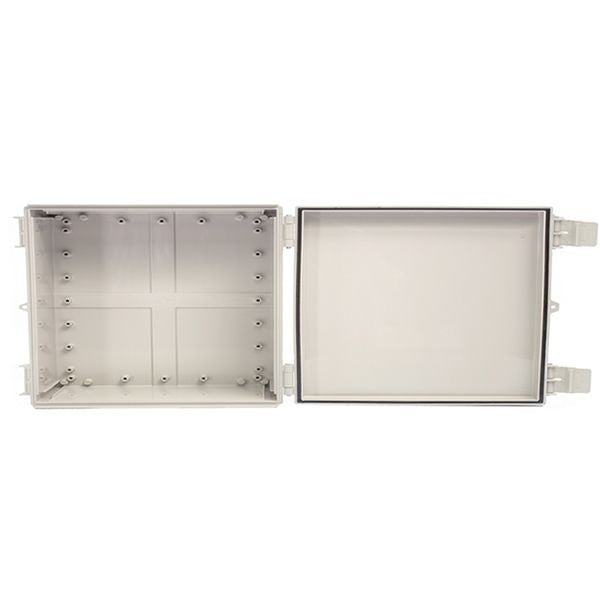

  • Pre-molded Mounting Screw Nuts – You can easily fix DIN RAIL or other equipment on to the pre molded Screw nuts

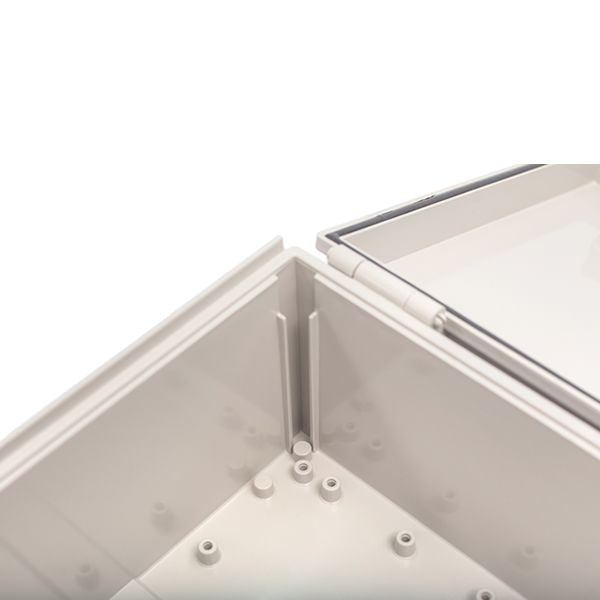

  • Roof Protection – Both ends of the Q series are protruded to protect against penetration of water when using it outdoor and penetration of dust when opening/closing the cover
  • Gasket – The gasket in injected by super precise CNC robot machine to product excellent waterproof and dust-proof performance

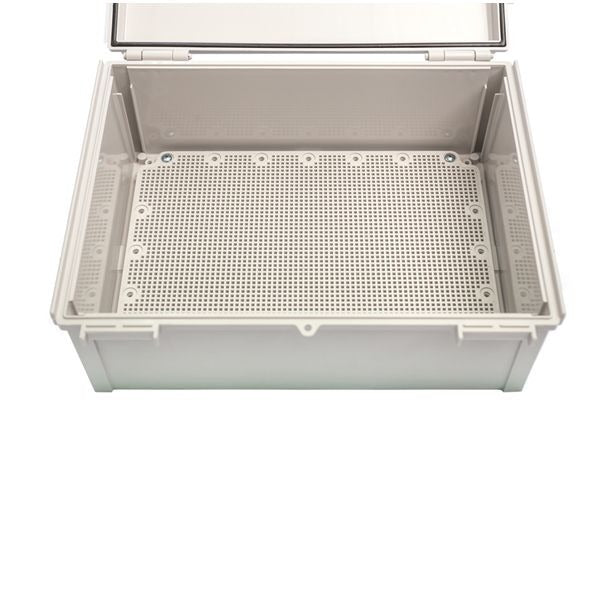

  • Mounting Plate Attachment Point – Internal mounting plate can be fixed tightly onto the brass inserted injection molding to handle heavy equipment installed inside the enclosure

Specifications
  • Brand
    Boxco
  • Series
    Boxco Q Series
  • Standards Met
    CE,TUV,UL
  • Operating Temperature
    -40°C~70°C
  • Warranty
    1 Year
  • Length
    30 cm
  • Width
    30 cm
  • Height
    16 cm
  • Weight
    1.3 kg

File Downloads

::specification::

Payment & Security

Payment methods

  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Is this Boxco Q-Series enclosure suitable for outdoor use?

Yes. This model includes an ultraviolet stabilizer to help protect the enclosure in outdoor conditions and reduce visible color change over time. Its IP67 rating and roof protection design also support resistance to water and dust exposure.

What are the main material and impact characteristics of this enclosure?

This enclosure is made from ABS and is specified with an IK08 impact rating. The product description also states it uses high impact resistant material to help resist external impact and reduce breakage during hole and press processing.

What size equipment can this enclosure typically accommodate?

The enclosure size is 11.81 x 11.81 x 6.30 inches, which is 300 x 300 x 160 mm. Buyers should compare those internal project space needs against the enclosure's overall dimensions before selecting it for control, protection, or instrumentation use.

Does this model support mounting internal components such as rails or plates?

Yes. This Q-Series enclosure includes pre-molded mounting screw nuts for fixing DIN rail or other equipment, and it has internal mounting plate attachment points with brass inserted injection molding for securing heavier components. Those built-in mounting features make it more suitable for organized internal layouts than a plain empty box.

Why choose this transparent-cover version instead of a solid-cover enclosure?

This version uses a transparent cover, which can be useful when visual inspection of indicators, displays, or internal status is needed without opening the enclosure. It keeps the same Q-Series enclosure format while adding visibility that a solid-cover version would not provide.

What operating temperature range is this enclosure rated for?

This model is rated for use from -40°C to 70°C. That range makes it suitable for many industrial and outdoor enclosure applications where both low-temperature and elevated-temperature exposure are possible.
