Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Boxco

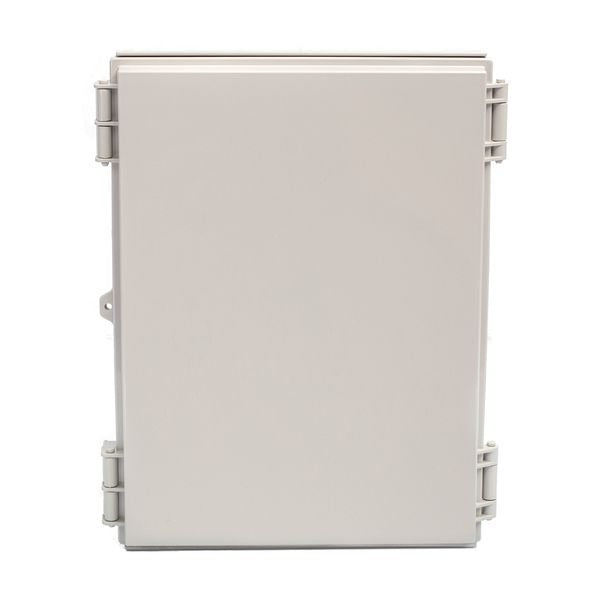

Boxco Q-Series 100×150×90mm Plastic Enclosure, IP67, IK08, ABS, Transparent Cover, Plastic Hinge and Latch Type

SKU BC-ATQ-101509
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Overview

BC-ATQ-101509 is a 100×150×90 mm ABS enclosure with a transparent cover from the Boxco Q Series.

Features

  • BOXCO electrical juntion box include plastic latch and plastic hinge.
  • Our IP66/IP67 waterproof control box is easy to removable cover and body
  • AGQ series is included G plate.**Dimensions and specifications are subject to change without notice.

Specifications

BC-ATQ-101509Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
100×150×90 mm (3.94×5.91×3.54 in)
Mounting plate dimension M1 × M2
74 × 124 mm

Material

Material
ABS
Cover
Transparent

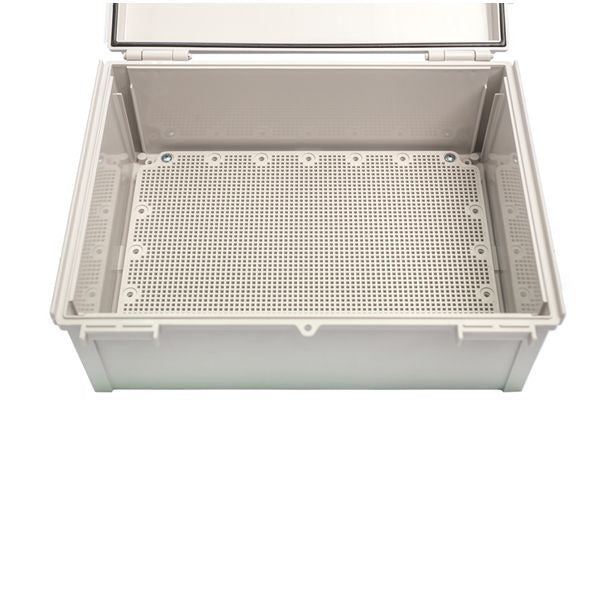

Mounting plates
1015 G (Plastic, G type), 1015 SQ (Steel, SQ type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +70℃
Flammability rating (UL 94)
94-HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

Downloads

FAQ

What applications is this Boxco Q-Series enclosure suited for?

This model is suited for protecting electrical and electronic components in indoor or outdoor industrial environments where a sealed plastic enclosure is needed. Its IP67 rating, IK08 impact resistance, ultraviolet stabilizer, and anti-static material make it a practical choice for control, instrumentation, and equipment protection applications.

Is this enclosure suitable for outdoor use?

Yes. The Q-Series description states that an ultraviolet stabilizer is added to help protect the enclosure during outdoor use, and the design includes roof protection features to help reduce water and dust penetration around the cover area. It is also rated IP67 for dust-tight and water-resistant performance.

What are the key specifications of this enclosure?

This model measures 3.94 x 5.91 x 3.54 inches (100 x 150 x 90 mm) and is made from ABS with a transparent cover. It is rated IP67 and IK08, has a plastic hinge and latch design, weighs 0.9100 kg, and is specified for use from -40 C to 70 C.

Does the transparent cover make this model different from a standard opaque enclosure?

Yes. The transparent cover allows visual inspection of indicators, labels, or internal components without opening the enclosure. That can be useful in applications where quick status checks are important while still using the same enclosure body style.

What environmental conditions can this enclosure handle?

This enclosure is specified for temperatures from -40 C to 70 C. It is also built for dust-tight and water-resistant performance with an IP67 rating, and the product description highlights features intended to improve outdoor dust and water protection.

Does this enclosure support internal mounting hardware or panels?

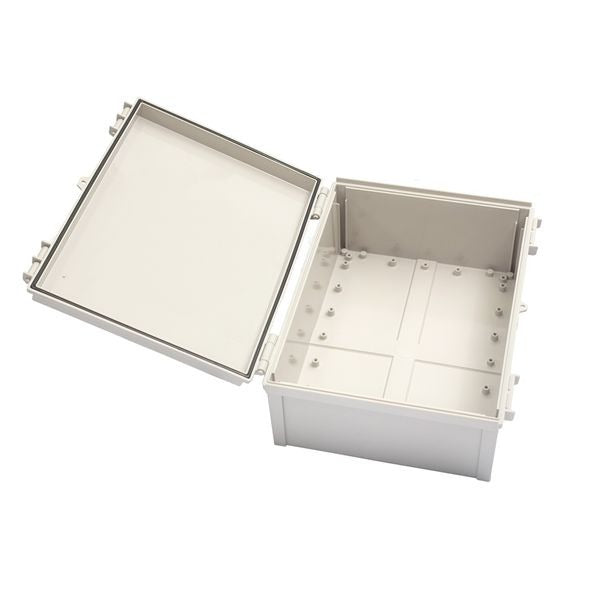

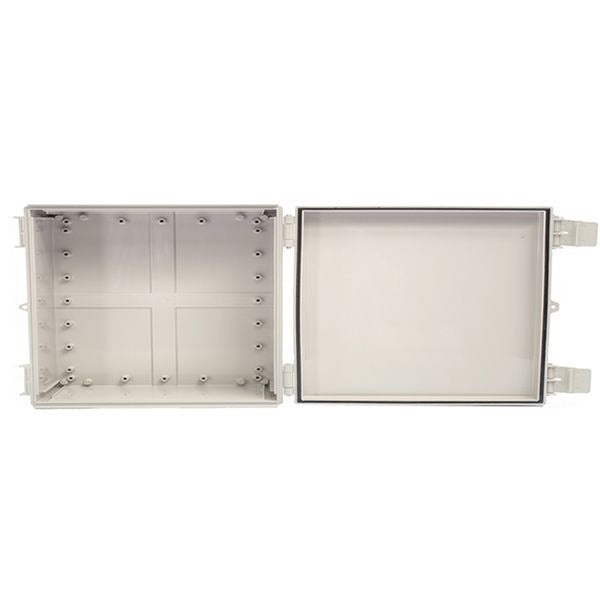

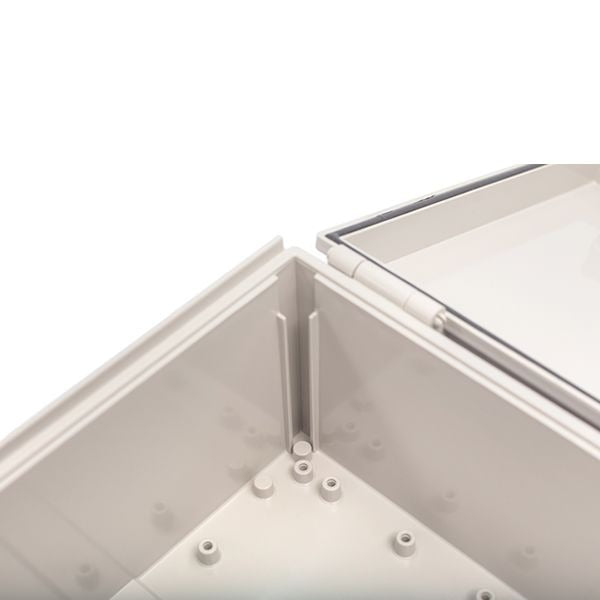

Yes. The product description states that it includes pre-molded mounting screw nuts for fixing DIN rail or other equipment, and it also includes mounting plate attachment points. These features are intended to help secure internal components more firmly inside the enclosure.

What material and latch style does this model use?

This enclosure uses an ABS body with a transparent cover and a plastic hinge and latch type design. The description also notes that the main part of the draw latch is plastic to help prevent erosion.
