Boxco

Boxco Q-Series 400×500×200mm Plastic Enclosure, IP67, IK08, ABS, Transparent Cover, Plastic Hinge and Latch Type

SKU:
BC-ATQ-405020
Please for Pricing
|

Description

For Boxco Q-Series,Ultraviolet Stabilizer is added to protect the enclosures for outdoor usage. Few colour changes will be noticed even after a long time of use. Anti-static material is used to protect sensitive electronic instruments from static electricity. It is made of high impact resistant material which is very strong against external impact and also prevents breakage during hole and press processing. Special spec can be added besides standard specification. We can supply optimized products with the spec and material you choose.

Features

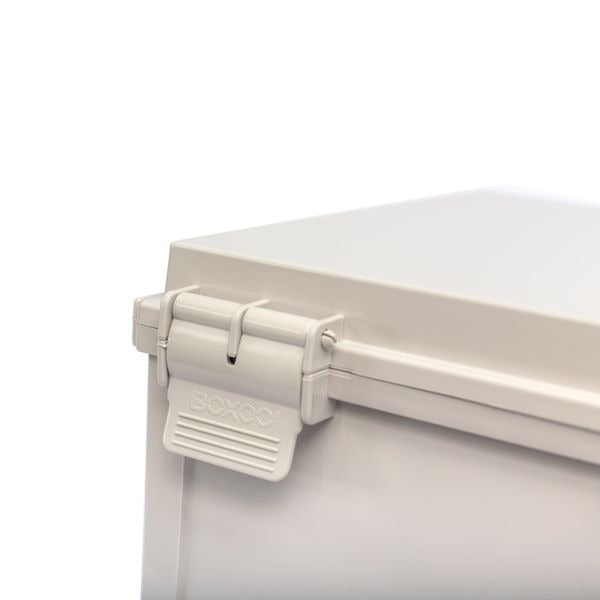

  • Latch - Main part of the draw latch is made of plastic so to prevent erosion.

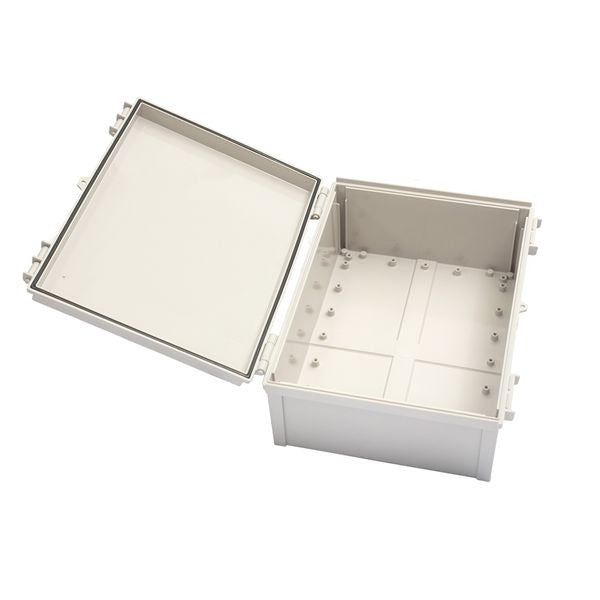

  • Pre-molded Mounting Screw Nuts – You can easily fix DIN RAIL or other equipment on to the pre molded Screw nuts

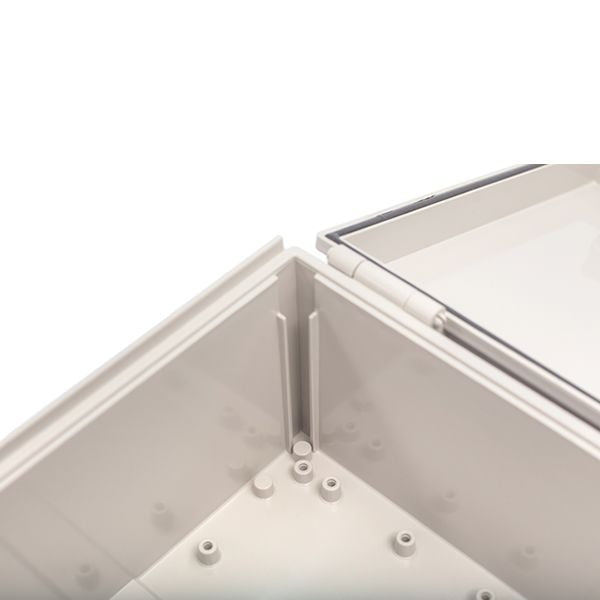

  • Roof Protection – Both ends of the Q series are protruded to protect against penetration of water when using it outdoor and penetration of dust when opening/closing the cover
  • Gasket – The gasket in injected by super precise CNC robot machine to product excellent waterproof and dust-proof performance

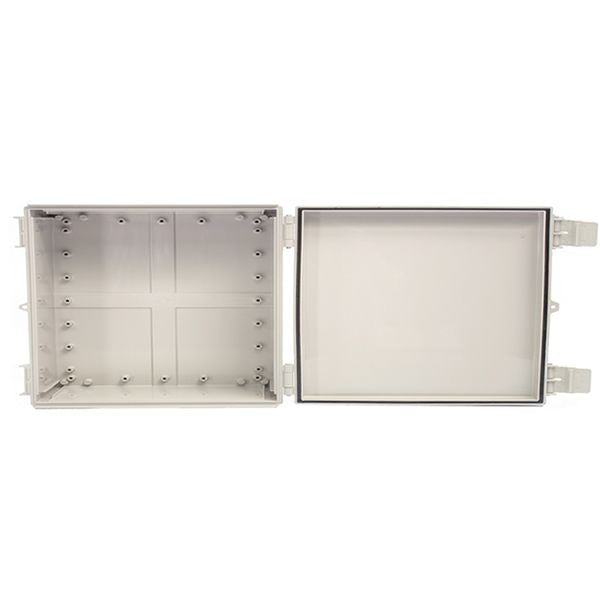

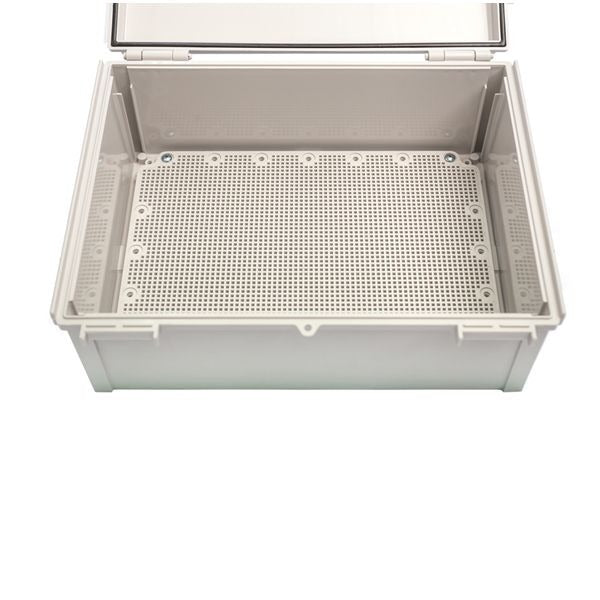

  • Mounting Plate Attachment Point – Internal mounting plate can be fixed tightly onto the brass inserted injection molding to handle heavy equipment installed inside the enclosure

Specifications
  • Brand
    Boxco
  • Series
    Boxco Q Series
  • Standards Met
    CE,TUV,UL
  • Operating Temperature
    -40°C~70°C
  • Warranty
    1 Year
  • Length
    40 cm
  • Width
    50 cm
  • Height
    20 cm
  • Weight
    9.38 kg

File Downloads

::specification::

Payment & Security

Payment methods

  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

What applications is the Boxco Q-Series BC-ATQ-405020 enclosure typically suited for?

This model is intended for protecting industrial or commercial electrical and control equipment that needs a sealed non-metallic enclosure. Its large 400 x 500 x 200 mm format gives more internal space for components than compact junction-style boxes. The ABS body, transparent cover, and IP67 sealing make it a practical choice where equipment needs both visibility and protection from dust and water ingress.

What are the key specifications of the BC-ATQ-405020 enclosure?

The BC-ATQ-405020 measures 15.75 x 19.69 x 7.87 inches, which is 400 x 500 x 200 mm. It is made from ABS, uses a transparent cover, and has plastic hinges and latch hardware. This model is rated IP67, IK08, weighs 9.384 kg, and is specified for use from -40 C to 70 C.

Is this enclosure suitable for outdoor environments?

Yes, this Q-Series enclosure is designed with outdoor use in mind. The product description states that an ultraviolet stabilizer is added to help reduce color change over long-term exposure, and the housing includes roof-style protection features to help resist water and dust entry during cover operation. Its IP67 rating also supports use in demanding indoor or outdoor environments where sealing matters.

How does the transparent cover version compare with a solid-cover enclosure?

The transparent cover allows visual inspection of indicators, displays, or internal status without opening the enclosure. That can be useful when you want to check equipment condition while maintaining the enclosure's closed state. Buyers who do not need internal visibility may prefer a solid-cover version for a different visual or application preference, but this specific model is the transparent-cover option.

What internal mounting support does this Boxco enclosure provide?

This model includes pre-molded mounting screw nuts, which are intended to make it easier to secure DIN rail or other internal equipment. The product description also notes dedicated mounting plate attachment points with brass inserted injection molding for handling heavier internal assemblies. That makes this enclosure better suited for organized component mounting than a basic empty box.

What makes this enclosure suitable for protecting sensitive equipment?

The description states that anti-static material is used to help protect sensitive electronic instruments from static electricity. It also uses high impact resistant material to improve resistance to external impact and help prevent breakage during machining such as hole or press processing. Combined with the IP67 and IK08 ratings, that gives this model a strong protection profile for demanding equipment housings.
