Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Boxco

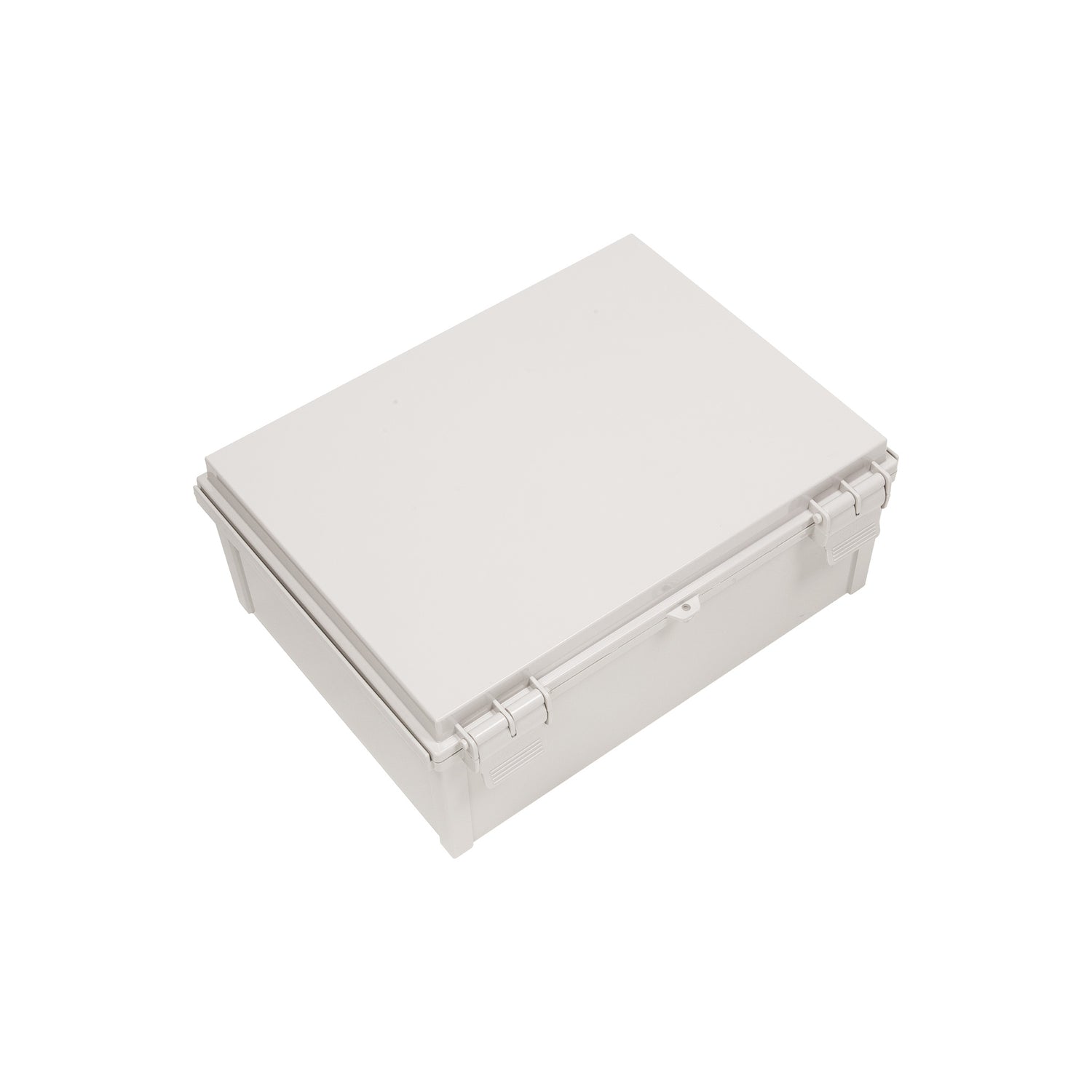

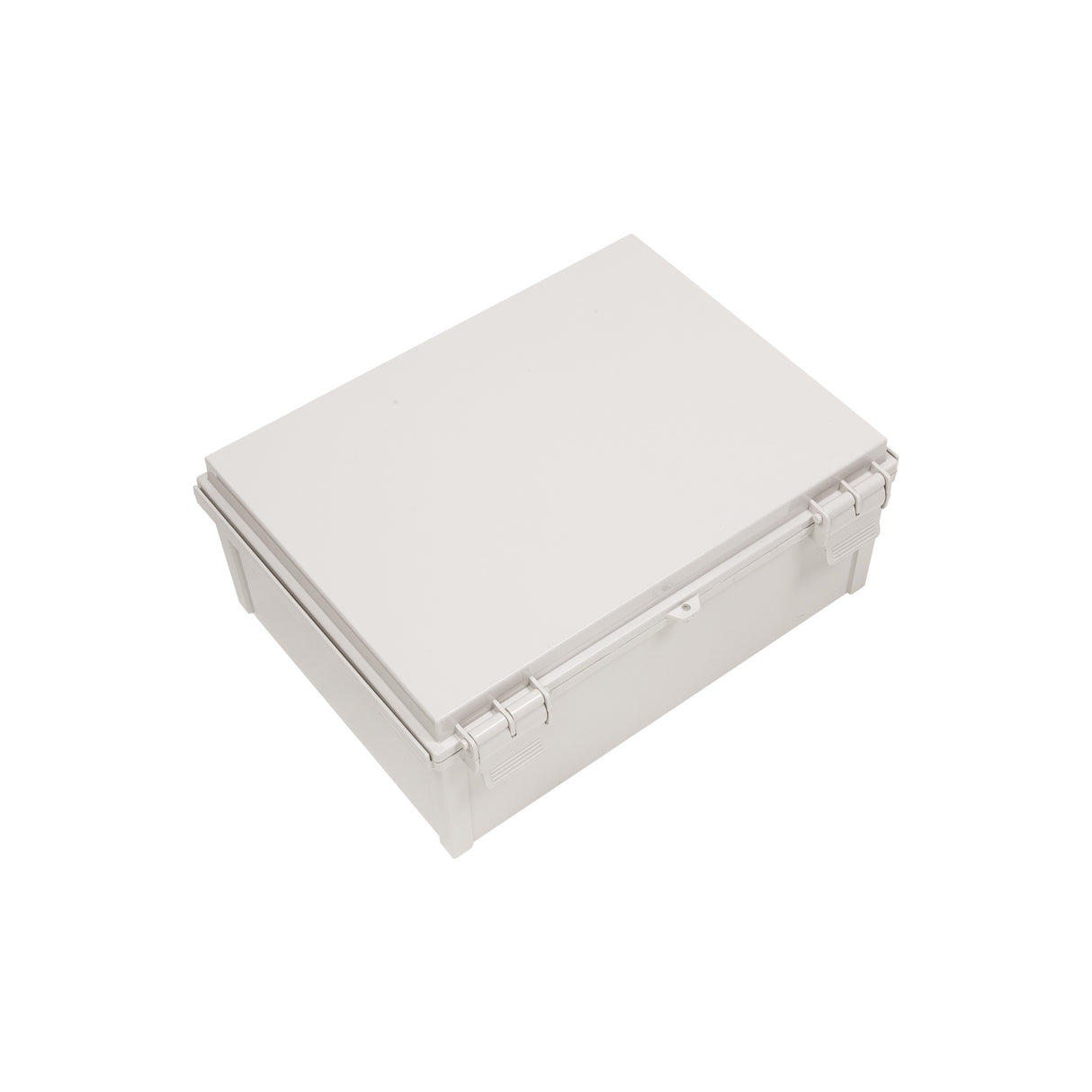

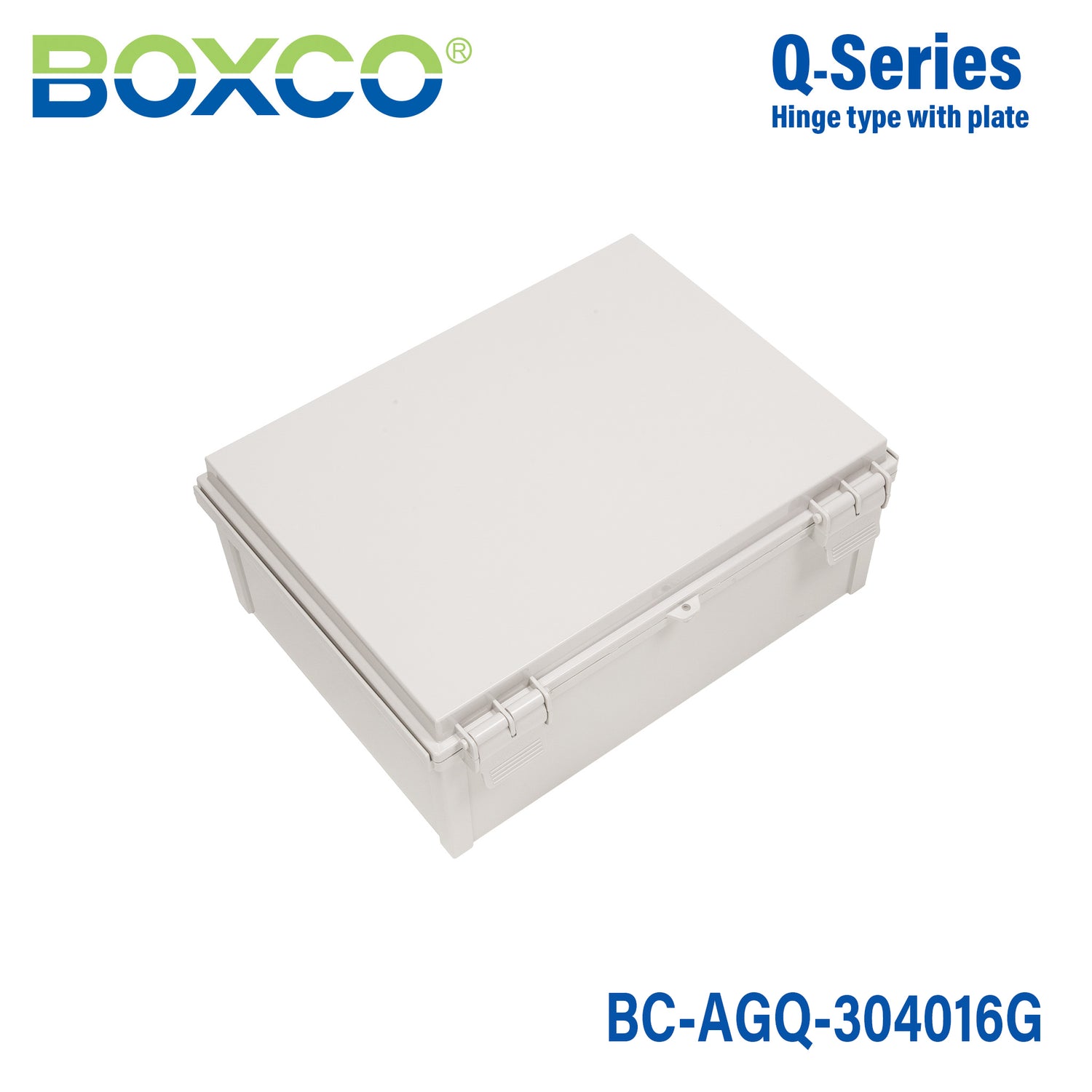

Boxco Q-Series 300x400x160mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Hinge Type with Plate

Enclosure, ABS, Grey Cover, 300x400x160mm
SKU:
BC-AGQ-304016G
Please for Pricing
|

Description

Boxco Q-series is our most economic hinge series, It is made of high impact resistant material which is very strong against external impact and also prevents breakage during hole and press processing. Special spec can be added besides standard specification. We can supply optimized products with the spec and material you choose.



Features

  • Latch - Main part of the draw latch is made of plastic so it is very strong and anti-corrosion.
  • Pre-molded Mounting Screw Nuts – You can easily fix DIN RAIL or other equipment on to the pre molded Screw nuts
  • Roof Protection – Both ends of the Q series are protruded to protect against penetration of water when using it outdoor and penetration of dust when opening/closing the cover
  • Gasket – The gasket in injected by super precise CNC robot machine to product excellent waterproof and dust-proof performance

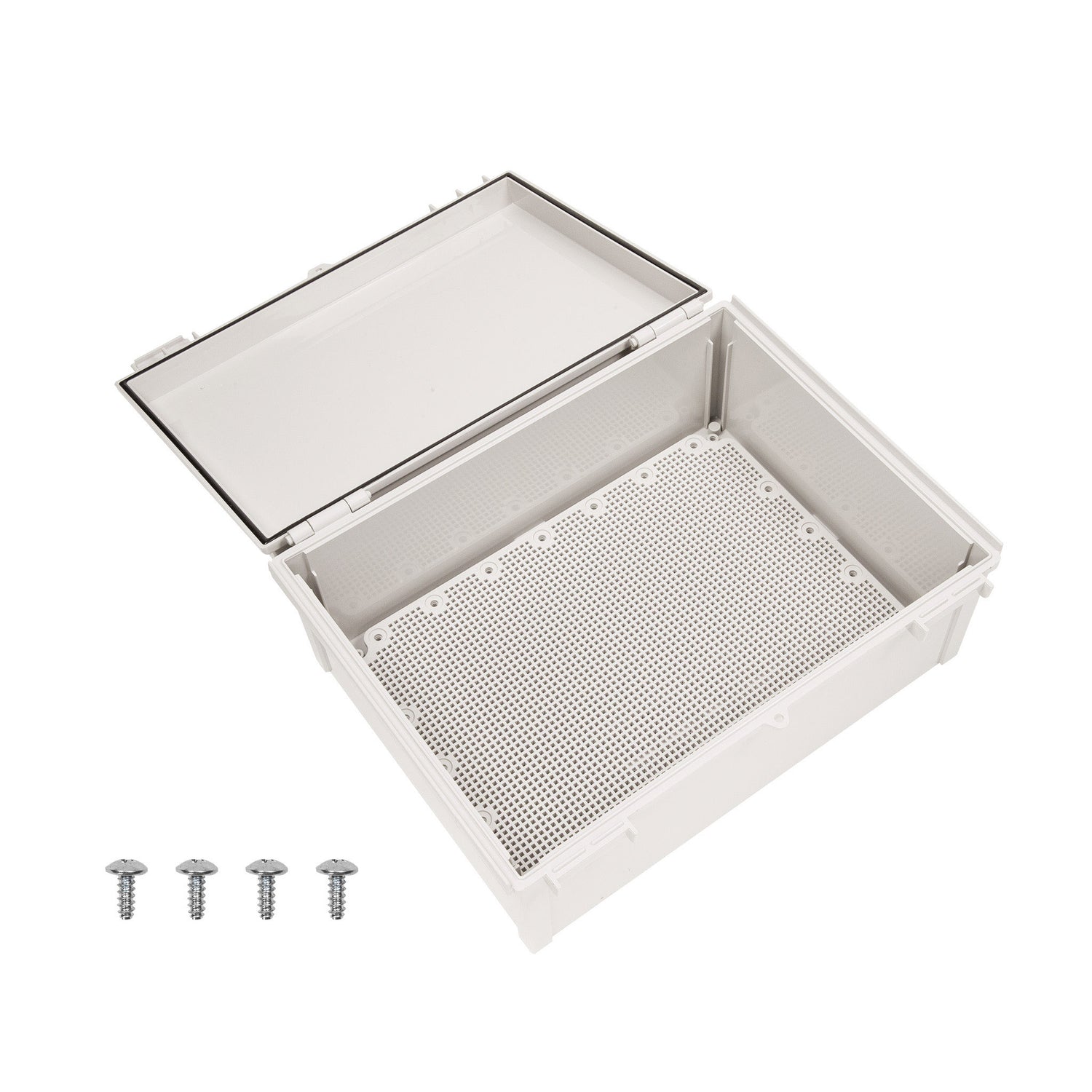

  • Mounting Plate Attachment Point – Mounting Plate comes with the box free of charge and comes with pre-drilled holes so saves your time and cost

Backed up with all the certifications and across the globe, Boxco Enclosures are suitable for exporting to other countries and to be use across international businesses.

Due to the low cost and high reliability as well as its excellent durability and waterpoof features, boxco enclosures can be used in many different applications, protecting electrical connections and components from moisture, dust and other environmental factors

Specifications
  • Brand
    Boxco
  • Series
    Boxco Q Series
  • Standards Met
    CE,TUV,UL
  • Operating Temperature
    -40°C~70°C
  • Warranty
    1 Year
  • Length
    30 cm
  • Width
    40 cm
  • Height
    16 cm
  • Weight
    5 kg

File Downloads

::specification::

Payment & Security

Payment methods

  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

What are the main specifications of the Boxco Q-Series BC-AGQ-304016G enclosure?

This model is a hinge-type plastic enclosure measuring 11.81 x 15.75 x 6.30 inches (300 x 400 x 160 mm). It is made from ABS, has a grey cover, and is rated IP67 for dust and water protection and IK08 for impact resistance. The enclosure also includes a mounting plate.

What kinds of applications is this enclosure suited for?

This enclosure is intended for protecting electrical and industrial components in environments where moisture, dust, and external impact are concerns. Its sealed ABS construction and included mounting plate make it a practical choice for control, protection, and general-purpose equipment housing. It is especially suitable where a durable, low-cost enclosure is needed.

Is this enclosure suitable for outdoor or washdown environments?

This model carries an IP67 rating, which indicates strong protection against dust ingress and temporary immersion in water. The Q-Series description also highlights roof protection features and a precision-injected gasket to help resist water and dust entry. That makes it a strong option for demanding indoor or outdoor environments where sealing matters.

How durable is the BC-AGQ-304016G against impact and harsh conditions?

The enclosure is made from high impact resistant ABS and is rated IK08 for impact protection. Boxco also describes the Q-Series as designed to resist breakage during hole and press processing, which supports its use in tougher industrial settings. Its operating temperature range is -40°C to 70°C.

Does this enclosure include a mounting plate?

Yes, this hinge-type enclosure comes with a mounting plate included. The product description notes that the mounting plate is supplied free of charge and has pre-drilled holes to help save time during panel layout and equipment mounting. This makes the model more convenient than an enclosure body sold alone.

What makes the Q-Series different from other enclosure options?

The Q-Series is presented as Boxco's more economical hinge series while still offering strong durability, sealing performance, and impact resistance. This specific model combines IP67 and IK08 ratings with an included mounting plate and hinge-type access. It is positioned as a cost-effective option for buyers who still need reliable environmental protection.
