Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Boxco

Boxco Q-Series 250×350×160mm Plastic Enclosure, IP67, IK08, ABS, Transparent Cover, Plastic Hinge and Latch Type

SKU BC-ATQ-253516
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Overview

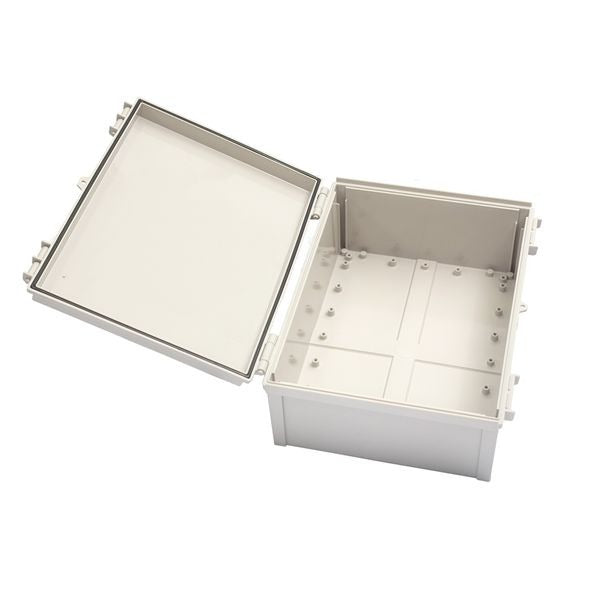

BC-ATQ-253516 is a 250×350×160 mm ABS enclosure with a transparent cover from the Boxco Q Series.

Features

  • BOXCO electrical juntion box include plastic latch and plastic hinge.
  • Our IP66/IP67 waterproof control box is easy to removable cover and body
  • AGQ series is included G plate.**Dimensions and specifications are subject to change without notice.

Specifications

BC-ATQ-253516Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
250×350×160 mm (9.84×13.78×6.30 in)

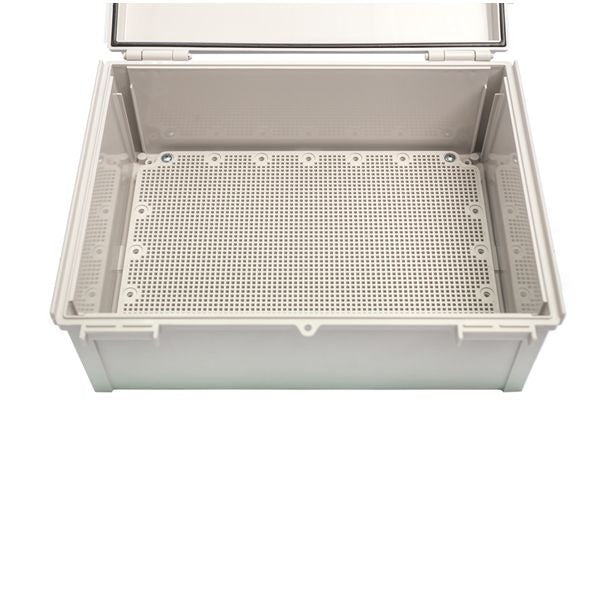

Mounting plate dimension M1 × M2
210 × 310 mm

Material

Material
ABS
Cover
Transparent
Mounting plates
2535 G (Plastic, G type), 2535 SQ (Steel, SQ type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +70℃
Flammability rating (UL 94)
94-HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

Downloads

FAQ

What are the dimensions of the Boxco Q-Series BC-ATQ-253516 enclosure?

This enclosure measures 9.84 x 13.78 x 6.30 inches, which corresponds to 250 x 350 x 160 mm. That size gives it room for larger control or protection applications while keeping the enclosure in a compact wall-mountable form factor.

Is this plastic enclosure suitable for outdoor use?

Yes. This Boxco Q-Series model includes an ultraviolet stabilizer to help protect the enclosure during outdoor exposure and reduce visible color change over time. Its IP67 rating and roof-protection design also support resistance to water and dust in demanding environments.

What materials are used in this enclosure?

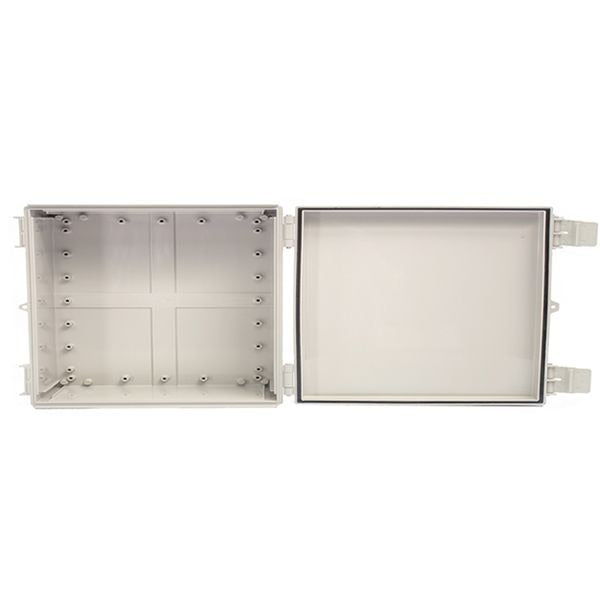

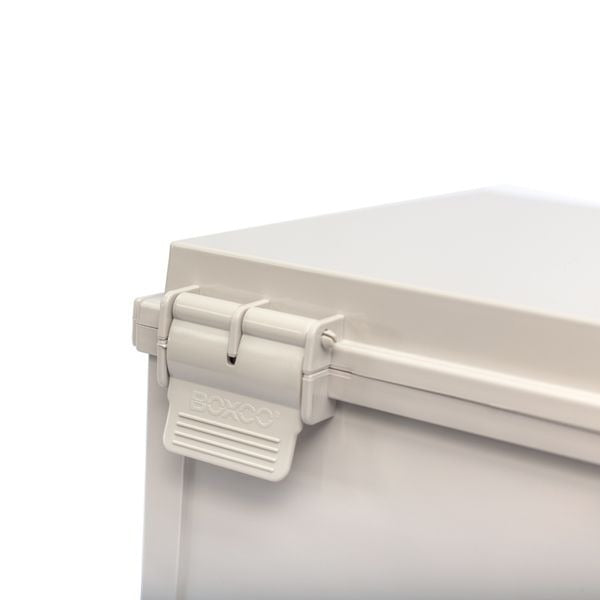

The enclosure body is made from ABS and uses a transparent cover so internal components can be visually checked without opening the box. It also uses plastic hinges and a plastic latch design intended to help prevent erosion of the latch's main part.

What kind of protection ratings does this model have?

This model is rated IP67 for protection against dust ingress and temporary water exposure, and IK08 for impact resistance. Boxco also describes the Q-Series material as high impact resistant and designed to resist breakage during machining processes such as hole or press processing.

Can this enclosure be used for sensitive electronic equipment?

Yes. The product description states that anti-static material is used to help protect sensitive electronic instruments from static electricity. That makes this model a practical option for applications where internal devices benefit from added electrostatic protection.

What temperature range can this enclosure handle?

The stated operating temperature range for this model is -40°C to 70°C. That range supports use in both low-temperature and elevated-temperature industrial or outdoor environments within those limits.

Does this enclosure support internal mounting hardware or plates?

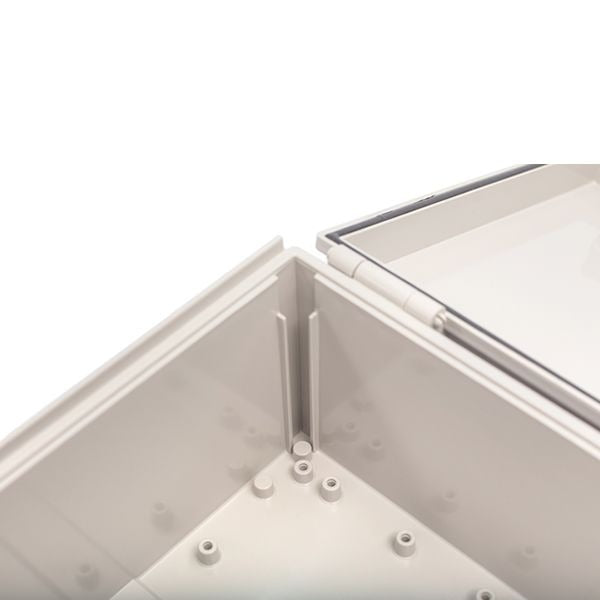

Yes. The product description notes pre-molded mounting screw nuts for securing DIN rail or other equipment, along with mounting plate attachment points using brass inserted injection molding. These features are intended to help support heavier internal equipment more securely.

Payment & Security

Payment methods

  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

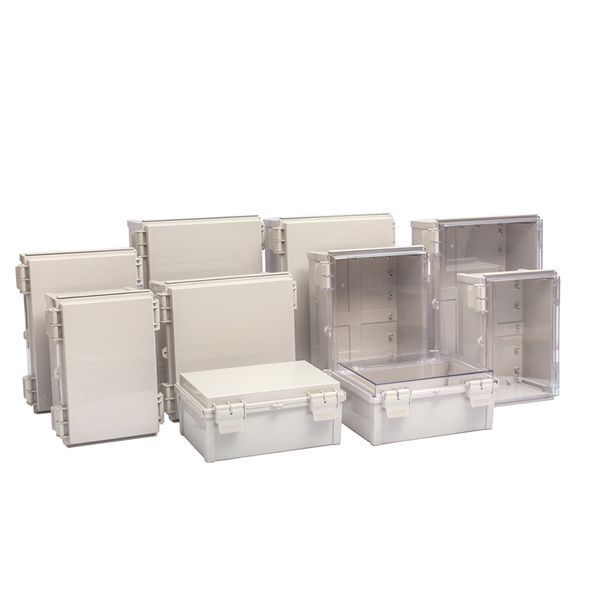

Other Boxco Q Series Models (10 closest sizes)

33 other models
ModelMaterialCover
Boxco Q-Series 400x500x200mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Hinge Type with Plate ABS Grey View
Boxco Q-Series 350x450x200mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Hinge Type with Plate ABS Grey View
Boxco Q-Series 160x210x100mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Hinge Type with Plate ABS Grey View
Boxco Q-Series 100x150x90mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Hinge Type with Plate ABS Grey View
Boxco Q-Series 400x450x160mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Hinge Type with Plate ABS Grey View
Boxco Q-Series 300*400*180mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Hinge Type with Plate ABS Grey View
Boxco Q-Series 200x300x180mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Hinge Type with Plate ABS Grey View
Boxco Q-Series 200x300x130mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Hinge Type with Plate ABS Grey View
Boxco Q-Series 300x400x160mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Hinge Type with Plate ABS Grey View
Boxco Q-Series 250x350x160mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Hinge Type with Plate ABS Grey View
Boxco Q-series 150*150*90mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Hinge Type with Plate ABS Grey View
Boxco Q-Series 350×450×200mm Plastic Enclosure, IP67, IK08, ABS, Transparent Cover, Plastic Hinge and Latch Type ABS Transparent View
Boxco Q-Series 210×210×130mm Plastic Enclosure, IP67, IK08, ABS, Transparent Cover, Plastic Hinge and Latch Type ABS Transparent View
Boxco Q-Series 200×300×150mm Plastic Enclosure, IP67, IK08, ABS, Transparent Cover, Plastic Hinge and Latch Type ABS Transparent View
Boxco Q-Series 400×500×200mm Plastic Enclosure, IP67, IK08, ABS, Transparent Cover, Plastic Hinge and Latch Type ABS Transparent View
Boxco Q-Series 300×400×180mm Plastic Enclosure, IP67, IK08, ABS, Transparent Cover, Plastic Hinge and Latch Type ABS Transparent View
Boxco Q-Series 160×210×130mm Plastic Enclosure, IP67, IK08, ABS, Transparent Cover, Plastic Hinge and Latch Type ABS Transparent View
Boxco Q-Series 210x210x130mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Hinge Type with Plate ABS Grey View
Boxco Q-Series 200x300x150mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Hinge Type with Plate ABS Grey View
Boxco Q-Series 300×300×160mm Plastic Enclosure, IP67, IK08, ABS, Transparent Cover, Plastic Hinge and Latch Type ABS Transparent View
Boxco Q-Series 200×300×180mm Plastic Enclosure, IP67, IK08, ABS, Transparent Cover, Plastic Hinge and Latch Type ABS Transparent View
Boxco Q-Series 150×150×120mm Plastic Enclosure, IP67, IK08, ABS, Transparent Cover, Plastic Hinge and Latch Type ABS Transparent View
Boxco Q-Series 300x400x150mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Hinge Type with Plate ABS Grey View
Boxco Q-Series 300x300x160mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Hinge Type with Plate ABS Grey View
Boxco Q-Series 150x150x120mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Hinge Type with Plate ABS Grey View
Boxco Q-Series 400×500×160mm Plastic Enclosure, IP67, IK08, ABS, Transparent Cover, Plastic Hinge and Latch Type ABS Transparent View
Boxco Q-Series 300×400×160mm Plastic Enclosure, IP67, IK08, ABS, Transparent Cover, Plastic Hinge and Latch Type ABS Transparent View
Boxco Q-Series 200×300×130mm Plastic Enclosure, IP67, IK08, ABS, Transparent Cover, Plastic Hinge and Latch Type ABS Transparent View
Boxco Q-Series 160×210×100mm Plastic Enclosure, IP67, IK08, ABS, Transparent Cover, Plastic Hinge and Latch Type ABS Transparent View
Boxco Q-Series 150×150×90mm Plastic Enclosure, IP67, IK08, ABS, Transparent Cover, Plastic Hinge and Latch Type ABS Transparent View
Boxco Q-Series 100×150×90mm Plastic Enclosure, IP67, IK08, ABS, Transparent Cover, Plastic Hinge and Latch Type ABS Transparent View
Boxco Q-Series 200x300x140mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Hinge Type with Plate ABS Grey View
Boxco Q-Series 160x210x130mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Hinge Type with Plate ABS Grey View
View all 34 Boxco Q Series models
{ "id":8433660756267, "variants" :[{ "context":"default", "variant_id": 45676808306987, "sku":"BC-ATQ-253516", "inventory_qty" : 7, "customer" :false, "custom_html" :"\u003ca class=\"text-current logged-out-price logged-out\" href=\"https:\/\/wellforces.co.nz\/customer_authentication\/redirect?locale=en\u0026region_country=NZ\"\u003e\n \u003cspan \u003ePlease \u003c\/span\u003e \u003cspan class=\"login-text\"\u003eLogin\u003c\/span\u003e \u003cspan\u003e for Pricing\u003c\/span\u003e\n \u003c\/a\u003e", "volume_html" :"\u003cvolume-pricing class=\"parent-display inside_product_form\" id=\"volume-pricing-main\" \u003e\u003c\/volume-pricing\u003e" } ] }
Boxco Q-Series 250×350×160mm Plastic Enclosure, IP67, IK08, ABS, Transparent Cover, Plastic Hinge and Latch Type
Boxco

Boxco Q-Series 250×350×160mm Plastic Enclosure, IP67, IK08, ABS, Transparent Cover, Plastic Hinge and Latch Type

Log in to see price

For Boxco Q-Series,Ultraviolet Stabilizer is added to protect the enclosures for outdoor usage. Few colour changes will be noticed even after a long time of use. Anti-static material is used to protect sensitive electronic instruments from static electricity. It is made of high impact resistant material which is very strong against external impact and also prevents breakage during hole and press processing. Special spec can be added besides standard specification. We can supply optimized products with the spec and material you choose.
