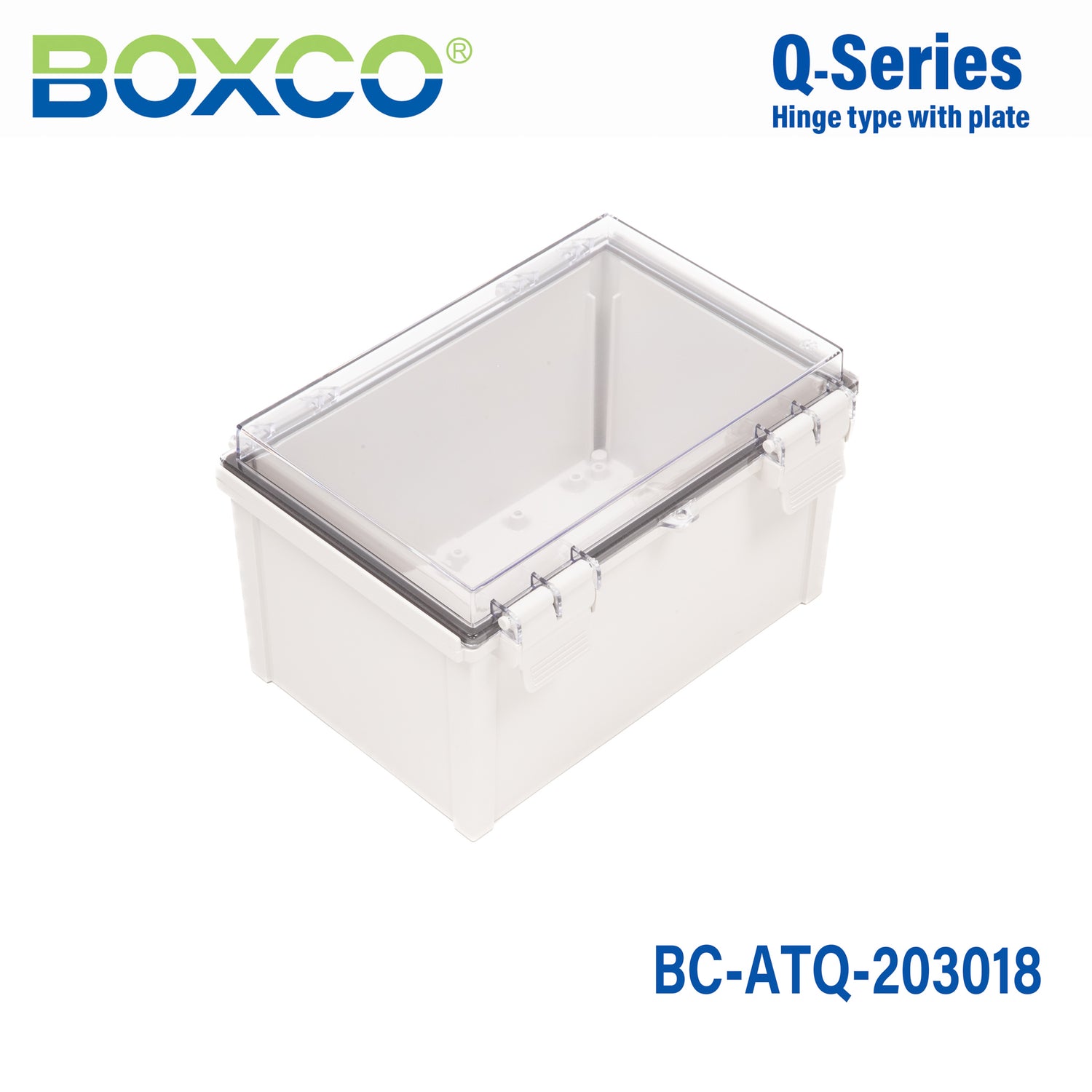

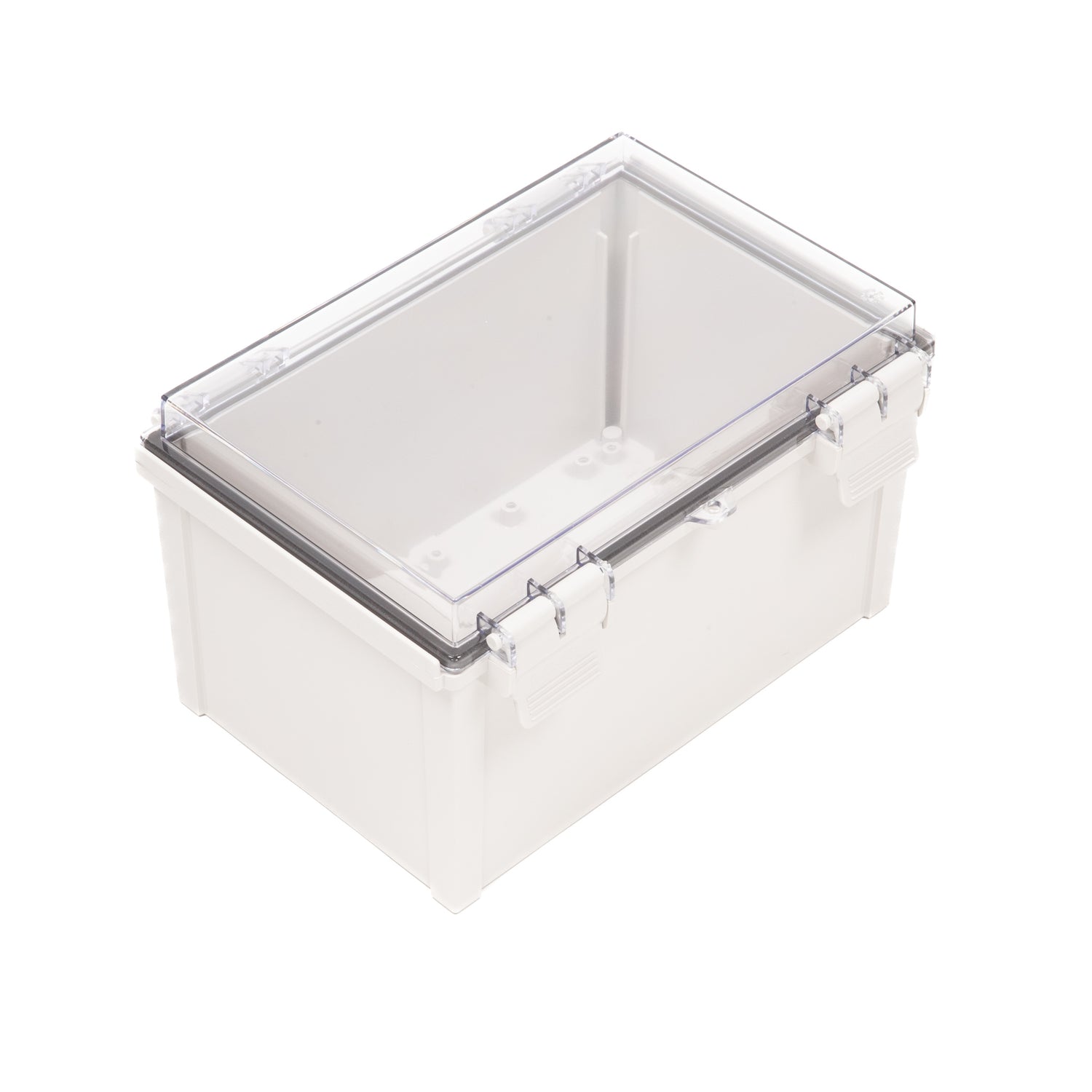

Boxco Q-Series 200×300×180mm Plastic Enclosure, IP67, IK08, ABS, Transparent Cover, Plastic Hinge and Latch Type

SKU:

BC-ATQ-203018

Notify me when it's back in stock

Description

For Boxco Q-Series,Ultraviolet Stabilizer is added to protect the enclosures for outdoor usage. Few colour changes will be noticed even after a long time of use. Anti-static material is used to protect sensitive electronic instruments from static electricity. It is made of high impact resistant material which is very strong against external impact and also prevents breakage during hole and press processing. Special spec can be added besides standard specification. We can supply optimized products with the spec and material you choose.

Features

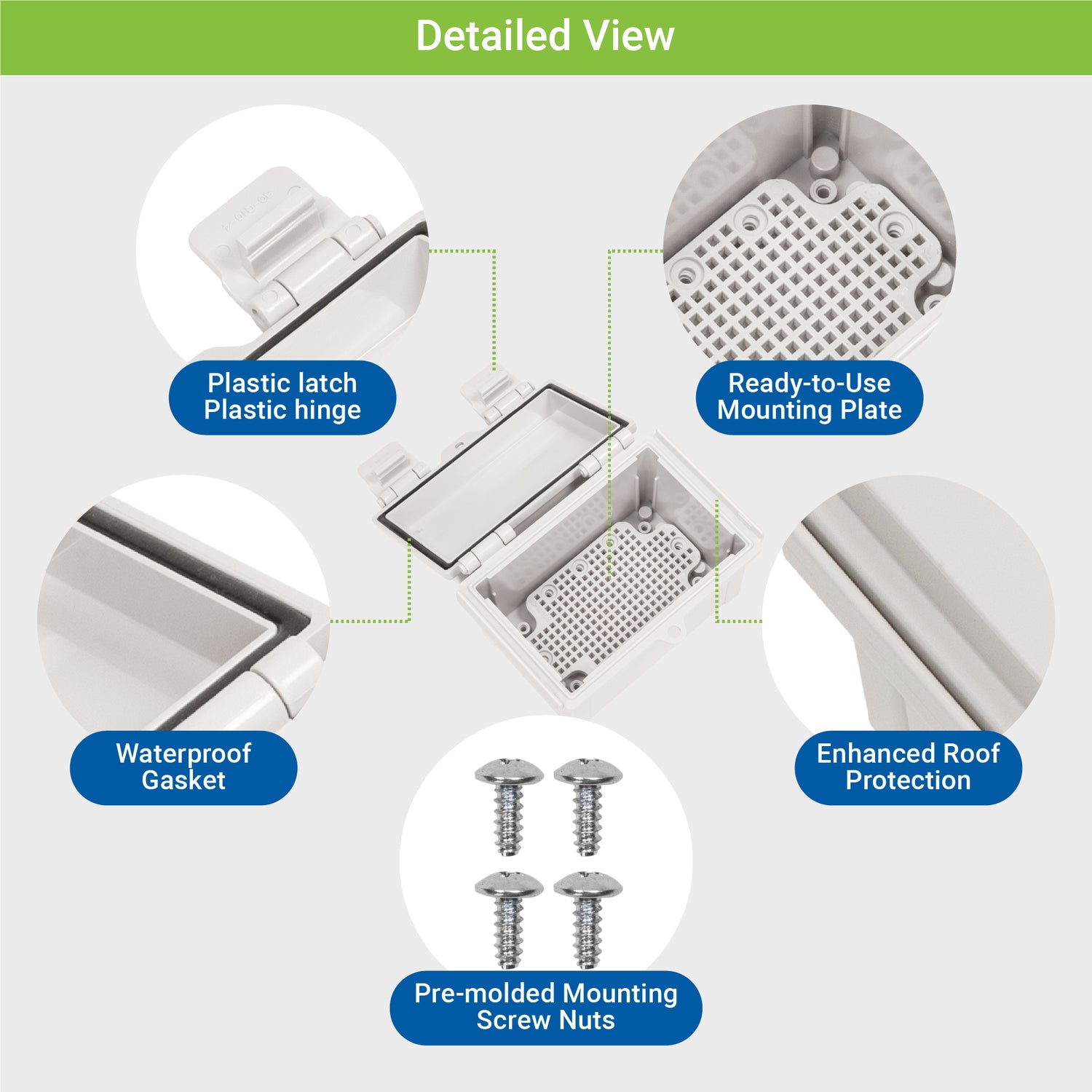

Latch - Main part of the draw latch is made of plastic so to prevent erosion.
Pre-molded Mounting Screw Nuts – You can easily fix DIN RAIL or other equipment on to the pre molded Screw nuts
Roof Protection – Both ends of the Q series are protruded to protect against penetration of water when using it outdoor and penetration of dust when opening/closing the cover
Gasket – The gasket in injected by super precise CNC robot machine to product excellent waterproof and dust-proof performance
Mounting Plate Attachment Point – Internal mounting plate can be fixed tightly onto the brass inserted injection molding to handle heavy equipment installed inside the enclosure

Specifications

Brand

Boxco
Series

Boxco Q Series
Standards Met

CE,TUV,UL
Operating Temperature

-40°C~70°C
Warranty

1 Year
Length

20 cm
Width

30 cm
Height

18 cm
Weight

1.06 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

What applications is the Boxco Q-Series BC-ATQ-203018 enclosure best suited for?

This enclosure is designed for protecting industrial and commercial electrical or control components that need a durable plastic housing. Its ABS construction, transparent cover, and IP67 sealing make it a practical choice for equipment that may be exposed to dust, water, and outdoor conditions.

Is this enclosure suitable for outdoor environments?

Yes. Boxco states that this Q-Series model includes an ultraviolet stabilizer to help protect the enclosure during outdoor use and reduce visible color change over time. The design also includes roof protection features intended to help limit water intrusion when the cover is opened or closed outdoors.

What ingress and impact protection ratings does this model have?

The BC-ATQ-203018 is rated IP67 and IK08. That means it is built for strong protection against dust and water ingress, while also providing resistance to mechanical impact for demanding environments.

What are the dimensions and material of this enclosure?

This model measures 7.87 x 11.81 x 7.09 inches, which corresponds to 200 x 300 x 180 mm. It is made from ABS and includes a transparent cover with plastic hinge and latch components.

Can this enclosure support internal mounting hardware or equipment plates?

Yes. The product description notes pre-molded mounting screw nuts for securing DIN rail or other equipment, and it also includes internal mounting plate attachment points. These features are intended to help support organized mounting of components inside the enclosure.

What operating temperature range is this enclosure rated for?

This enclosure is rated for use from -40°C to 70°C. That range makes it suitable for many industrial and outdoor environments where temperature swings are a concern.
