Boxco

Boxco Q-Series 160x210x100mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Hinge Type with Plate

EnclosureABSGrey Cover160x210x100mm
SKU BC-AGQ-162110G
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Overview

BC-AGQ-162110G is a 160×210×100 mm ABS enclosure with a grey cover from the Boxco Q Series.

Features

  • BOXCO electrical juntion box include plastic latch and plastic hinge.
  • Our IP66/IP67 waterproof control box is easy to removable cover and body
  • AGQ series is included G plate.**Dimensions and specifications are subject to change without notice.

Specifications

BC-AGQ-162110GSpecifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
160×210×100 mm (6.30×8.27×3.94 in)
Mounting plate dimension M1 × M2
130 × 180 mm

Material

Material
ABS
Cover
Grey
Mounting plates
1520 G (Plastic, G type), 1520 SQ (Steel, SQ type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +70℃
Flammability rating (UL 94)
94-HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

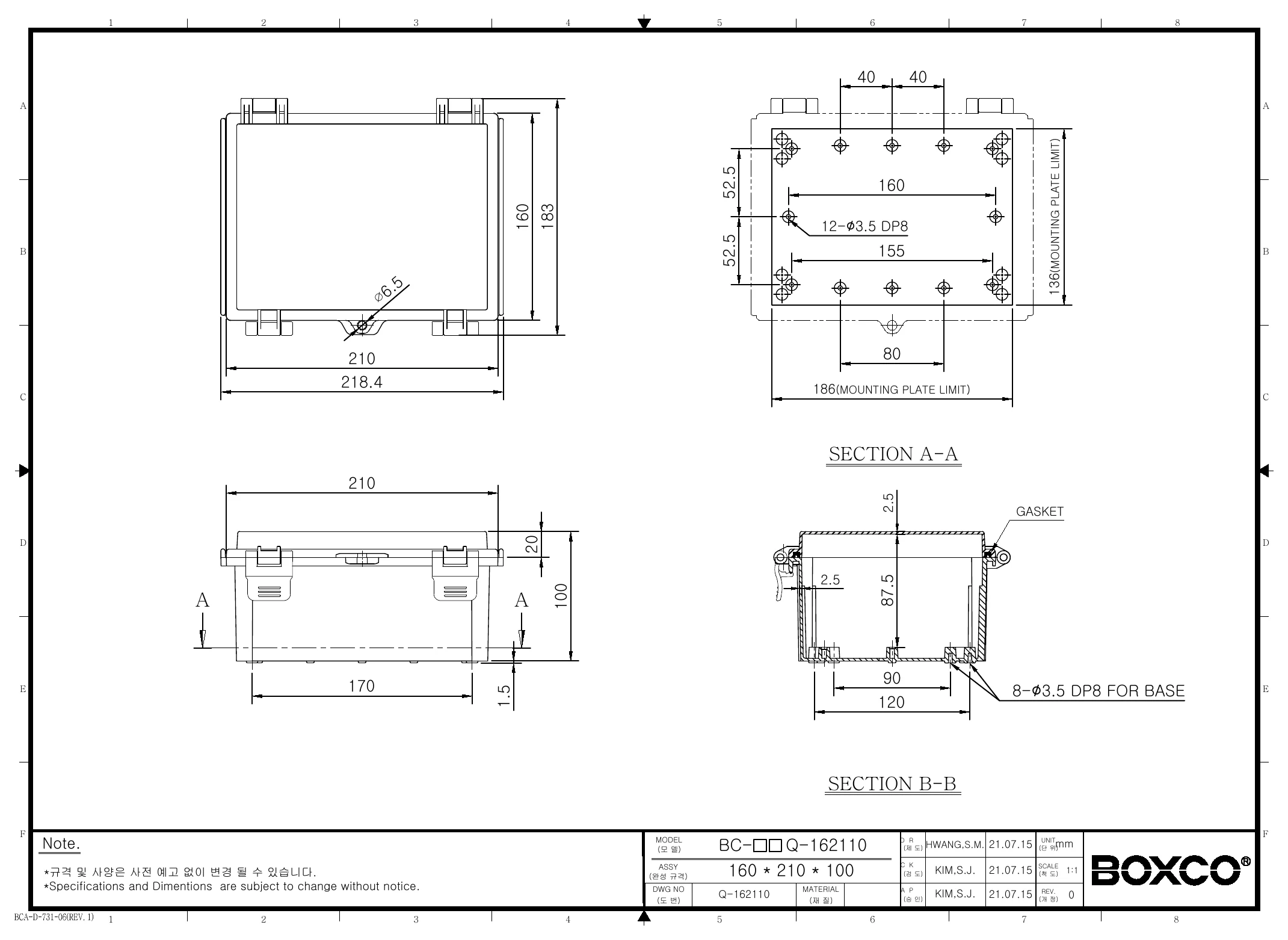

Technical drawings

BC-AGQ-162110G Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What applications is the Boxco Q-Series BC-AGQ-162110G enclosure suitable for?

This model is suited to protecting electrical and control components in industrial, commercial, and outdoor equipment where dust and water resistance matter. Its IP67 sealing, IK08 impact rating, and included mounting plate make it a practical choice for control boxes, junction protection, and general enclosure use.

Is the BC-AGQ-162110G suitable for outdoor or washdown environments?

It is designed for demanding environments with an IP67 rating, which indicates strong protection against dust ingress and temporary water exposure. The Q-Series also includes roof protection features and an injected gasket to help maintain sealing performance in outdoor conditions.

What are the key specifications of the Boxco BC-AGQ-162110G enclosure?

This enclosure measures 6.30 x 8.27 x 3.94 inches (160 x 210 x 100 mm) and weighs about 0.50 kg. It is made from ABS, has a grey cover, uses a hinge-type design, includes a mounting plate, and is rated IP67 and IK08.

Does the BC-AGQ-162110G include a mounting plate?

Yes, this model is supplied with a mounting plate. The product description states the plate is included free of charge and has pre-drilled holes to save time when mounting internal equipment.

Why choose this hinge-type Q-Series enclosure over a basic non-hinged box?

A hinge-type enclosure is generally better when the cover needs to be opened repeatedly for inspection or servicing without being fully removed. On this model, that benefit is combined with a draw latch, molded mounting screw nuts, and the included plate, making it more convenient for applications that need regular access.

What temperature range can the BC-AGQ-162110G handle?

This enclosure is specified for use from -40 C to 70 C. That range supports use in many indoor and outdoor industrial environments where temperature swings are a concern.

What material is used for the BC-AGQ-162110G, and why does it matter?

This model is made from ABS, a plastic chosen here for impact resistance and durability. Boxco positions the Q-Series as a cost-effective hinge enclosure that still provides strong resistance to external impact and reliable performance in demanding conditions.
