Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Boxco Q-Series 300400180mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Hinge Type with Plate

EnclosureABSGrey Cover300x400x180mm

SKU BC-AGQ-304018G

Log in to see price Trade pricing & online ordering for account holders

In stock

Overview

BC-AGQ-304018G is a 300×400×180 mm ABS enclosure with a grey cover from the Boxco Q Series.

Features

BOXCO electrical juntion box include plastic latch and plastic hinge.
Our IP66/IP67 waterproof control box is easy to removable cover and body
AGQ series is included G plate.**Dimensions and specifications are subject to change without notice.

Specifications

BC-AGQ-304018GSpecifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included): 300×400×180 mm (11.81×15.75×7.09 in)
Mounting plate dimension M1 × M2: 260 × 360 mm

Material

Material: ABS
Cover: Grey
Mounting plates: 3040 G (Plastic, G type), 3040 SQ (Steel, SQ type)

Protection & environment

IP rating: IP66/67
IK rating: IK08
Operating temperature: -40 ~ +70℃
Flammability rating (UL 94): 94-HB

Test conditions and notes1

Dimensions and specifications are subject to change without notice.

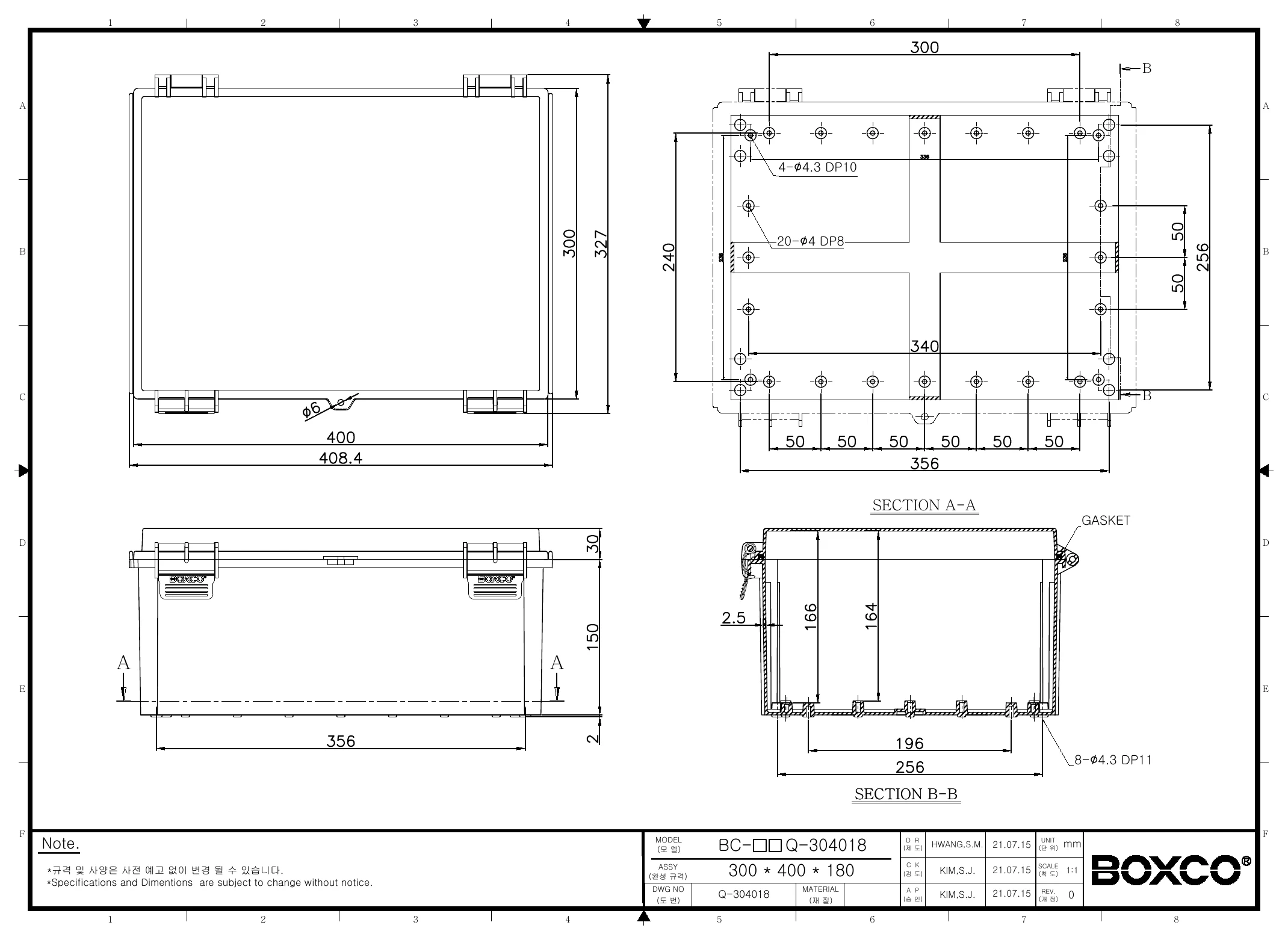

Technical drawings

BC-AGQ-304018G Dimensions (mm) — Dimensions (mm)

Downloads

Datasheet1

BC-AGQ-304018G datasheetBC_AGQ_304018.pdf PDF Download

FAQ

What is included with the Boxco Q-Series BC-AGQ-304018G enclosure?

This model is a hinge-type ABS plastic enclosure with a grey cover and an included mounting plate. The product description states the mounting plate comes free of charge and includes pre-drilled holes to help speed panel preparation.

What kinds of applications is this enclosure suited for?

This enclosure is designed to protect electrical components and connections from moisture, dust, and external impact in industrial and commercial environments. Its IP67 sealing, IK08 impact rating, and durable ABS construction make it a practical choice for control, protection, and general-purpose enclosure applications.

Is the BC-AGQ-304018G suitable for outdoor or harsh environments?

Yes, this model is built for demanding environments where dust and water resistance matter. The product description highlights roof protection features to help reduce water and dust ingress during outdoor use, and the enclosure is rated IP67 for environmental protection.

What are the size and material details for this Boxco enclosure?

The BC-AGQ-304018G measures 11.81 x 15.75 x 7.09 inches, which corresponds to 300 x 400 x 180 mm. It is made from ABS and uses a grey cover in a hinge-type enclosure format.

What temperature range can this enclosure handle?

This model is specified for use from -40 degrees C to 70 degrees C. That range supports use in both cold and warm operating environments, provided the rest of the application is designed within those limits.

How does the Q-Series differ from a basic plastic enclosure?

The Q-Series is positioned as Boxco's economic hinge series, but it still adds practical features beyond a basic box. For this model, those include a hinge-type cover, plastic anti-corrosion latch, pre-molded mounting screw nuts, roof protection, and an included mounting plate.

Does this enclosure support internal mounting hardware or equipment plates?

Yes, the description specifically notes pre-molded mounting screw nuts for attaching items such as DIN rail or other equipment, and this model also includes a mounting plate. That combination makes it well suited when internal component organization is needed inside the enclosure.
