Boxco

Boxco Q-Series 400x500x200mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Hinge Type with Plate

EnclosureABSGrey Cover400x450x200mm
SKU BC-AGQ-405020G
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Overview

BC-AGQ-405020G is a 400×500×200 mm ABS enclosure with a grey cover from the Boxco Q Series.

Features

  • BOXCO electrical juntion box include plastic latch and plastic hinge.
  • Our IP66/IP67 waterproof control box is easy to removable cover and body
  • AGQ series is included G plate.**Dimensions and specifications are subject to change without notice.

Specifications

BC-AGQ-405020GSpecifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
400×500×200 mm (15.75×19.69×7.87 in)
Mounting plate dimension M1 × M2
350 × 450 mm

Material

Material
ABS
Cover
Grey
Mounting plates
4050 G (Plastic, G type), 4050 SQ (Steel, SQ type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +70℃
Flammability rating (UL 94)
94-HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

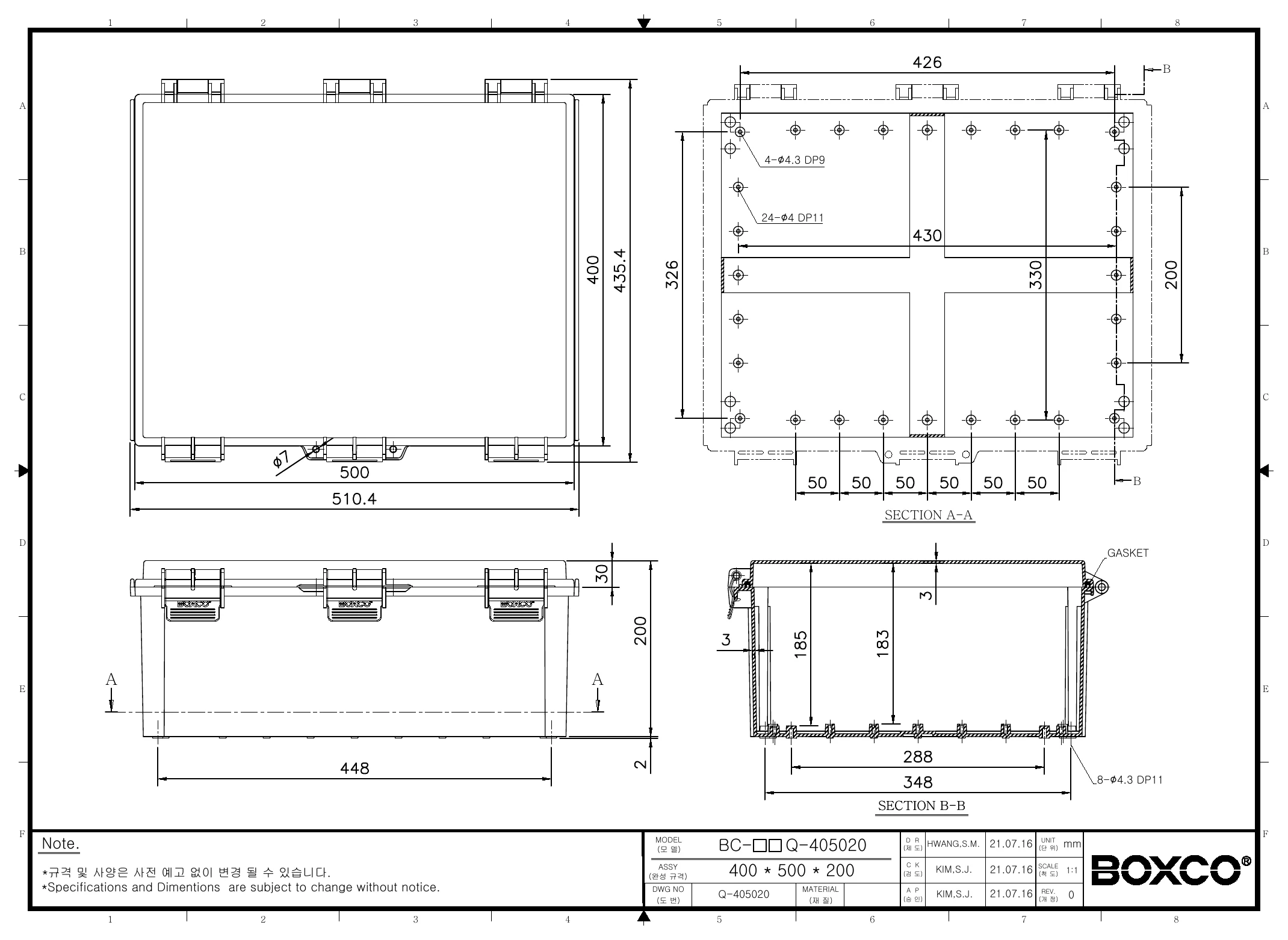

Technical drawings

BC-AGQ-405020G Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What is the Boxco Q-Series BC-AGQ-405020G designed for?

The BC-AGQ-405020G is a plastic enclosure box for protecting electrical and industrial components from dust, moisture, and external impact. Its hinge-type design and included mounting plate make it a practical choice for control, automation, and general equipment enclosure applications.

What are the main specifications of this enclosure?

This model measures 15.75 x 17.72 x 7.87 inches (400 x 500 x 200 mm). It is made of ABS, has a grey cover, carries IP67 and IK08 ratings, and includes a plate in the hinge-type enclosure design.

Is this enclosure suitable for outdoor or harsh environments?

This model is built for demanding environments with IP67 protection against dust and water ingress and IK08 impact resistance. The Q-Series design also includes roof protection features that help reduce water and dust penetration during outdoor use.

What temperature range can this enclosure handle?

The BC-AGQ-405020G is rated for operation from -40 °C to 70 °C. That range makes it suitable for many industrial and commercial environments where temperature exposure is a factor.

Does this model include a mounting plate?

Yes, this enclosure comes with a mounting plate free of charge. The product description also states that the plate has pre-drilled holes, which can help reduce preparation time for panel-building applications.

How does the Q-Series differ from other enclosure options?

The Boxco Q-Series is positioned as an economical hinge series while still offering strong impact resistance, waterproof and dust-proof performance, and anti-corrosion latch components. For buyers comparing enclosure lines, this model stands out by combining lower-cost positioning with IP67 and IK08 protection.
