Boxco

Boxco Q-Series 200x300x180mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Hinge Type with Plate

EnclosureABSGrey Cover200x300x180mm
SKU BC-AGQ-203018G
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-AGQ-203018G is a 200×300×180 mm ABS enclosure with a grey cover from the Boxco Q Series.

Features

  • BOXCO electrical juntion box include plastic latch and plastic hinge.
  • Our IP66/IP67 waterproof control box is easy to removable cover and body
  • AGQ series is included G plate.**Dimensions and specifications are subject to change without notice.

Specifications

BC-AGQ-203018GSpecifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
200×300×180 mm (7.87×11.81×7.09 in)
Mounting plate dimension M1 × M2
160 × 260 mm

Material

Material
ABS
Cover
Grey
Mounting plates
2030 G (Plastic, G type), 2030 SQ (Steel, SQ type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +70℃
Flammability rating (UL 94)
94-HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

Technical drawings

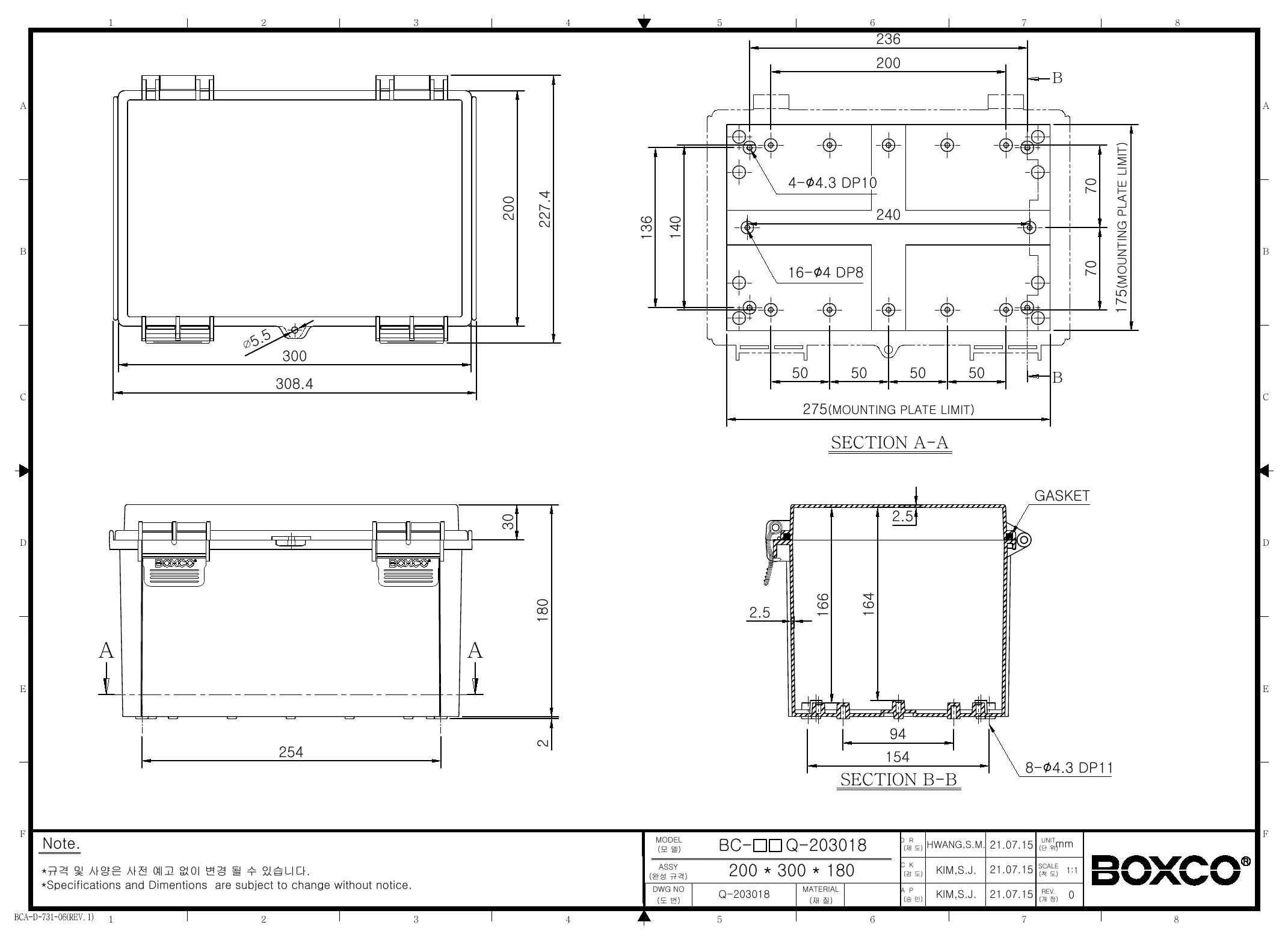

BC-AGQ-203018G Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What applications is the Boxco Q-Series BC-AGQ-203018G best suited for?

This enclosure is suited for protecting electrical and control components in indoor or outdoor industrial environments where dust and water resistance matter. Its IP67 rating, IK08 impact resistance, and hinged design make it a practical choice for equipment housings, control boxes, and general-purpose protection enclosures.

What are the main specifications of the BC-AGQ-203018G enclosure?

This model measures 7.87 x 11.81 x 7.09 inches, which corresponds to 200 x 300 x 180 mm. It is made from ABS, has a grey cover, uses a hinge-type design, includes a plate, and is rated IP67 and IK08.

Is this enclosure suitable for outdoor or washdown-prone environments?

It is designed for demanding environments where protection from water and dust is important, as indicated by its IP67 rating. The Q-Series description also highlights roof protection features and a precision-injected gasket to improve waterproof and dust-proof performance.

How durable is the Boxco Q-Series BC-AGQ-203018G?

This enclosure is built from high impact resistant ABS and carries an IK08 impact rating. The product description also emphasizes strong resistance to external impact and durability during processing, making it suitable for industrial use.

Does the BC-AGQ-203018G include a mounting plate?

Yes, this model is a hinge-type enclosure with plate. The product description states that the mounting plate is included free of charge and comes with pre-drilled holes to help save time and cost.

What temperature range can this enclosure handle?

The BC-AGQ-203018G is specified for use from -40 C to 70 C. That range supports use in both cold and moderately hot operating environments, depending on the broader system requirements.

What makes this Q-Series enclosure different from a standard non-hinged box?

This model uses a hinge-type cover, which is useful when repeated access to the enclosure interior is needed. It also includes a plate and features a plastic draw latch, combining accessibility with corrosion resistance and sealed protection.
