Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Boxco

Boxco Q-Series 200x300x140mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Hinge Type with Plate

EnclosureABSGrey Cover200x300x140mm
SKU BC-AGQ-203014G
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-AGQ-203014G is a 200×300×140 mm ABS enclosure with a grey cover from the Boxco Q Series.

Features

  • BOXCO electrical juntion box include plastic latch and plastic hinge.
  • Our IP66/IP67 waterproof control box is easy to removable cover and body
  • AGQ series is included G plate.**Dimensions and specifications are subject to change without notice.

Specifications

BC-AGQ-203014GSpecifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
200×300×140 mm (7.87×11.81×5.51 in)
Mounting plate dimension M1 × M2
160 × 260 mm

Material

Material
ABS
Cover
Grey
Mounting plates
2030 G (Plastic, G type), 2030 SQ (Steel, SQ type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +70℃
Flammability rating (UL 94)
94-HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

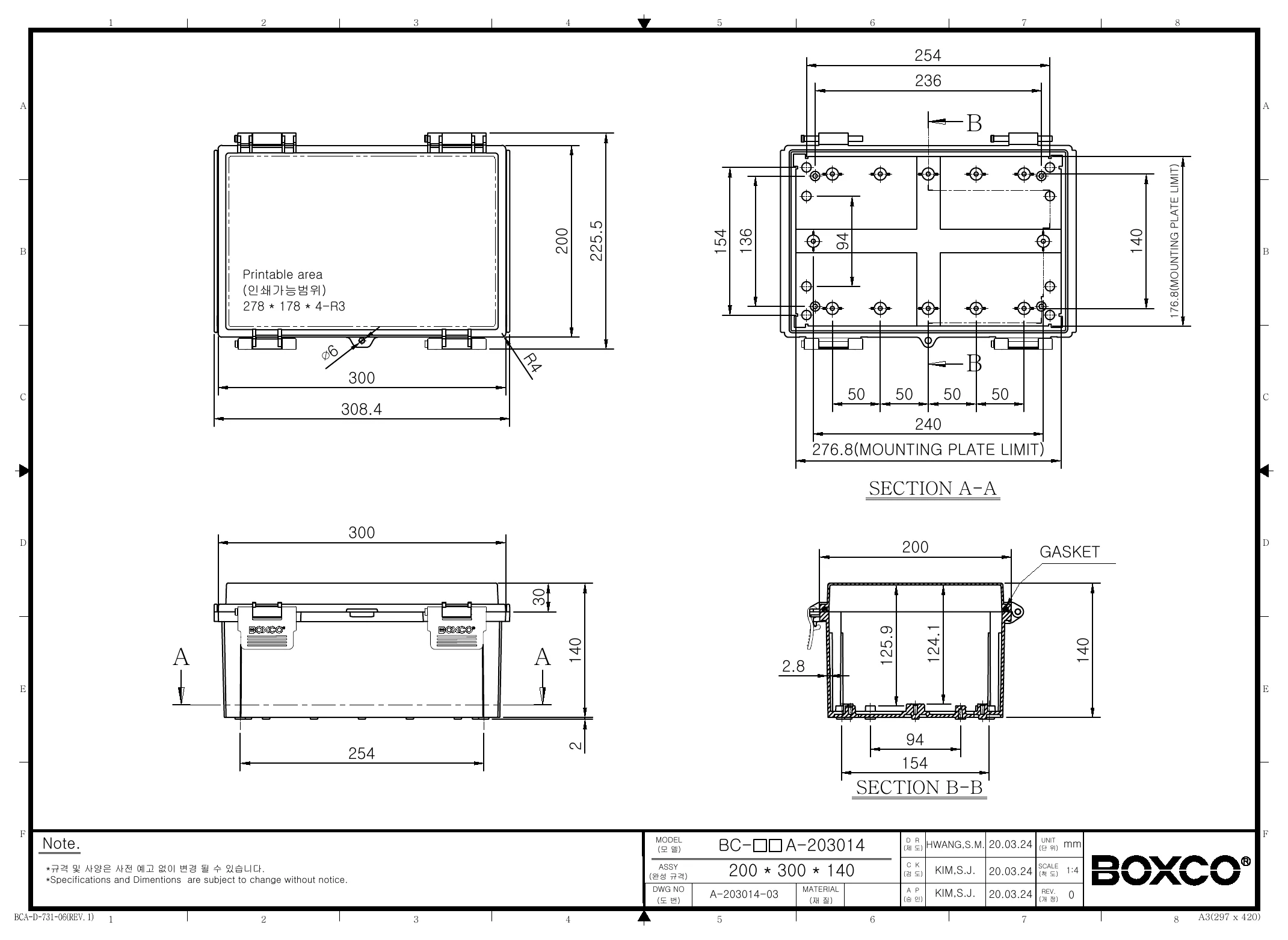

Technical drawings

BC-AGQ-203014G Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What are the key specifications of the Boxco Q-Series BC-AGQ-203014G enclosure?

This model is a hinge-type plastic enclosure made from ABS with a grey cover. It measures 7.87 x 11.81 x 5.51 inches (200 x 300 x 140 mm) and is rated IP67 for dust and water protection and IK08 for impact resistance. It also includes a mounting plate.

Is the BC-AGQ-203014G suitable for outdoor or dusty environments?

Yes, this enclosure is designed for demanding environments where protection from dust and water is important. Its IP67 rating and gasketed construction help protect enclosed components, and the roof protection design helps reduce water and dust ingress during cover operation.

What temperature range can this enclosure handle?

The BC-AGQ-203014G is specified for use from -40 °C to 70 °C. That range makes it suitable for many industrial and commercial environments where temperature swings are a concern.

Does this enclosure come with a mounting plate?

Yes, this model includes a mounting plate at no extra charge. The product description also notes that the plate comes with pre-drilled holes, which can help reduce panel preparation time.

What kinds of applications is this enclosure commonly used for?

This enclosure is intended for protecting electrical and control components from moisture, dust, and external impact. It is a practical choice for industrial, OEM, and general-purpose equipment enclosures where a durable non-metallic housing is needed.

How does the Q-Series differ from a basic plastic enclosure?

This Q-Series model stands out with its hinge-type design, included mounting plate, IP67 sealing, and IK08 impact rating. It is positioned as an economical series while still offering features such as anti-corrosion latch construction, pre-molded mounting screw nuts, and reinforced outdoor-oriented cover protection.
