Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Boxco

Boxco Q-Series 200x300x150mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Hinge Type with Plate

EnclosureABSGrey Cover200x300x150mm
SKU BC-AGQ-203015G
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Overview

BC-AGQ-203015G is a 200×300×150 mm ABS enclosure with a grey cover from the Boxco Q Series.

Features

  • BOXCO electrical juntion box include plastic latch and plastic hinge.
  • Our IP66/IP67 waterproof control box is easy to removable cover and body
  • AGQ series is included G plate.**Dimensions and specifications are subject to change without notice.

Specifications

BC-AGQ-203015GSpecifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
200×300×150 mm (7.87×11.81×5.91 in)
Mounting plate dimension M1 × M2
160 × 260 mm

Material

Material
ABS
Cover
Grey
Mounting plates
2030 G (Plastic, G type), 2030 SQ (Steel, SQ type)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +70℃
Flammability rating (UL 94)
94-HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

Technical drawings

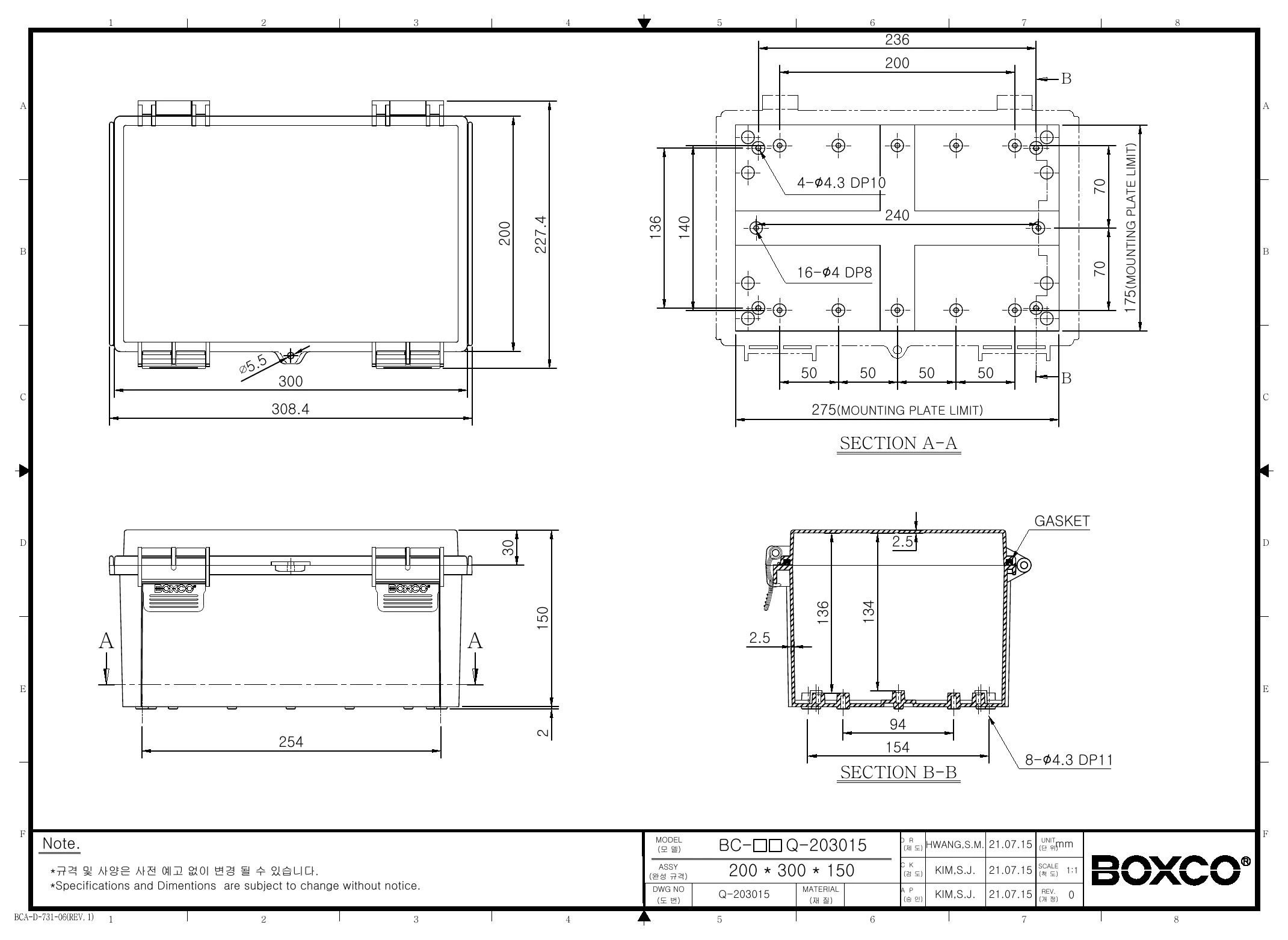

BC-AGQ-203015G Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What are the main specifications of the Boxco Q-Series BC-AGQ-203015G enclosure?

This model is a plastic enclosure made from ABS with a grey cover and a hinge-type design. It measures 7.87 x 11.81 x 5.91 inches (200 x 300 x 150 mm) and is rated IP67 for dust and water resistance and IK08 for impact resistance. It also includes a mounting plate.

Is the BC-AGQ-203015G suitable for outdoor or washdown environments?

This enclosure is designed for demanding environments where protection from dust and water is important. Its IP67 rating and roof-protection design help reduce water and dust ingress, making it a practical choice for outdoor and industrial settings. Final suitability depends on the specific exposure conditions in your application.

What applications is this enclosure commonly used for?

The BC-AGQ-203015G is commonly used to protect electrical and control components from moisture, dust, and external impact. It is well suited for OEM panels, industrial controls, utility equipment, and other commercial enclosure applications where a durable non-metallic housing is preferred. The included mounting plate also supports organized component layout inside the box.

What makes this Boxco Q-Series enclosure different from a basic non-hinged box?

This model uses a hinge-type cover, which makes repeated access more convenient than a fully removable lid. It also includes features highlighted for the Q-Series such as a plastic draw latch, pre-molded mounting screw nuts, roof protection, and a mounting plate attachment point. That combination helps balance accessibility, durability, and value.

What temperature range can the BC-AGQ-203015G handle?

This enclosure is specified for operation from -40 degrees C to 70 degrees C. That range supports use in many industrial and outdoor environments where equipment may face both low and elevated ambient temperatures. Buyers should still confirm overall system requirements against their full application conditions.

Does this enclosure come with internal mounting support?

Yes. This model includes a mounting plate, and the product description notes pre-molded mounting screw nuts for securing DIN rail or other equipment. That can reduce prep time compared with sourcing internal mounting hardware separately.
