Is the Nordlux Mahi IP65 1-Kit suitable for bathroom use?

Yes. This model is rated IP65, which makes it suitable for damp environments such as bathrooms. The product description specifically states it is safe for bathroom use.

How does the dimming work on this downlight?

The Mahi has built-in 3-step Moodmaker dimming that works from a regular wall switch. It can switch between 100% brightness at 621 lumens, 55% brightness at 345 lumens, and 35% brightness at 230 lumens.

What kind of light output does this downlight provide?

This model delivers up to 621 lumens with a warm white 3000K color temperature. It also has a 100-degree beam angle and a CRI of 80, giving broad, comfortable general lighting for indoor spaces.

Does this downlight include an LED light source?

Yes. The Nordlux Mahi comes with an integrated LED module, so the light source is included in the fitting. It is listed with an actual power consumption of 8.5W and a rated lifetime of 20,000 hours.

Can this model be used in insulated ceilings?

No. The specification states that it should not be mounted directly into insulation. That makes it important to confirm the ceiling application matches the product requirements before purchase.

What size cut-out does the Nordlux Mahi require?

The required built-in hole diameter for this downlight is 7.2 cm. The visible outer diameter is 8.5 cm, and the built-in spot height is 5.5 cm.

1 6

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Nordlux

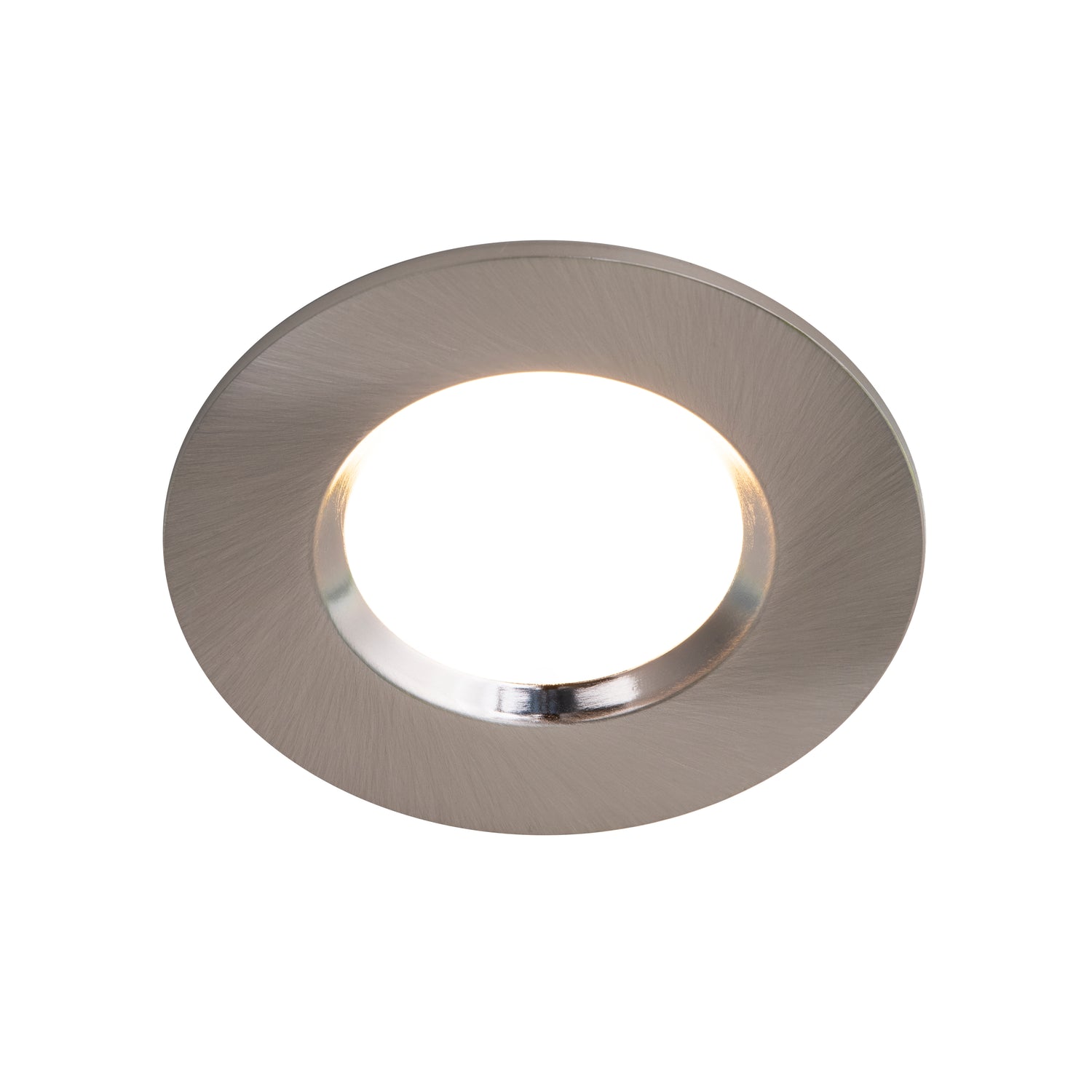

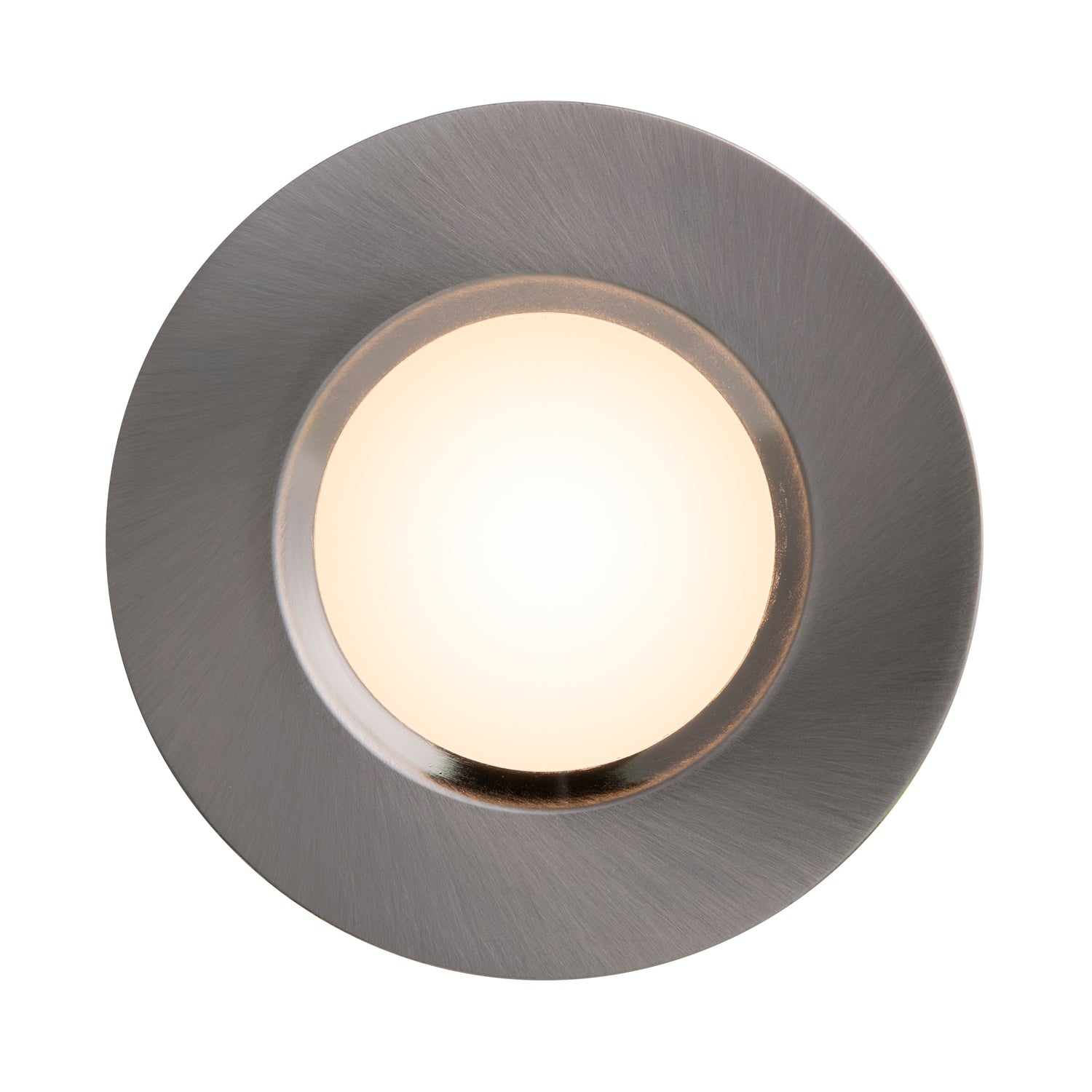

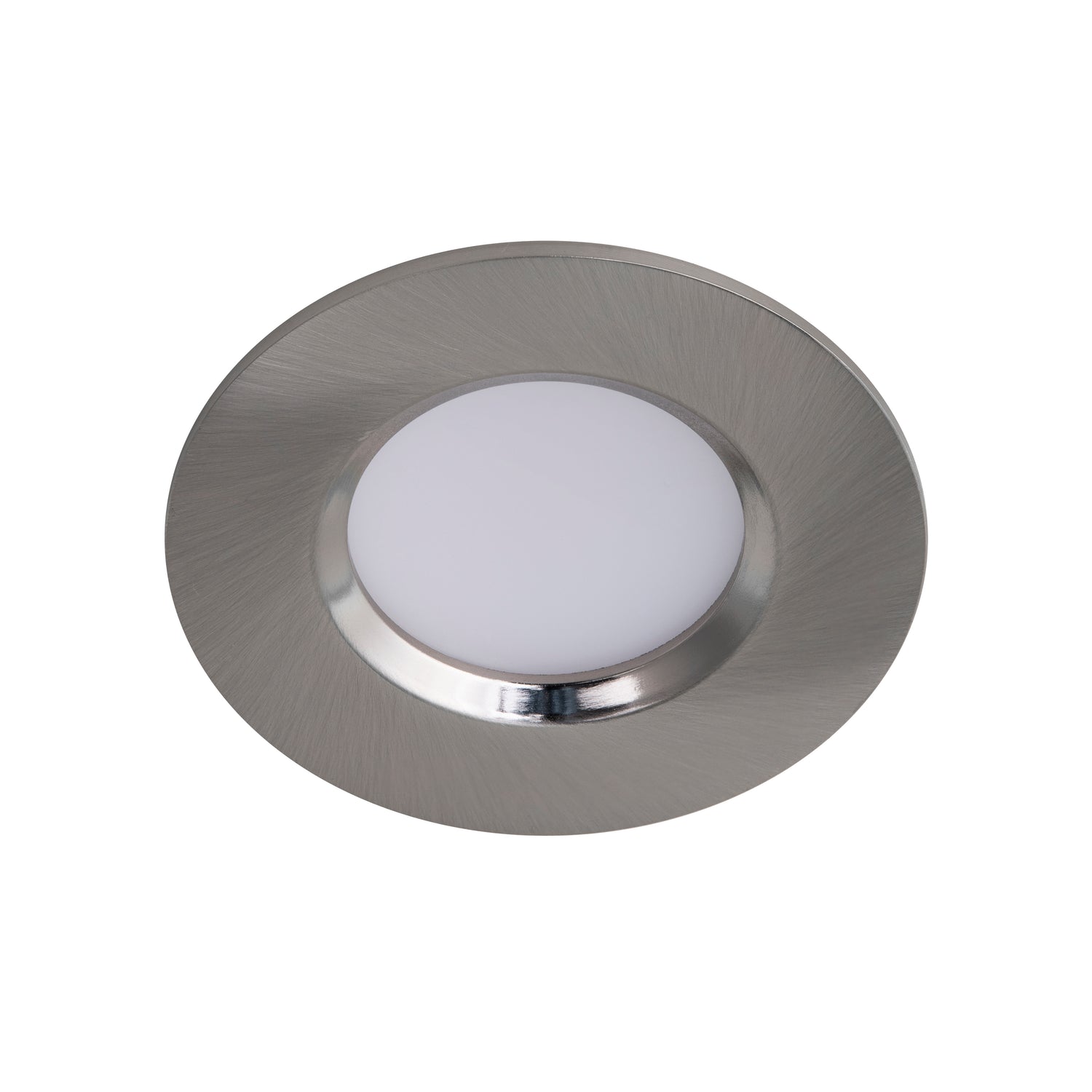

Nordlux Mahi IP65 1-Kit Built-in Dampable 8.5W Brushed Nickel

LED Module8.5W3000KBrushed Nickel

SKU:

ND-2015430155

Log in to see price Trade pricing & online ordering for account holders

Notify me when it's back in stock

Overall

3-step Moodmaker™ dimming by your regular wall switch
Inter-connectable
5-year LED guarantee

Product Info

Mahi is a dimmable and inter connectable downlight that is due to its high degree of protection, IP65, both safe for bathroom use and integrated with the newest 3-step Moodmaker™ technology. The light can smoothly be dimmed and operated from the standard wall switch which means that the perfect lighting is only a few clicks away.

The Mahi downlight is a screwless connection with EasyConnect that is also equipped with a memory and reset function that saves your preferred light setting. The Moodmaker™ function will dim the brightness from 100% (621lm) to 55% (345lm) or 35% (230lm) by only a few simple clicks on the switch.

Specification

Item Number

2015430155

EAN

5704924002779

TUN

2113378

Area

Indoor

Type

Downlight

Room

Bathroom

Bulb base

LED Module

Designer

Nordlux

IP degree

IP65

Class (Class 1, Class 2, Class 3)

Class 2 (Double isolated)

Dimmable?

Yes, has built-in dimmable light source with Moodmaker™ functionality

Voltage (V)

230

Actual Watt (W)

8.5

Material

Plastic

Secondary material

Metal

Color

Brushed Nickel

Color of the Glass

White

Length of the cable (cm)

13.0

Mount directly into insulation

Product net weight (kg)

0.159

Brightness of light (Lumen)

621.0

Color Temperature (K)

3000

Ra-value

Lifetime (h)

20000

Beam Angle (°)

100.0

Energy Class

Lightsource incl.

Incl.8,3WLED

Dimensions

Height (cm)

4.5

Required built in hole diameter (cm)

7.2

Built In Spot Height (cm)

5.5

Diameter (cm)

8.5

Length of the cable (cm)

13.0

Sales Box Height (cm)

13.0

Sales Box Width(cm)

6.5

Sales Box Depth (cm)

13.0

Sales Box Volume m³

0.0011
