Boxco

Boxco M-Series 130x130x35mm Plastic Enclosure, IP67, IK08, ABS, Transparent Cover, Screw Type

SKU BC-ATM-131303
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-ATM-131303 is a 130×130×35 mm ABS enclosure with a transparent cover from the Boxco M Series.

Features

  • Considering attachment of membrane keypad, this M series waterproof plastic enclosure is designed to make center surface of the cover slightly lower.
  • Our IP67 weatherproof enclosure's screw thread of the base for connecting cover is molded so that it has sufficient strength and not broken when tightening screw.
  • Our M series have recessed cover and base is high so that it has beautiful appearance.

Specifications

BC-ATM-131303Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
130×130×35 mm (5.12×5.12×1.38 in)
Mounting plate dimension M1 × M2
98 × 98 mm

Material

Material
ABS
Cover
Transparent
Mounting plates
1212 G (Plastic, G type), 1313 M (Steel)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +70℃
Flammability rating (UL 94)
94-HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

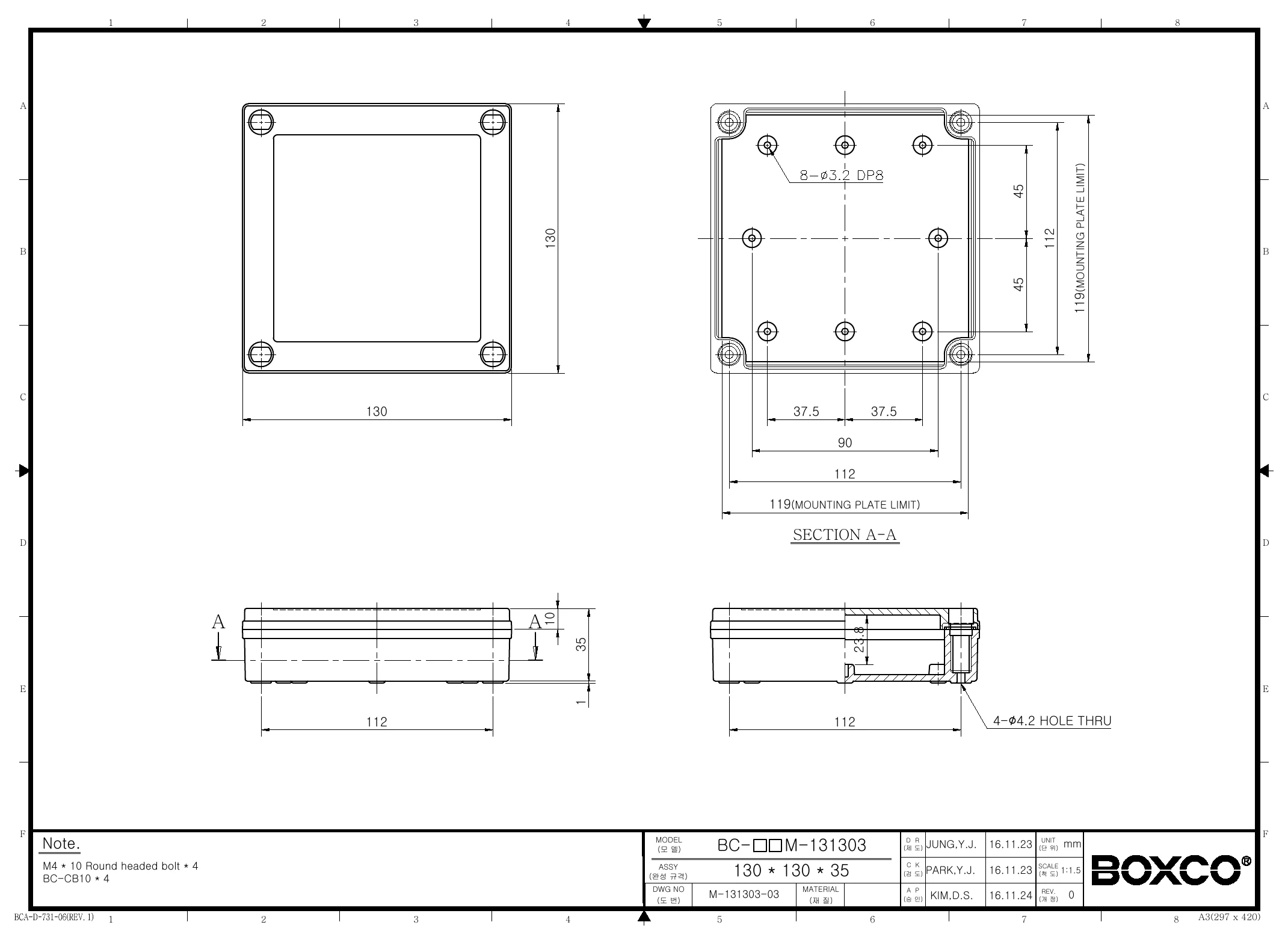

Technical drawings

BC-ATM-131303 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What applications is the Boxco M-Series BC-ATM-131303 plastic enclosure suited for?

This enclosure is suited for protecting electronic components in industrial and commercial applications where a compact sealed housing is needed. Its recessed transparent cover is also useful for designs that use a membrane keypad or require visual access without opening the box.

Is the BC-ATM-131303 suitable for outdoor use?

Yes, this model is designed with an ultraviolet stabilizer to support outdoor usage. Boxco notes that only minor color change should be noticed even after long-term use outdoors.

What protection ratings does this enclosure have?

The BC-ATM-131303 is rated IP67 and IK08. That means it is built for strong environmental sealing and impact resistance for demanding enclosure applications.

What material is this enclosure made from, and why does that matter?

This model is made from ABS plastic and includes anti-static material to help protect sensitive electronic instruments from static electricity. The housing is also described as high impact resistant, which helps it withstand external impact and reduce breakage during processing.

What are the dimensions and weight of the BC-ATM-131303 enclosure?

This enclosure measures 5.12 x 5.12 x 1.38 inches, which corresponds to 130 x 130 x 35 mm. The listed product weight is 0.4500 kg.

What temperature range can this Boxco enclosure handle?

The specified operating temperature range for this model is -40 degrees C to 70 degrees C. That makes it suitable for use across a wide range of indoor and outdoor environmental conditions.

How does this model differ from an enclosure with an opaque cover?

This version includes a transparent cover, which allows visual inspection of internal indicators or labels without opening the enclosure. It also uses a screw-type recessed cover design, which helps distinguish it from other enclosure styles.
