Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Boxco

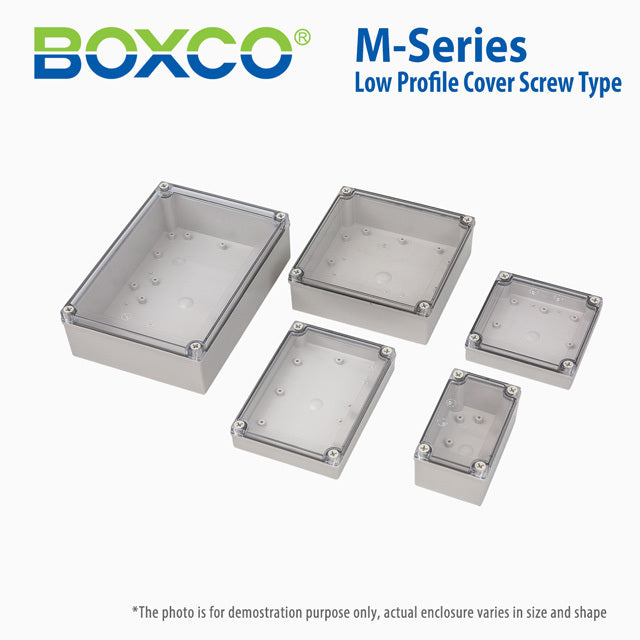

Boxco M-Series 80x130x100mm Plastic Enclosure, IP67, IK08, PC, Transparent Cover, Screw Type

SKU BC-CTM-081310
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-CTM-081310 is a 80×130×100 mm Polycarbonate (PC) enclosure with a transparent cover from the Boxco M Series.

Features

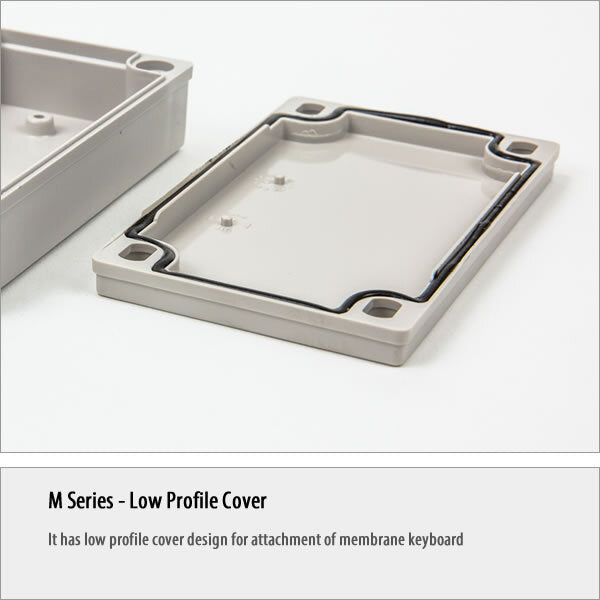

  • Considering attachment of membrane keypad, this M series waterproof plastic enclosure is designed to make center surface of the cover slightly lower.
  • Our IP67 weatherproof enclosure's screw thread of the base for connecting cover is molded so that it has sufficient strength and not broken when tightening screw.
  • Our M series have recessed cover and base is high so that it has beautiful appearance.

Specifications

BC-CTM-081310Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
80×130×100 mm (3.15×5.12×3.94 in)
Mounting plate dimension M1 × M2
48 × 98 mm

Material

Material
Polycarbonate (PC)
Cover
Transparent
Mounting plates
0813 G (Plastic, G type), 0813 P (Plastic, P type), 0813 M (Steel)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +110℃
Flammability rating (UL 94)
94-V-0, 5VA, HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

Technical drawings

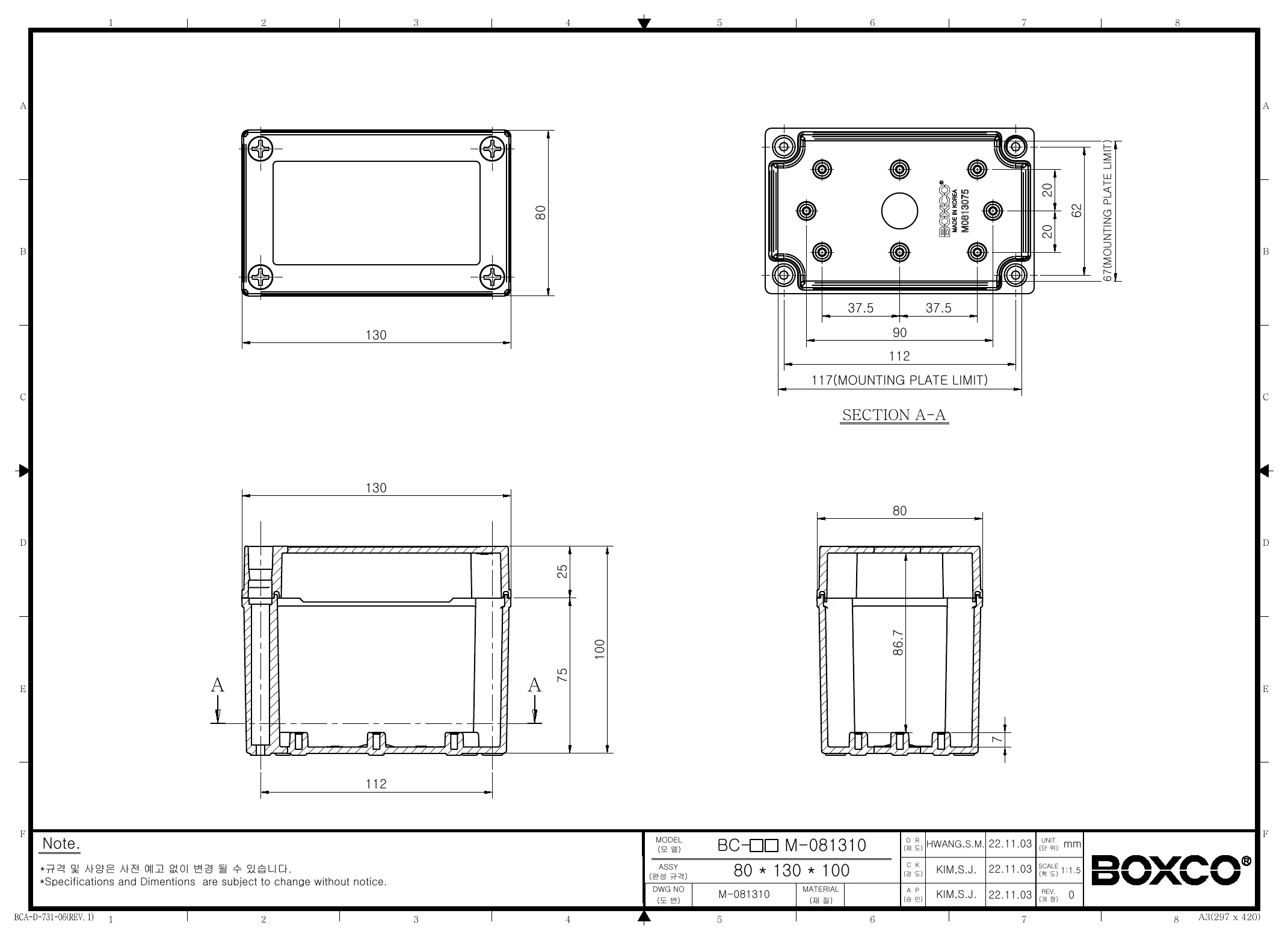

BC-CTM-081310 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What applications is this Boxco M-Series enclosure best suited for?

This enclosure is suited for protecting electronic components in industrial and outdoor environments where dust, water resistance, and impact durability matter. Its recessed transparent cover also makes it a practical choice for applications that use a membrane keypad or require visual inspection without opening the enclosure.

Is this enclosure suitable for outdoor use?

Yes. Boxco states that this M-Series enclosure includes an ultraviolet stabilizer to help protect it in outdoor use and reduce visible color change over time. Its IP67 rating also supports use in wet or dusty environments when enclosure protection is important.

What are the key specifications of this model?

This model measures 3.15 x 5.12 x 3.94 inches (80 x 130 x 100 mm) and weighs 0.4500 kg. It is a polycarbonate enclosure with a transparent cover, screw-type closure, IP67 ingress protection, IK08 impact rating, and an operating temperature range of -40 degrees C to 110 degrees C.

What does the transparent cover add compared with a solid-cover enclosure?

The transparent cover allows internal indicators, displays, or component status to be viewed without opening the enclosure. For buyers comparing cover styles, this can be useful when visibility is needed while still keeping the enclosure closed and protected.

Is this enclosure a good choice for sensitive electronic equipment?

Yes. The product description states that anti-static material is used to help protect sensitive electronic instruments from static electricity. It is also made from high impact resistant material for added protection against external impact and breakage during processing.

How durable is this enclosure in demanding environments?

This model is designed for demanding use with both IP67 ingress protection and an IK08 impact rating. According to the product description, it uses high impact resistant material and is intended to resist external impact while maintaining durability in industrial or outdoor settings.
