Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Boxco

Boxco M-Series 150x180x60mm Plastic Enclosure, IP67, IK08, PC, Transparent Cover, Screw Type

SKU BC-CTM-151806
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-CTM-151806 is a 150×180×60 mm Polycarbonate (PC) enclosure with a transparent cover from the Boxco M Series.

Features

  • Considering attachment of membrane keypad, this M series waterproof plastic enclosure is designed to make center surface of the cover slightly lower.
  • Our IP67 weatherproof enclosure's screw thread of the base for connecting cover is molded so that it has sufficient strength and not broken when tightening screw.
  • Our M series have recessed cover and base is high so that it has beautiful appearance.

Specifications

BC-CTM-151806Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
150×180×60 mm (5.91×7.09×2.36 in)
Mounting plate dimension M1 × M2
120 × 148 mm

Material

Material
Polycarbonate (PC)
Cover
Transparent
Mounting plates
1417 G (Plastic, G type), 1518 M (Steel)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +110℃
Flammability rating (UL 94)
94-V-0, 5VA, HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

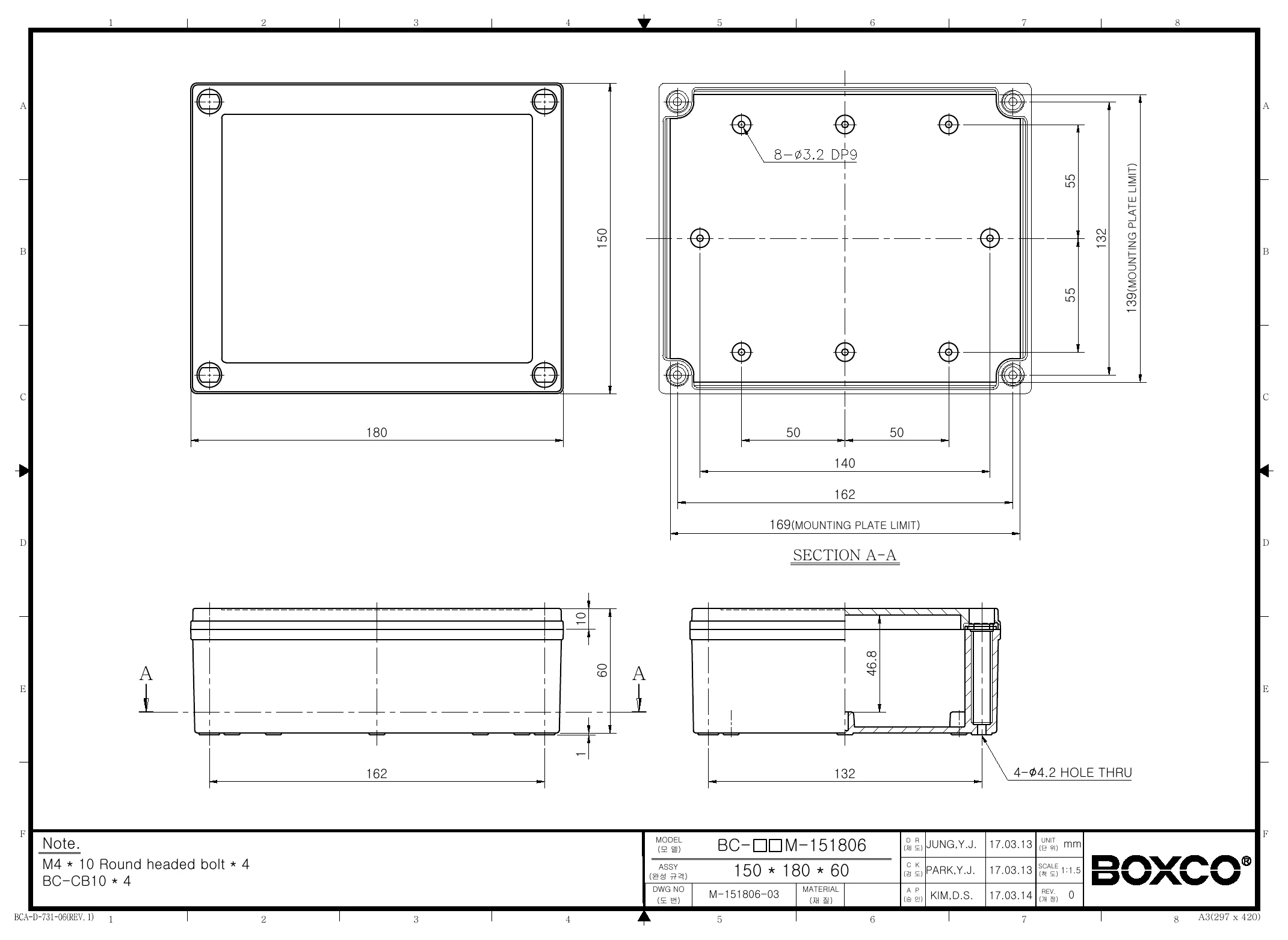

Technical drawings

BC-CTM-151806 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What is this Boxco M-Series enclosure typically used for?

This enclosure is designed for protecting electronic components and instruments in industrial or commercial applications. Its recessed transparent cover also makes it suitable for use with membrane keypads or situations where internal components need to remain visible.

Is this enclosure suitable for outdoor environments?

Yes, this model is intended for outdoor use. The material includes an ultraviolet stabilizer to help reduce color change over time, and the enclosure is rated IP67 for protection against dust and water ingress.

What are the size and material details for this enclosure?

This model measures 5.91 x 7.09 x 2.36 inches, which corresponds to 150 x 180 x 60 mm. It is made from polycarbonate (PC) and includes a transparent screw-type cover.

How durable is this plastic enclosure?

This enclosure is built from high impact resistant material and carries an IK08 impact rating. The housing is designed to resist external impact and help reduce breakage during machining processes such as hole or press processing.

What temperature range can this enclosure handle?

This Boxco M-Series enclosure is rated for use from -40°C to 110°C. That range makes it suitable for demanding environments where both low and high temperatures may be present.

Does this enclosure help protect sensitive electronic equipment?

Yes, anti-static material is used in this model to help protect sensitive electronic instruments from static electricity. That makes it a practical choice for applications where electrostatic protection is an important consideration.
