Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Boxco

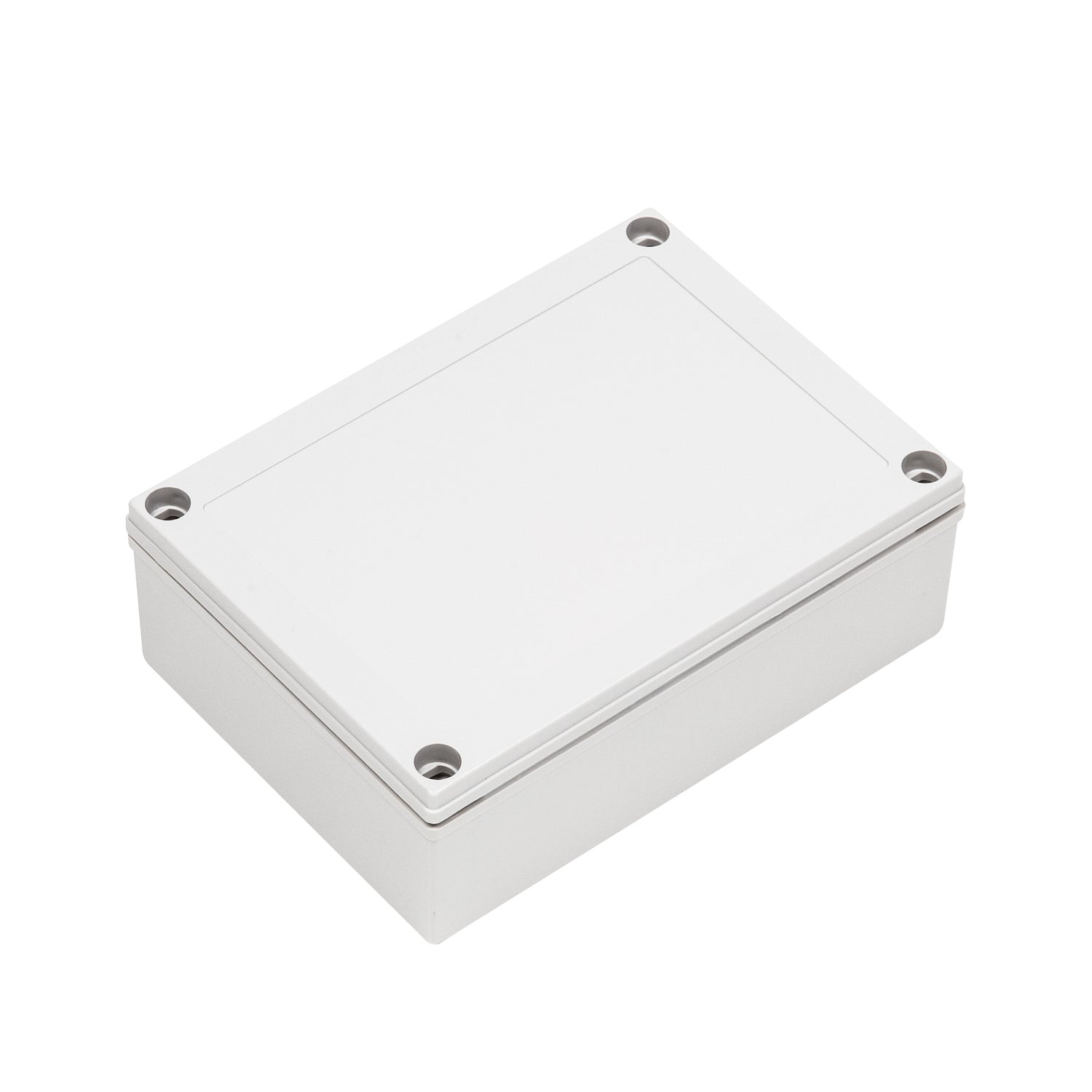

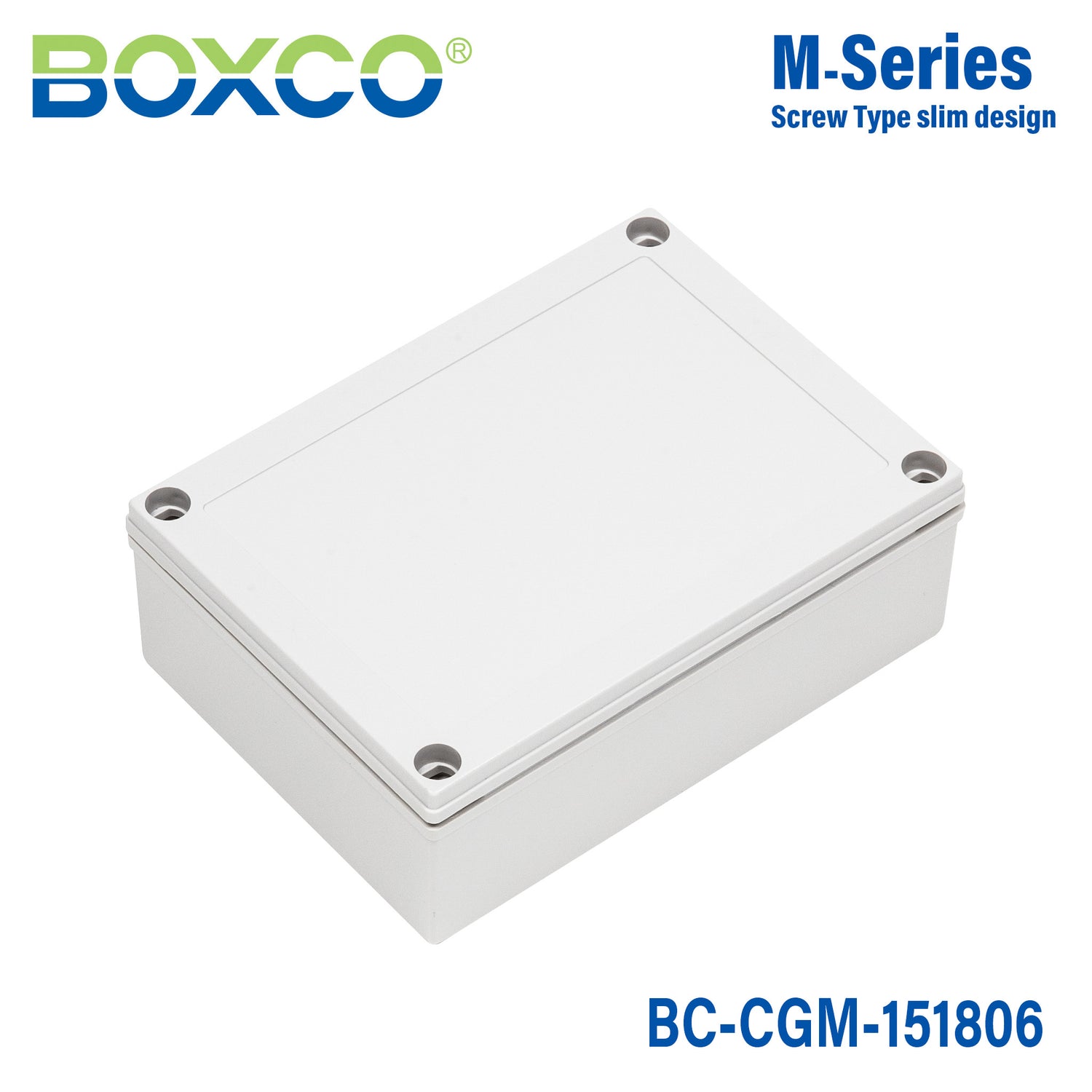

Boxco M-Series 150x180x60mm Plastic Enclosure, IP67, IK08, PC, Grey Cover, Screw Type

SKU BC-CGM-151806
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-CGM-151806 is a 150×180×60 mm Polycarbonate (PC) enclosure with a grey cover from the Boxco M Series.

Features

  • Considering attachment of membrane keypad, this M series waterproof plastic enclosure is designed to make center surface of the cover slightly lower.
  • Our IP67 weatherproof enclosure's screw thread of the base for connecting cover is molded so that it has sufficient strength and not broken when tightening screw.
  • Our M series have recessed cover and base is high so that it has beautiful appearance.

Specifications

BC-CGM-151806Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
150×180×60 mm (5.91×7.09×2.36 in)
Mounting plate dimension M1 × M2
120 × 148 mm

Material

Material
Polycarbonate (PC)
Cover
Grey
Mounting plates
1417 G (Plastic, G type), 1518 M (Steel)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +110℃
Flammability rating (UL 94)
94-V-0, 5VA, HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

Technical drawings

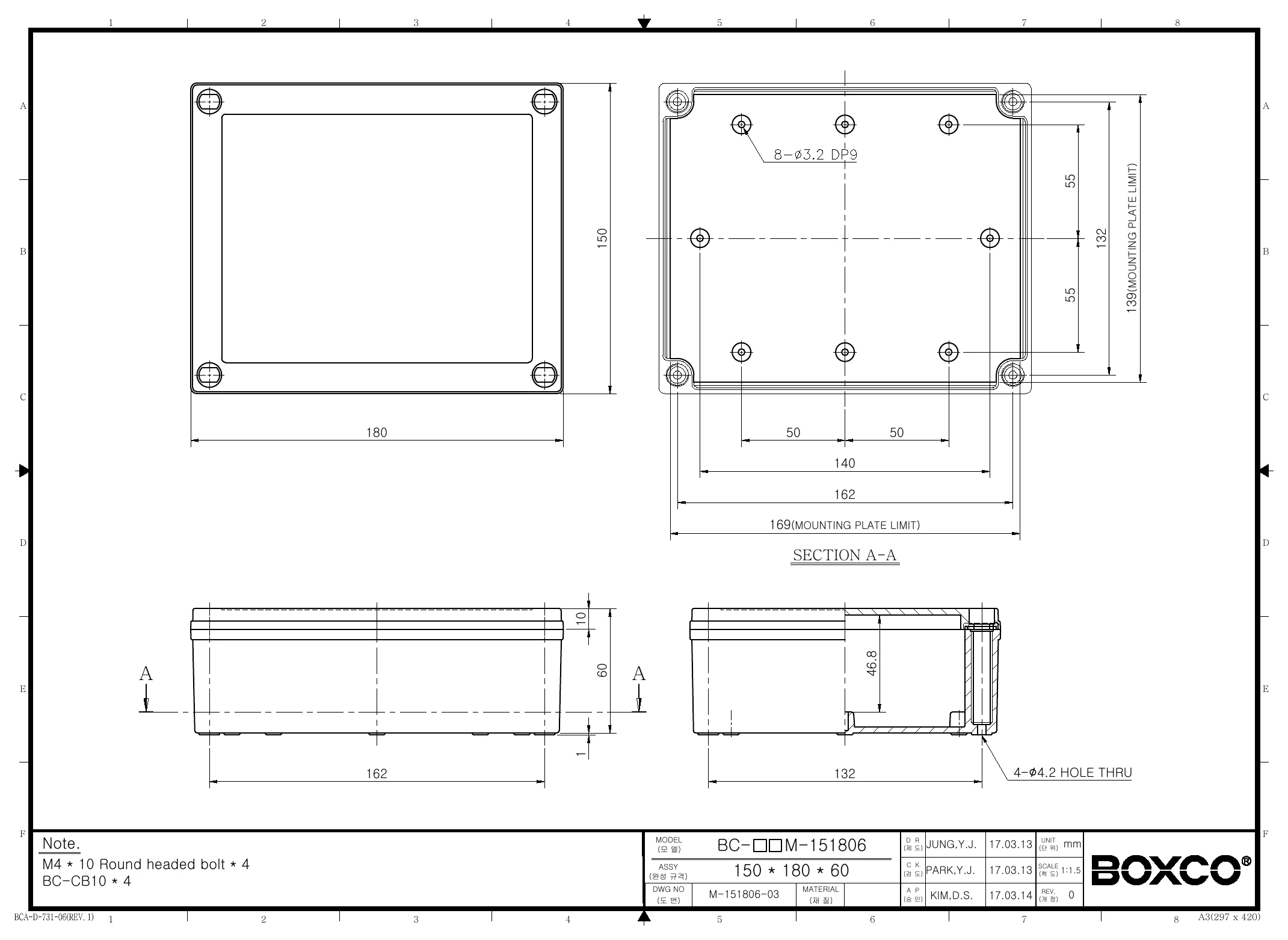

BC-CGM-151806 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What applications is the Boxco M-Series BC-CGM-151806 enclosure suited for?

This model is intended for protecting electronic equipment in industrial and commercial environments where a durable plastic enclosure is needed. Its recessed screw-type cover is also noted as suitable for mounting a membrane keypad.

Is this enclosure suitable for outdoor or harsh environments?

Yes. The enclosure includes an ultraviolet stabilizer to support outdoor use and reduce visible color change over time. It is also rated IP67 for dust-tight and water-resistant protection and IK08 for impact resistance.

What are the main material and construction features of this enclosure?

The BC-CGM-151806 is made from polycarbonate (PC) and uses a grey screw-type cover. The product description also states that anti-static material is used to help protect sensitive electronic instruments from static electricity.

What size is this Boxco M-Series enclosure?

This enclosure measures 5.91 x 7.09 x 2.36 inches, which corresponds to 150 x 180 x 60 mm. That size can be useful when evaluating internal space and overall panel or equipment footprint.

What temperature range can this enclosure handle?

The listed operating temperature range is -40 C to 110 C. That makes it appropriate for environments with both low and high temperature exposure within that stated range.

How does this model compare with a general-purpose plastic enclosure?

This model stands out by combining IP67 and IK08 ratings with UV-stabilized, anti-static polycarbonate construction. It also has a recessed screw-type cover specifically described for membrane keypad mounting, which is a more specialized feature than many basic enclosures offer.

What other key specifications should buyers know for this model?

The product weight is 0.9100 kg, and the listed warranty period is 1 year. The model name also identifies it as a Boxco M-Series plastic enclosure with a grey cover and screw-type closure.
