Boxco

Boxco M-Series 80x130x125mm Plastic Enclosure, IP67, IK08, PC, Transparent Cover, Screw Type

SKU BC-CTM-081312
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

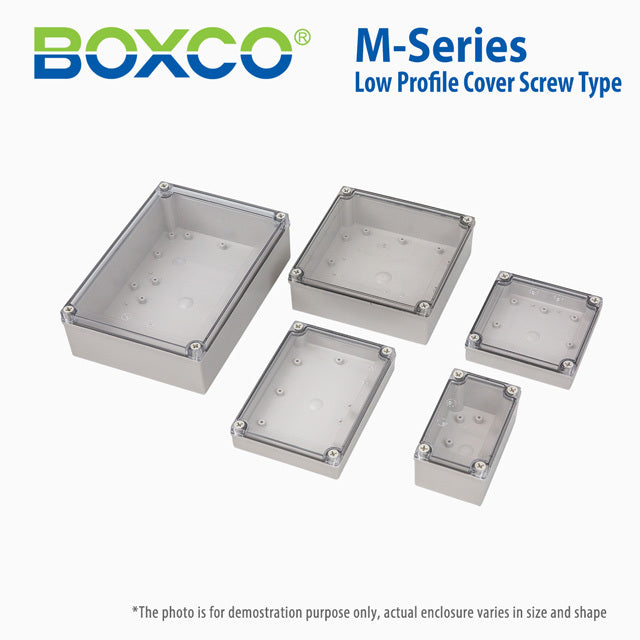

BC-CTM-081312 is a 80×130×125 mm Polycarbonate (PC) enclosure with a transparent cover from the Boxco M Series.

Features

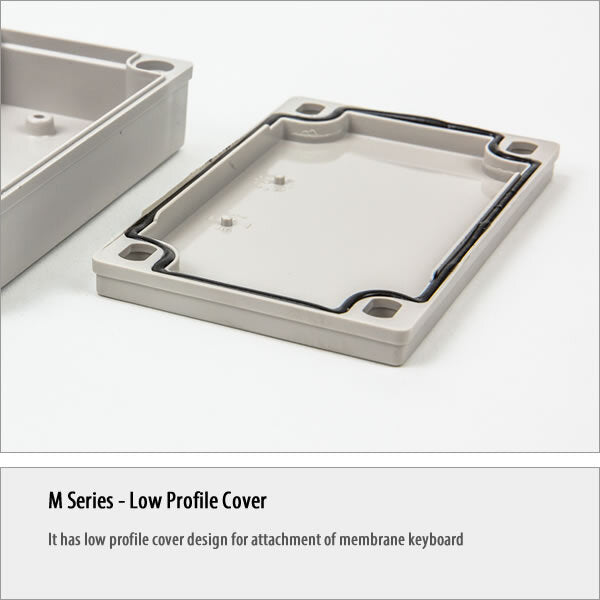

  • Considering attachment of membrane keypad, this M series waterproof plastic enclosure is designed to make center surface of the cover slightly lower.
  • Our IP67 weatherproof enclosure's screw thread of the base for connecting cover is molded so that it has sufficient strength and not broken when tightening screw.
  • Our M series have recessed cover and base is high so that it has beautiful appearance.

Specifications

BC-CTM-081312Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
80×130×125 mm (3.15×5.12×4.92 in)
Mounting plate dimension M1 × M2
48 × 98 mm

Material

Material
Polycarbonate (PC)
Cover
Transparent

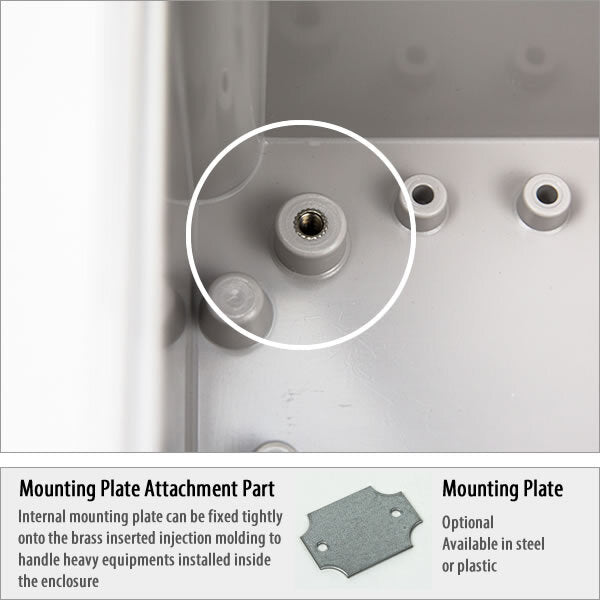

Mounting plates
0813 G (Plastic, G type), 0813 P (Plastic, P type), 0813 M (Steel)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +110℃
Flammability rating (UL 94)
94-V-0, 5VA, HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

Technical drawings

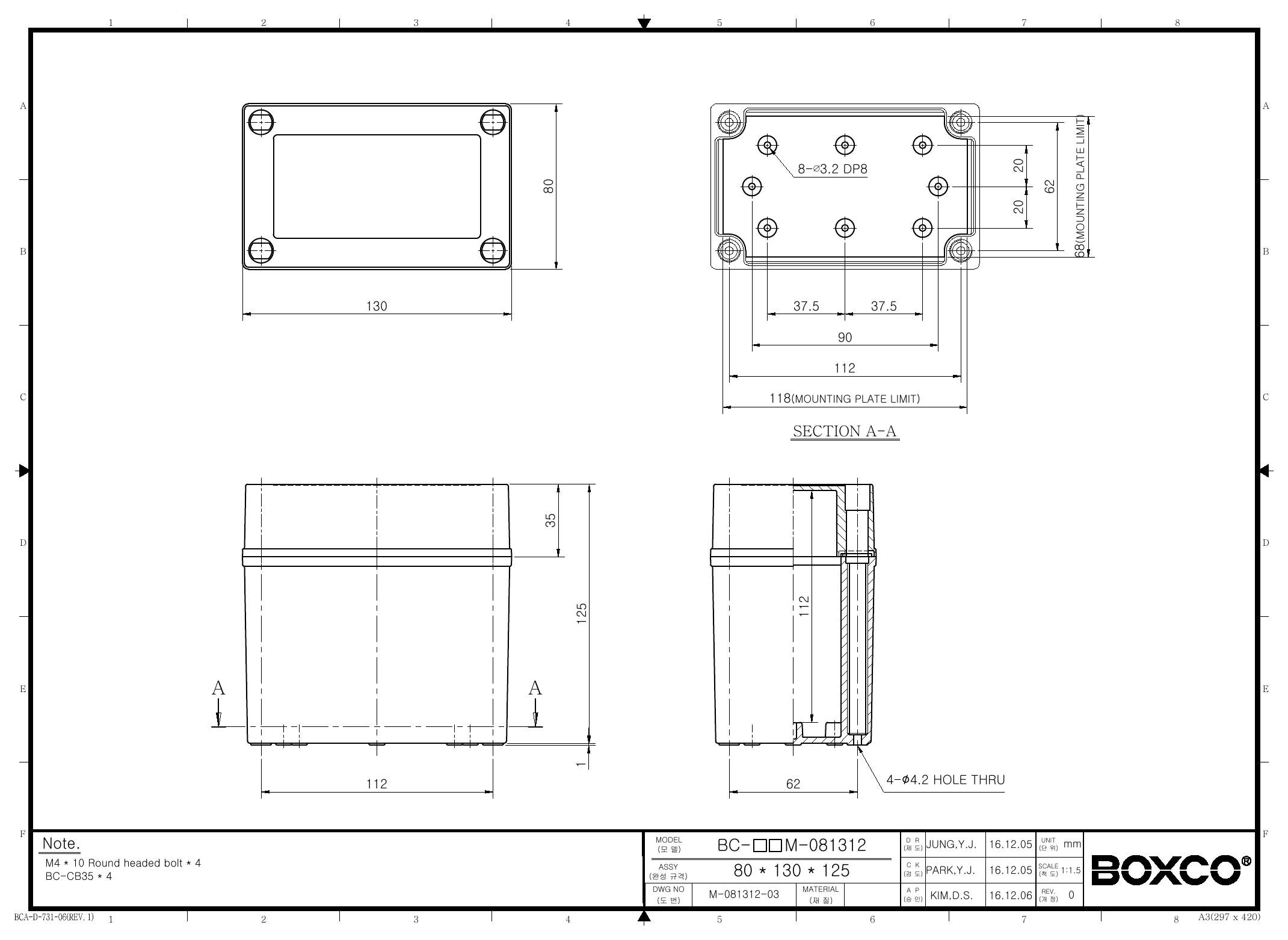

BC-CTM-081312 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What applications is the Boxco M-Series BC-CTM-081312 enclosure best suited for?

This enclosure is suited for protecting electronic equipment in industrial or commercial environments where durability and weather resistance matter. Its transparent cover and recessed screw-type design also make it a practical choice for applications that use a membrane keypad.

Is this plastic enclosure appropriate for outdoor use?

Yes. Boxco states that ultraviolet stabilizer is added for outdoor usage, helping limit color change over long periods of exposure. The IP67 rating also indicates strong protection against dust and water ingress.

What does the transparent cover add on this model?

The transparent cover allows visibility into the enclosure without changing the specified screw-type format of the product. On this model, the recessed cover design is also noted as being used for mounting a membrane keypad.

How durable is the BC-CTM-081312 enclosure?

This model is rated IP67 for ingress protection and IK08 for impact resistance. Boxco also describes the material as high impact resistant, which helps it stand up to external impact and reduce breakage during processing.

What temperature range can this enclosure handle?

The specified operating temperature range is -40 degrees C to 110 degrees C. That makes it suitable for environments with both low-temperature exposure and elevated heat conditions within that range.

What are the key size and weight specifications for this enclosure?

This enclosure measures 3.15 x 5.12 x 4.92 inches, which corresponds to 80 x 130 x 125 mm. The listed weight is 0.4500 kg.

How does this model differ from a standard opaque enclosure?

This version includes a transparent polycarbonate cover rather than an opaque cover, which can be useful when visual access is needed. It also combines that cover style with a screw-type recessed design intended for membrane keypad mounting.
