Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Boxco

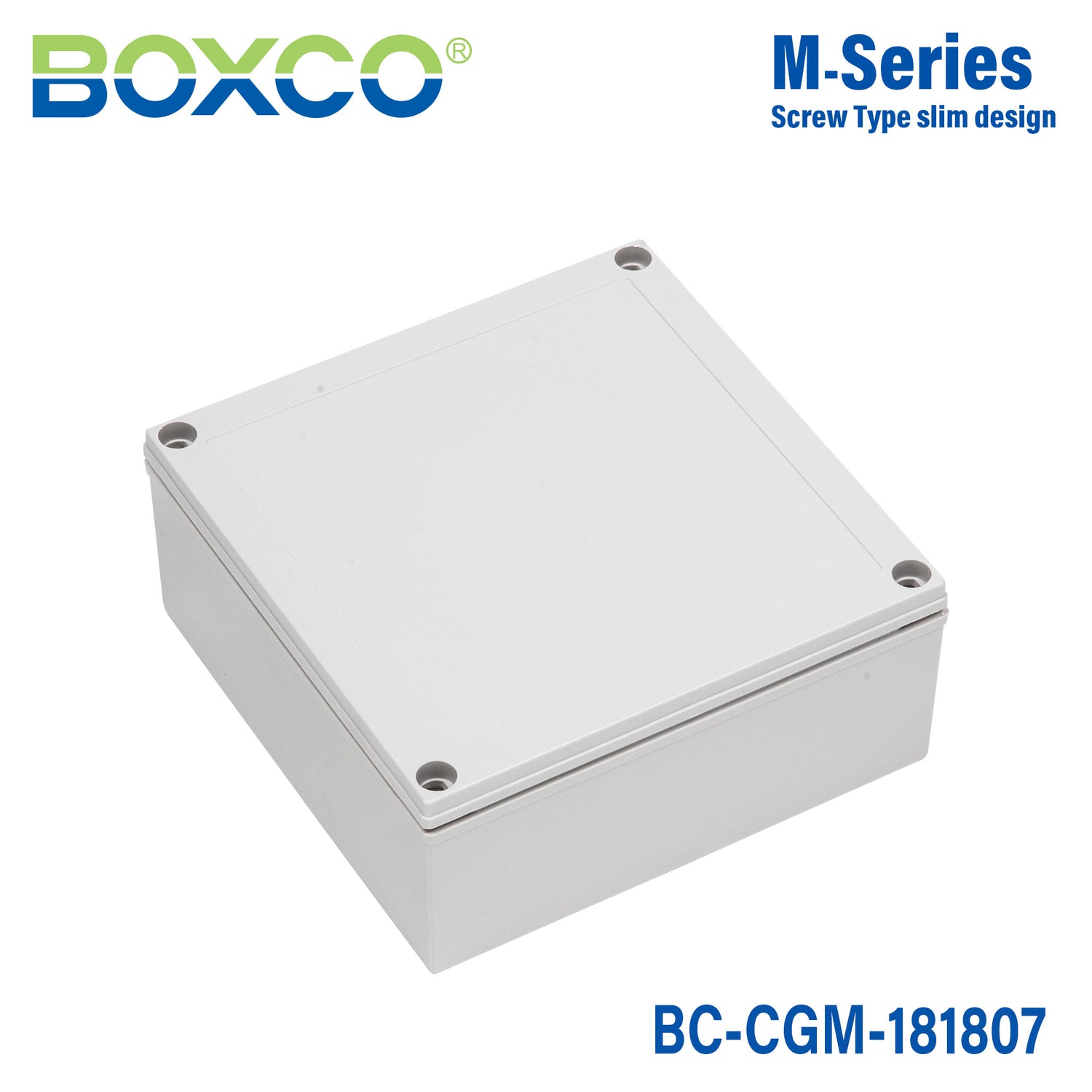

Boxco M-Series 180x180x75mm Plastic Enclosure, IP67, IK08, PC, Grey Cover, Screw Type

SKU BC-CGM-181807
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-CGM-181807 is a 180×180×75 mm Polycarbonate (PC) enclosure with a grey cover from the Boxco M Series.

Features

  • Considering attachment of membrane keypad, this M series waterproof plastic enclosure is designed to make center surface of the cover slightly lower.
  • Our IP67 weatherproof enclosure's screw thread of the base for connecting cover is molded so that it has sufficient strength and not broken when tightening screw.
  • Our M series have recessed cover and base is high so that it has beautiful appearance.

Specifications

BC-CGM-181807Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
180×180×75 mm (7.09×7.09×2.95 in)
Mounting plate dimension M1 × M2
148 × 148 mm

Material

Material
Polycarbonate (PC)
Cover
Grey
Mounting plates
1818 G (Plastic, G type), 1818 M (Steel)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +110℃
Flammability rating (UL 94)
94-V-0, 5VA, HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

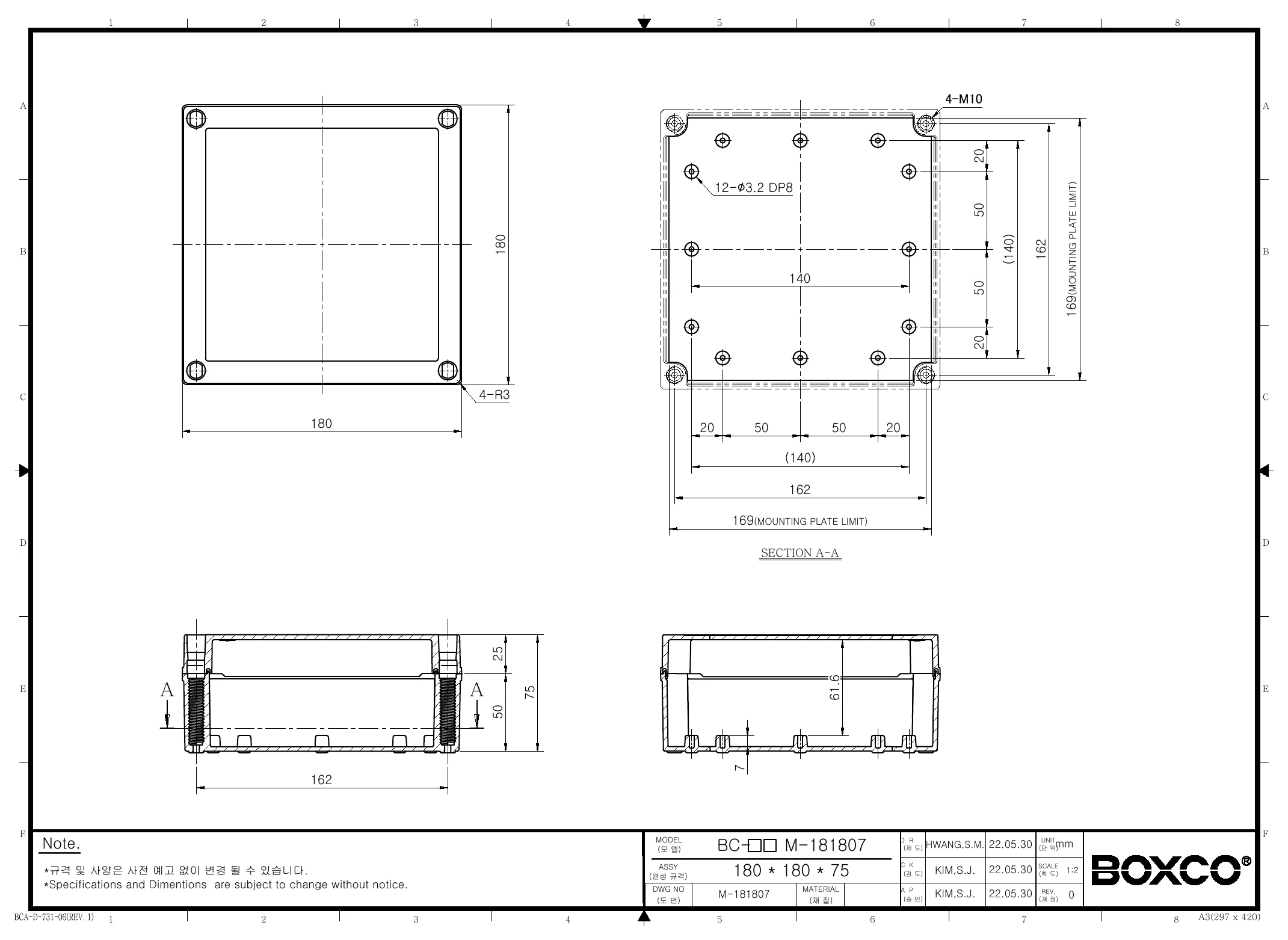

Technical drawings

BC-CGM-181807 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What applications is the Boxco M-Series BC-CGM-181807 enclosure commonly used for?

This enclosure is suited for protecting electronic components and sensitive instruments in industrial or commercial equipment housings. Its recessed screw-type cover is also noted for use with membrane keypad applications, making it a practical choice where a protected front surface is needed.

Is this plastic enclosure suitable for outdoor environments?

Yes, this model is described with an ultraviolet stabilizer to support outdoor use. The material is intended to resist noticeable color change over long-term exposure, while the IP67 rating indicates strong protection against dust and water ingress.

What protection ratings does this enclosure have?

The BC-CGM-181807 is rated IP67 and IK08. That means it is built for strong environmental sealing and impact resistance in demanding applications where enclosure durability matters.

What are the size and material details for this Boxco enclosure?

This model measures 7.09 x 7.09 x 2.95 inches, which is also listed as 180 x 180 x 75 mm. It is made from polycarbonate (PC) and comes with a grey cover in a screw-type enclosure design.

Can this enclosure help protect sensitive electronics from static and impact?

Yes, the product description states that anti-static material is used to help protect sensitive electronic instruments from static electricity. It is also described as high impact resistant material designed to withstand external impact and reduce breakage during machining processes.

What temperature range can this enclosure handle?

This model is listed for use from -40°C up to 110°C. That wide operating range makes it suitable for applications exposed to both low and high ambient temperatures.
