Boxco M-Series 180x255x125mm Plastic Enclosure, IP67, IK08, PC, Grey Cover, Screw Type

This enclosure is designed to protect electrical or electronic components in industrial and commercial applications where a sealed non-metallic housing is needed. Its recessed screw-type cover also makes it suitable for applications that use a membrane keypad on the cover surface.

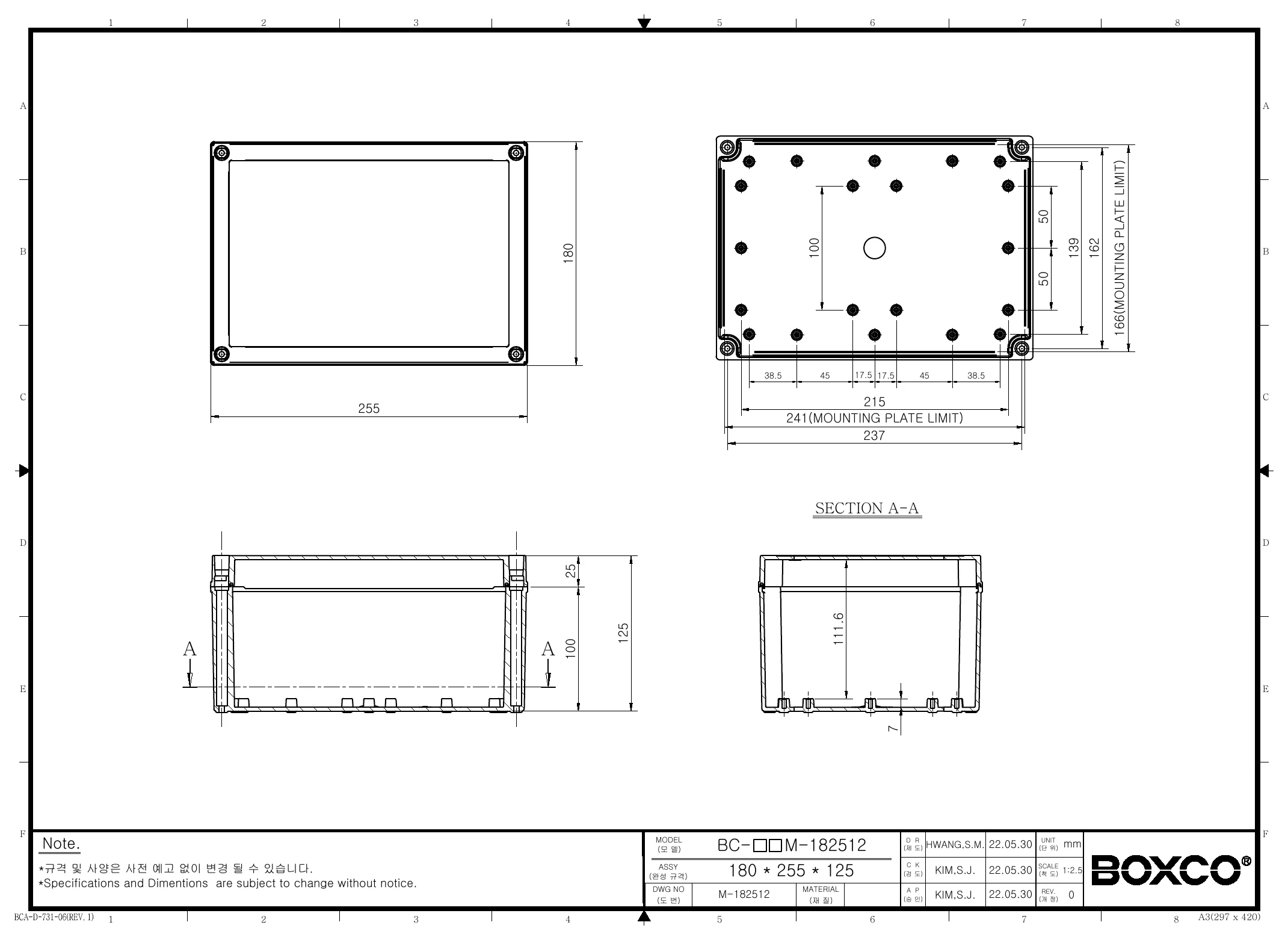

This model measures 7.09 x 10.04 x 4.92 inches, which is 180 x 255 x 125 mm. Those dimensions make it a mid-sized enclosure for components that need more internal space than compact junction-style boxes.

Yes, this Boxco M-Series enclosure includes an ultraviolet stabilizer to support outdoor use and help reduce visible color change over time. It is also rated IP67 for dust-tight and water-resistant protection and IK08 for impact resistance.

This model is made from polycarbonate (PC) and has a grey cover. The product description also states that anti-static material is used to help protect sensitive electronic instruments from static electricity.

This enclosure is specified for use from -40 degrees C to 110 degrees C. That wide operating range makes it appropriate for demanding environments with both low and high temperatures.

This model uses a screw-type cover with a recessed design, which is useful when the application calls for a membrane keypad on the enclosure cover. Buyers comparing enclosure styles may prefer this design when a flush-mounted interface area is needed.

This Boxco M-Series enclosure weighs 0.883 kg. That specification can be useful when planning panel layouts, shipping estimates, or enclosure handling requirements.
