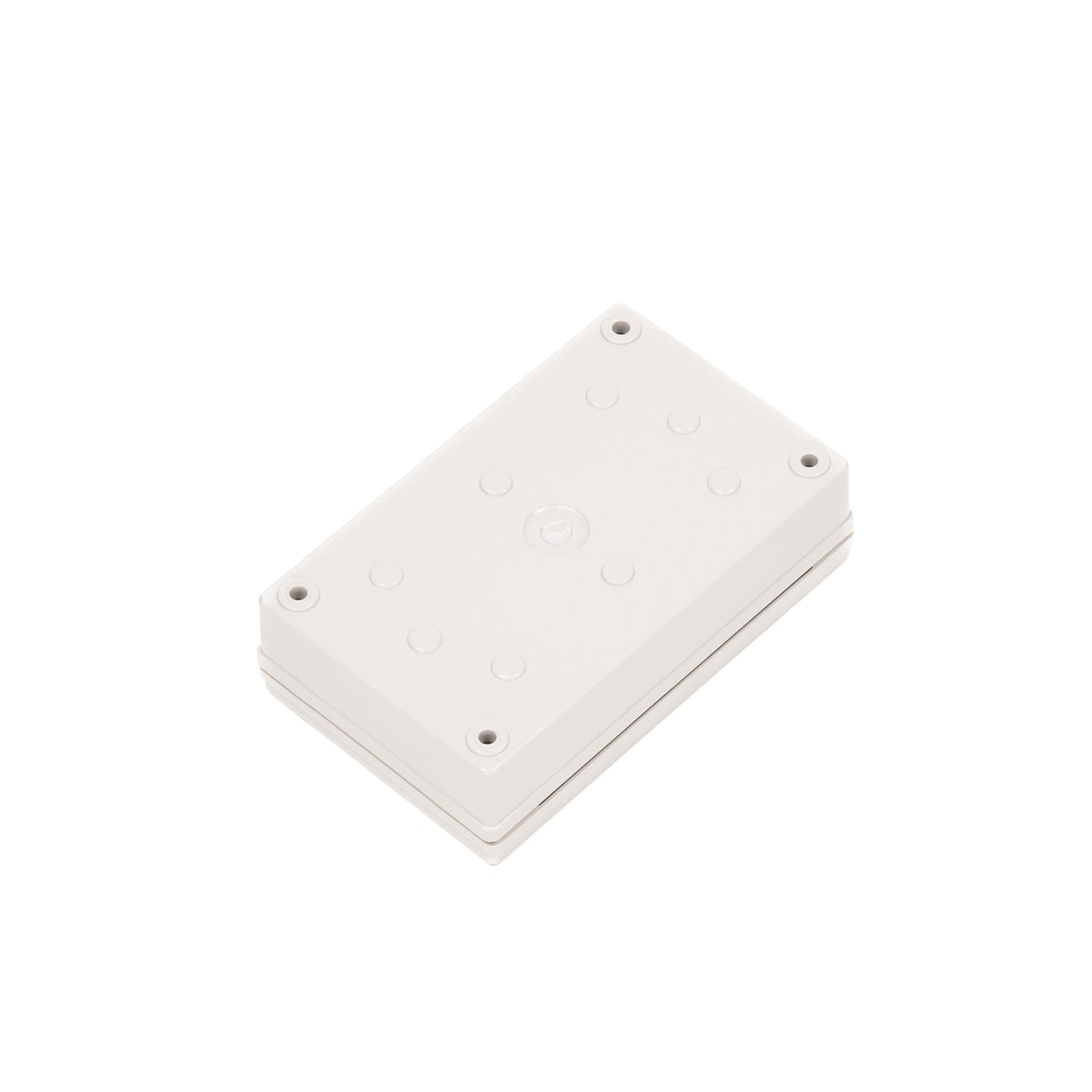

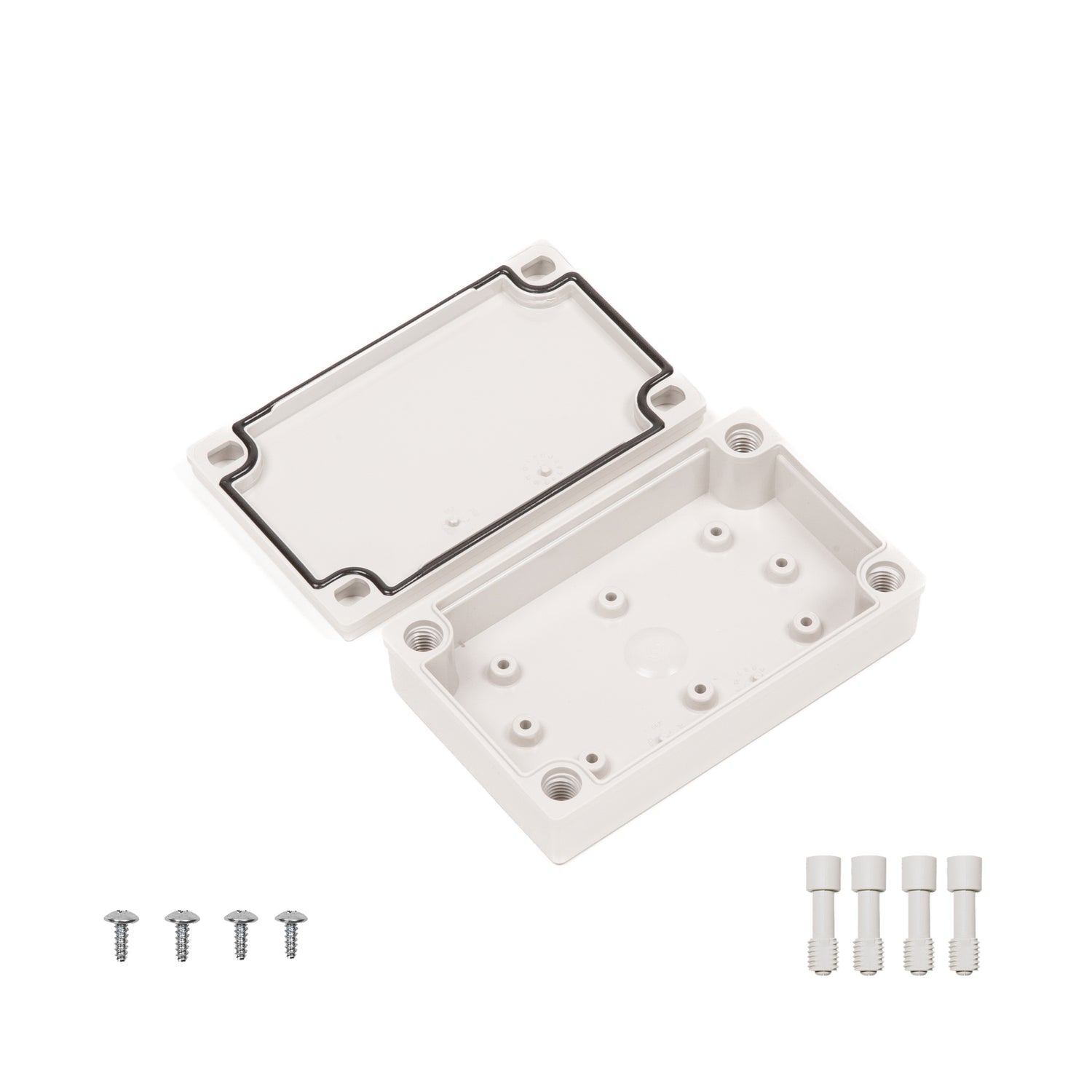

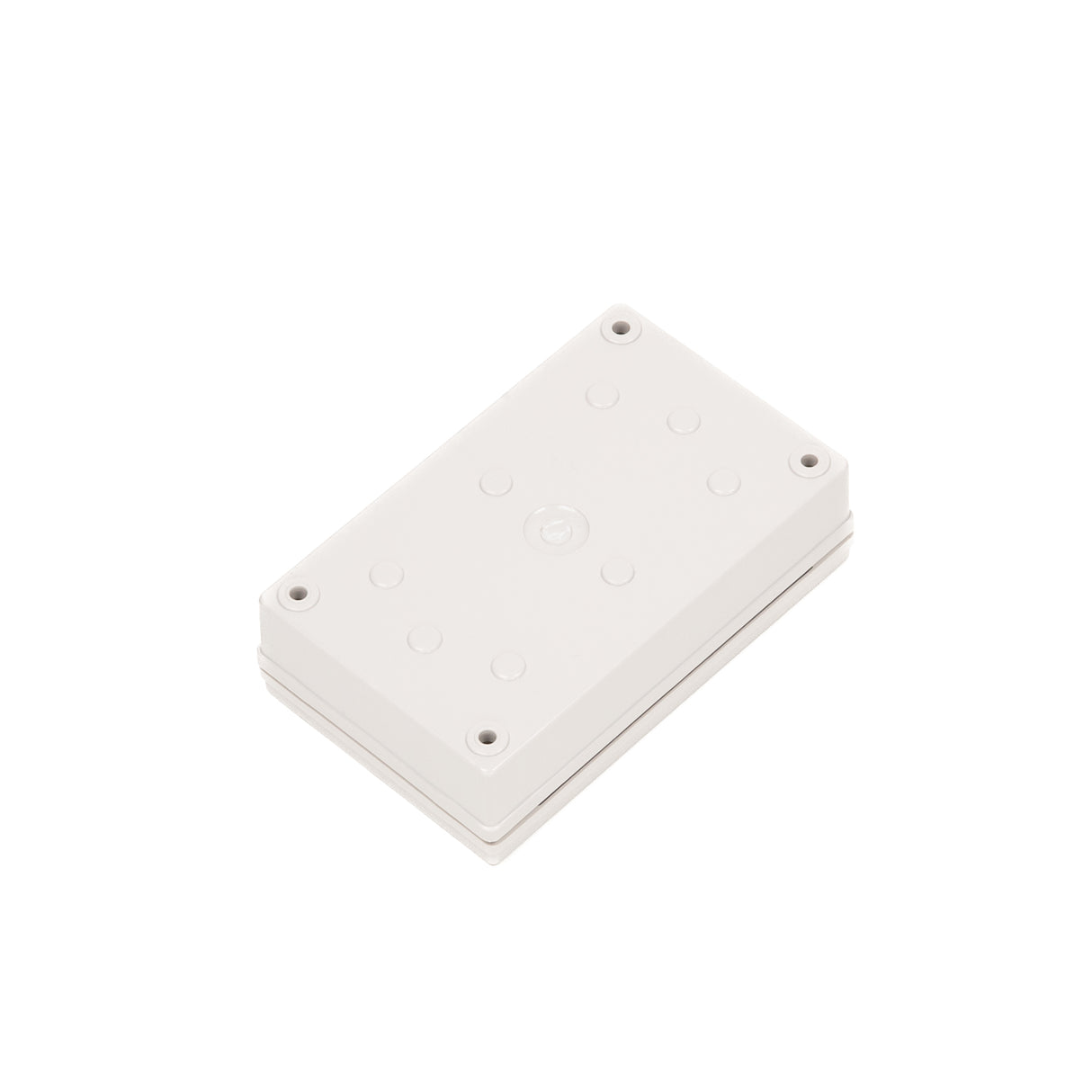

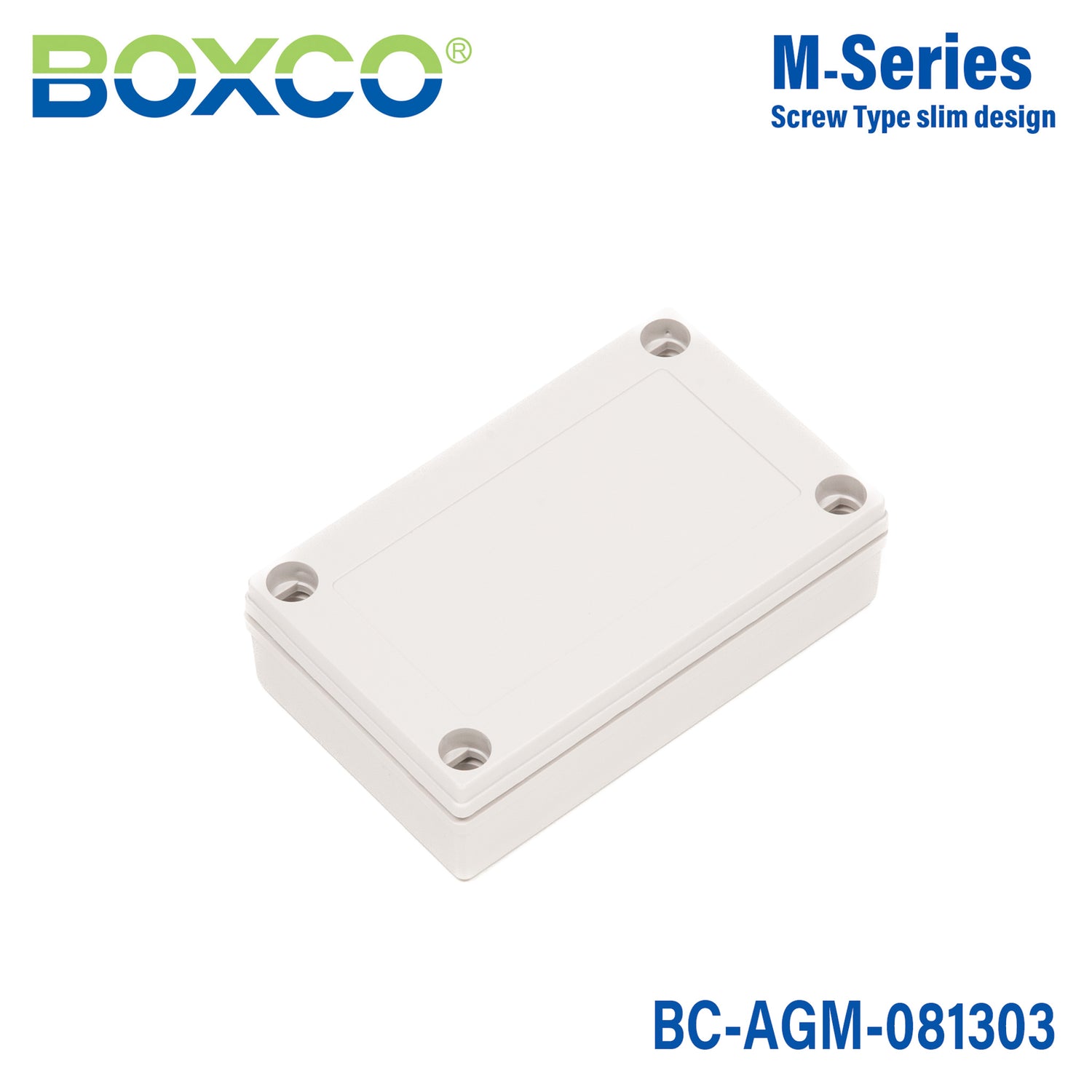

Boxco M-Series 80x130x35mm Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Screw Type

SKU BC-AGM-081303
Log in to see price Trade pricing & online ordering for account holders
In stock
|

Overview

BC-AGM-081303 is a 80×130×35 mm ABS enclosure with a grey cover from the Boxco M Series.

Features

  • Considering attachment of membrane keypad, this M series waterproof plastic enclosure is designed to make center surface of the cover slightly lower.
  • Our IP67 weatherproof enclosure's screw thread of the base for connecting cover is molded so that it has sufficient strength and not broken when tightening screw.
  • Our M series have recessed cover and base is high so that it has beautiful appearance.

Specifications

BC-AGM-081303Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
80×130×35 mm (3.15×5.12×1.38 in)
Mounting plate dimension M1 × M2
48 × 98 mm

Material

Material
ABS
Cover
Grey
Mounting plates
0813 G (Plastic, G type), 0813 P (Plastic, P type), 0813 M (Steel)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +70℃
Flammability rating (UL 94)
94-HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

Technical drawings

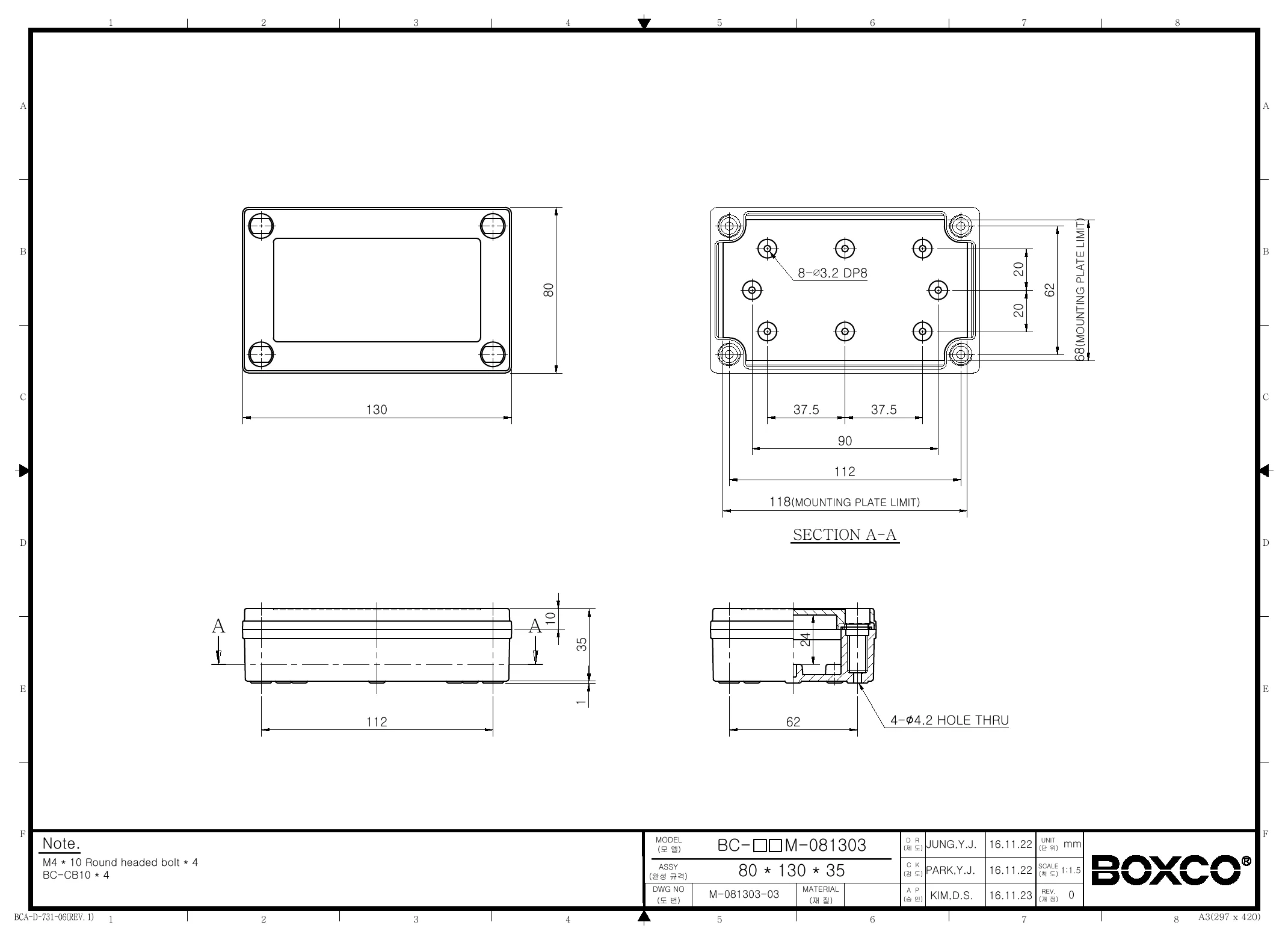

BC-AGM-081303 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What applications is the Boxco M-Series BC-AGM-081303 enclosure best suited for?

This model is suited to protecting small electronic controls, monitoring components, and other equipment that needs a sealed plastic enclosure. Its recessed screw-type cover is also intended for applications that use a membrane keypad on the enclosure face.

Is this enclosure suitable for outdoor or washdown environments?

Yes. The BC-AGM-081303 is rated IP67, which indicates strong protection against dust and temporary water immersion, and the material includes an ultraviolet stabilizer for outdoor use. It is also rated IK08 for impact resistance, which helps it hold up in demanding industrial or commercial settings.

What are the key size and material specs for this enclosure?

This Boxco M-Series enclosure measures 3.15 x 5.12 x 1.38 inches, or 80 x 130 x 35 mm. It uses ABS plastic, has a grey cover, and weighs 0.126 kg.

What makes this screw-type enclosure different from a standard flat-cover box?

This version uses a screw-fastened cover with a recessed top design rather than a plain flat lid. That recessed cover style is useful when the enclosure needs to accommodate a membrane keypad while keeping a more protected surface profile.

Can this enclosure be used around sensitive electronic instruments?

Yes. The product description states that anti-static material is used to help protect sensitive electronic instruments from static electricity. That makes it a better fit for electronics-focused applications than a basic general-purpose plastic box without that stated feature.

What temperature range is this enclosure rated for?

The specified operating temperature range is -40 degrees C to 70 degrees C. That range supports use in both cold and warm environments, provided the rest of the assembled equipment is also rated for those conditions.
