Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Boxco

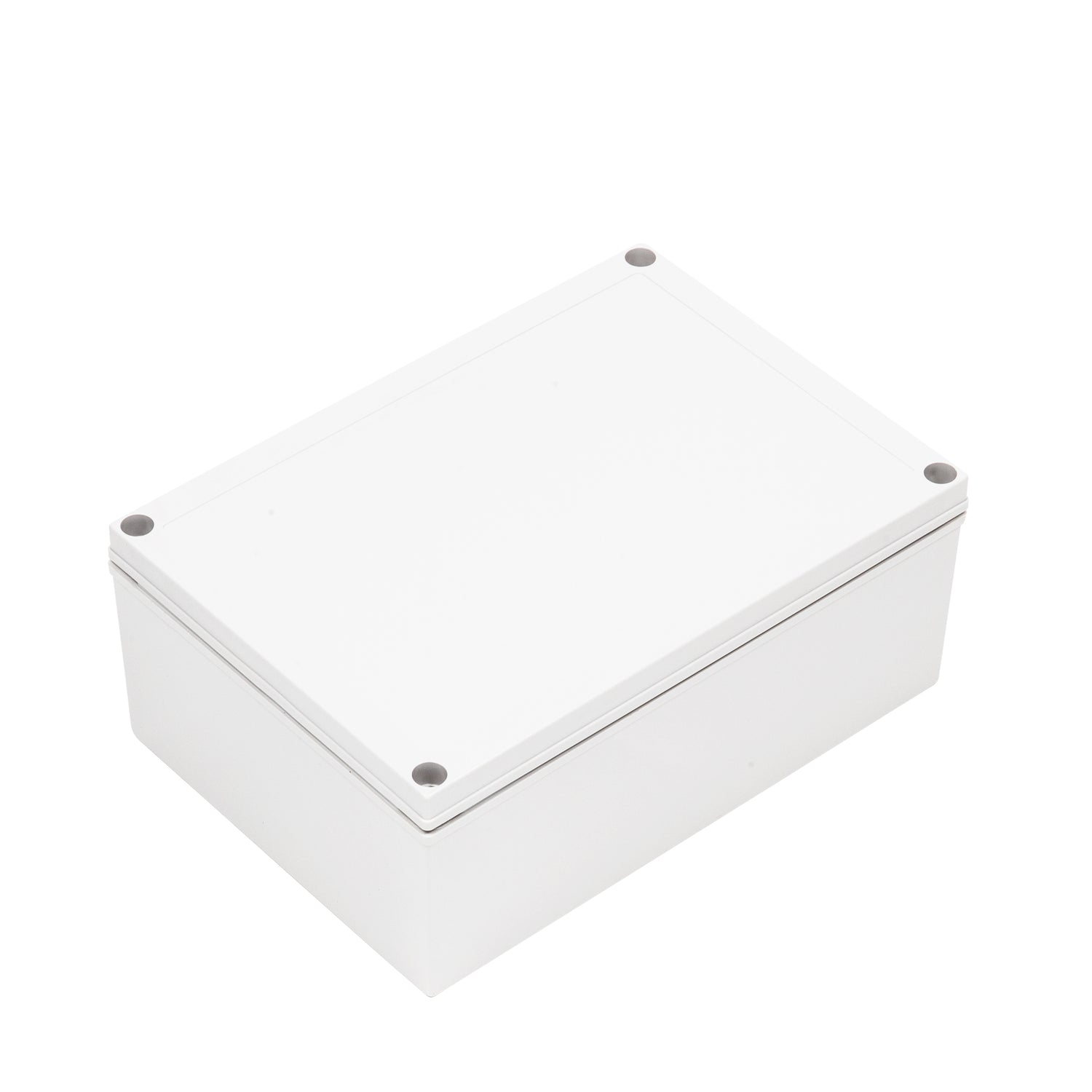

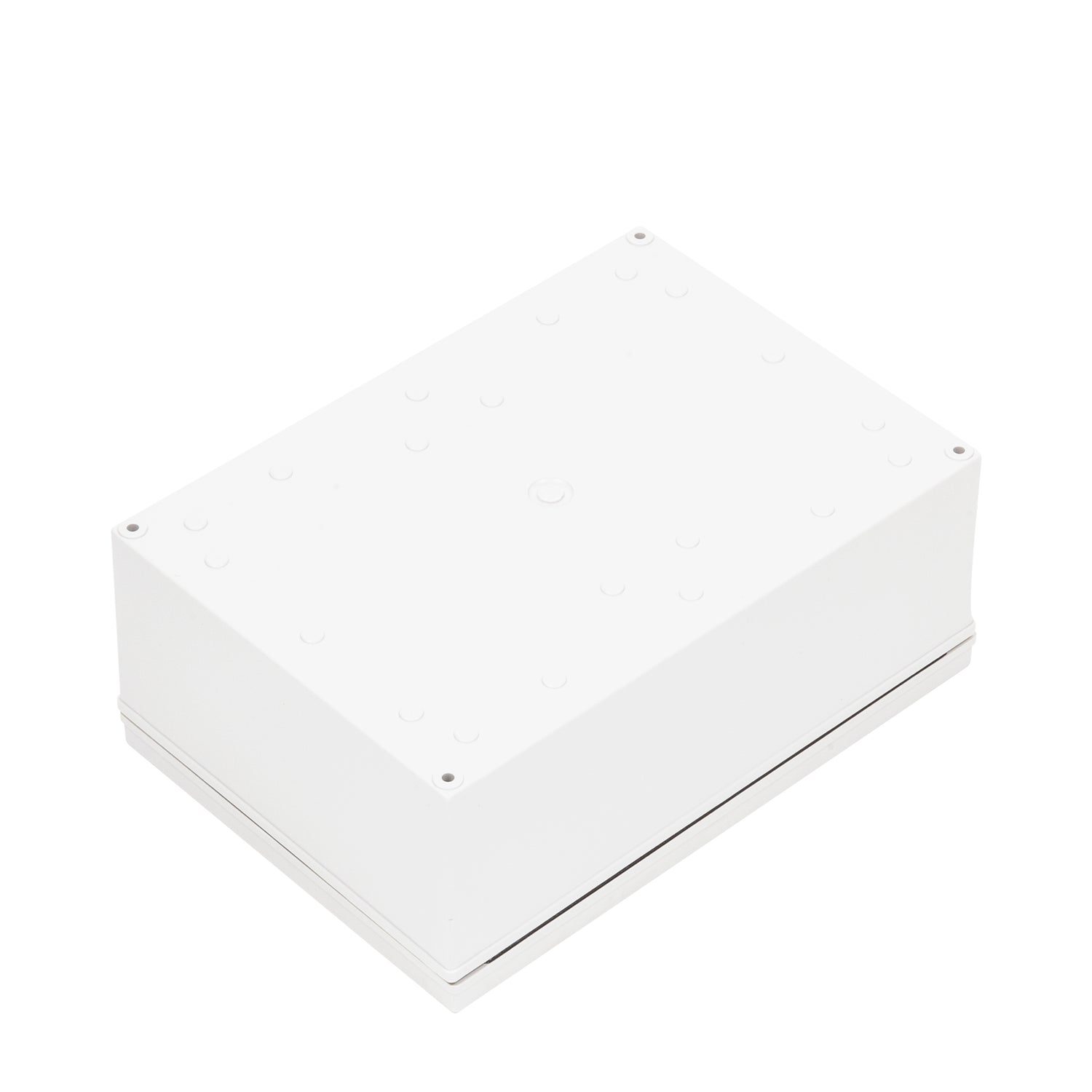

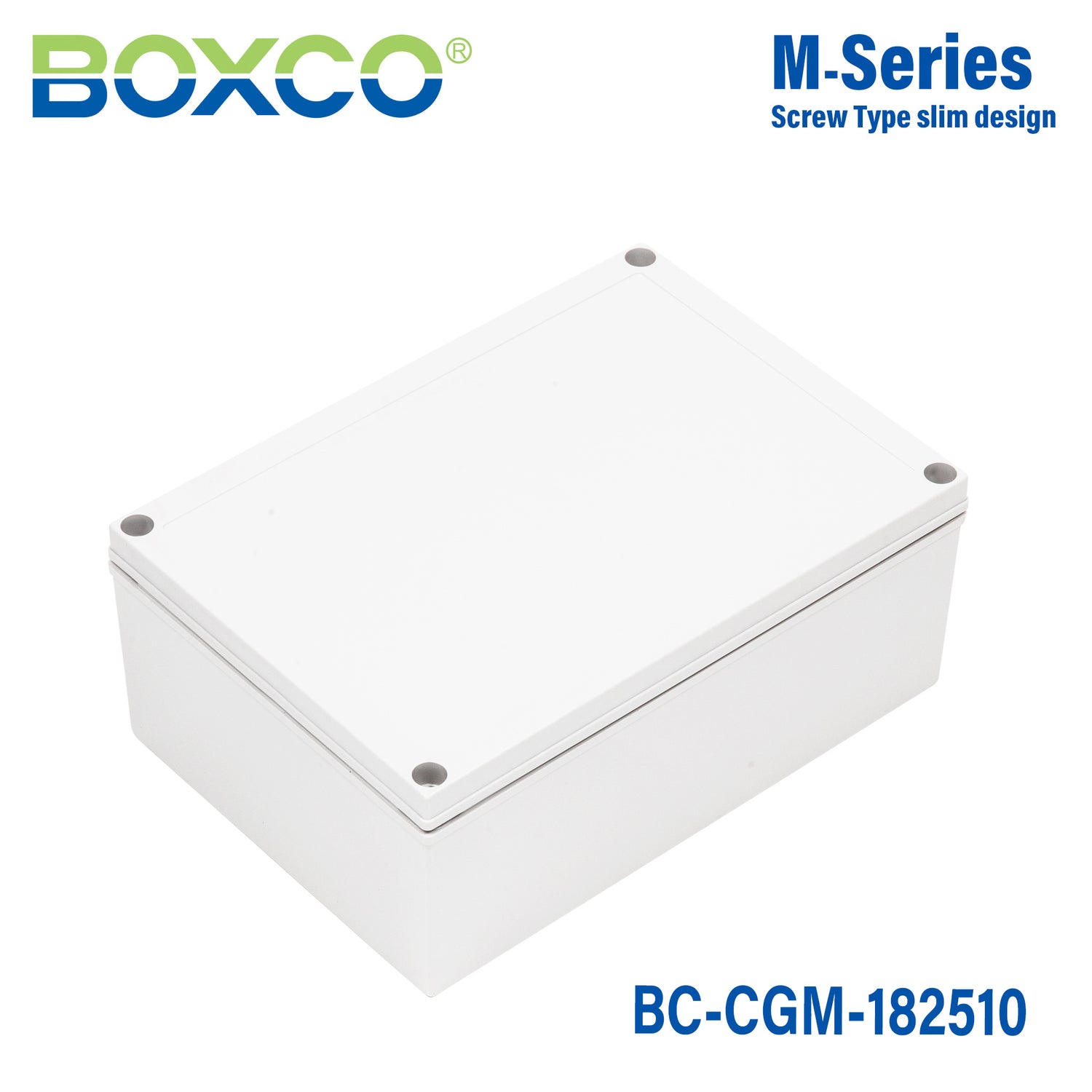

Boxco M-Series 180x255x100mm Plastic Enclosure, IP67, IK08, PC, Grey Cover, Screw Type

SKU BC-CGM-182510
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-CGM-182510 is a 180×255×100 mm Polycarbonate (PC) enclosure with a grey cover from the Boxco M Series.

Features

  • Considering attachment of membrane keypad, this M series waterproof plastic enclosure is designed to make center surface of the cover slightly lower.
  • Our IP67 weatherproof enclosure's screw thread of the base for connecting cover is molded so that it has sufficient strength and not broken when tightening screw.
  • Our M series have recessed cover and base is high so that it has beautiful appearance.

Specifications

BC-CGM-182510Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
180×255×100 mm (7.09×10.04×3.94 in)
Mounting plate dimension M1 × M2
148 × 223 mm

Material

Material
Polycarbonate (PC)
Cover
Grey
Mounting plates
1825 G (Plastic, G type), 1825 M (Steel)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +110℃
Flammability rating (UL 94)
94-V-0, 5VA, HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

Technical drawings

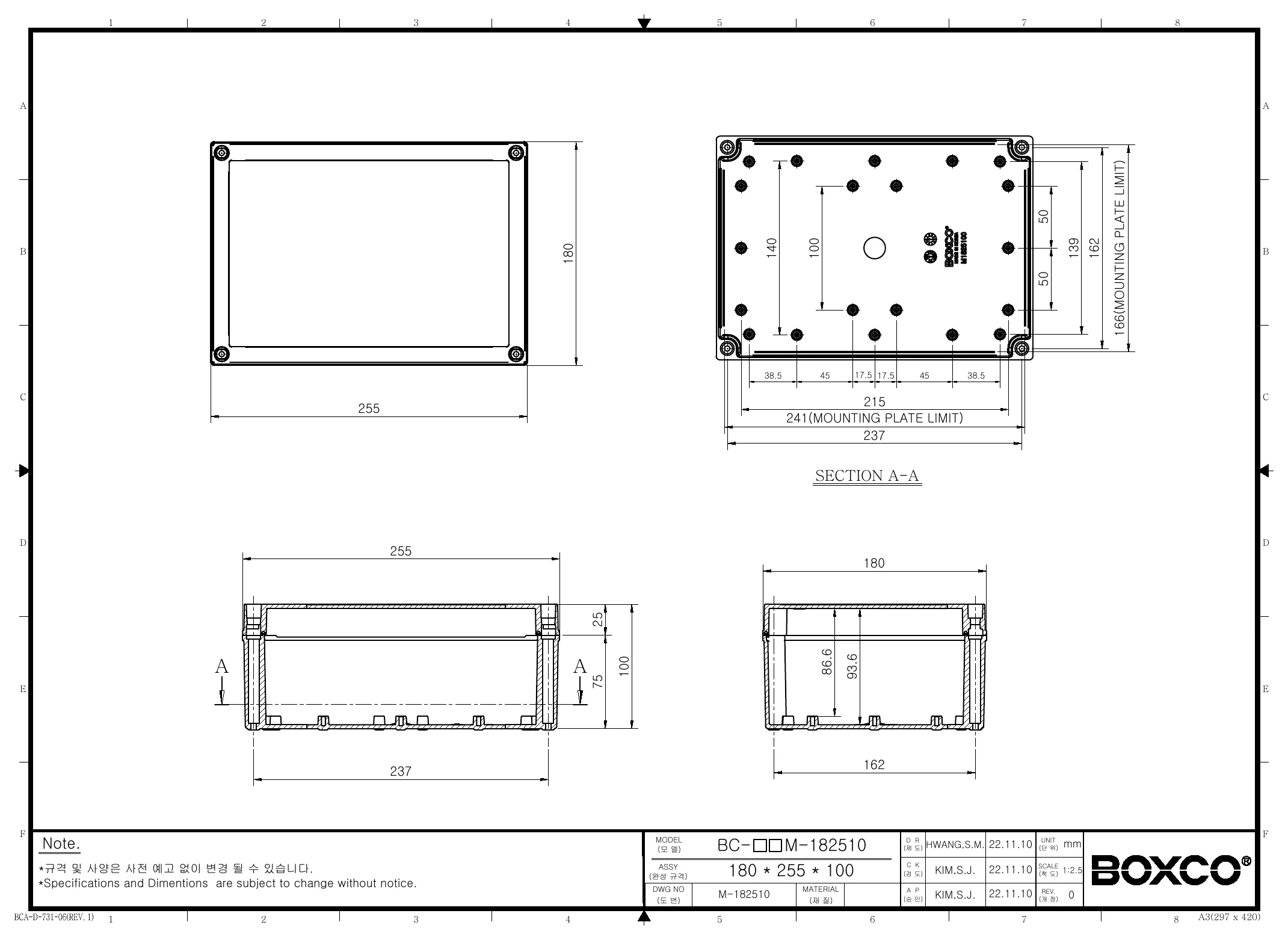

BC-CGM-182510 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What applications is the Boxco M-Series BC-CGM-182510 enclosure suited for?

This enclosure is intended for protecting electronic equipment in industrial and commercial environments where a durable plastic housing is needed. Its recessed screw-type cover is specifically noted as being used for mounting a membrane keypad, which makes it a practical choice for control and interface enclosures.

Is this enclosure suitable for outdoor or washdown environments?

This model is rated IP67, which indicates strong protection against dust and water ingress for demanding environments. The product description also states that an ultraviolet stabilizer is added for outdoor usage, helping reduce visible color change over long periods of exposure.

How durable is the BC-CGM-182510 against impact and physical wear?

This enclosure carries an IK08 impact rating and is described as being made from high impact resistant material. The material is designed to be strong against external impact and to help prevent breakage during hole and press processing.

What are the dimensions and material of this enclosure?

The Boxco BC-CGM-182510 measures 7.09 x 10.04 x 3.94 inches, which corresponds to 180 x 255 x 100 mm. It is a polycarbonate (PC) plastic enclosure with a grey cover and a screw-type recessed lid design.

What temperature range can this enclosure handle?

This model is specified for use from -40 degrees C up to 110 degrees C. That range makes it suitable for applications exposed to both low ambient temperatures and elevated operating heat within the enclosure's stated limits.

Does this enclosure offer any protection for sensitive electronic instruments?

Yes. The description states that anti-static material is used to help protect sensitive electronic instruments from static electricity. That makes this model a relevant option where electrostatic protection is a consideration alongside physical enclosure performance.
