Boxco

Boxco M-Series 80x130x85mm Plastic Enclosure, IP67, IK08, PC, Transparent Cover, Screw Type

SKU BC-CTM-081308
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-CTM-081308 is a 80×130×85 mm Polycarbonate (PC) enclosure with a transparent cover from the Boxco M Series.

Features

  • Considering attachment of membrane keypad, this M series waterproof plastic enclosure is designed to make center surface of the cover slightly lower.
  • Our IP67 weatherproof enclosure's screw thread of the base for connecting cover is molded so that it has sufficient strength and not broken when tightening screw.
  • Our M series have recessed cover and base is high so that it has beautiful appearance.

Specifications

BC-CTM-081308Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
80×130×85 mm (3.15×5.12×3.35 in)
Mounting plate dimension M1 × M2
48 × 98 mm

Material

Material
Polycarbonate (PC)
Cover
Transparent
Mounting plates
0813 G (Plastic, G type), 0813 P (Plastic, P type), 0813 M (Steel)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +110℃
Flammability rating (UL 94)
94-V-0, 5VA, HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

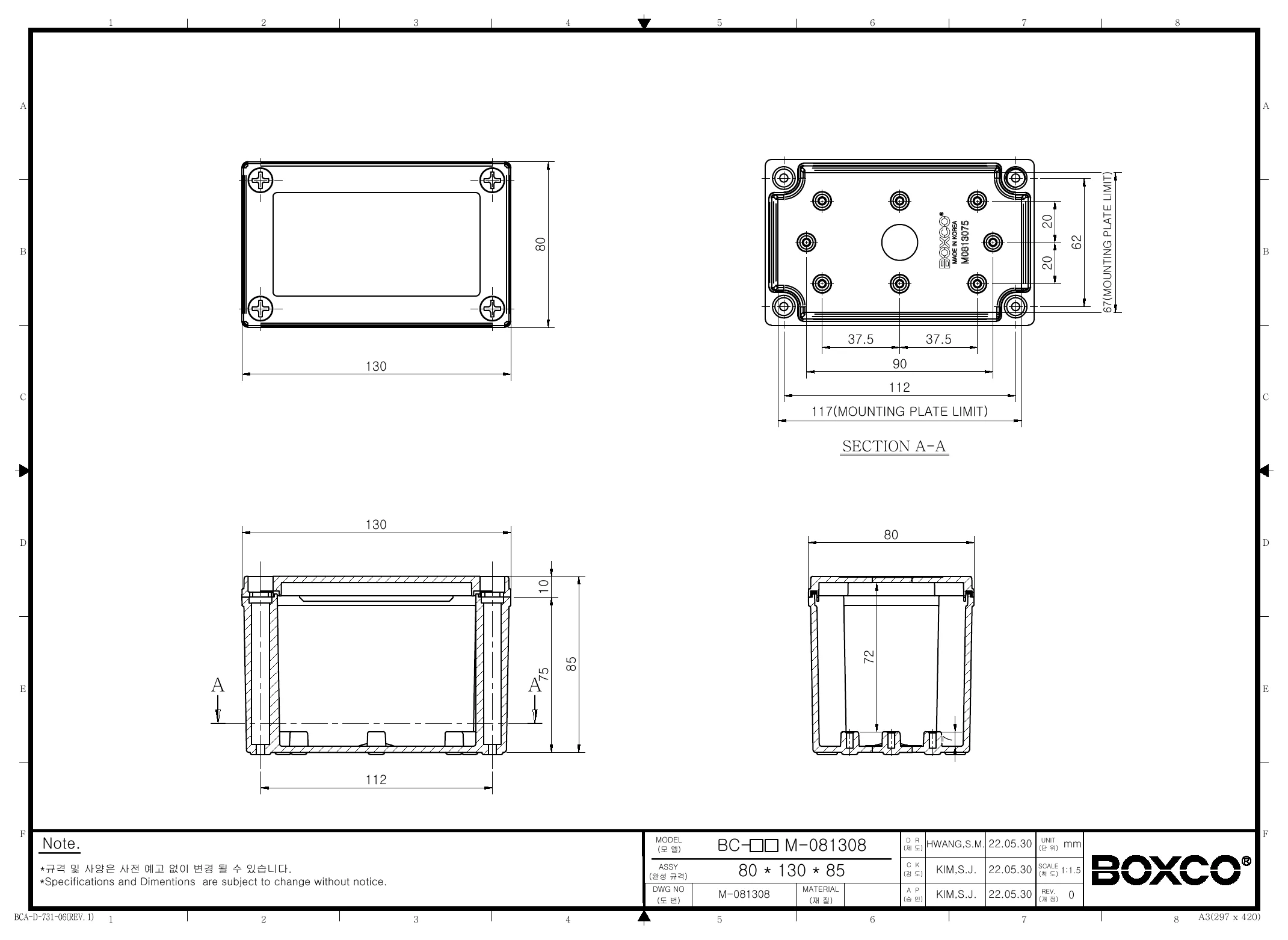

Technical drawings

BC-CTM-081308 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What applications is this Boxco M-Series enclosure best suited for?

This enclosure is designed to protect sensitive electronic instruments in industrial and outdoor environments. Its screw-type design with a recessed transparent cover also makes it suitable for applications that use a membrane keypad and need visibility into the enclosure.

Is this enclosure suitable for outdoor use?

Yes. The enclosure includes an ultraviolet stabilizer to help protect it during outdoor use and reduce visible color change over time. Its IP67 rating also indicates strong protection against dust and temporary water exposure.

How durable is this plastic enclosure in demanding environments?

This model is built from high impact resistant polycarbonate and is rated IK08 for impact resistance. The material is described as strong against external impact and helps reduce breakage during hole and press processing.

What are the key size and material specifications for this model?

This Boxco M-Series enclosure measures 3.15 x 5.12 x 3.35 inches, which corresponds to 80 x 130 x 85 mm. It is made from polycarbonate and includes a transparent cover in a screw-type enclosure design.

What environmental range can this enclosure handle?

This model has a stated operating temperature range from -40 °C to 110 °C. That range makes it a practical choice for applications exposed to both low and high ambient temperatures.

Does this enclosure help protect sensitive electronics from static electricity?

Yes. The product description states that anti-static material is used to help protect sensitive electronic instruments from static electricity. This makes it a stronger fit for housings where electrostatic protection is a consideration.
