Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Boxco

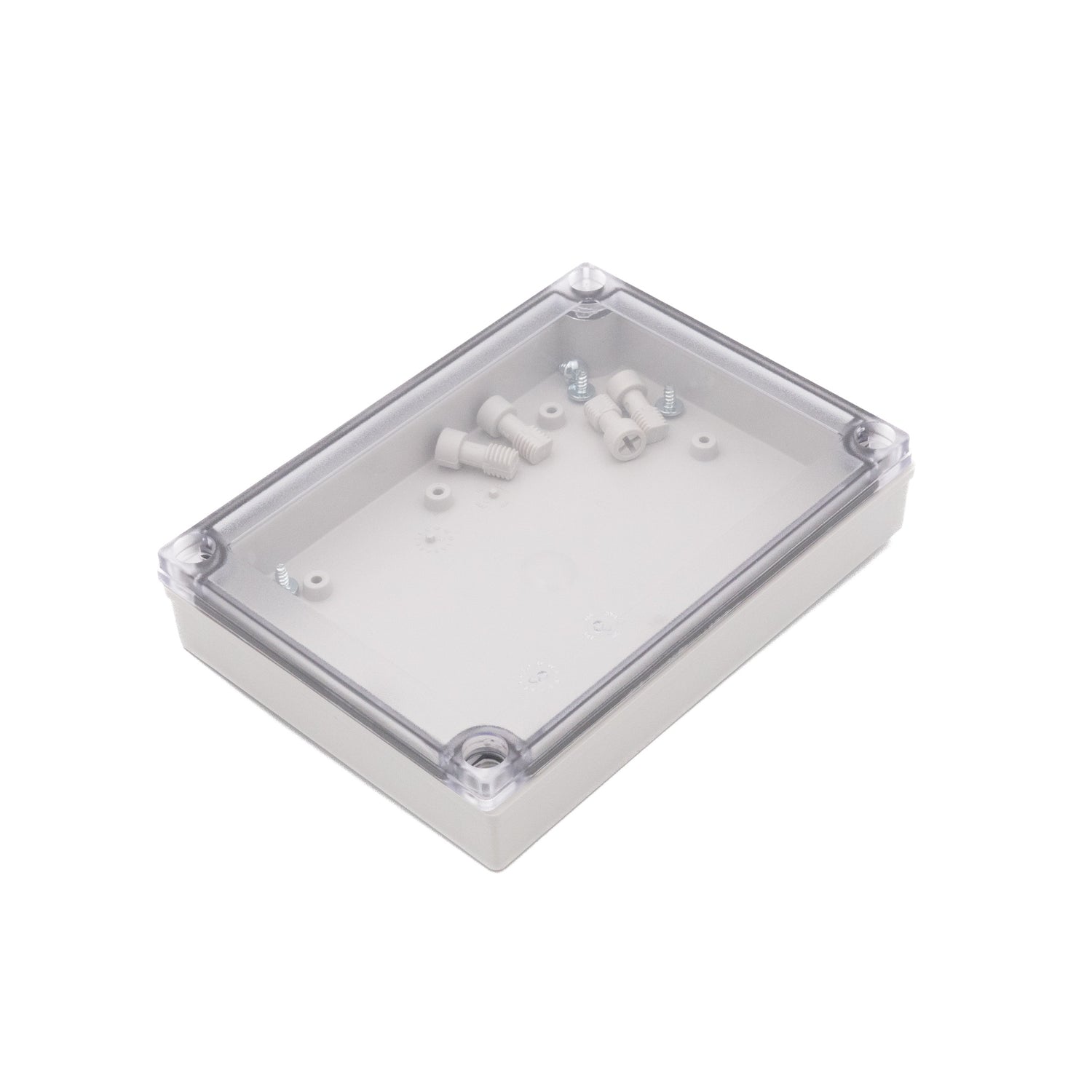

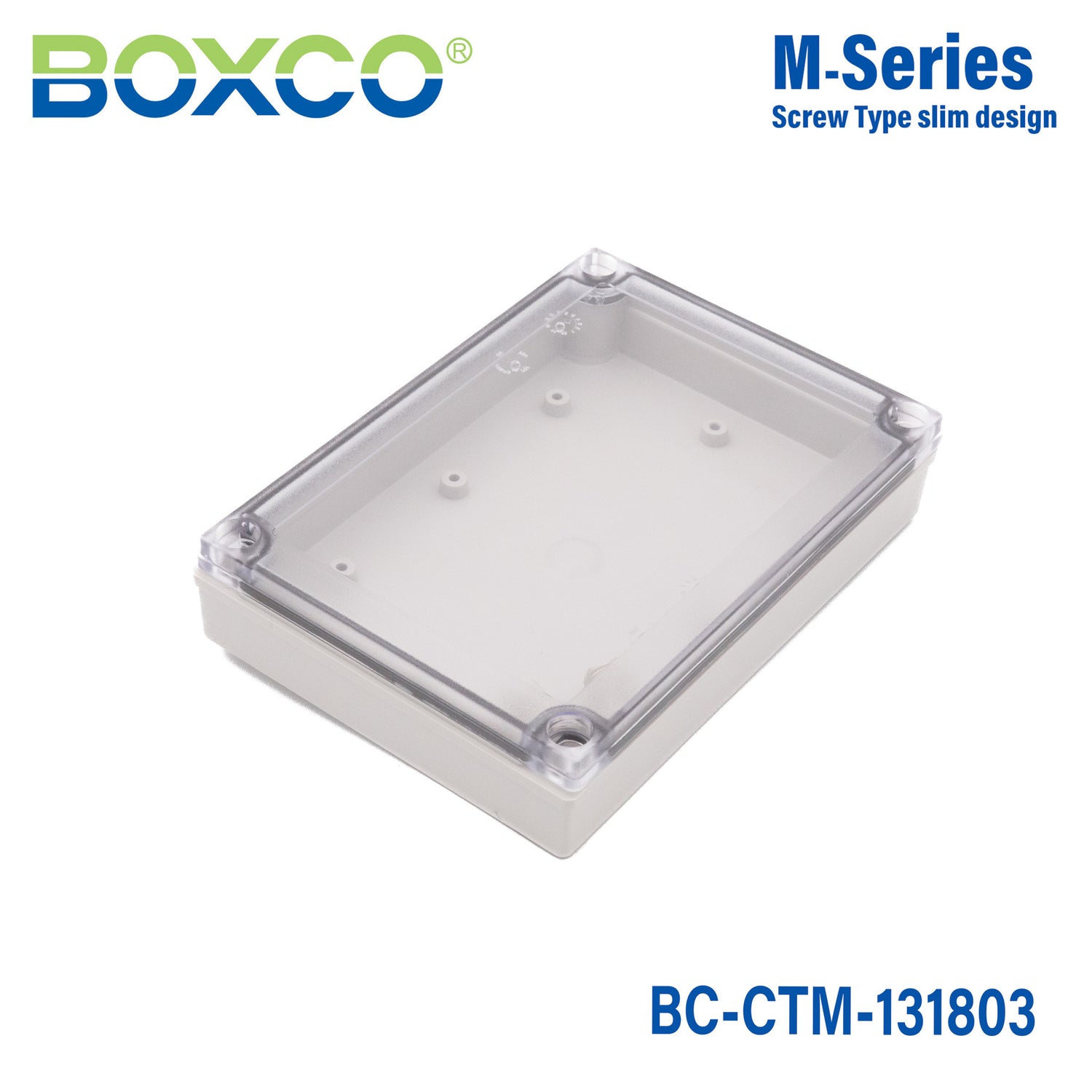

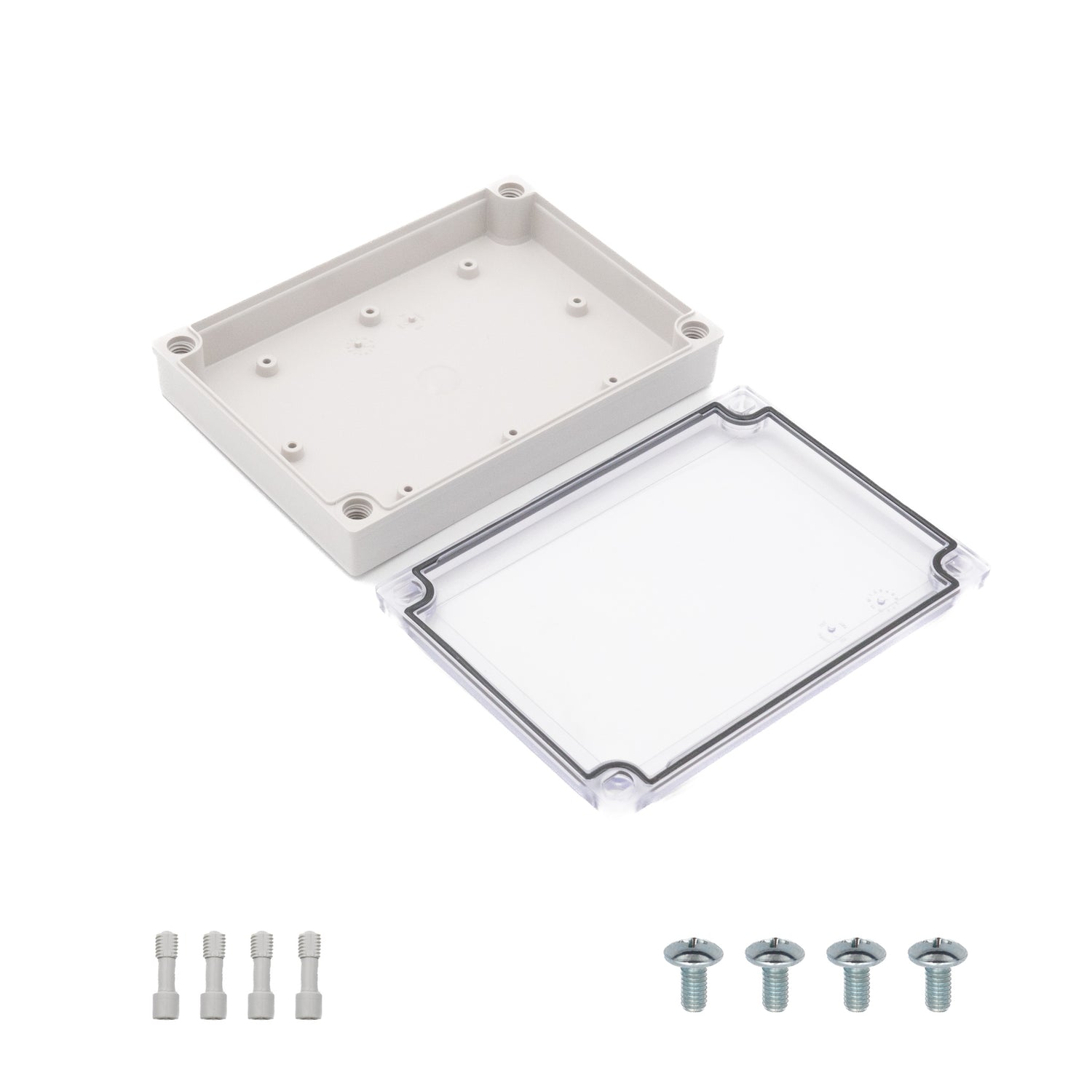

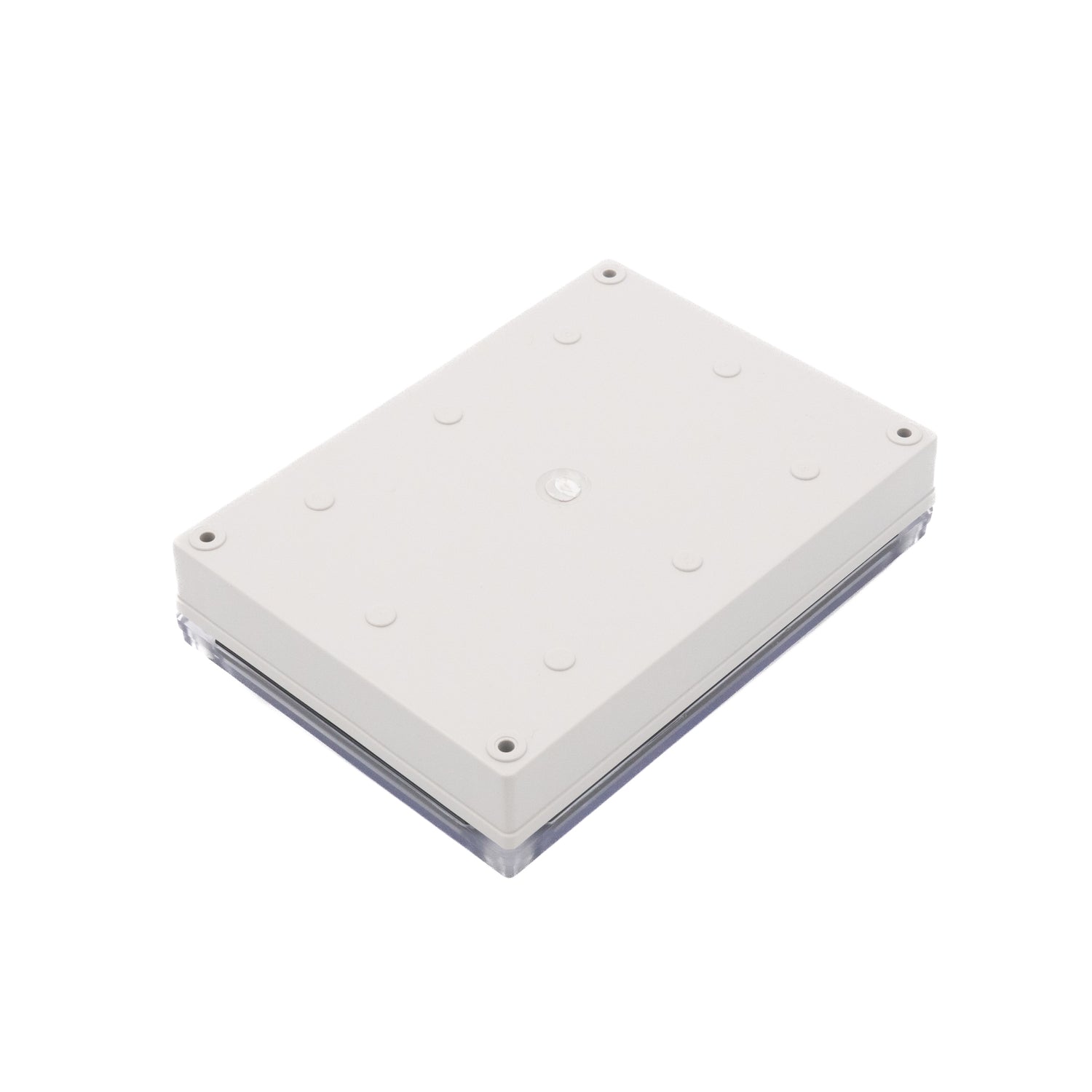

Boxco M-Series 130x180x35mm Plastic Enclosure, IP67, IK08, PC, Transparent Cover, Screw Type

SKU BC-CTM-131803
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-CTM-131803 is a 130×180×35 mm Polycarbonate (PC) enclosure with a transparent cover from the Boxco M Series.

Features

  • Considering attachment of membrane keypad, this M series waterproof plastic enclosure is designed to make center surface of the cover slightly lower.
  • Our IP67 weatherproof enclosure's screw thread of the base for connecting cover is molded so that it has sufficient strength and not broken when tightening screw.
  • Our M series have recessed cover and base is high so that it has beautiful appearance.

Specifications

BC-CTM-131803Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
130×180×35 mm (5.12×7.09×1.38 in)
Mounting plate dimension M1 × M2
100 × 160 mm

Material

Material
Polycarbonate (PC)
Cover
Transparent
Mounting plates
1217 G (Plastic, G type), 1217 P (Plastic, P type), 1318 M (Steel)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +110℃
Flammability rating (UL 94)
94-V-0, 5VA, HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

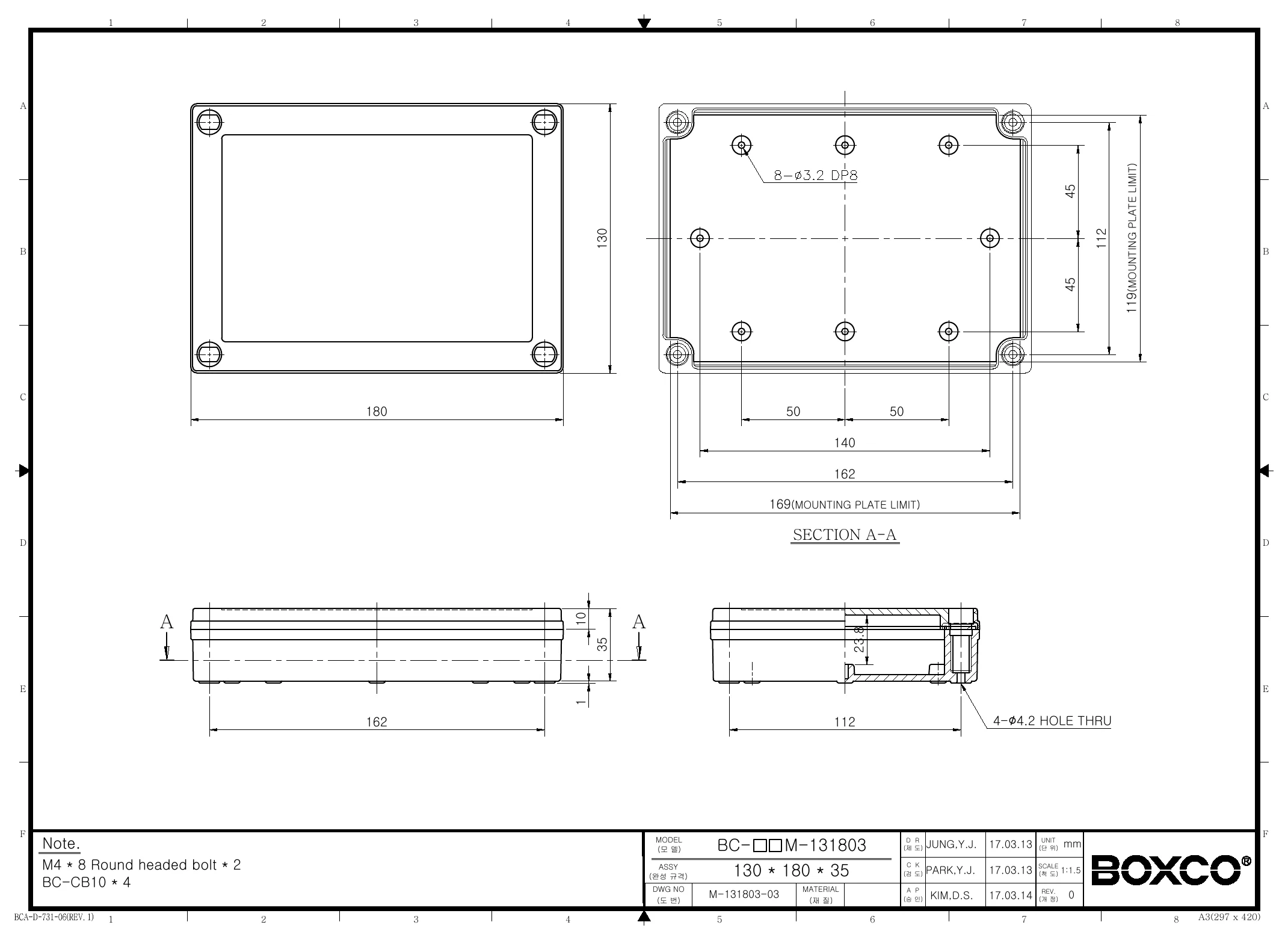

Technical drawings

BC-CTM-131803 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What applications is this Boxco M-Series enclosure suited for?

This enclosure is designed for protecting electronic components in industrial and outdoor environments where a durable non-metallic housing is needed. Its recessed transparent cover also makes it suitable for applications that use a membrane keypad or require visual inspection of indicators without opening the box.

What are the key specifications of this enclosure?

This model measures 5.12 x 7.09 x 1.38 inches (130 x 180 x 35 mm) and weighs 0.9100 kg. It is a polycarbonate enclosure with a transparent screw-type cover, rated IP67 for ingress protection and IK08 for impact resistance.

Can this enclosure be used outdoors?

Yes, this Boxco M-Series enclosure is intended for outdoor use. The description states that an ultraviolet stabilizer is added to help protect the enclosure outdoors and reduce noticeable color change over long periods of use.

How does this enclosure perform in harsh environments?

This model is rated IP67, which indicates strong protection against dust and water ingress in demanding environments. It also carries an IK08 impact rating and uses high impact resistant material to help withstand external impact and reduce breakage during processing.

What temperature range can this enclosure handle?

The specified operating temperature range for this enclosure is -40 degrees C to 110 degrees C. That range makes it suitable for applications exposed to both low and high ambient temperatures within those limits.

Is this enclosure appropriate for sensitive electronic equipment?

Yes, the product description states that anti-static material is used to help protect sensitive electronic instruments from static electricity. That makes this model a practical option where electrostatic protection is an important consideration.

What distinguishes this model from a standard opaque enclosure?

This version includes a transparent cover, which allows visibility into the enclosure without opening it. It is also described as a screw-type enclosure with a recessed cover, a feature noted for use with membrane keypads.
