Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Boxco

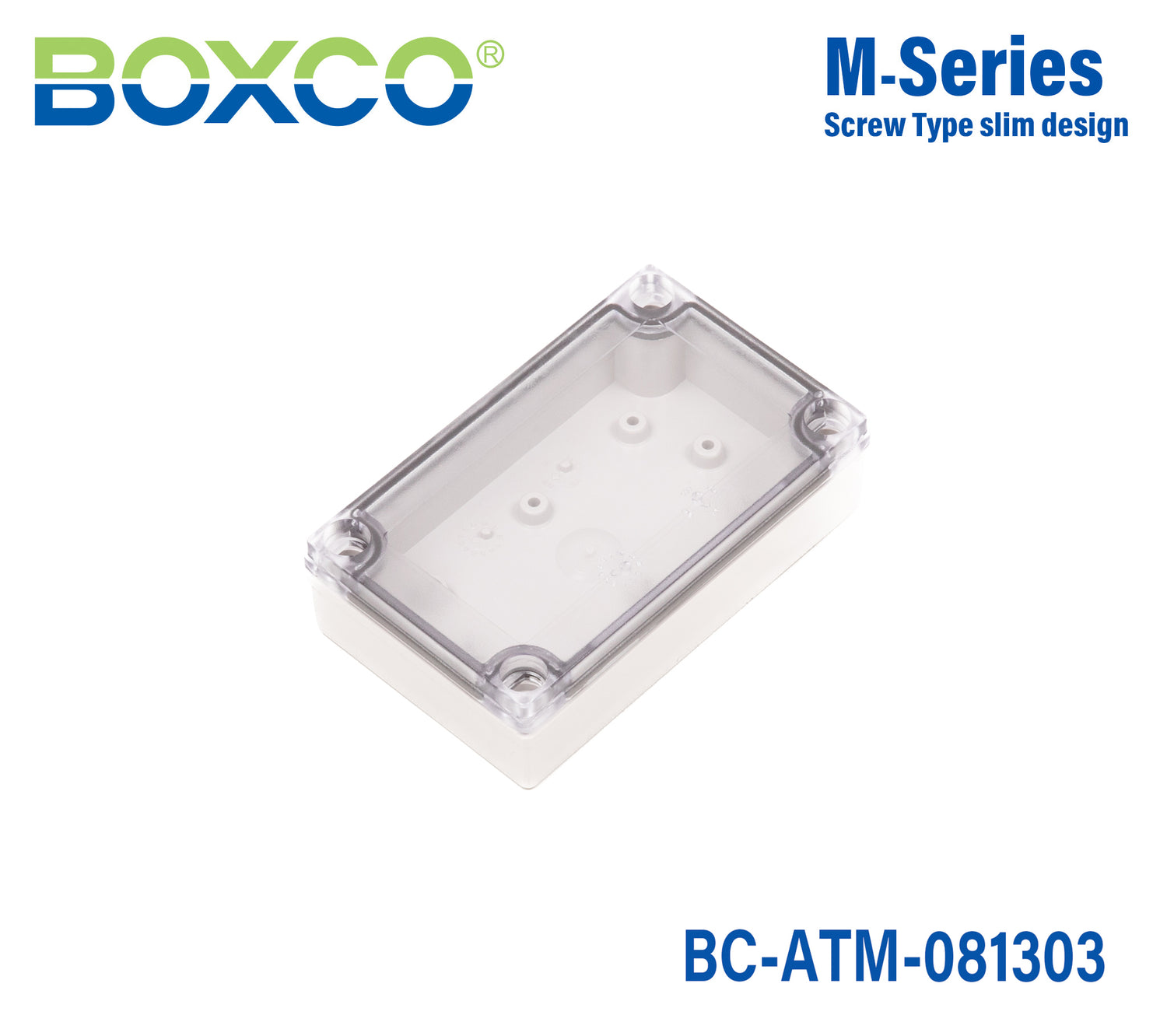

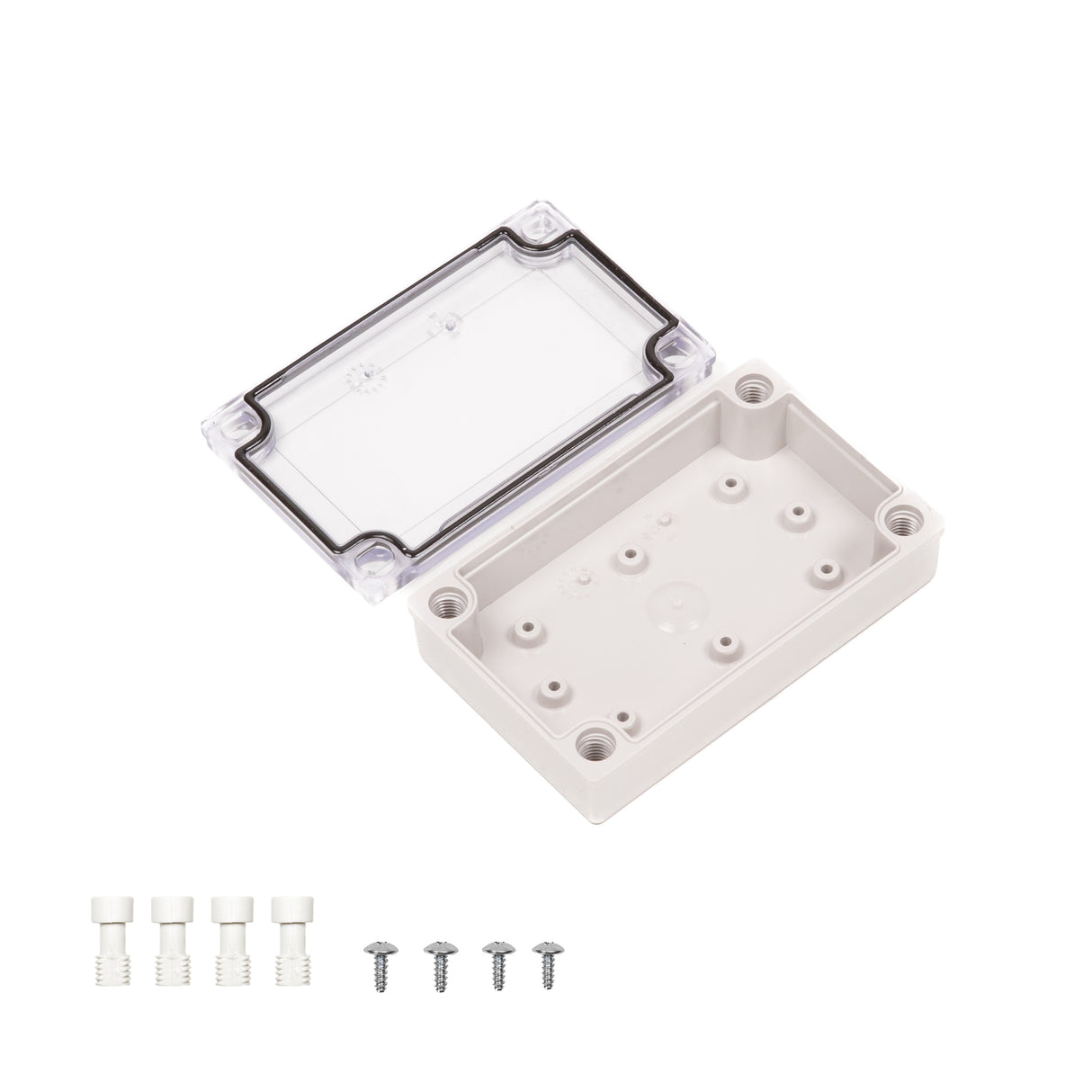

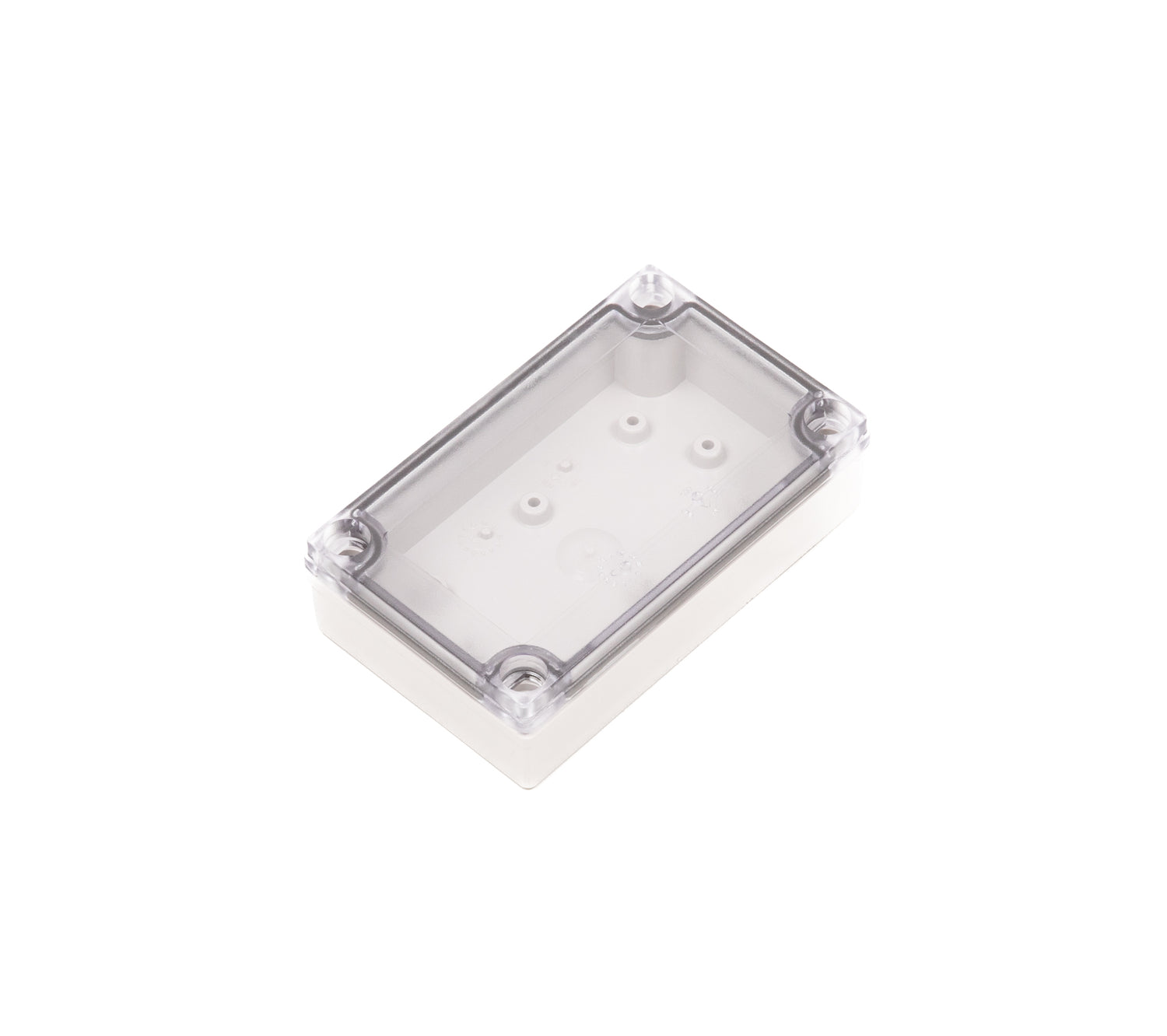

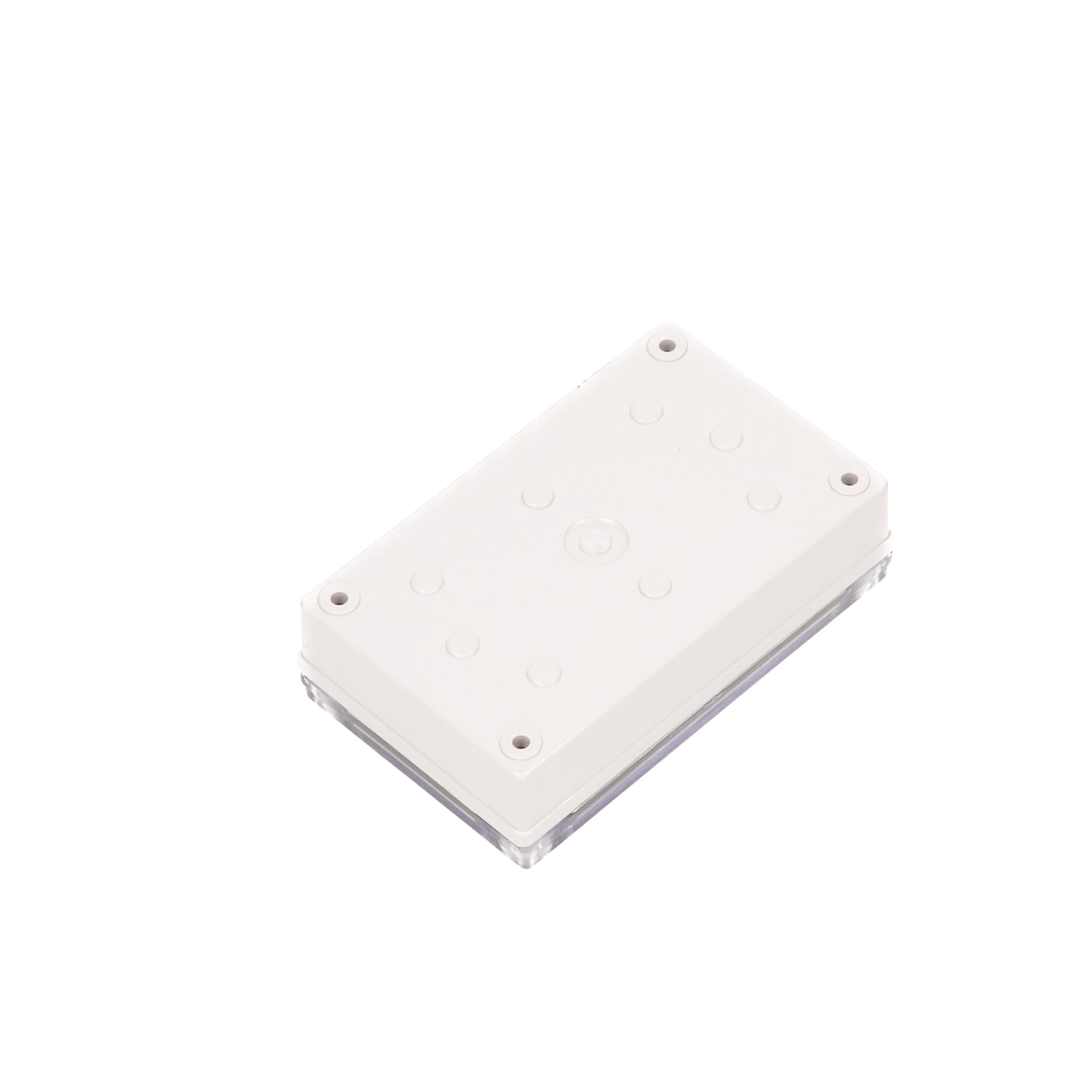

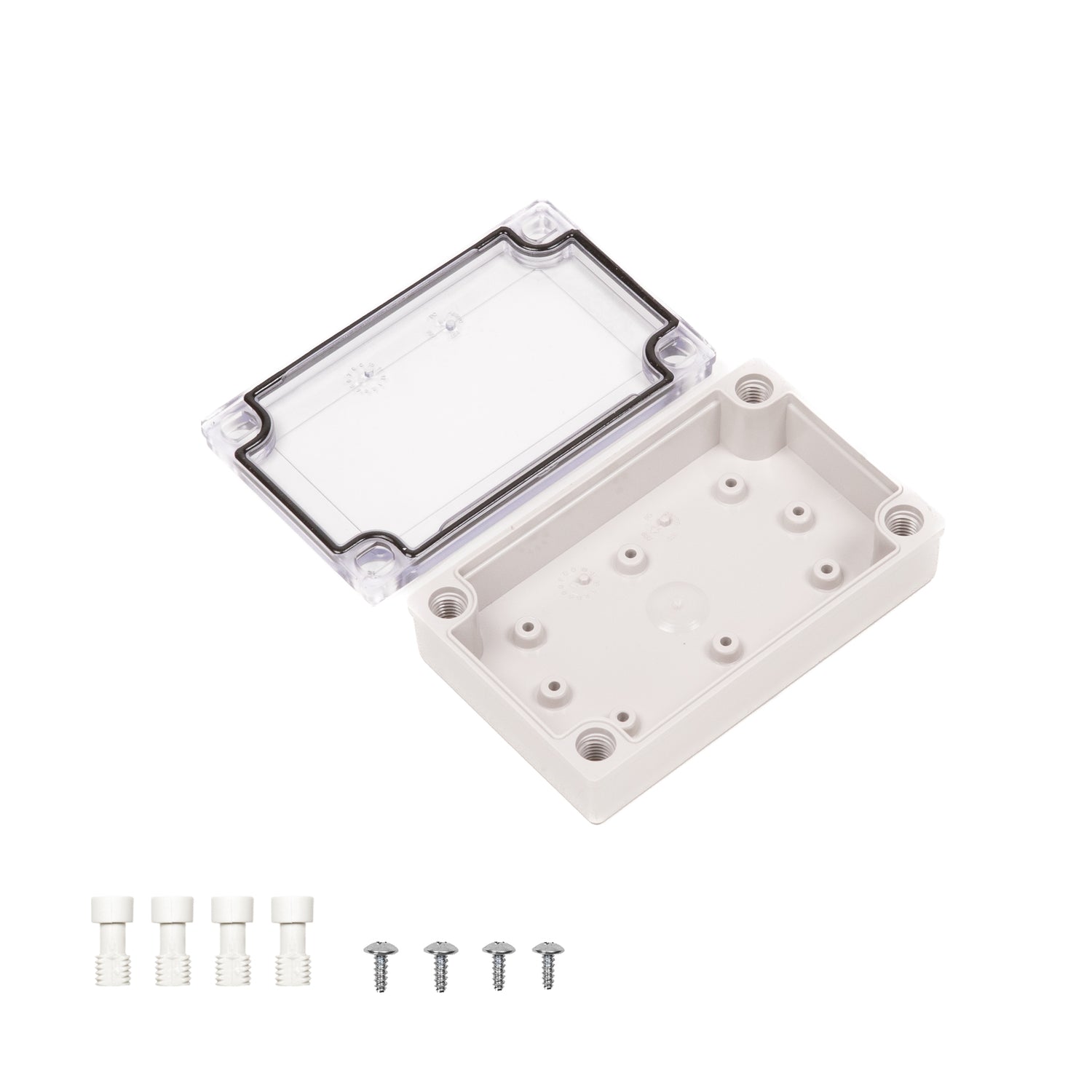

Boxco M-Series 80x130x35mm Plastic Enclosure, IP67, IK08, ABS, Transparent Cover, Screw Type

SKU BC-ATM-081303
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Overview

BC-ATM-081303 is a 80×130×35 mm ABS enclosure with a transparent cover from the Boxco M Series.

Features

  • Considering attachment of membrane keypad, this M series waterproof plastic enclosure is designed to make center surface of the cover slightly lower.
  • Our IP67 weatherproof enclosure's screw thread of the base for connecting cover is molded so that it has sufficient strength and not broken when tightening screw.
  • Our M series have recessed cover and base is high so that it has beautiful appearance.

Specifications

BC-ATM-081303Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
80×130×35 mm (3.15×5.12×1.38 in)
Mounting plate dimension M1 × M2
48 × 98 mm

Material

Material
ABS
Cover
Transparent
Mounting plates
0813 G (Plastic, G type), 0813 P (Plastic, P type), 0813 M (Steel)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +70℃
Flammability rating (UL 94)
94-HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

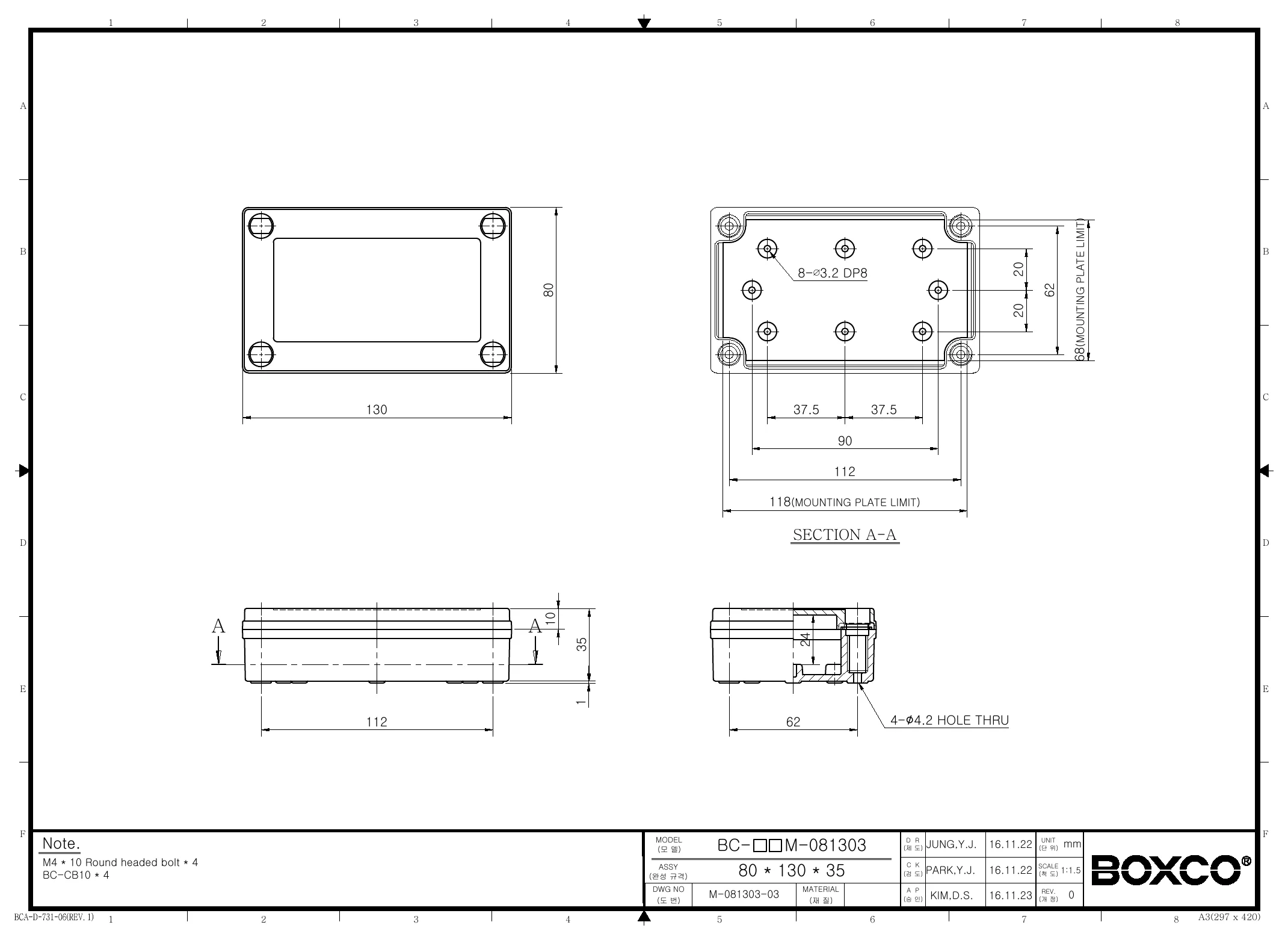

Technical drawings

BC-ATM-081303 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What is this Boxco M-Series enclosure designed for?

This model is a compact plastic enclosure for protecting electronic components in industrial or commercial equipment. Its recessed transparent cover and screw-type design make it suitable for applications where the contents may need to be viewed while remaining enclosed.

Can this enclosure be used outdoors?

Yes, this Boxco M-Series enclosure is described for outdoor usage and includes an ultraviolet stabilizer to help reduce visible color change over time. It also carries an IP67 rating, which supports use in demanding environmental conditions when a sealed enclosure is required.

What are the key specifications of the BC-ATM-081303 enclosure?

The enclosure measures 3.15 x 5.12 x 1.38 inches (80 x 130 x 35 mm) and weighs 0.1300 kg. It is made from ABS, has a transparent cover, is rated IP67 and IK08, and is specified for operation from -40°C to 70°C.

Is this enclosure suitable for applications that use a membrane keypad?

Yes, the product description specifically notes that it is used for mounting a membrane keypad. The recessed cover design is a relevant feature for that type of enclosure application.

How does this model differ from a basic plastic project box?

This model offers a more defined protection profile than a generic plastic box, including IP67 ingress protection and IK08 impact resistance. It also adds a transparent cover, UV-stabilized material for outdoor use, and anti-static material for sensitive electronic instruments.

Is this enclosure appropriate for protecting sensitive electronic instruments?

Yes, the description states that anti-static material is used to help protect sensitive electronic instruments from static electricity. The ABS construction is also described as high impact resistant for better durability during use and processing.

What warranty period comes with this enclosure?

The listed warranty period for this model is 1 year. For procurement or project documentation, this gives you a clear warranty term tied to the BC-ATM-081303 model.
