Boxco

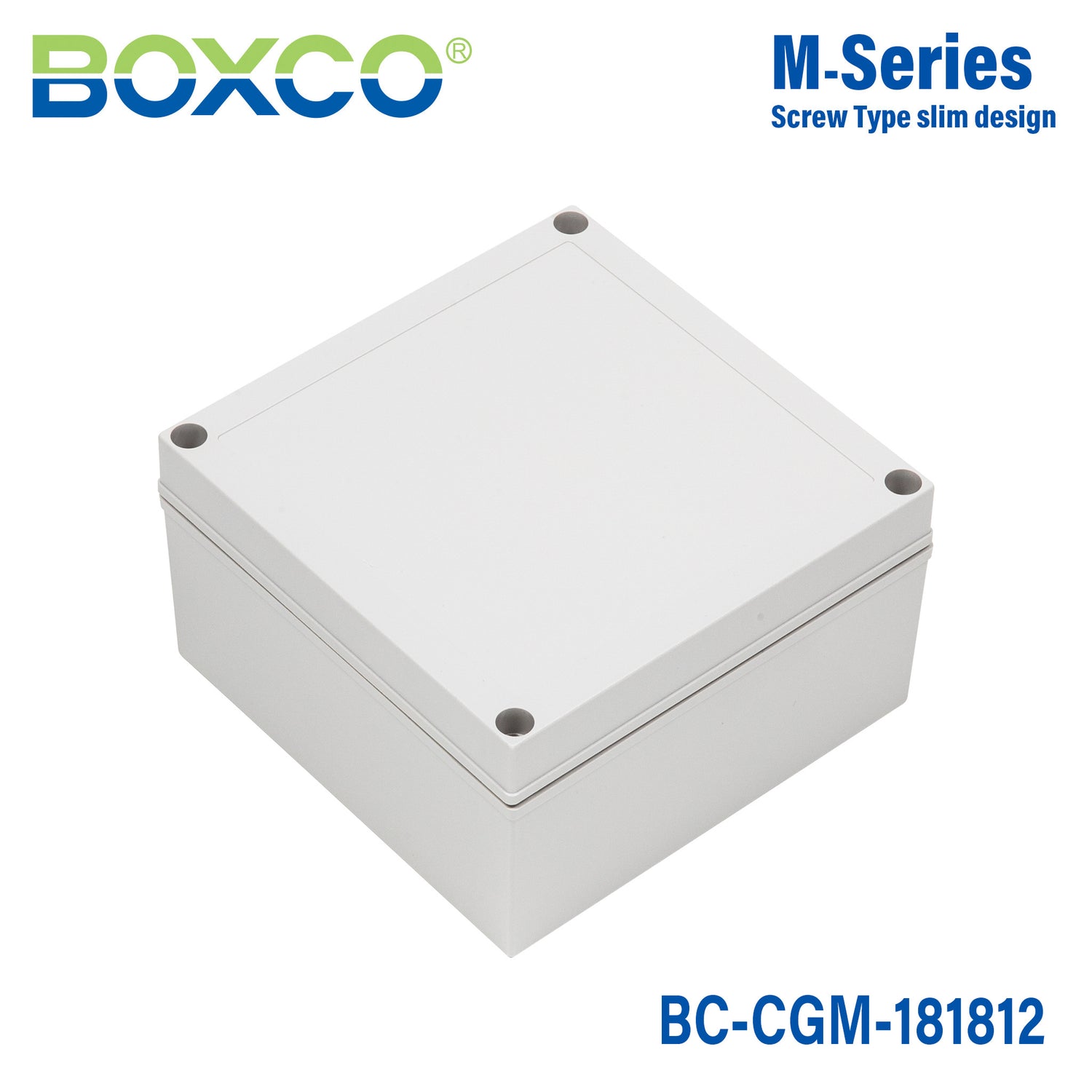

Boxco M-Series 180x180x125mm Plastic Enclosure, IP67, IK08, PC, Grey Cover, Screw Type

SKU BC-CGM-181812
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-CGM-181812 is a 180×180×125 mm Polycarbonate (PC) enclosure with a grey cover from the Boxco M Series.

Features

  • Considering attachment of membrane keypad, this M series waterproof plastic enclosure is designed to make center surface of the cover slightly lower.
  • Our IP67 weatherproof enclosure's screw thread of the base for connecting cover is molded so that it has sufficient strength and not broken when tightening screw.
  • Our M series have recessed cover and base is high so that it has beautiful appearance.

Specifications

BC-CGM-181812Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
180×180×125 mm (7.09×7.09×4.92 in)
Mounting plate dimension M1 × M2
148 × 148 mm

Material

Material
Polycarbonate (PC)
Cover
Grey
Mounting plates
1818 G (Plastic, G type), 1818 M (Steel)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +110℃
Flammability rating (UL 94)
94-V-0, 5VA, HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

Technical drawings

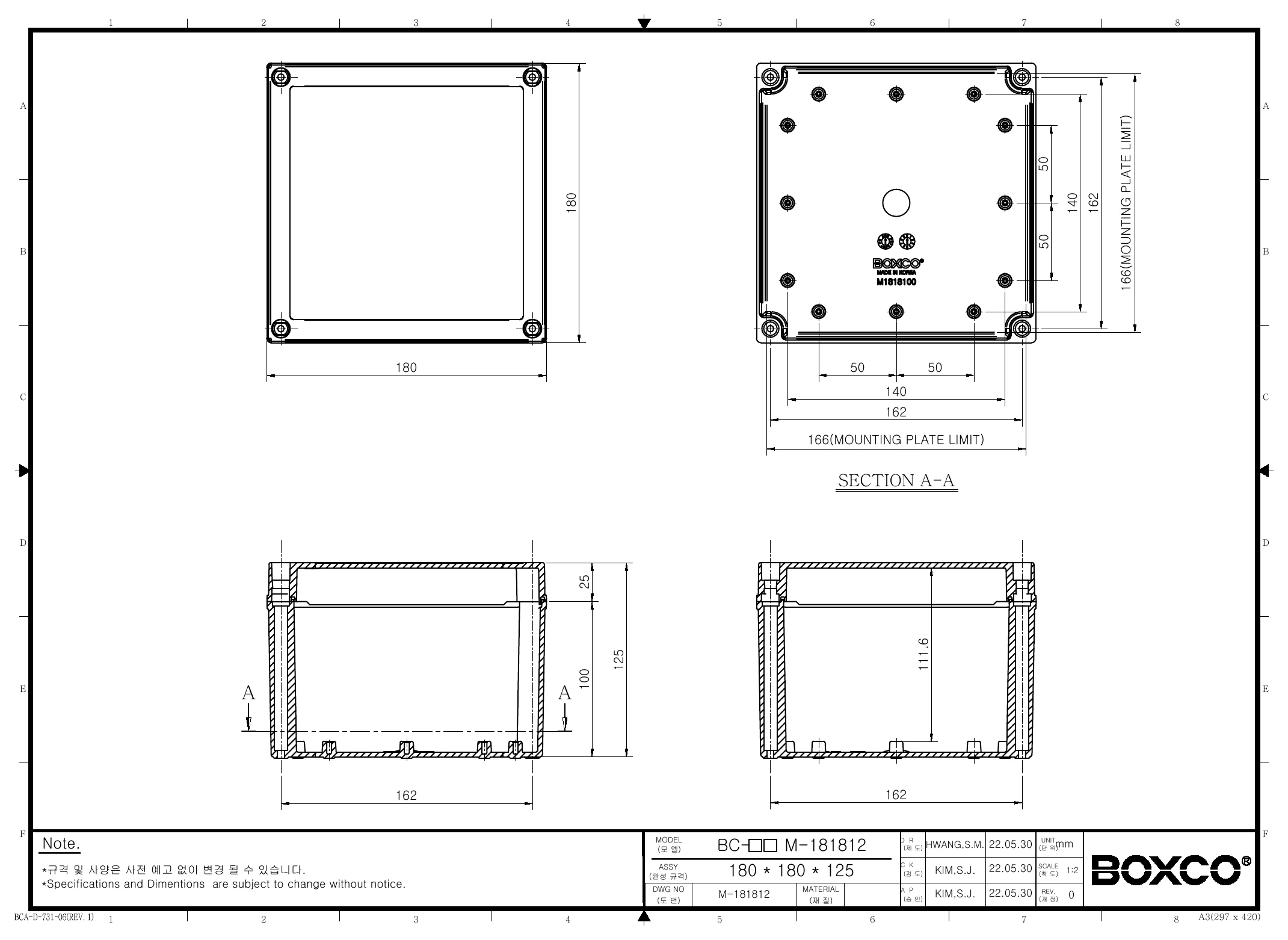

BC-CGM-181812 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What applications is this Boxco M-Series enclosure suited for?

This model is intended for protecting electronic components in industrial and commercial enclosure applications where a durable plastic housing is needed. Its recessed screw-type cover is also noted for use with membrane keypad mounting. The material and construction make it a practical option for equipment that needs impact resistance and outdoor durability.

Is this enclosure suitable for outdoor use?

Yes. The product description states that an ultraviolet stabilizer is added to help protect the enclosure in outdoor usage. Boxco also notes that only minor color change is expected even after long-term use.

What level of environmental and impact protection does this enclosure provide?

This enclosure is rated IP67 and IK08. That means this specific model is designed for strong protection against ingress and for solid impact resistance in demanding environments. The product description also highlights high-impact-resistant material to help prevent breakage during processing.

What are the size and material details for this model?

This enclosure measures 7.09 x 7.09 x 4.92 inches, which is 180 x 180 x 125 mm. It is made from PC material and comes with a grey cover. The listed product weight is 0.9100 kg.

What temperature range can this plastic enclosure handle?

The stated operating temperature range for this model is from -40 degrees C to 110 degrees C. That makes it suitable for applications exposed to both low and elevated temperatures within that range. Buyers should match those limits to the environment of the finished equipment.

What distinguishes this screw-type enclosure from other general-purpose plastic boxes?

This model is specifically described as a screw-type enclosure with a recessed cover. The recessed design is called out for membrane keypad mounting, which can make it a better fit for certain control-interface applications than a plain cover design. It also combines UV-stabilized, anti-static, high-impact-resistant construction with IP67 and IK08 ratings.
