Boxco

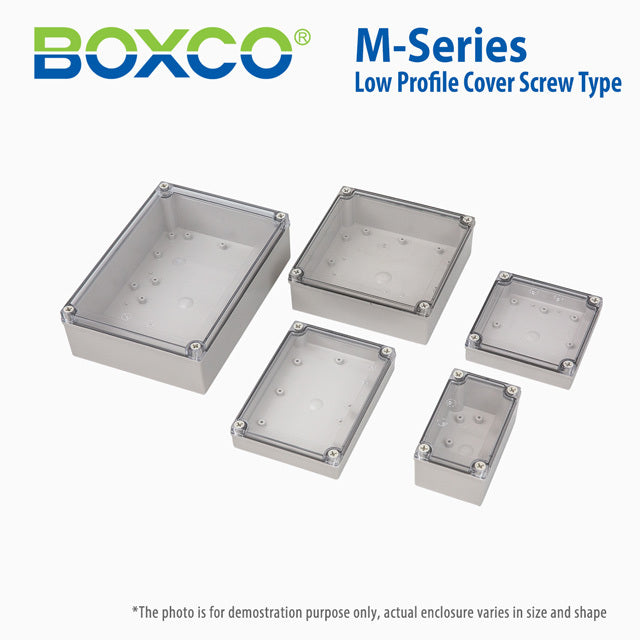

Boxco M-Series 180x180x100mm Plastic Enclosure, IP67, IK08, PC, Transparent Cover, Screw Type

SKU BC-CTM-181810
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-CTM-181810 is a 180×180×100 mm Polycarbonate (PC) enclosure with a transparent cover from the Boxco M Series.

Features

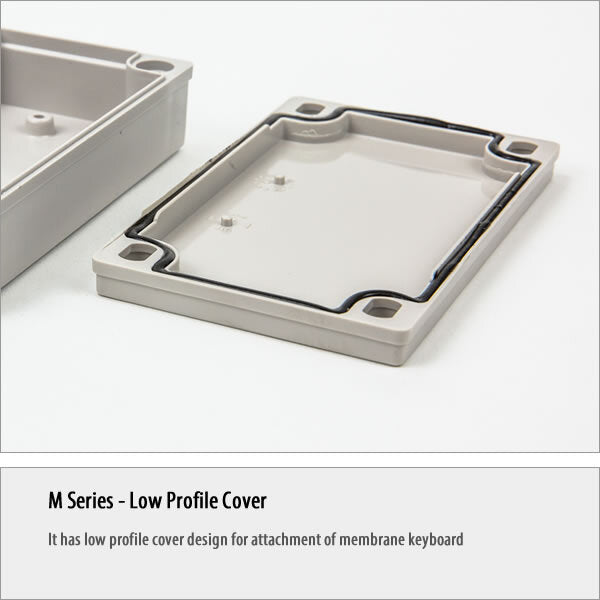

  • Considering attachment of membrane keypad, this M series waterproof plastic enclosure is designed to make center surface of the cover slightly lower.
  • Our IP67 weatherproof enclosure's screw thread of the base for connecting cover is molded so that it has sufficient strength and not broken when tightening screw.
  • Our M series have recessed cover and base is high so that it has beautiful appearance.

Specifications

BC-CTM-181810Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
180×180×100 mm (7.09×7.09×3.94 in)
Mounting plate dimension M1 × M2
148 × 148 mm

Material

Material
Polycarbonate (PC)
Cover
Transparent
Mounting plates
1818 G (Plastic, G type), 1818 M (Steel)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +110℃
Flammability rating (UL 94)
94-V-0, 5VA, HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

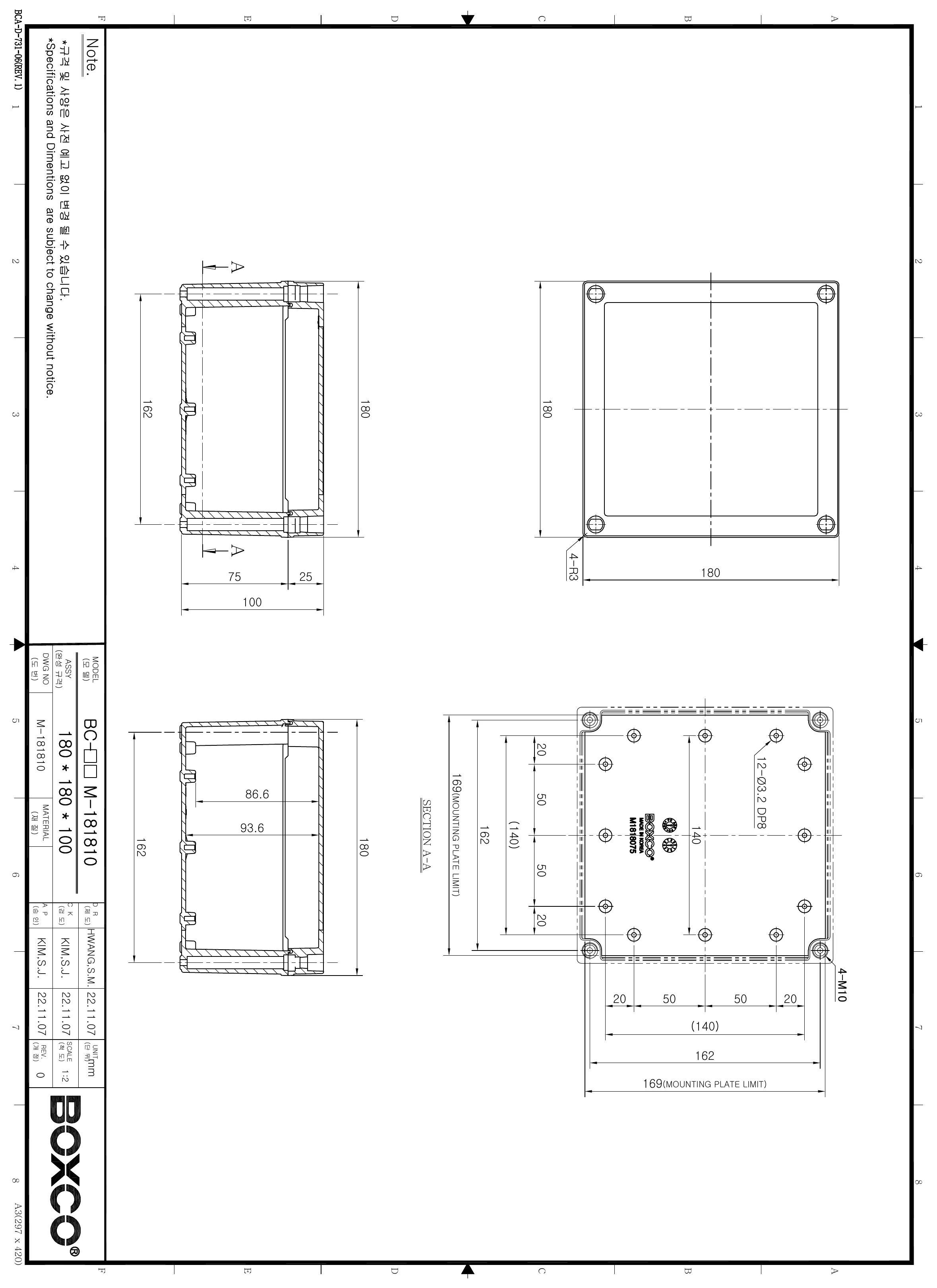

Technical drawings

BC-CTM-181810 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What applications is the Boxco M-Series BC-CTM-181810 plastic enclosure suited for?

This enclosure is suited for protecting electronic components and sensitive instruments in industrial and commercial environments. Its anti-static material, high impact resistance, and transparent cover make it a practical choice where equipment needs protection while still allowing visual inspection.

Is this enclosure suitable for outdoor use?

Yes, this model is designed for outdoor use. The Boxco M-Series includes an ultraviolet stabilizer to help reduce color change and material degradation over long exposure periods.

What level of environmental and impact protection does this enclosure provide?

The BC-CTM-181810 is rated IP67 and IK08. That means it is built for strong protection against dust and water ingress, while also offering solid resistance to external mechanical impact.

What are the main material and cover features of this enclosure?

This model is made from polycarbonate and includes a transparent cover. It is a screw-type enclosure with a recessed cover, which is also noted as being used for mounting a membrane keypad.

What temperature range can this Boxco enclosure handle?

This enclosure is specified for use from -40 degrees C to 110 degrees C. That range makes it appropriate for demanding environments with both low and high operating temperatures.

How large is the BC-CTM-181810 enclosure?

This model measures 7.09 x 7.09 x 3.94 inches, which is 180 x 180 x 100 mm. It weighs 1.36 kg, which can be useful when planning panel layouts or enclosure placement.
