Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Boxco

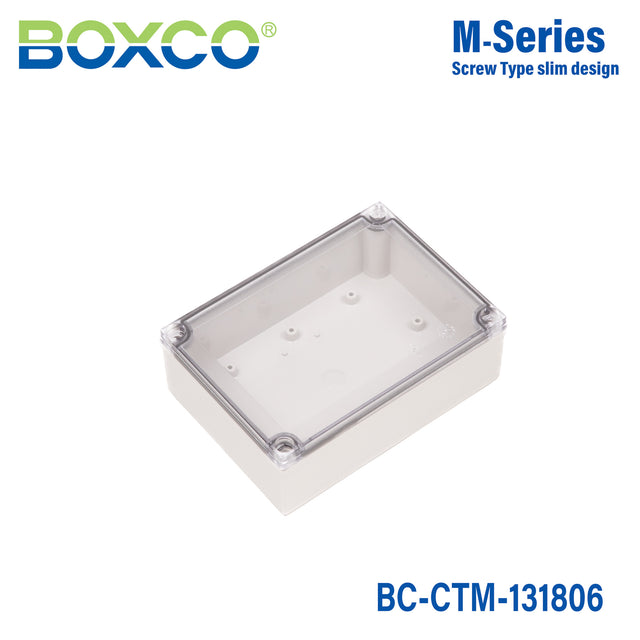

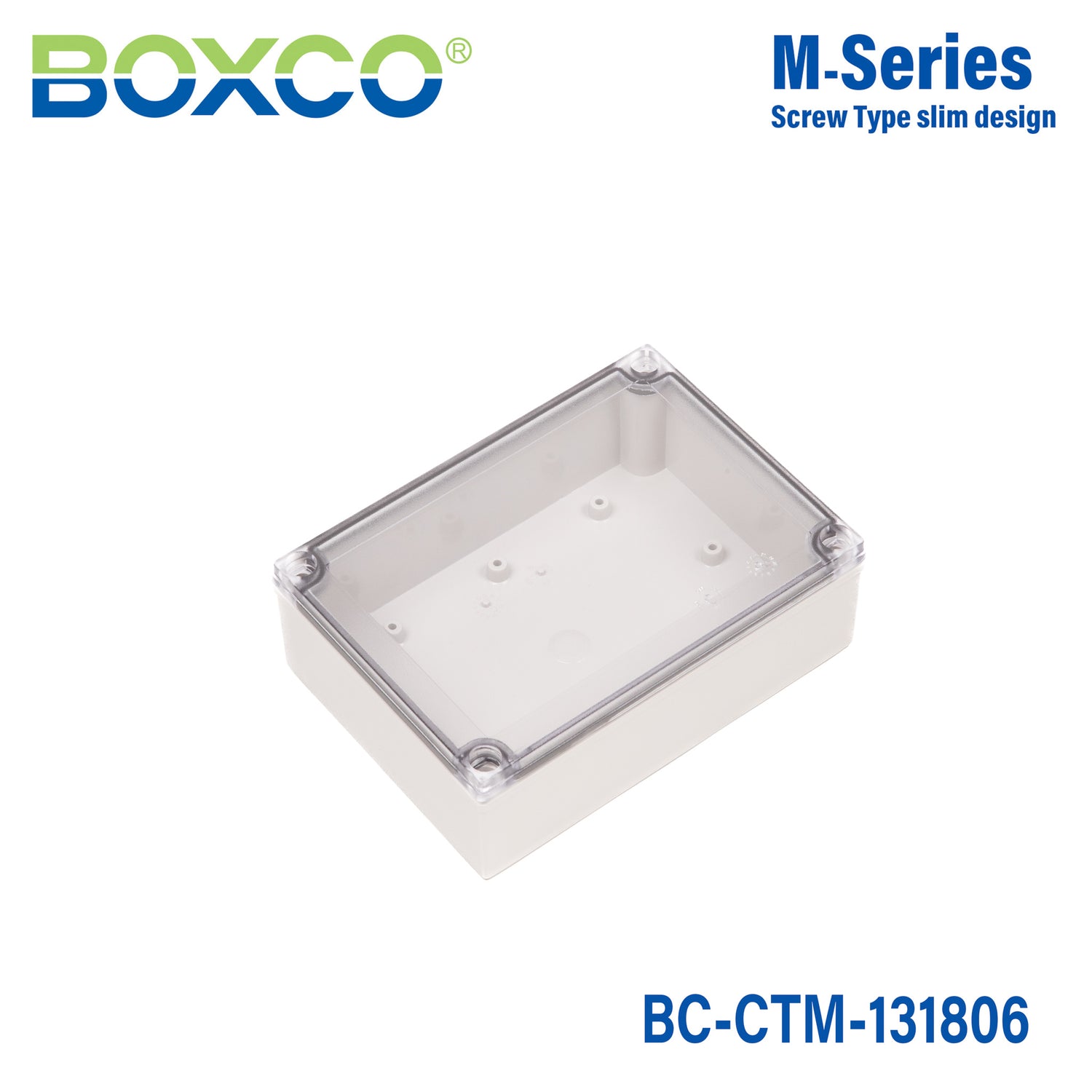

Boxco M-Series 130x180x60mm Plastic Enclosure, IP67, IK08, PC, Transparent Cover, Screw Type

SKU BC-CTM-131806
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-CTM-131806 is a 130×180×60 mm Polycarbonate (PC) enclosure with a transparent cover from the Boxco M Series.

Features

  • Considering attachment of membrane keypad, this M series waterproof plastic enclosure is designed to make center surface of the cover slightly lower.
  • Our IP67 weatherproof enclosure's screw thread of the base for connecting cover is molded so that it has sufficient strength and not broken when tightening screw.
  • Our M series have recessed cover and base is high so that it has beautiful appearance.

Specifications

BC-CTM-131806Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
130×180×60 mm (5.12×7.09×2.36 in)
Mounting plate dimension M1 × M2
100 × 160 mm

Material

Material
Polycarbonate (PC)
Cover
Transparent
Mounting plates
1217 G (Plastic, G type), 1217 P (Plastic, P type), 1318 M (Steel)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +110℃
Flammability rating (UL 94)
94-V-0, 5VA, HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

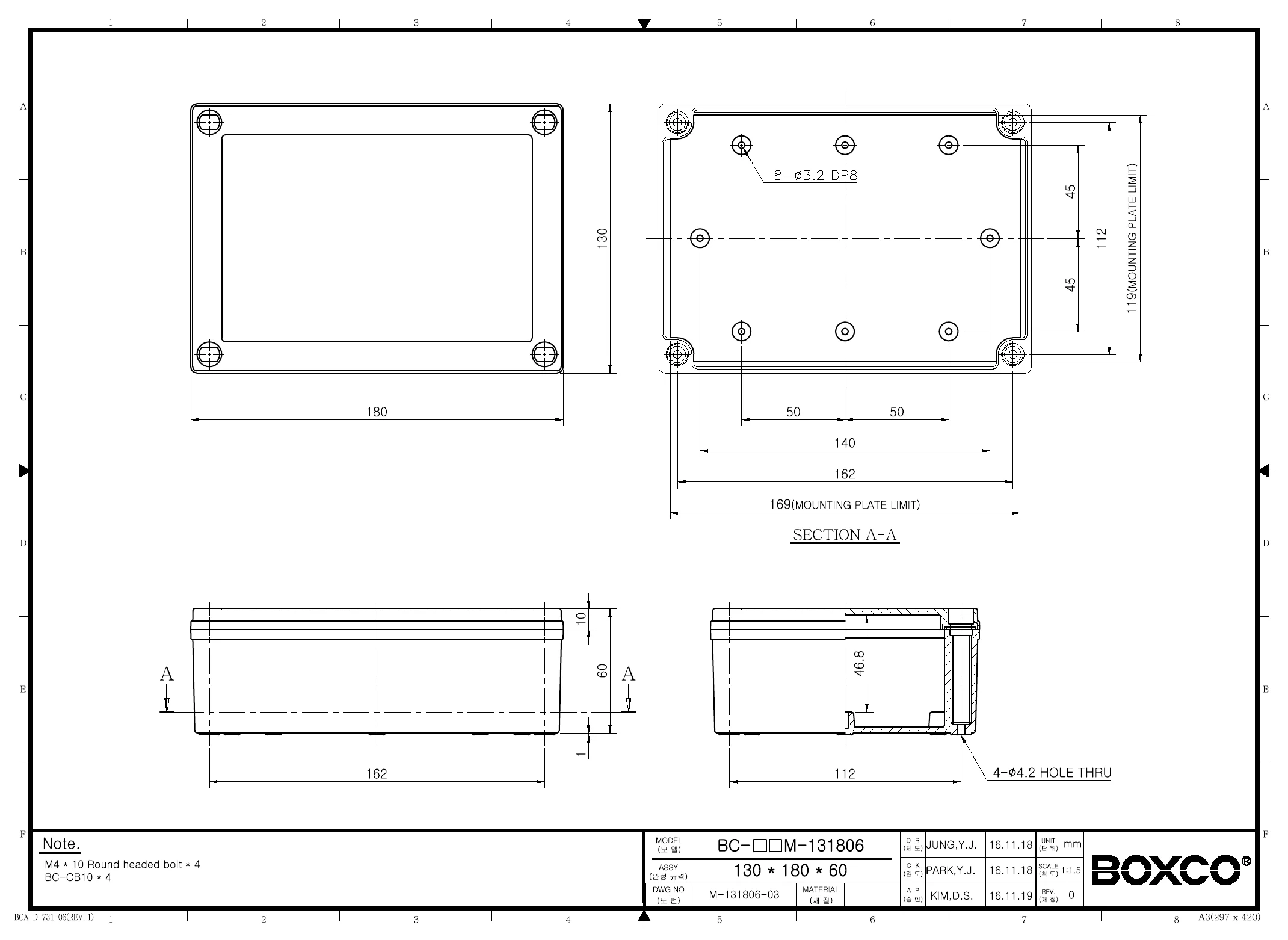

Technical drawings

BC-CTM-131806 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What applications is this Boxco M-Series enclosure best suited for?

This enclosure is suited for protecting electronic components in industrial and commercial environments where a sealed plastic housing is needed. Its recessed transparent cover also makes it a practical choice for applications that use a membrane keypad or require visibility into the enclosure without opening it.

What are the key specifications of this enclosure?

This model measures 5.12 x 7.09 x 2.36 inches (130 x 180 x 60 mm) and is made from polycarbonate (PC) with a transparent screw-type cover. It is rated IP67 for dust and water resistance, IK08 for impact resistance, weighs 0.9100 kg, and has a 1-year warranty.

Is this enclosure suitable for outdoor use?

Yes, the product description states that an ultraviolet stabilizer is added for outdoor usage. It is designed to resist noticeable color change over long-term exposure and also offers IP67 environmental protection for demanding conditions.

What temperature range can this enclosure handle?

This enclosure is specified for use from -40 °C to 110 °C. That wide operating range makes it a fit for many indoor and outdoor industrial applications where temperature extremes are a concern.

How does the transparent screw-type cover affect product selection?

The transparent cover helps when visual inspection of internal components is important without opening the enclosure. The screw-type recessed cover also supports applications using a membrane keypad, which can make this model a better fit than opaque or non-recessed alternatives.

Is this enclosure compatible with sensitive electronic equipment?

Yes, the description states that anti-static material is used to help protect sensitive electronic instruments from static electricity. It is also made from high impact resistant material, which adds mechanical durability for demanding use cases.
