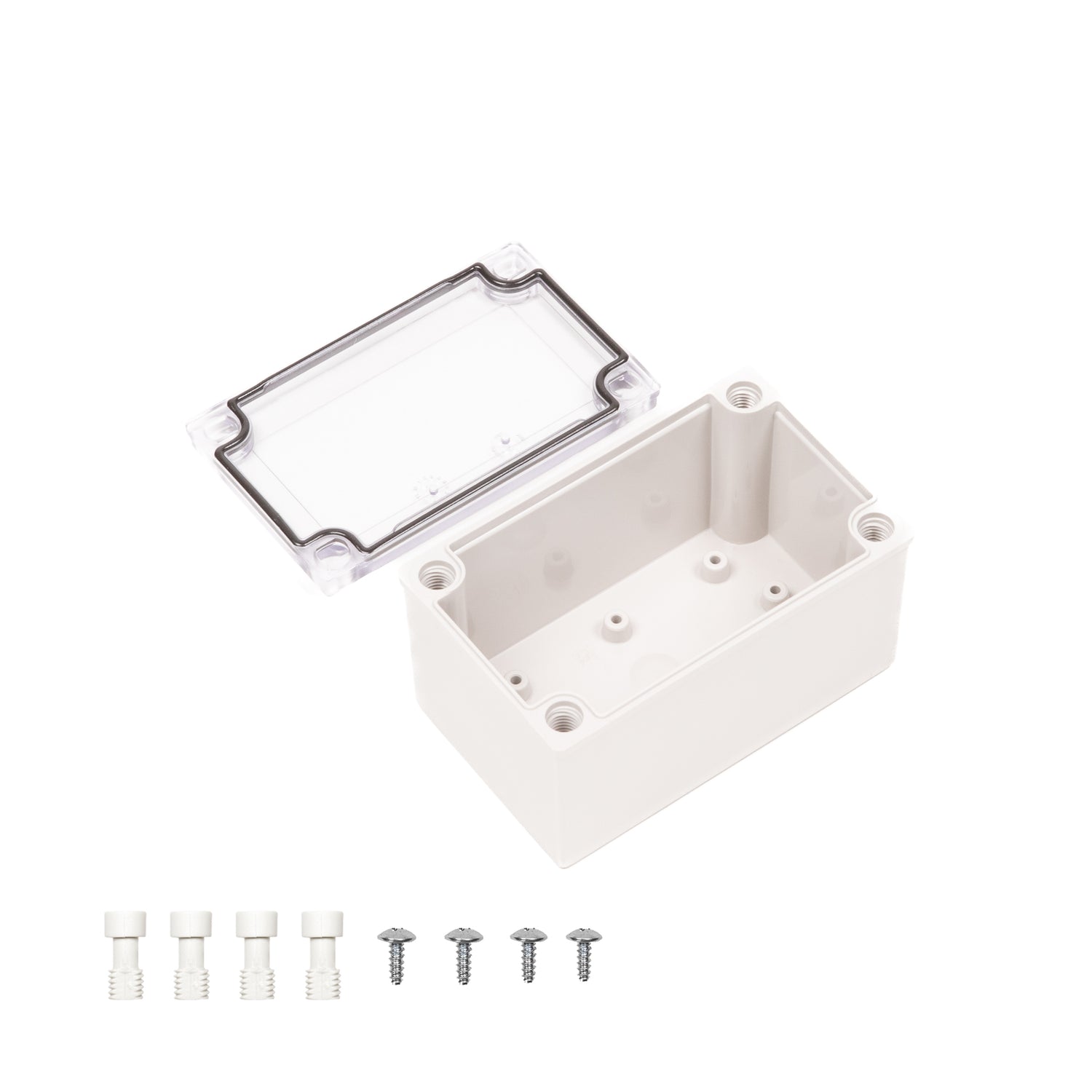

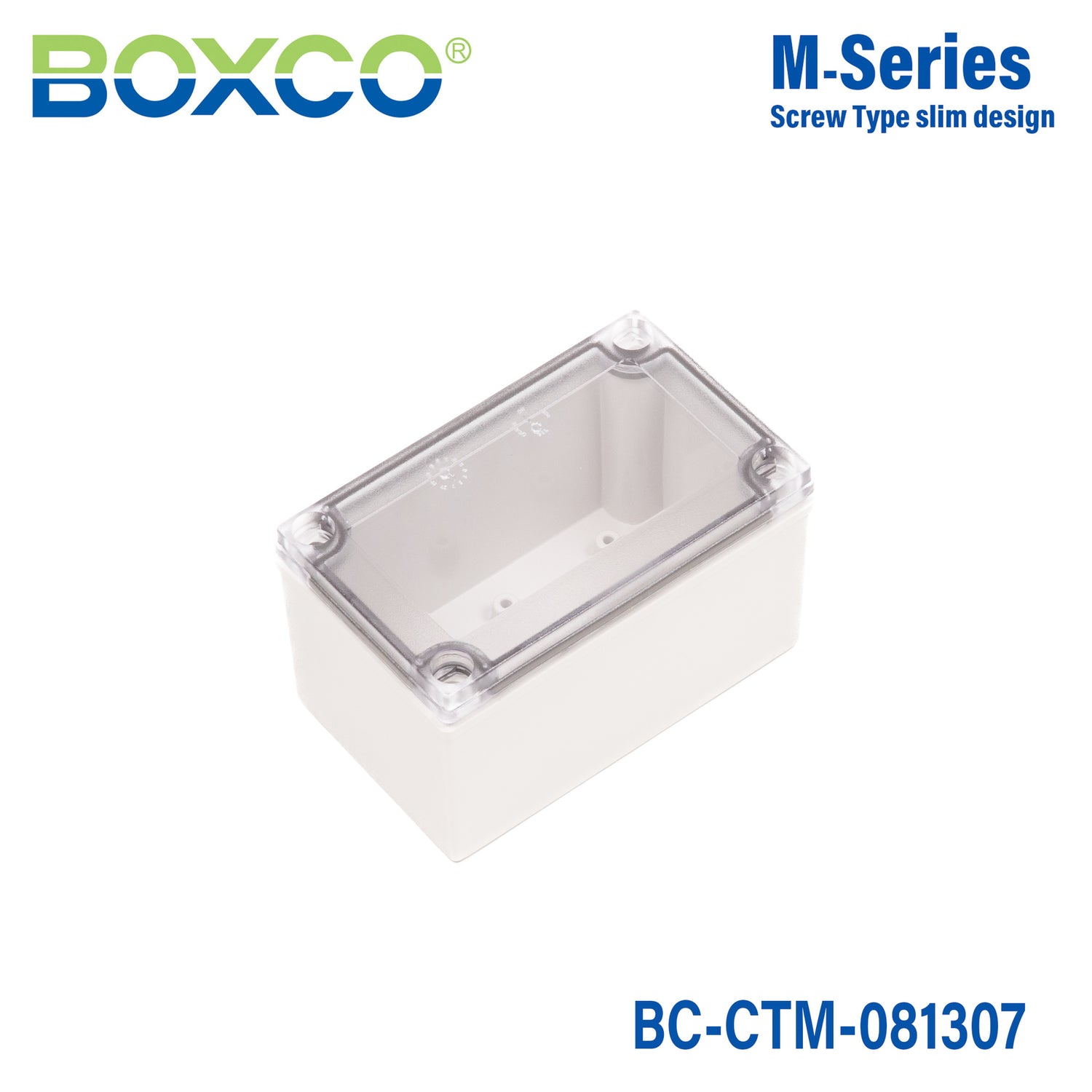

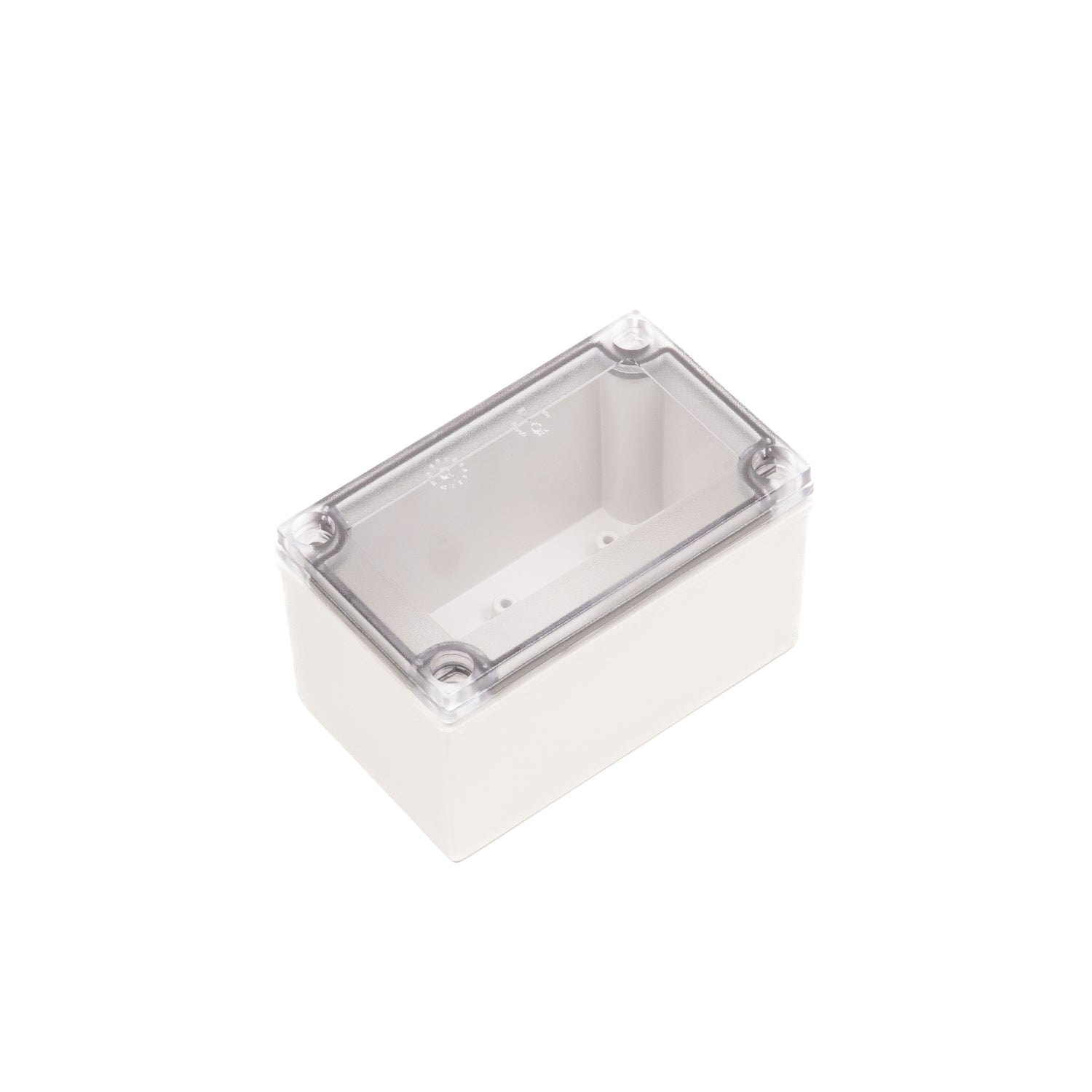

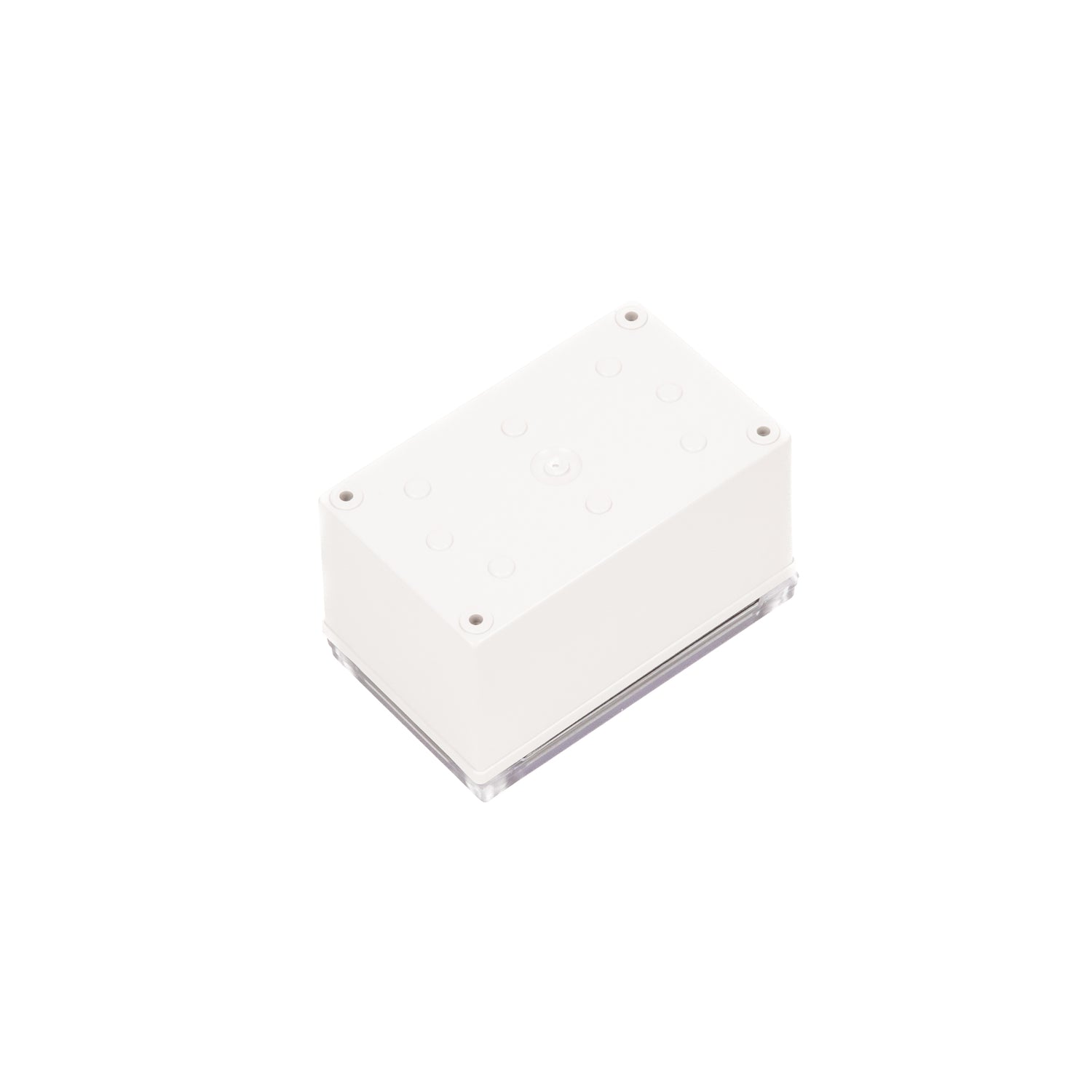

Boxco M-Series 80x130x75mm Plastic Enclosure, IP67, IK08, PC, Transparent Cover, Screw Type

SKU BC-CTM-081307
Log in to see price Trade pricing & online ordering for account holders

Request a quote for one or many products — we'll reply with pricing and availability.

Available to order
|

Overview

BC-CTM-081307 is a 80×130×75 mm Polycarbonate (PC) enclosure with a transparent cover from the Boxco M Series.

Features

  • Considering attachment of membrane keypad, this M series waterproof plastic enclosure is designed to make center surface of the cover slightly lower.
  • Our IP67 weatherproof enclosure's screw thread of the base for connecting cover is molded so that it has sufficient strength and not broken when tightening screw.
  • Our M series have recessed cover and base is high so that it has beautiful appearance.

Specifications

BC-CTM-081307Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
80×130×75 mm (3.15×5.12×2.95 in)
Mounting plate dimension M1 × M2
48 × 98 mm

Material

Material
Polycarbonate (PC)
Cover
Transparent
Mounting plates
0813 G (Plastic, G type), 0813 P (Plastic, P type), 0813 M (Steel)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +110℃
Flammability rating (UL 94)
94-V-0, 5VA, HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

Technical drawings

BC-CTM-081307 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What are the key specifications of the Boxco M-Series BC-CTM-081307 enclosure?

This model measures 3.15 x 5.12 x 2.95 inches (80 x 130 x 75 mm) and weighs 0.4500 kg. It is a polycarbonate (PC) plastic enclosure with a transparent cover, screw-type closure, IP67 protection, and IK08 impact resistance.

Is this enclosure suitable for outdoor environments?

Yes, this Boxco M-Series enclosure is described with an ultraviolet stabilizer added for outdoor usage. The product description also notes that only minor color changes are expected even after long-term use outdoors.

What temperature range can this enclosure handle?

The listed operating temperature range for this model is -40 °C to 110 °C. That makes it suitable for demanding environments where both low and high temperatures may be a concern.

What applications is the transparent cover and recessed screw-type design intended for?

This model features a recessed cover and is specifically noted as being used for mounting a membrane keypad. The transparent cover can also help when visual access to indicators or internal components is needed without opening the enclosure.

How protective is this enclosure against dust, water, and impact?

This enclosure is rated IP67, which indicates strong protection against dust ingress and temporary water exposure. It also carries an IK08 rating, showing resistance to external mechanical impact for tougher industrial or commercial environments.

Is this enclosure a good choice for sensitive electronic equipment?

Yes, the product description states that anti-static material is used to help protect sensitive electronic instruments from static electricity. It is also made from high impact resistant material to reduce breakage risk during processing and handling.
