Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Boxco

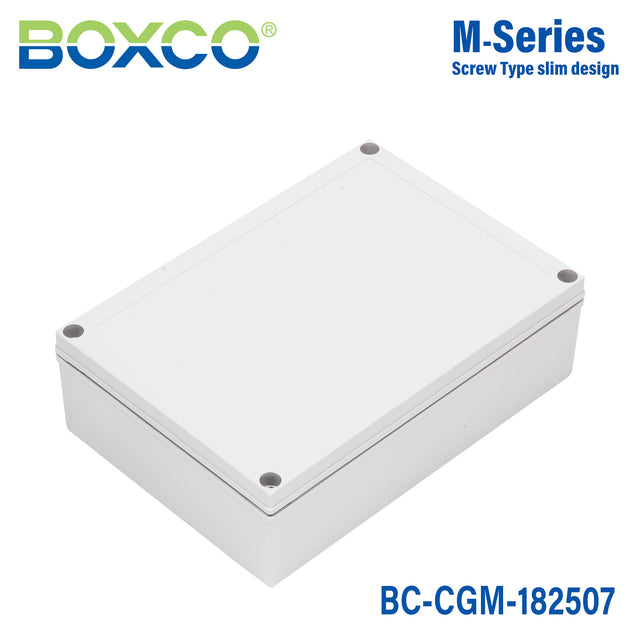

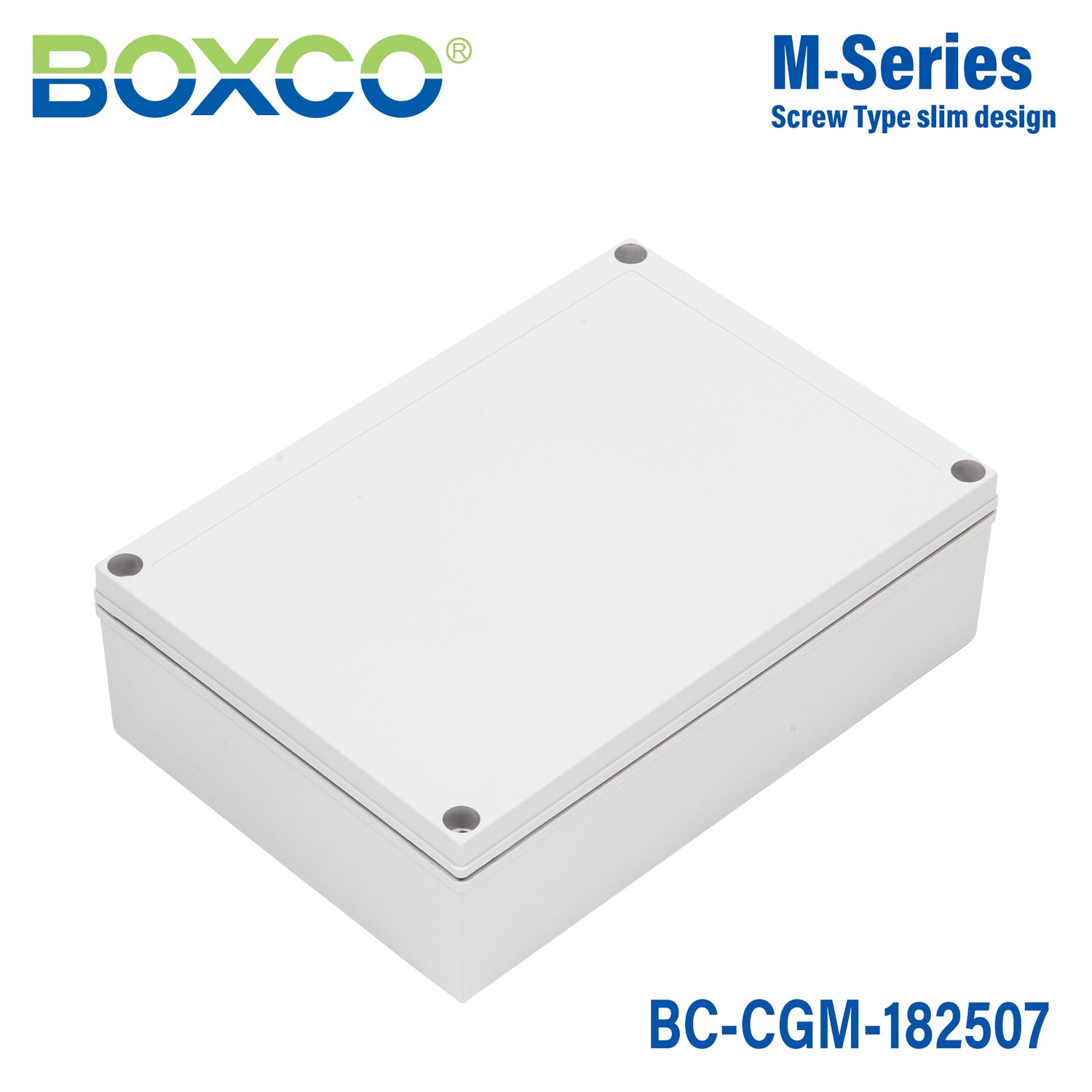

Boxco M-Series 180x255x75mm Plastic Enclosure, IP67, IK08, PC, Grey Cover, Screw Type

SKU BC-CGM-182507
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Overview

BC-CGM-182507 is a 180×255×75 mm Polycarbonate (PC) enclosure with a grey cover from the Boxco M Series.

Features

  • Considering attachment of membrane keypad, this M series waterproof plastic enclosure is designed to make center surface of the cover slightly lower.
  • Our IP67 weatherproof enclosure's screw thread of the base for connecting cover is molded so that it has sufficient strength and not broken when tightening screw.
  • Our M series have recessed cover and base is high so that it has beautiful appearance.

Specifications

BC-CGM-182507Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
180×255×75 mm (7.09×10.04×2.95 in)
Mounting plate dimension M1 × M2
148 × 223 mm

Material

Material
Polycarbonate (PC)
Cover
Grey
Mounting plates
1825 G (Plastic, G type), 1825 M (Steel)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +110℃
Flammability rating (UL 94)
94-V-0, 5VA, HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

Technical drawings

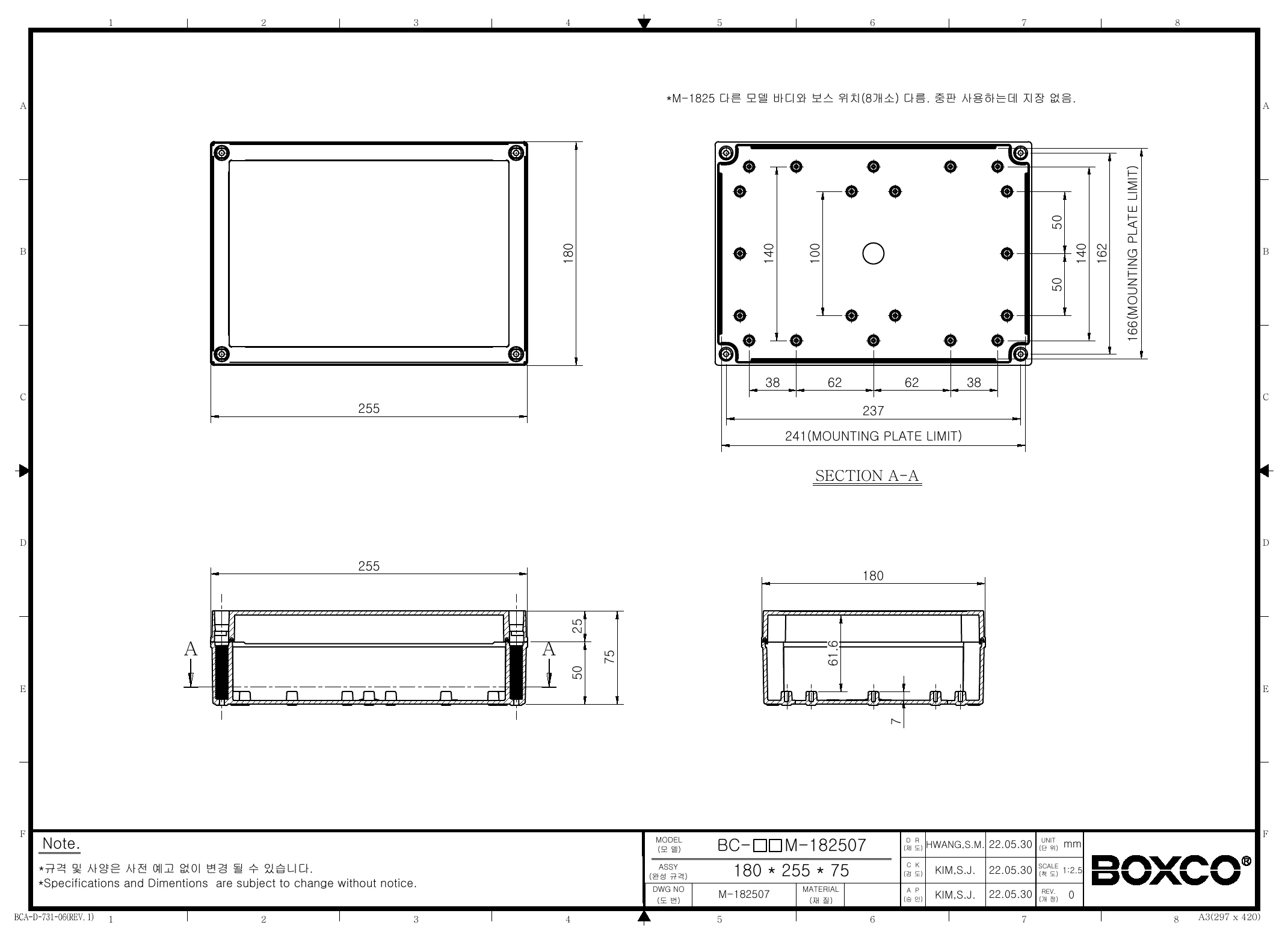

BC-CGM-182507 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What are the main specifications of the Boxco M-Series BC-CGM-182507 enclosure?

This model measures 7.09 x 10.04 x 2.95 inches (180 x 255 x 75 mm) and is made from polycarbonate (PC) with a grey cover. It is rated IP67 for dust and water protection and IK08 for impact resistance. The enclosure weighs 0.9100 kg and uses a screw-type recessed cover design.

Is this enclosure suitable for outdoor environments?

Yes, this Boxco M-Series enclosure is described as having an ultraviolet stabilizer added for outdoor usage. The product description states that only minor color changes are expected even after long-term use. Its IP67 rating also supports use in demanding environmental conditions.

What kinds of applications is this screw-cover enclosure intended for?

This model is suited for protecting electronics and components that need a durable non-metallic enclosure with strong environmental protection. The recessed screw-type cover is specifically noted as being used for mounting a membrane keypad. Its anti-static material also makes it relevant for applications involving sensitive electronic instruments.

What temperature range can this enclosure handle?

The listed operating temperature range for this model is -40 °C to 110 °C. That range makes it suitable for applications exposed to both low and high temperatures. Buyers should still confirm the full system's requirements, not just the enclosure rating.

How does the polycarbonate construction benefit this enclosure?

The enclosure is made from polycarbonate, which the product description identifies as a high impact resistant material. It is described as strong against external impact and resistant to breakage during hole and press processing. The enclosure also uses anti-static material to help protect sensitive electronic instruments from static electricity.

Does this enclosure include any features that support keypad-style interfaces?

Yes, the product description specifically states that the screw type with recessed cover is used for mounting a membrane keypad. That makes this model a practical option for control-interface enclosures where a flush or protected front surface is needed. Buyers looking for that style of cover design should find this model aligned with that requirement.

What warranty period is listed for this enclosure?

The listed warranty period for this model is 1 year. That warranty applies to the BC-CGM-182507 product as provided in the product data. For coverage details or claim terms, buyers should confirm the seller's warranty policy.
