Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Boxco

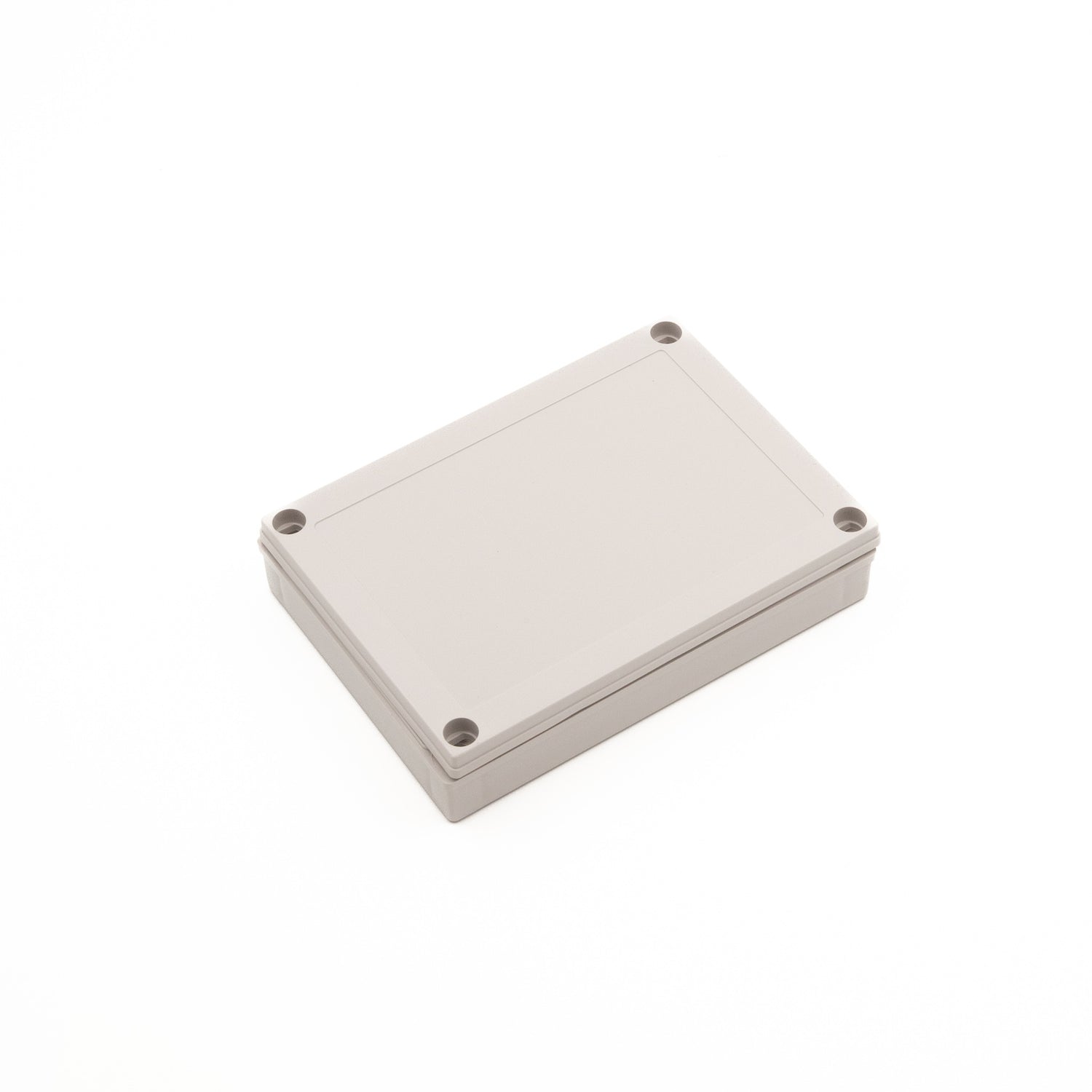

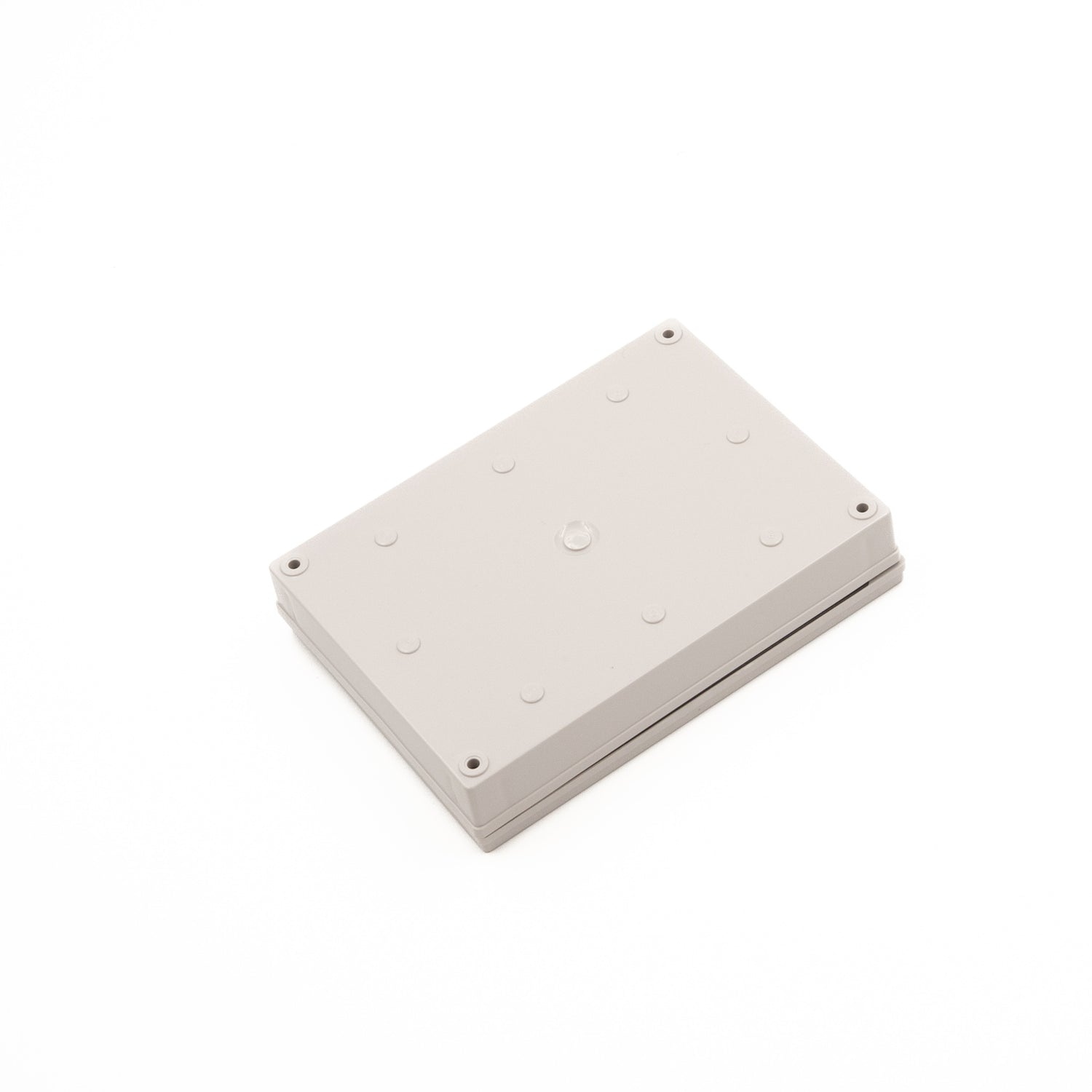

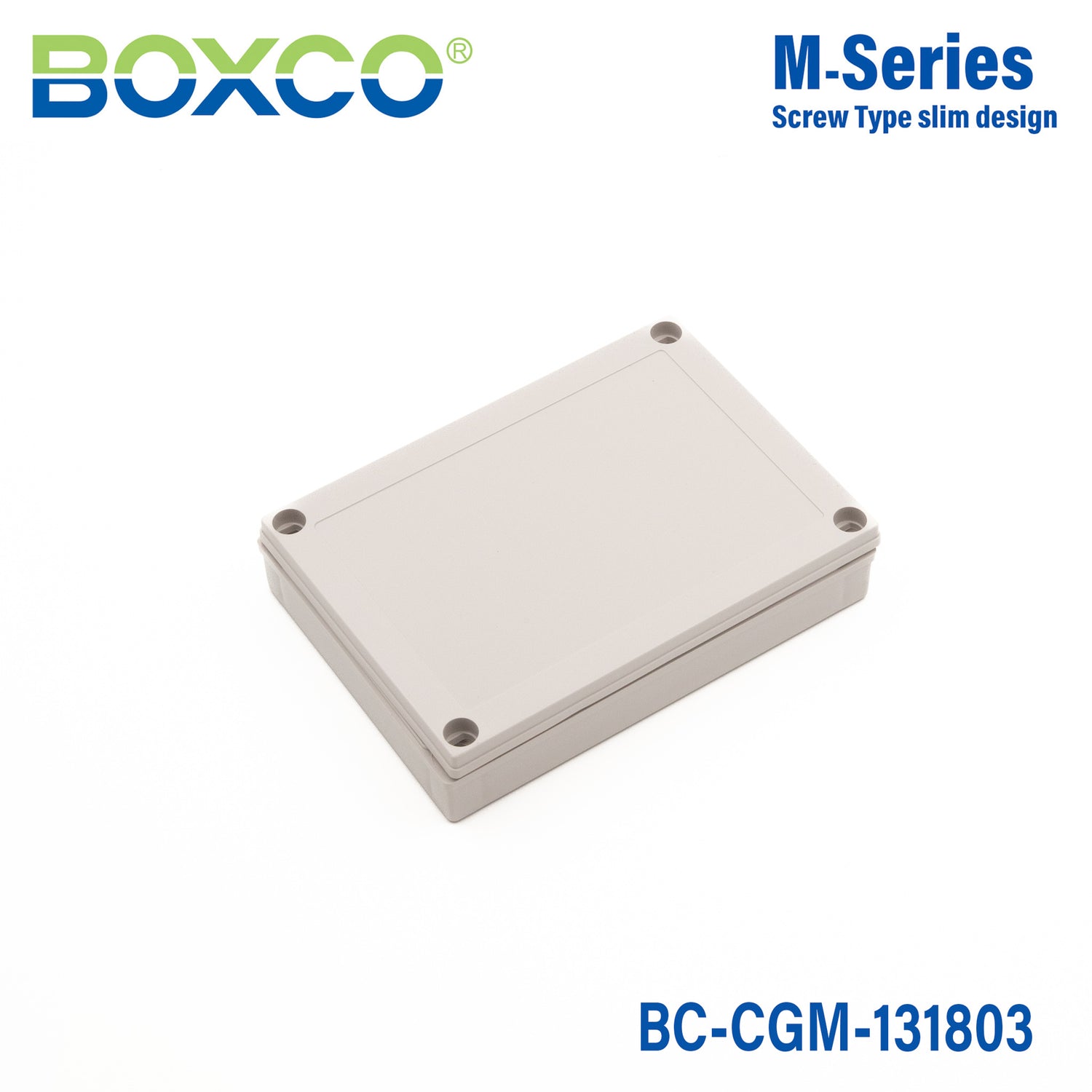

Boxco M-Series 130x180x35mm Plastic Enclosure, IP67, IK08, PC, Grey Cover, Screw Type

SKU BC-CGM-131803
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

BC-CGM-131803 is a 130×180×35 mm Polycarbonate (PC) enclosure with a grey cover from the Boxco M Series.

Features

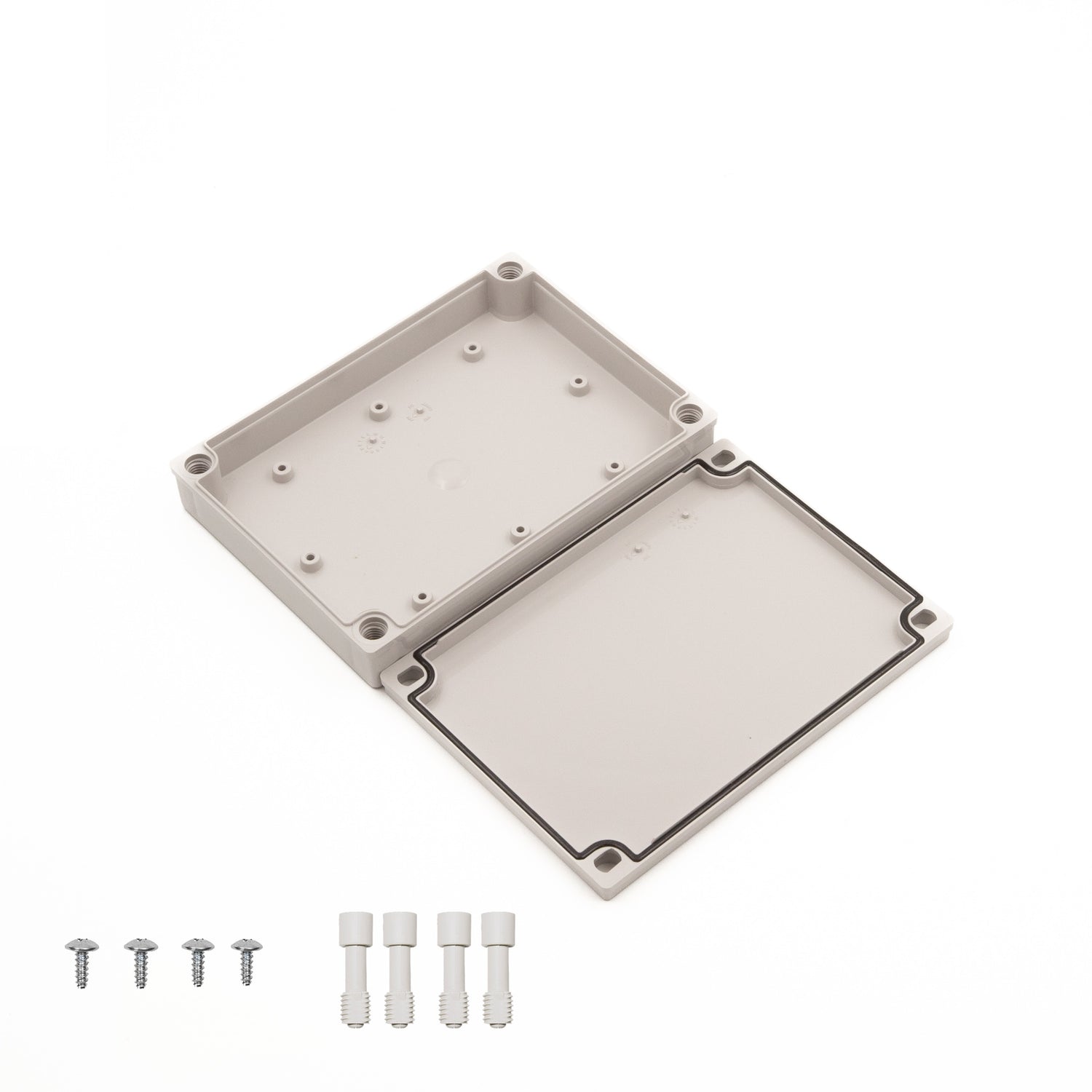

  • Considering attachment of membrane keypad, this M series waterproof plastic enclosure is designed to make center surface of the cover slightly lower.
  • Our IP67 weatherproof enclosure's screw thread of the base for connecting cover is molded so that it has sufficient strength and not broken when tightening screw.
  • Our M series have recessed cover and base is high so that it has beautiful appearance.

Specifications

BC-CGM-131803Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
130×180×35 mm (5.12×7.09×1.38 in)
Mounting plate dimension M1 × M2
100 × 160 mm

Material

Material
Polycarbonate (PC)
Cover
Grey
Mounting plates
1217 G (Plastic, G type), 1217 P (Plastic, P type), 1318 M (Steel)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +110℃
Flammability rating (UL 94)
94-V-0, 5VA, HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

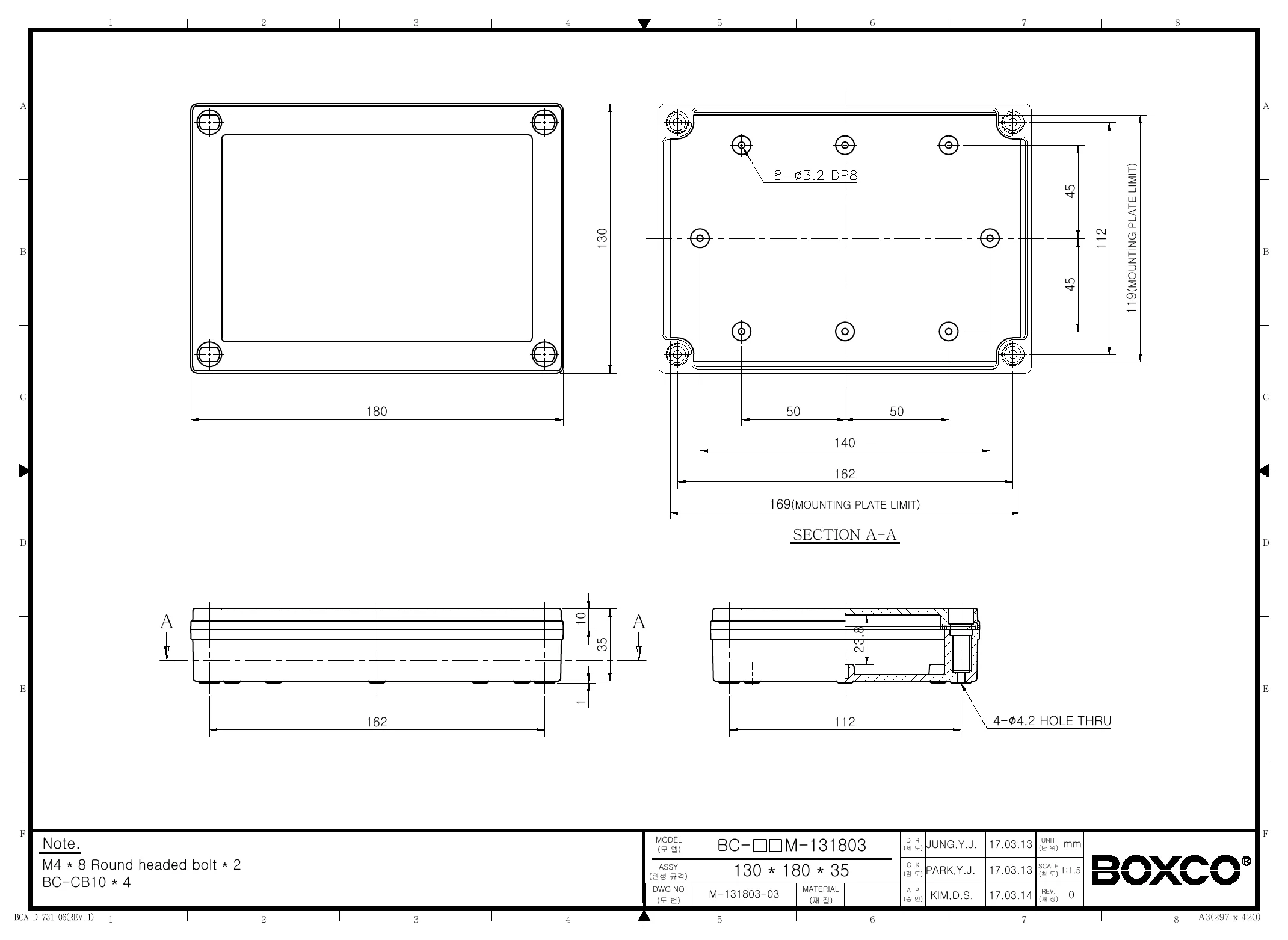

Technical drawings

BC-CGM-131803 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What are the main specifications of the Boxco M-Series BC-CGM-131803 enclosure?

This model is a plastic screw-type enclosure with a grey cover and overall dimensions of 5.12 x 7.09 x 1.38 inches (130 x 180 x 35 mm). It is rated IP67 for dust and water protection and IK08 for impact resistance. The enclosure weighs 0.9100 kg and is part of the Boxco M-Series.

Is the BC-CGM-131803 suitable for outdoor environments?

Yes. The product description states that an ultraviolet stabilizer is added to help protect the enclosure for outdoor usage. It is also designed to resist noticeable color change over long-term use and carries an IP67 rating for protection against dust and water ingress.

What temperature range can this enclosure handle?

The BC-CGM-131803 is specified for use from -40 °C up to 110 °C. That wide operating range makes it suitable for demanding environments where both low and high temperatures may be present. Buyers should confirm the full system is rated for the same range.

What applications is this screw-type enclosure designed for?

This enclosure is intended for protecting sensitive electronic equipment in a durable plastic housing. The recessed cover design is noted as being used for mounting a membrane keypad. Its anti-static material also makes it relevant for applications involving sensitive electronic instruments.

How does this model differ from a general-purpose plastic enclosure?

This Boxco M-Series model combines several protective features that help it stand out, including IP67 sealing, IK08 impact resistance, UV-stabilized material for outdoor use, and anti-static material for sensitive electronics. It also uses a screw-type recessed cover rather than a simpler open or snap-style design. Those traits make it better suited for more demanding industrial and commercial enclosure needs.

Is this enclosure a good fit for sensitive electronics?

Yes. The description specifically states that anti-static material is used to help protect sensitive electronic instruments from static electricity. In addition, the housing is made from high impact resistant material to help resist external impact and reduce breakage during processing.
