Boxco

Boxco M-Series 80x130x35mm Plastic Enclosure, IP67, IK08, PC, Transparent Cover, Screw Type

SKU BC-CTM-081303
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

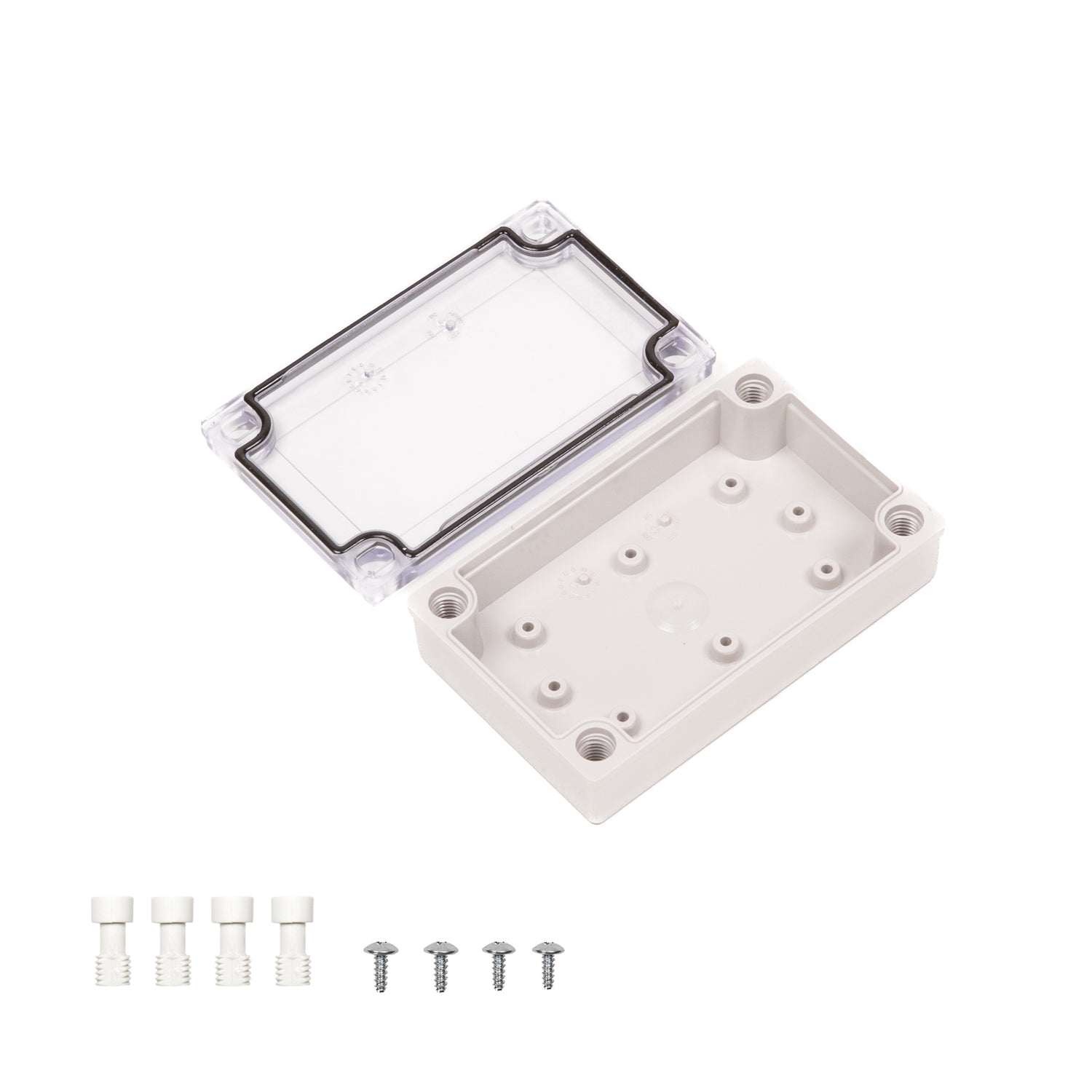

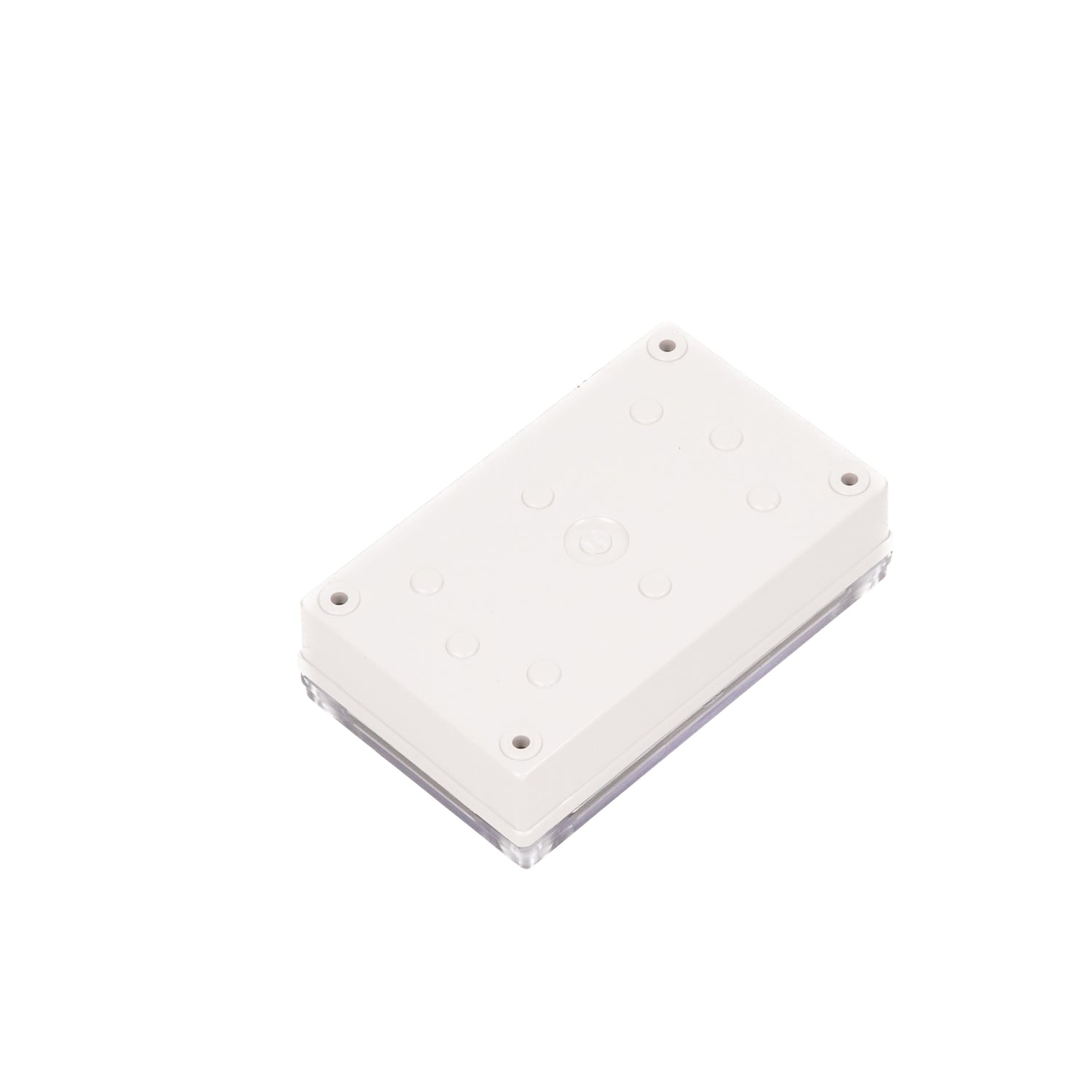

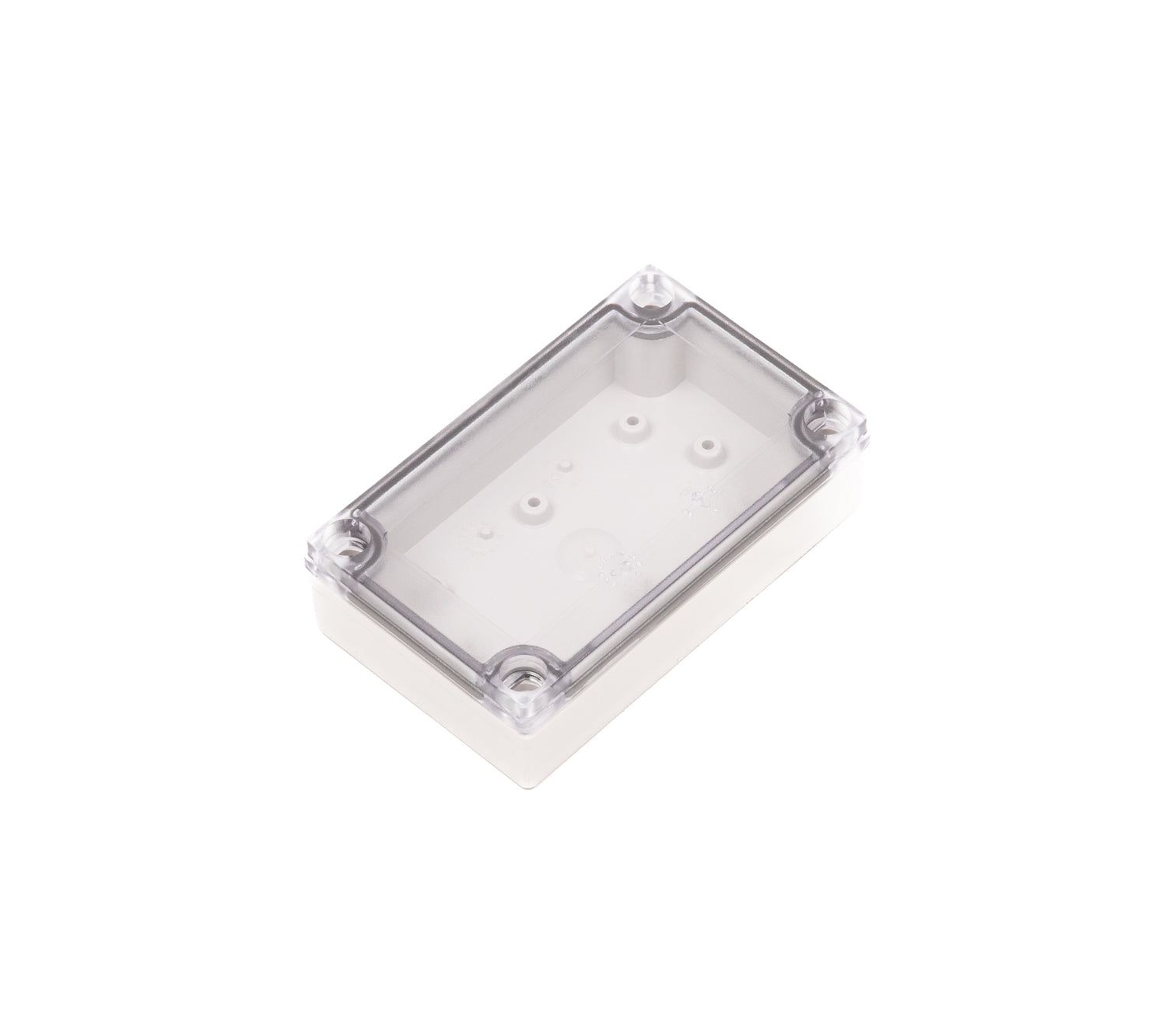

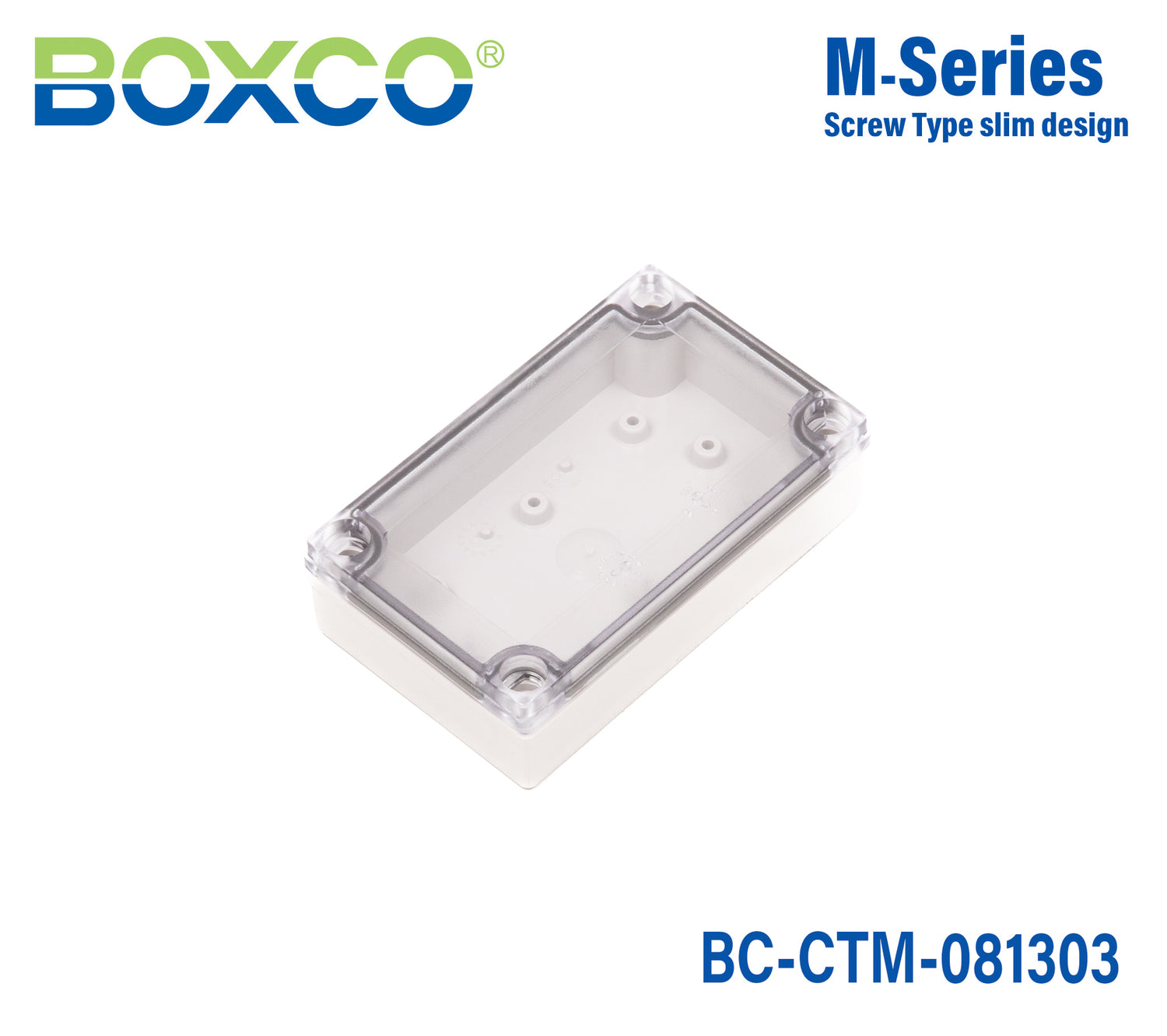

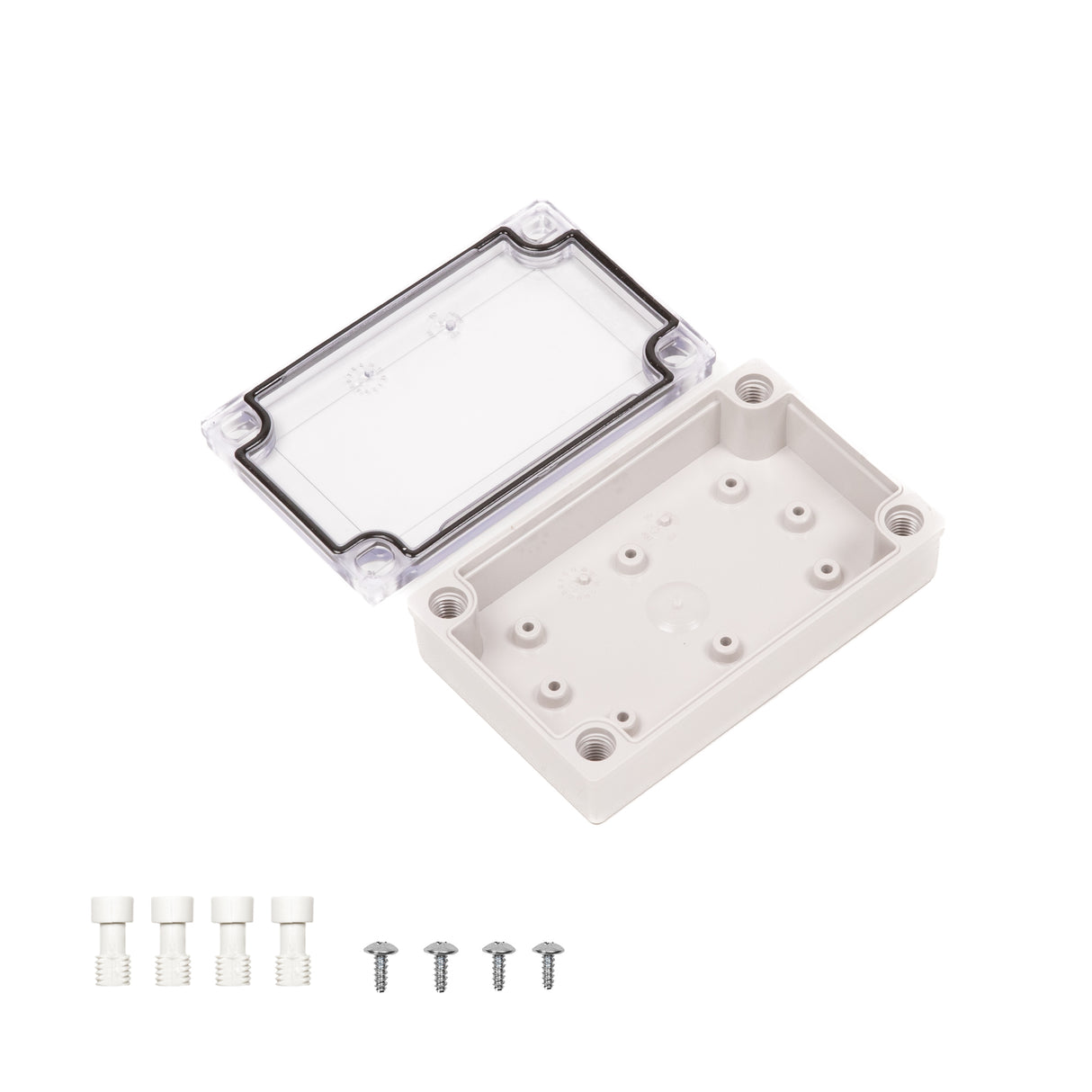

BC-CTM-081303 is a 80×130×35 mm Polycarbonate (PC) enclosure with a transparent cover from the Boxco M Series.

Features

  • Considering attachment of membrane keypad, this M series waterproof plastic enclosure is designed to make center surface of the cover slightly lower.
  • Our IP67 weatherproof enclosure's screw thread of the base for connecting cover is molded so that it has sufficient strength and not broken when tightening screw.
  • Our M series have recessed cover and base is high so that it has beautiful appearance.

Specifications

BC-CTM-081303Specifications from the official datasheetDownload datasheet PDF

Dimensions

Size W × L × H (cover included)
80×130×35 mm (3.15×5.12×1.38 in)
Mounting plate dimension M1 × M2
48 × 98 mm

Material

Material
Polycarbonate (PC)
Cover
Transparent
Mounting plates
0813 G (Plastic, G type), 0813 P (Plastic, P type), 0813 M (Steel)

Protection & environment

IP rating
IP66/67
IK rating
IK08
Operating temperature
-40 ~ +110℃
Flammability rating (UL 94)
94-V-0, 5VA, HB
Test conditions and notes1
  1. Dimensions and specifications are subject to change without notice.

Technical drawings

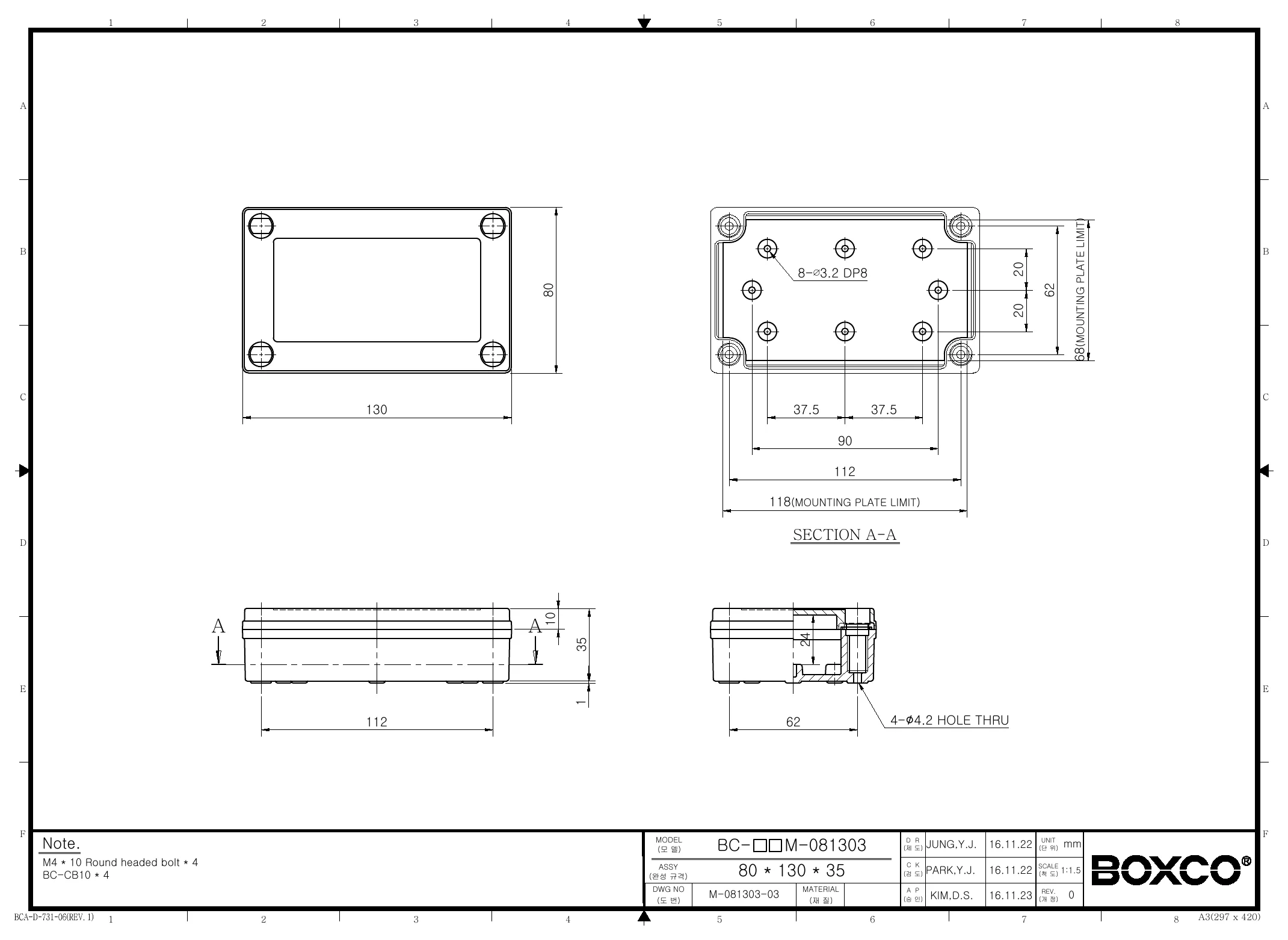

BC-CTM-081303 Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What are the dimensions of the Boxco M-Series BC-CTM-081303 enclosure?

This enclosure measures 3.15 x 5.12 x 1.38 inches, which corresponds to 80 x 130 x 35 mm. Its compact rectangular size is suited for protecting small electronic and control components inside a sealed housing.

What material is used for this enclosure and cover?

The BC-CTM-081303 is made from polycarbonate (PC) and includes a transparent cover. The product description also notes anti-static material and high impact resistance to help protect sensitive equipment and resist breakage during processing.

Is this enclosure suitable for outdoor or washdown environments?

This model is rated IP67, which means it is built to resist dust ingress and temporary water exposure. The M-Series description also states that an ultraviolet stabilizer is added for outdoor usage, helping reduce color change over time.

How durable is this plastic enclosure against impact?

This enclosure carries an IK08 impact rating, indicating a higher level of resistance to mechanical impact than unrated plastic housings. Boxco also describes the material as high impact resistant for improved durability in demanding environments.

What temperature range can this enclosure handle?

The specified operating temperature range for this model is -40 °C to 110 °C. That makes it appropriate for applications exposed to both low ambient temperatures and elevated heat conditions within the product's stated limits.

What kinds of applications is this screw-type enclosure designed for?

This M-Series model is a screw-type enclosure with a recessed cover and is described as being used for mounting a membrane keypad. It is intended for protecting enclosed electronics where a sealed plastic housing and visible cover are beneficial.
